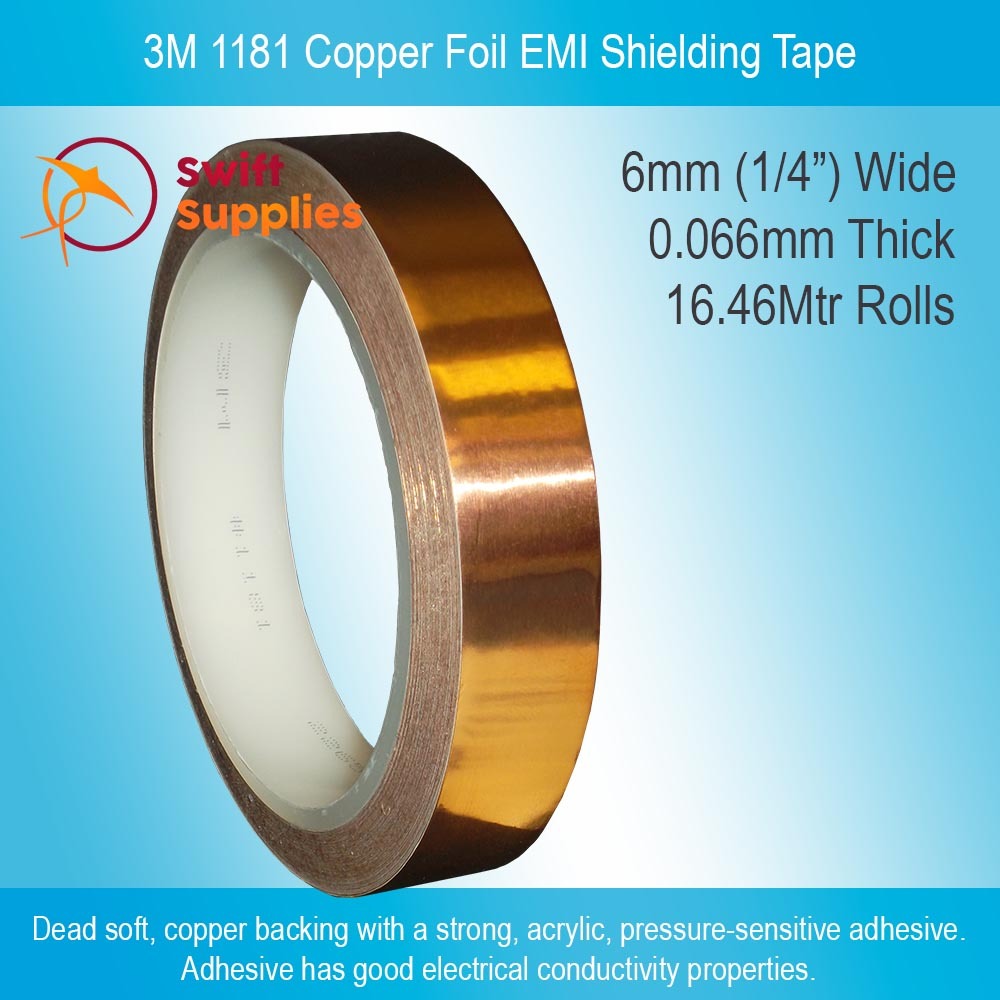

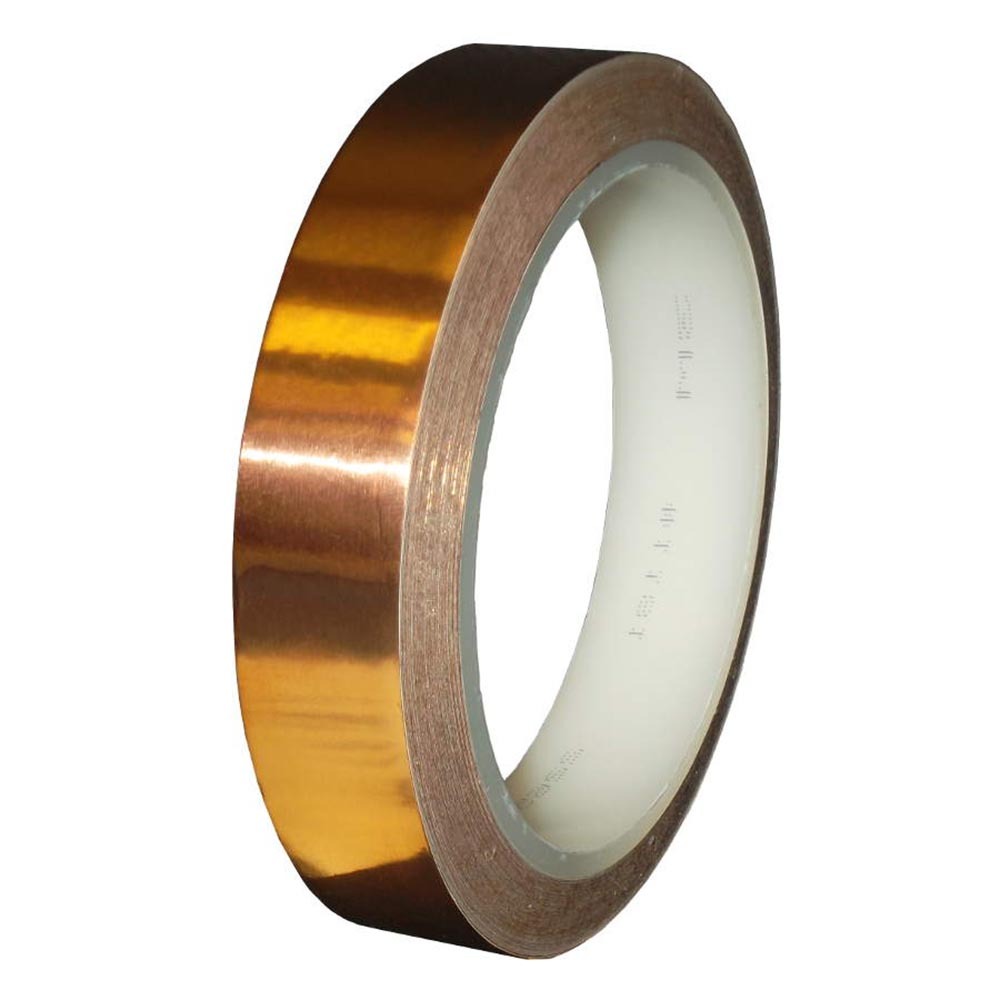

3M 1181 EMI Copper Foil Shielding Tape - 6mm Wide x 16.46 Metres

SKU: SWM000075P01V0001
Availability: Cut to Order, Ships in 3-4 W/Days
$26.40
INC. GST
$23.76
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 5 - 9 and pay only $23.46 each
Buy 10 or above and pay only $22.13 each
  • Dead-soft 0.04mm copper backing.
  • Conductive, pressure-sensitive acrylic adhesive.
  • Removable liner for easy application.

3M 1181 Copper Foil Tape is a high quality grade of electro-magnetic interference (EMI) shielding tape made from copper foil with a special, electrically conductive pressure sensitive adhesive. It has excellent electrical conductivity through both the copper backing and acrylic adhesive and is flame retardant.

Each roll of 3M 1181 Copper Foil Tape is supplied with a removable liner to make application easy. The dead-soft copper backing can be soldered and resists oxidation and discolouration. The total thickness of 3M 1181 is 0.066mm of which 0.040mm is the copper backing.

We slit all of our rolls of 3M 1181 EMI Shielding Tape in-house. If the size (width) you require isn't listed here please do contact us. We'll be happy to assist with custom-sized rolls.

Applications for 3M 1181 Copper Foil Tape.

  • EMI shielding.
  • Grounding of equipment.
  • Creating a conductive path between components and surfaces.
Colour Copper
Backing Material Dead-Soft Copper Foil
Adhesive Electrically Conductive Acrylic Pressure Sensitive Adhesive
Backing Thickness 0.04mm
Total Thickness 0.066mm
Adhesion to Steel 3.8 N/10mm
Electrical Resistance through Adhesive 0.005 ohm
Roll Length 16.46 Metres
SKU SWM000075P01
Brand 3M

Can you supply cut pieces?

Yes. They’re not standard but we can die cut 3M 1181 Copper Foil EMI Shielding components. If you’d like a quote, send us an email with the size and quantity you’re after and we’ll arrange it for you.

Can you supply other widths?

Yes. We slit all of our rolls of 3M 1181 EMI Shielding Tape in-house. If the size (width) you require isn't listed here please do contact us. We'll be happy to assist with custom-sized rolls.
