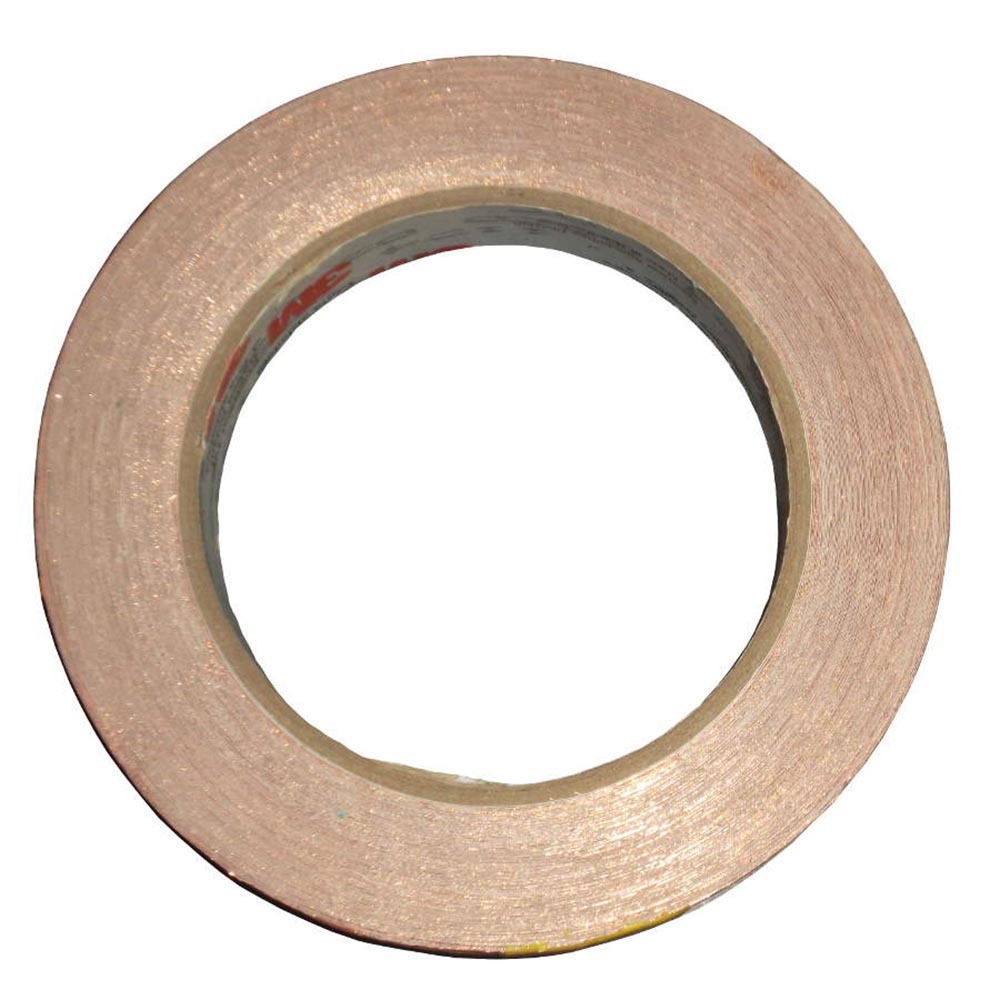

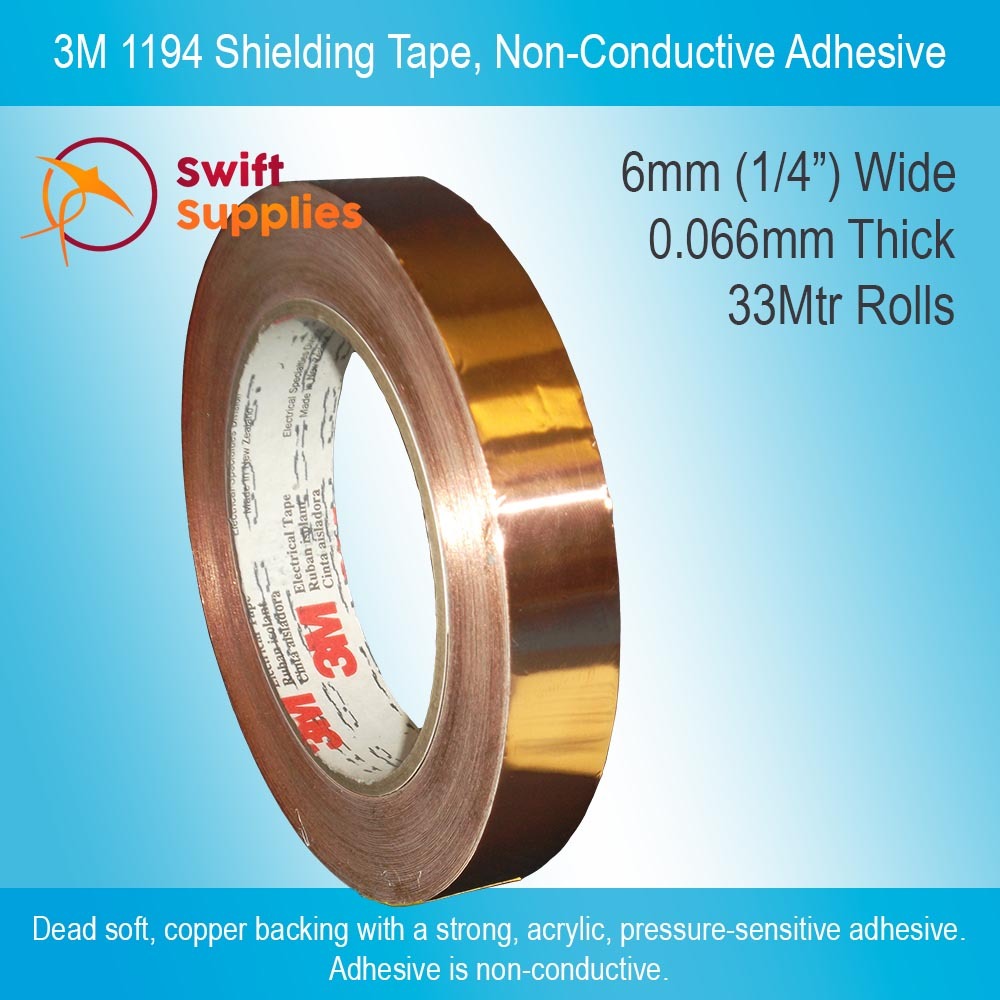

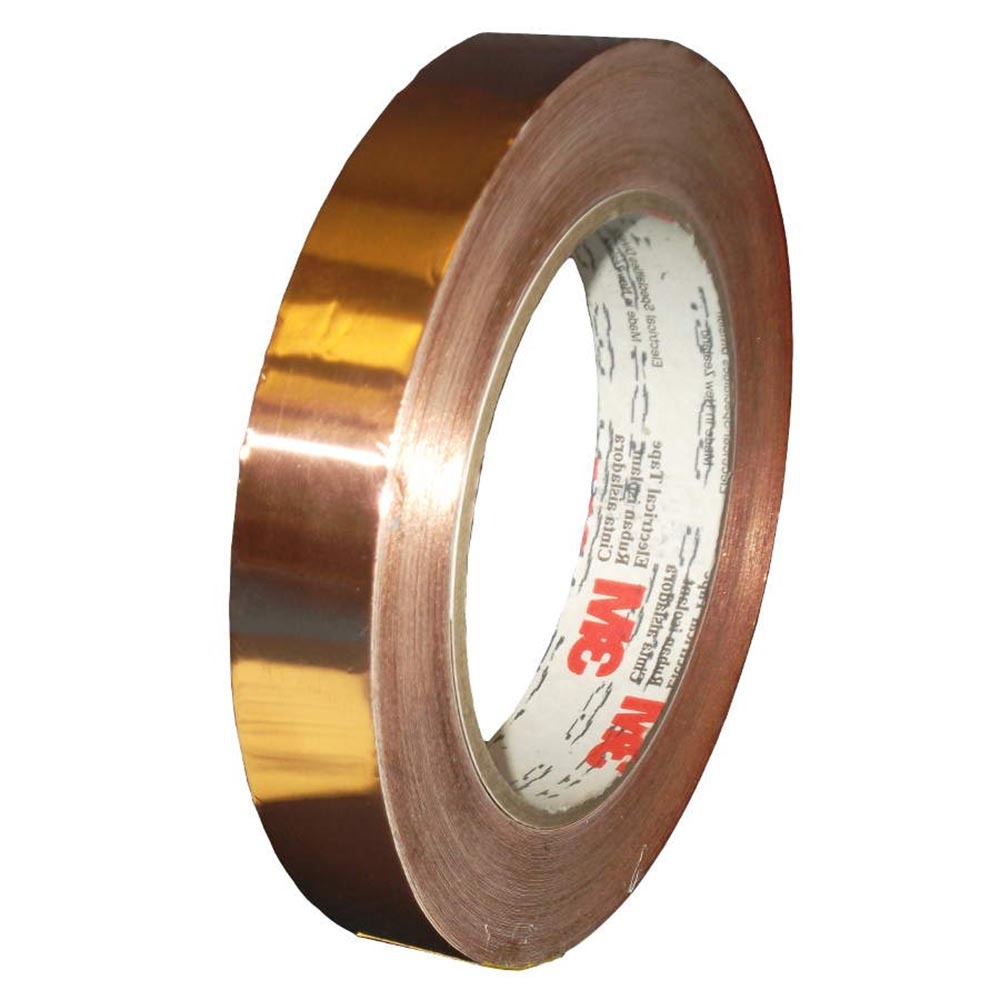

3M 1194 Copper Shielding Tape, Non-Conductive Adhesive - 6mm Wide x 33 Metres

SKU: SWM000077P01V0001
Availability: Cut to Order, Ships in 3-4 W/Days
$47.63
INC. GST
$42.87
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 5 - 9 and pay only $44.15 each
Buy 10 or above and pay only $42.46 each
  • Dead-soft 0.04mm copper foil backing.
  • Non-conductive, pressure-sensitive acrylic adhesive with excellent adhesive strength.
  • Removable liner for easy handling.

3M 1194 Copper Foil Shielding Tape is a specialised type of copper tape most commonly used for electro-magnetic interference (EMI) shielding applications. This tape is manufactured from a very thin, 0.04mm layer of dead-soft copper that is coated on one side with a non-conductive, pressure-sensitive acrylic adhesive. This adhesive is quite aggressive and effectively bonds to most surfaces and materials.

When the adhesive is included, 3M 1194 Copper Foil Shielding Tape has a total thickness of 0.066mm (once the liner has been removed) and is flame retardant. The liner removes cleanly and easily from the tape to allow for fast application.

The copper foil used for 3M 1194 resists oxidation and discoloration and can be soldered.

Typical Applications for 3M 1194 EMI Shielding Tape.

  • EMI shielding
  • Grounding of electrical equipment
Colour Copper
Adhesive Non-Conductive, Acrylic Pressure Sensitive Adhesive
Backing Material Dead-Soft Copper Foil
Backing Thickness 0.04mm
Total Tape Thickness 0.066mm
Electrical Resistance Through Adhesive Not Applicable.
Adhesion to Steel 4.4 N/10mm
Roll Length 33 Metres



SKU SWM000077P01
Brand 3M

Can you supply cut pieces?

Yes. They’re not standard but we can die cut 3M 1245 Embossed Copper Foil EMI Shielding components. If you’d like a quote, send us an email with the size and quantity you’re after and we’ll arrange it for you.

Can you supply other widths?

Yes. We slit all of our rolls of 3M 1194 EMI Shielding Tape in-house. If the size (width) you require isn't listed here please do contact us. We'll be happy to assist with custom-sized rolls.
