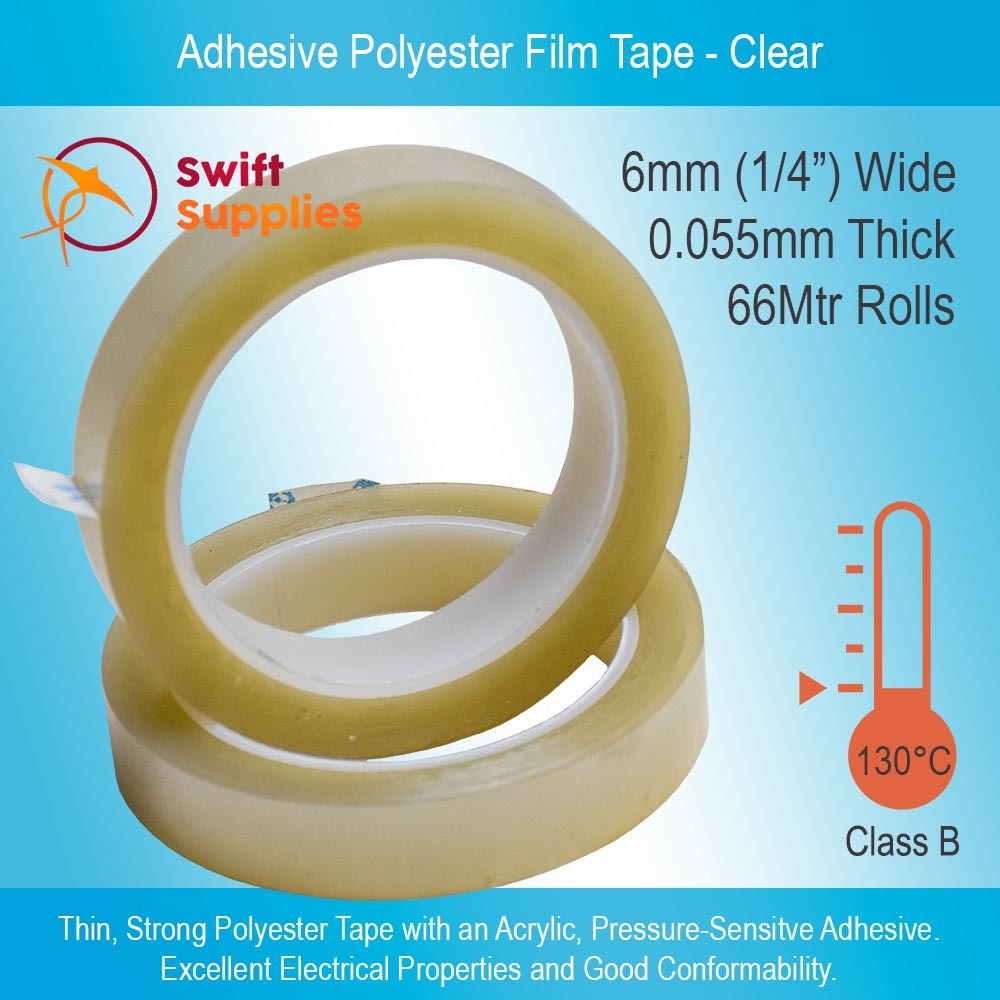

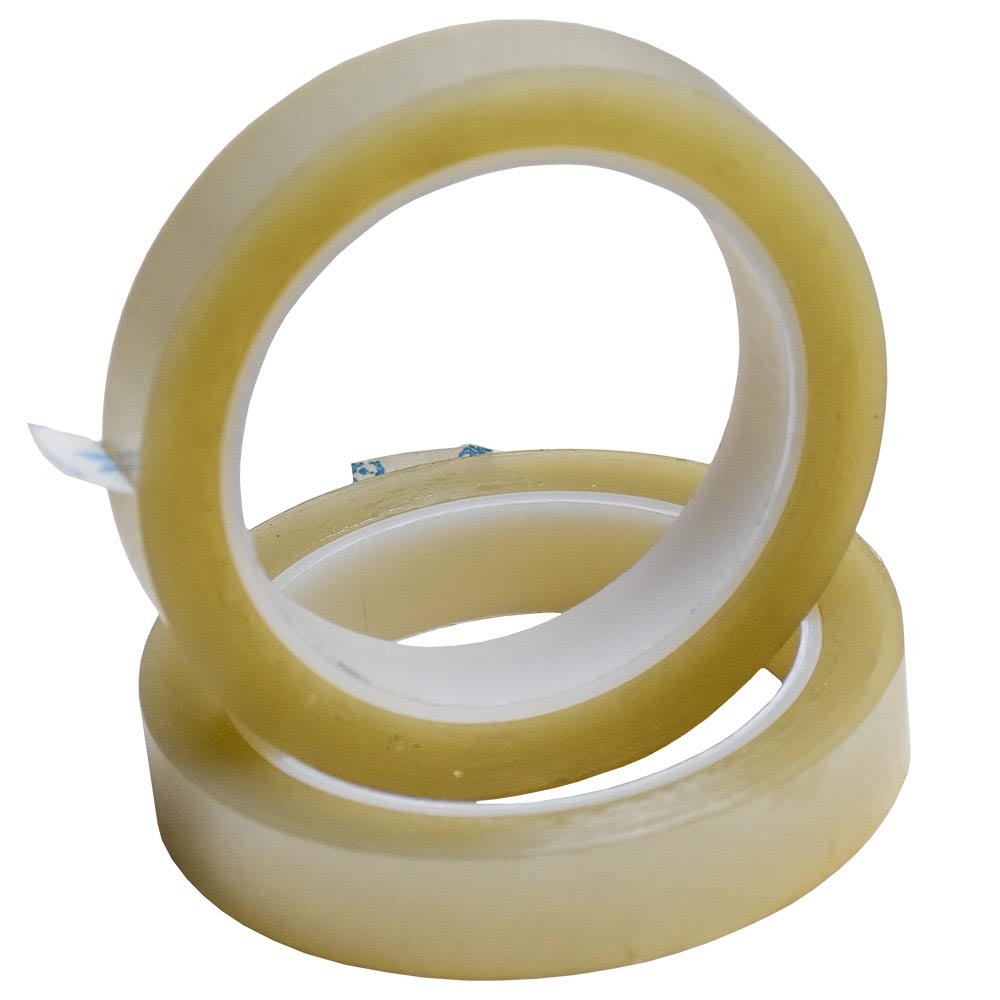

Adhesive Polyester Film Tape, Clear - 6mm Wide x 66 Metres Long

SKU: SWM000471P01V0001
Availability: Cut to Order, Ships in 2-5 W/Days.
$5.32
INC. GST
$4.79
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 5 - 9 and pay only $4.39 each
Buy 10 or above and pay only $4.06 each
  • Thin, High Strength Polyester Film Tape.
  • Extremely conformable and easy to wrap around tight bends and curves.
  • Acrylic adhesive backing is compatible with most materials and surfaces.
  • Transparent, good heat resistance and excellent dielectric properties.
  • Custom widths available upon request.

Our Clear Adhesive Polyester Tape is a variation on our Yellow Polyester Film Tape with the one (obvious) difference being the colour.

Like the Yellow Film Tape, our Transparent Polyester Film Tape is largely used for electrical insulation applications and is thin, strong and very easy to work with.

Excellent Physical Properties.

Our Clear Adhesive Polyester Tape is thin and highly conformable. This allows it to be easily and smoothly applied around complex shapes such as coil knuckles or cable terminations.

This tape has a total thickness of 0.056mm. It also possesses good physical strength (>9kg/25mm tensile strength rating) and is low stretch (70% max. elongation).

It utilises an acrylic adhesive that is compatible with most surfaces, materials and substrates. Adhesion to steel rating is 0.6 to 1.5kg/25mm.

This clear polyester tape meets the flame retardancy requirements of UL Subject 510. It will withstand continuous exposure to temperatures up to 130°C.

Electrical Insulation Attributes.

Polyester Tape is most commonly used for electrical insulation applications.  It has a dielectric breakdown rating of 5kV to 15kV.

Typical Applications for Adhesive Polyester Tape (PET Tape).

  • Outer wrapping on capacitors and coils.
  • Transformer construction and repair.
  • Wire harnessing and wrapping.
  • Cable insulation.
  • High temperature masking.
  • General electrical insulation and repair work.
Colour Clear / Transparent
Adhesive Acrylic Pressure Sensitive Adhesive
Backing Material Polyester Film
Backing Thickness 0.025mm
Total Tape Thickness 0.055mm
Temperature Class 130°C
Tensile Strength 9kg / 25mm
Elongation 70% Minimum
Adhesion to Steel 0.8kg / 25mm
Unwinding Force 300 to 800 gms / 25mm
Insulation Resistance 1x10 Ohm Minimum (Median  Result)
Electrolytic Corrosion 0.98
Flame Retardant Yes, UL Subject 510 (Ul Recognised E50292)
Roll Length 66 Metres



SKU SWM000471P01
