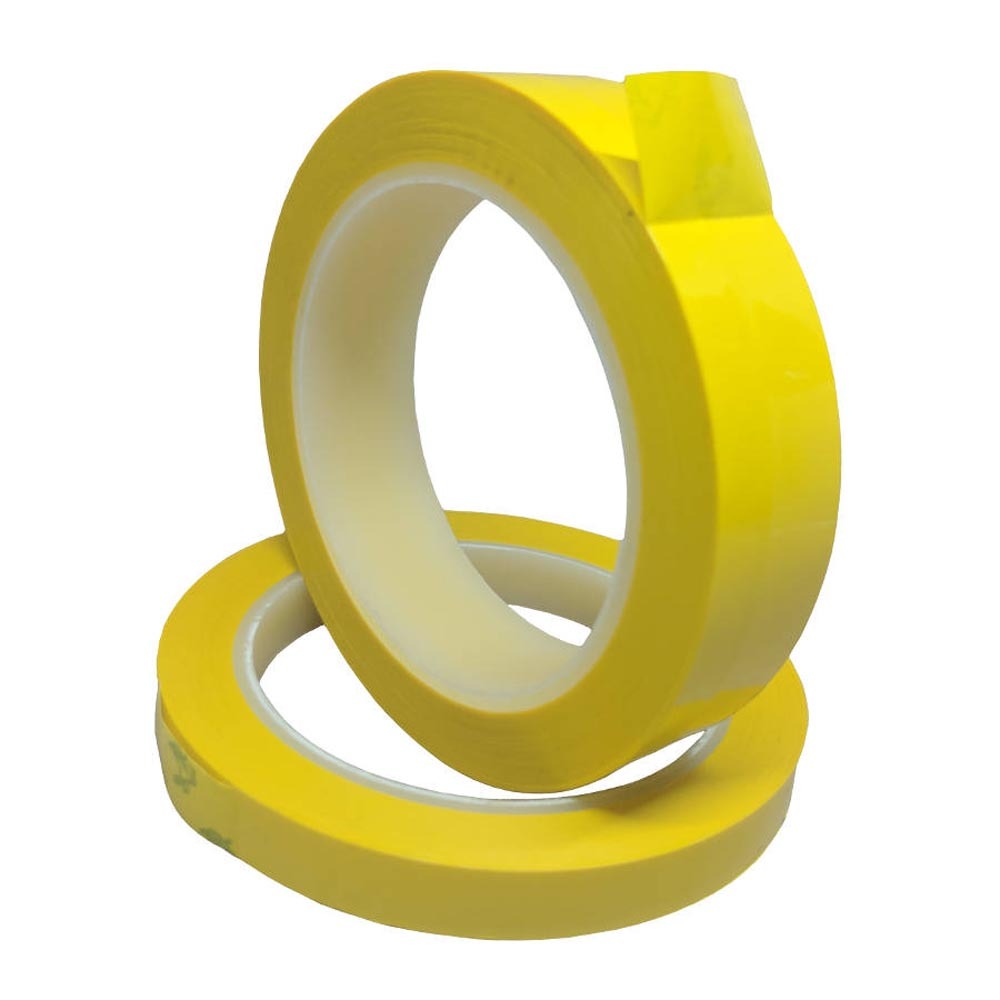

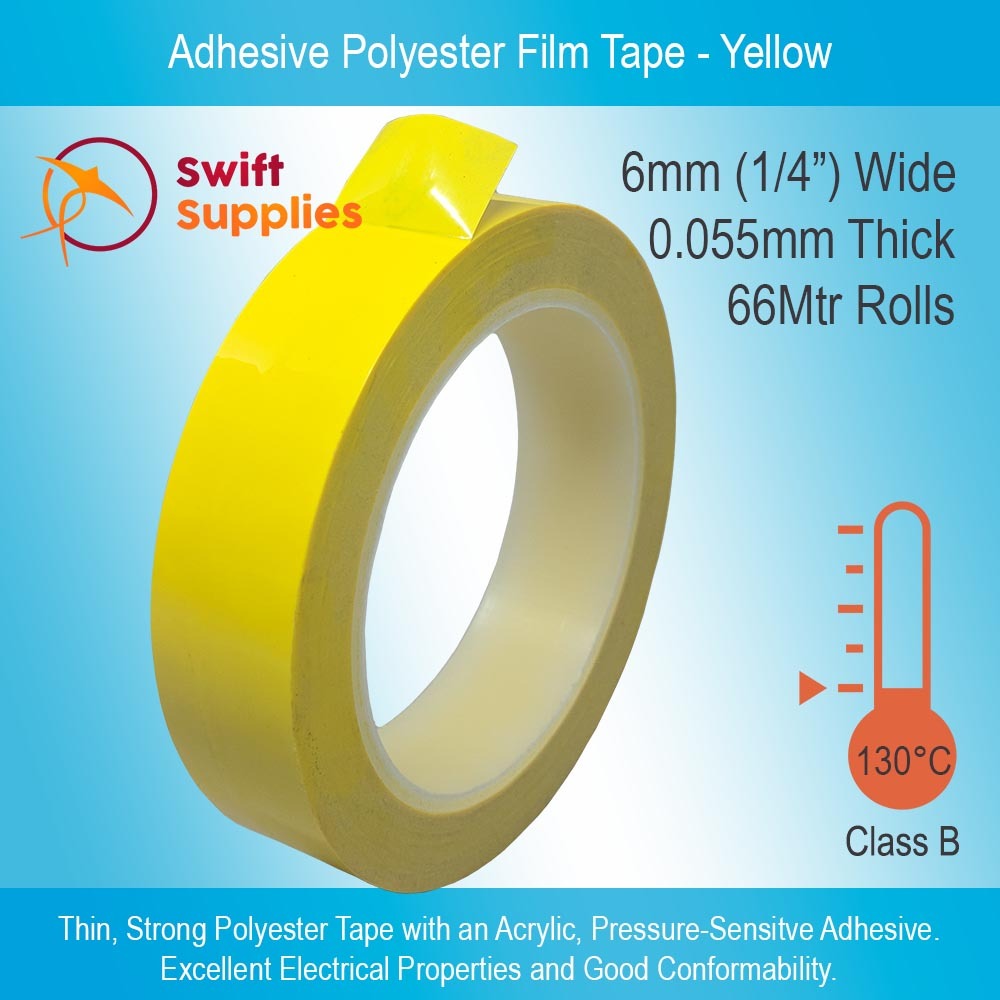

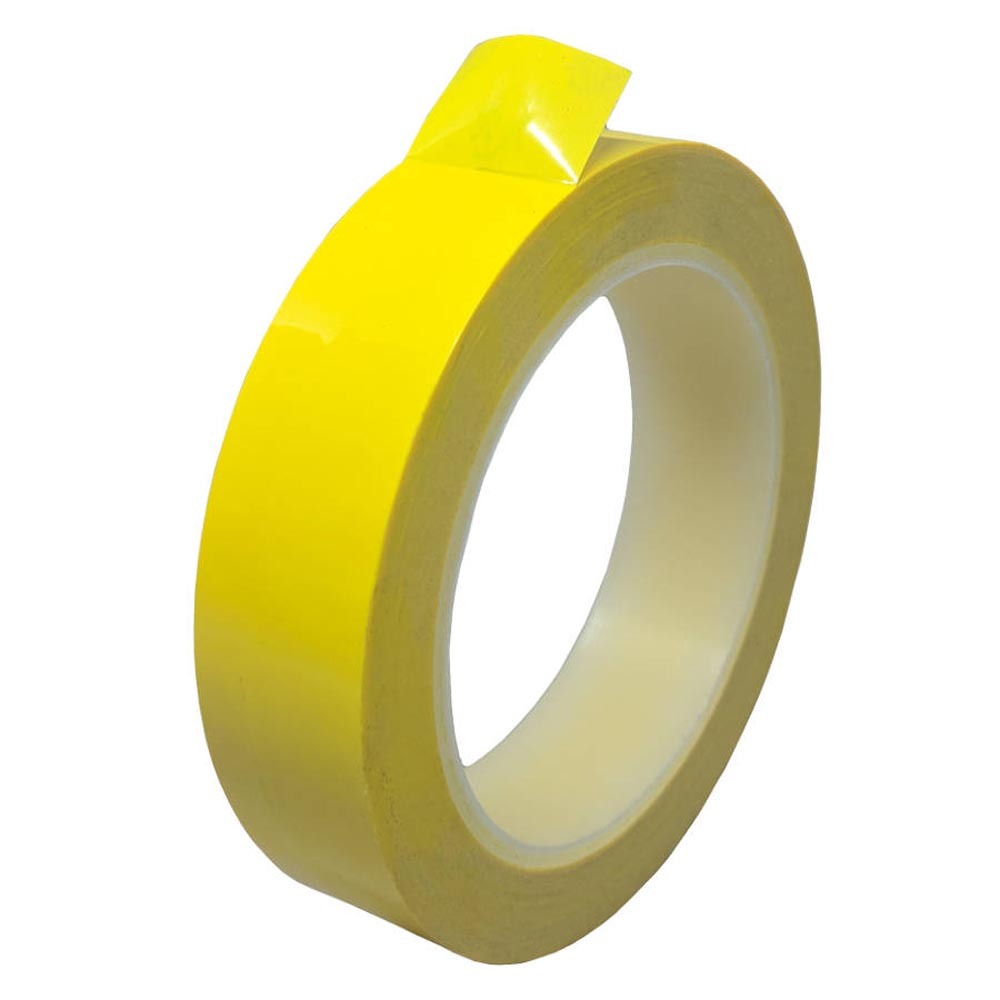

Adhesive Polyester Film Tape, Yellow - 6mm Wide x 66 Metres Long

SKU: SWM000210P01V0001
Availability: Cut to Order, Ships in 2-5 W/Days.


All Bulk Prices Below Are Quoted Including GST.
Buy 5 - 19 and pay only $7.69 each
Buy 20 or above and pay only $6.68 each
  • Very Thin, High strength Polyester Film Tape.
  • Very conformable for wrapping around tight bends and curves.
  • Good heat resistance and excellent dielectric properties.
  • Custom widths also available upon request.

Our Adhesive Polyester Film Tape is a versatile, economical grade of tape used for a variety of electrical insulation, masking and taping applications. This yellow version of this tape is brightly coloured and very useful for identifying leads, cables and wires.

Sometimes known as PET Tape, Polyester Tape has very good physical properties including tear strength, conformability and adhesion. It withstands temperatures up to 130°C and meets the flame retardancy requirements of UL Subject 510.

This tape is made with a very thin layer of polyester film (measuring about 0.025mm) combined with a pressure sensitive acrylic adhesive. Total tape thickness is 0.055mm. The adhesive used allows the tape to stick well to most surfaces and material types.

Our Adhesive Polyester Tape is available in a selection of widths. The sizes listed here on our site represent our standard sizes. Custom slit rolls can also be supplied upon request.

Typical Applications for Adhesive Polyester Tape (PET Tape)

  • Outer wrapping on capacitors and coils.
  • Transformer construction and repair.
  • Wire harnessing and wrapping.
  • Cable insulation.
  • High temperature masking.
  • General electrical insulation and repair work.
Colour Yellow
Adhesive Acrylic Pressure Sensitive Adhesive
Backing Material Polyester Film
Backing Thickness 0.025mm
Total Tape Thickness 0.055mm
Temperature Class 130°C
Tensile Strength 9kg / 25mm
Elongation 70% Minimum
Adhesion to Steel 0.8kg / 25mm
Unwinding Force 300 to 800 gms / 25mm
Insulation Resistance 1x10 Ohm Minimum (Median  Result)
Electrolytic Corrosion 0.98
Flame Retardant Yes, UL Subject 510 (Ul Recognised E50292)
Roll Length 66 Metres


SKU SWM000210P01
Brand VoltaStop
