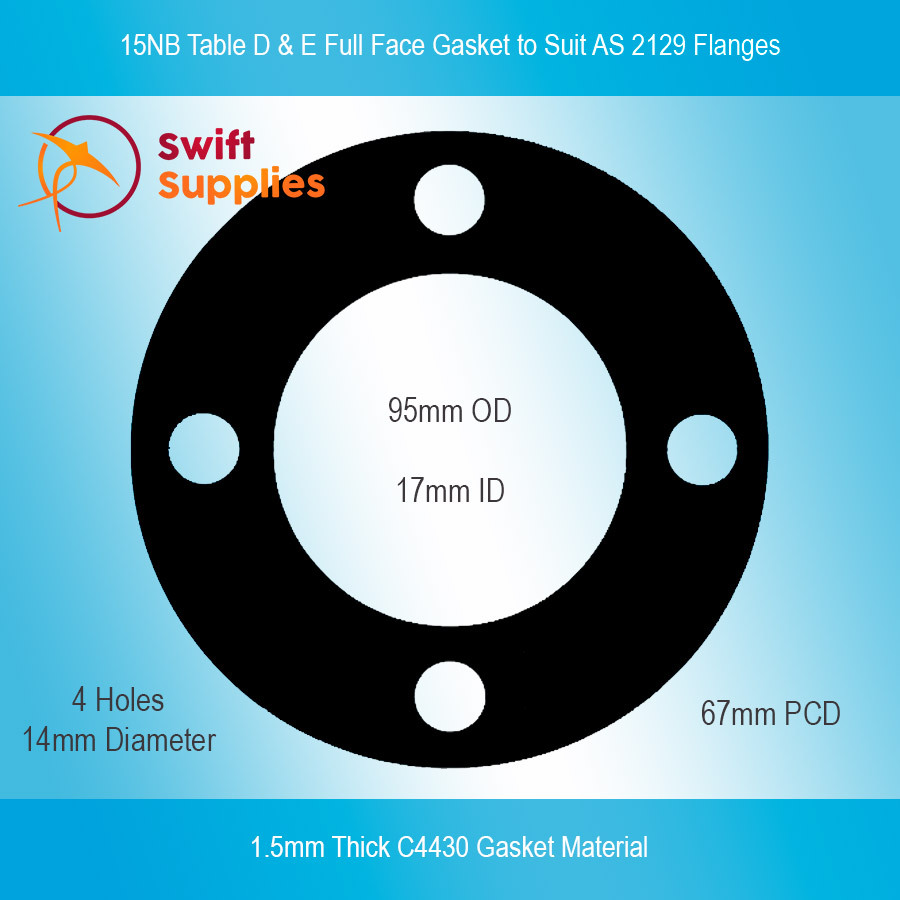

15NB Table D & E (AS 2129) Full Face Gasket, 1.5mm C4430

General-Purpose CNAF Gaskets to Suit AS2129 Flanges.

All Prices Include GST.

$5.03
In Stock
Cut to Order, Ships in 2-3 W/Days.

Flange Table
Nominal Bore (NB)
Thickness
Buy In Bulk & Save!
Buy 1 to 9: Pay $5.03
Buy 10 to 25: Pay $3.19
Buy 26 to 50: Pay $2.95
Buy 51 to 99: Pay $2.82
Buy 100 or more: Pay $2.69


Orders Over $100 are Shipped Free within Australia



Delivery via Courier - Australia Wide - $9.90 (ETA: 1 days)
Fast Delivery via Courier. We use Toll Priority (Air Freight) when possible or a combination of Star Track, Couriers Please, TNT and others depending on the size and classification of the item.

  • High Quality Pipe Flange Gaskets made from C4430 premium quality compressed, non-asbestos fibre gasket material.
  • Universal style of gasket sheet with outstanding stress retention and resistance to hot water and steam.
  • Very good compatibility with oils, fuels, alcohols, moderate acids, hydrocarbons, lubricants and more.
  • Cut to size in our Australia facilities and available in the full range of AS 2129 Table D and/or Table E flange specifications.

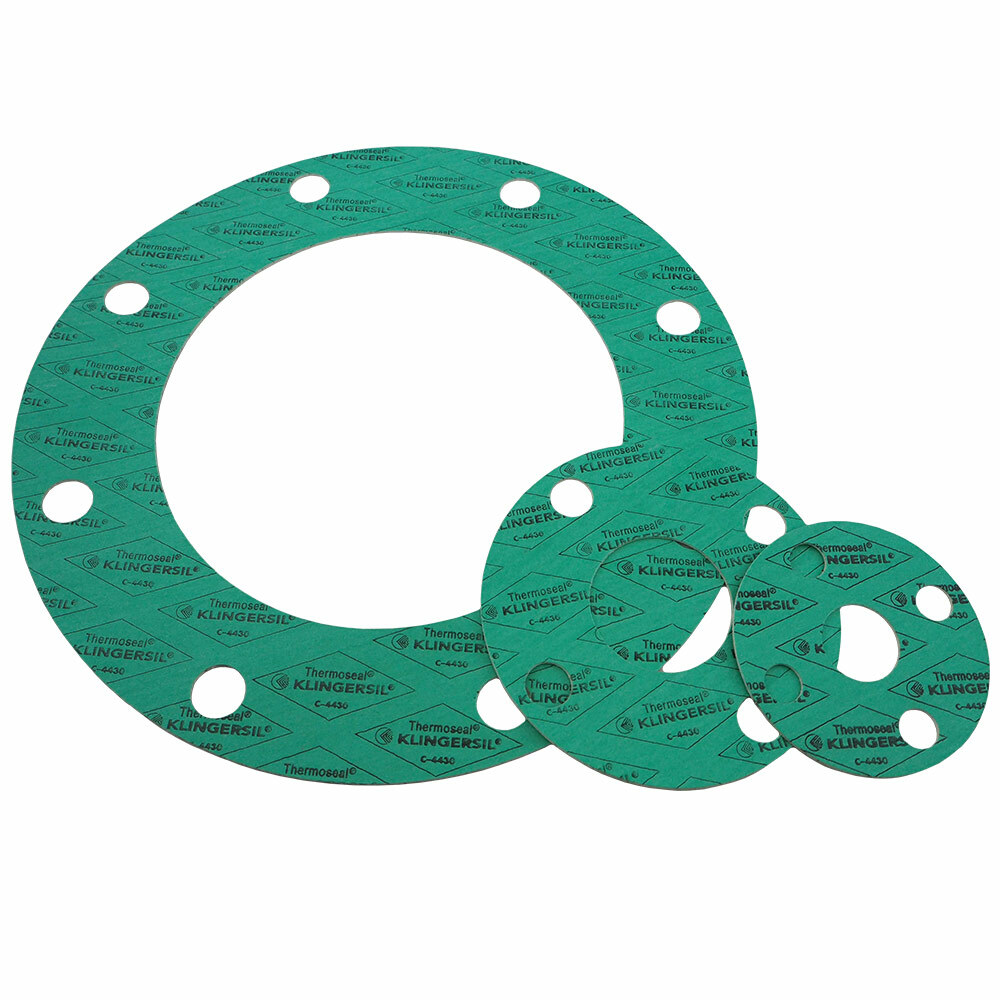

Klingersil C4430 Flange Gaskets are widely used for medium temperature and medium pressure sealing. The gaskets featured on this page are manufactured in our Australian facilities to suit the size requirements of AS 2129 Table D and/or Table E Flanges. Read on for more information about the different sizes and additional info on C4430 gasket material.

Flange Gaskets to Suit AS2129 Sizing Info.

The gaskets featured on this page are the full-face style of rubber flange gasket. These gaskets take up the full face of the flange, with holes cut for the bolts. Both ring and full-face gaskets can be used on these flanges depending on particular requirements and user preferences.

AS 2129 Flanges are most commonly found in either AS 2129 Table D or AS 2129 Table E which is why gaskets for both are listed here. That said, there are quite a few other tables made and gaskets for these (e.g. Table A, C, F, H) can also be produced upon request.

Why are some Table D and Table E Gaskets the same size while others aren’t?

The AS 2129 Flange Specification is like many others (e.g. ANSI 150) in that many of the smaller sized flanges (and consequently, gaskets) are the same across tables. In the AS 2129 Spec, gaskets made to suit flanges with a nominal bore of up to 80NB are the same no matter if the flanges are listed as Table D or Table E. After this, sizes do differ.

The table below provides more specifics on this.

How to Buy C4430 AS 2129 Full Face Gaskets Online.

To buy these gaskets online, follow the steps below. If you run into any issues at all, don't hesitate to reach out to us. We're here to help.

  1. If you know the nominal bore you are after, start by selecting that. If not, we suggest consulting the size tables below to match up the gasket you need with the nominal bore.
  2. With the nominal bore chosen, you'll either have the option of a gasket that suits both Table D and Table E flanges or, depending on the NB, Table D or Table E individually.
  3. With your nominal bore and table chosen, select the gasket thickness needed and enter your quantity.

C4430 Pipe Flange Gaskets Information.

Gaskets made from C4430 exhibit good all-round sealing capabilities and compatibility with a wide range of fluids and media. Performance characteristics include:

Good Pressure and Temperature Resistance.

Maximum operating temperature and pressure are highly dependent on one another, and the medium being sealed. That said, a rough guideline for this material is:

Temperature: +200°C Continuous / +400°C Maximum for very short periods.

Pressure: 100 BAR

We really do suggest utilised the attached C4430 Data Sheet though as this includes pT diagrams showing the inter-relationship between maximum pressure and temperature.

Certified for Use in a Variety of Critical Sealing Applications.

Klingersil C4430 has been certified in accordance with a number of worldwide standards. These include:

  • Fire safe according to BS 5146.
  • BAM approval in accordance with UVV 28, oxygen( VGB 62) tested up to 100 bar and 85°C.
  • Approved for gas supply in accordance with DIN 3535/6. DIN - DVGW permit NG 5123AN0418.
  • Potable Water approval in accordance with WRS and AS4020.
  • TA Luft (Clean air) approval, tested in accordance with VDI 2440 at 250°C.

For more information on the various certifications and approvals bequeathed on this gasket sheet please refer to the attached C4430 Data Sheet for a full and comprehensive listing.

Good Chemical Resistance.

The full list of chemicals that C4430 Gasket Material can or cannot seal is incredibly long and detailed. The list below is presented as a summary only. For more information on a specific medias’ compatibility please do contact us and we’ll be happy to help.

In general, C4430 is compatible with…

  • Water.
  • Steam.
  • Oils.
  • Gases.
  • Fuels.
  • Alcohols.
  • Moderate organic and inorganic acids.
  • Hydrocarbons.
  • Lubricants.
  • Refrigerants.

Full Face Flange Gaskets to suit AS 2129 Table D and Table E Size Info Tables.

AS 2129 Table D Gaskets Sizing.

All Dimensions below are given in millimeters (mm).

Flange Nominal
Bore
Gasket OD Gasket ID Number of
Holes
Hole
Diameter
PCD Matches
Table
15NB 95 17 4 14 67 E
20NB 100 22 4 14 73 E
25NB 115 25 4 14 83 E
32NB 120 32 4 14 87 E
40NB 135 40 4 14 98 E
50NB 150 50 4 18 114 E
65NB 165 68 4 18 127 E
80NB 185 82 4 18 146 E
90NB 205 90 4 18 165 -
100NB 215 100 4 18 178 -
125NB 255 125 8 18 210 E
150NB 280 150 8 18 235 -
200NB 335 200 8 18 292 -
250NB 405 250 8 22 356 -
300NB 455 300 12 22 406 -
350NB 525 350 12 26 470 E
400NB 580 400 12 26 521 E
450NB 640 450 12 26 584 -
500NB 705 500 16 26 641 E
600NB 825 600 16 30 756 -

AS 2129 Table E Gaskets Sizing.

All Dimensions below are given in millimeters (mm).

Flange Nominal
Bore
Gasket OD Gasket ID Number of
Holes
Hole
Diameter
PCD Matches
Table
15NB 95 17 4 14 67 D
20NB 100 22 4 14 73 D
25NB 115 25 4 14 83 D
32NB 120 32 4 14 87 D
40NB 135 40 4 14 98 D
50NB 150 50 4 18 114 D
65NB 165 68 4 18 127 D
80NB 185 82 4 18 146 D
90NB 205 90 8 18 165 -
100NB 215 100 8 18 178 -
125NB 255 125 8 18 210 D
150NB 280 150 8 22 235 -
200NB 335 200 8 22 292 -
250NB 405 250 12 22 356 -
300NB 455 300 12 26 406 -
350NB 525 350 12 26 470 D
400NB 580 400 12 26 521 D
450NB 640 450 12 26 584 -
500NB 705 500 16 26 641 D
600NB 825 600 16 33 756 -

(SWP000430)

Colour Green
Compressibility (ASTM F 36 J) 9%
Recovery (ASTM F 36 J) 50% Minimum
Stress Relaxation
(DIN 52913)
39 MPa
35 MPa
50 MPa, 16 hours / 175°C
50 MPa, 16 hours / 300°C
Stress Relaxation (BS 7531) 31 MPa 40 MPa, 16 hours / 300°C
Klinger Cold / Hot Compression
(50 MPa)
8%
11%
Thickness Decrease at 23°C
Thickness Decrease at 300°C
Tightness According to DIN 3535/6 <0.1 mg/s x m
Tightness Class L 0.1 DIN 28090-1
Specific Leakrate λ 2,13E-05 mbar x l/s x m VDI 2440
Cold Compression 6 - 10% DIN 28091-2
Cold Recovery 2 - 4% DIN 28091-2
Hot Compression 7% DIN 28091-2
Hot Recovery 1% DIN 28091-2
Spring Back R 0.019mm DIN 28091-2
Density 1.75 g/cm³
Average Surface Resistance Ω 4.1x10E13 R0A
Average Specific Volume Resistance Ω cm 4.5x10E12
Average Dielectric Strength 21.3 kV/mm
Average Power Factor 0.02 tan δ 1 kHz, ca. 2mm thickness
Average Dielectric Coefficient 6.4 εr
Thermal Conductivity 0.42 W/mK
Thickness Increase After Fluid Immersion (ASTM F 146)
Oil 3% JRM 903, 5 Hours at 150°C
Fuel B 5% 5 Hours at 23°C
ASME Code Sealing Factors
For 2mm Thick Gaskets Y = 25
M = 5
Tightness Class 0.1 mg / s x m
SKU SWP000430
Brand Klinger
