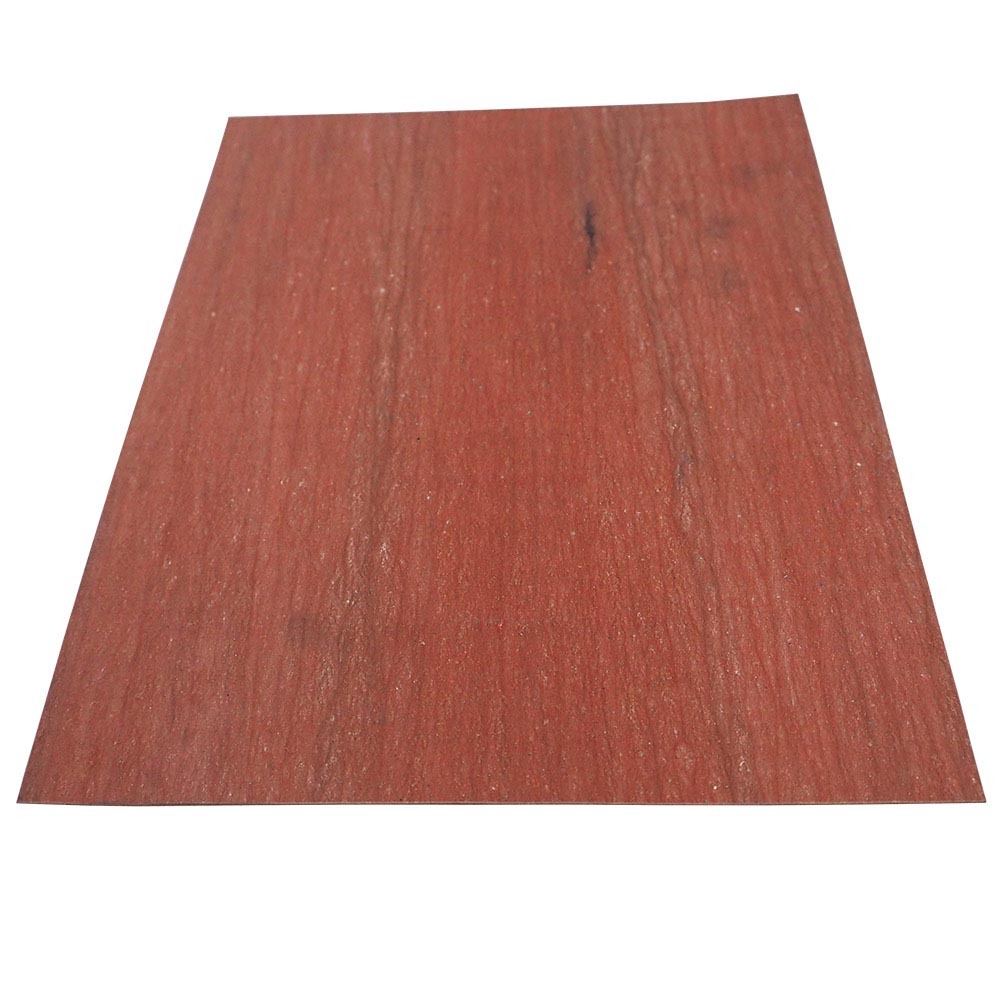

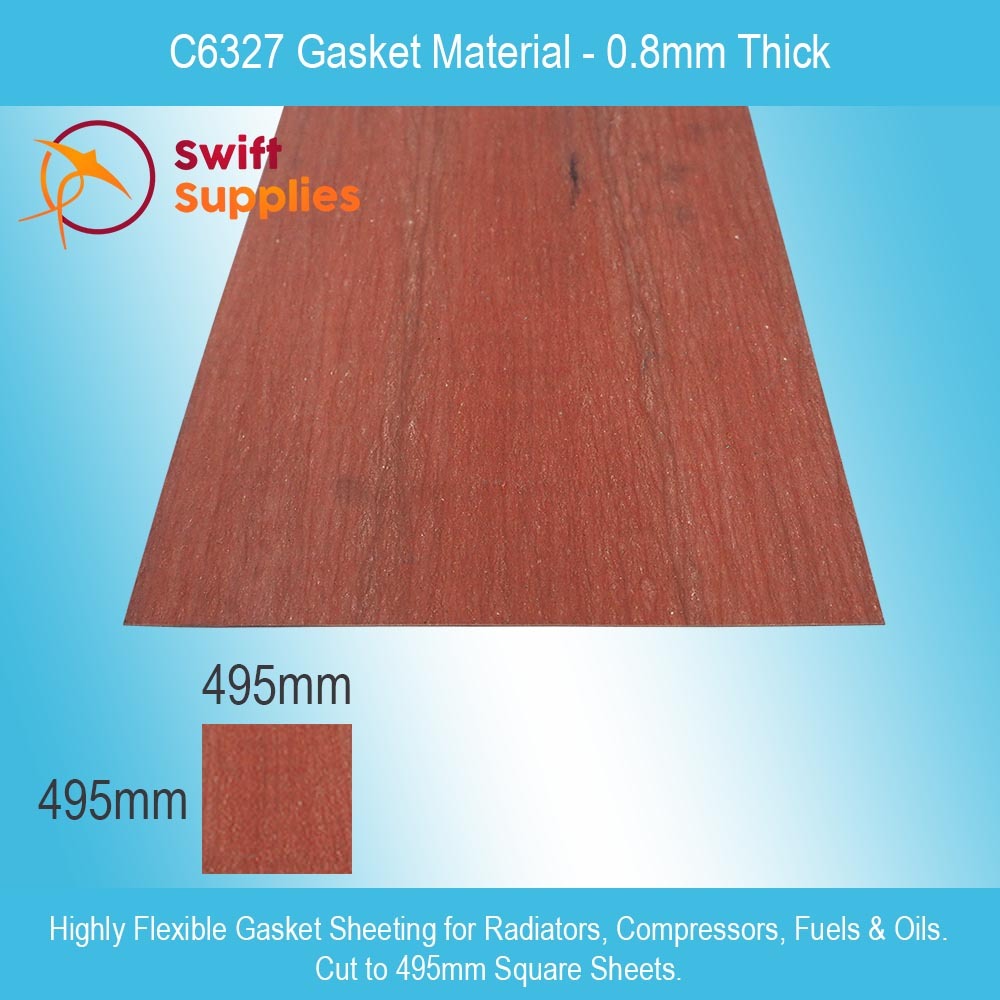

C6327 Gasket Material - 0.8mm Thick x 495mm x 495mm

SKU: SWM000352P01V0003
Availability: Cut to Order, Ships in 2-3 W/Days.
$46.77
INC. GST
$42.09
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 3 - 4 and pay only $42.09 each
  • Excellent gasket material for use with liquids and steam.
  • Controlled swelling characteristics with oils and fuels makes it an excellent choice for low bolt load sealing.
  • Excellent conformability and a high rubber (SBR) content.

C6327 Gasket Material is a high-quality gasket fibre that is typically used for liquid or steam sealing at lower pressures and temperatures. This material has a high rubber content which makes it very flexible. When used to seal oils and fuels, it swells to form a good seal on low bolt loads connections.

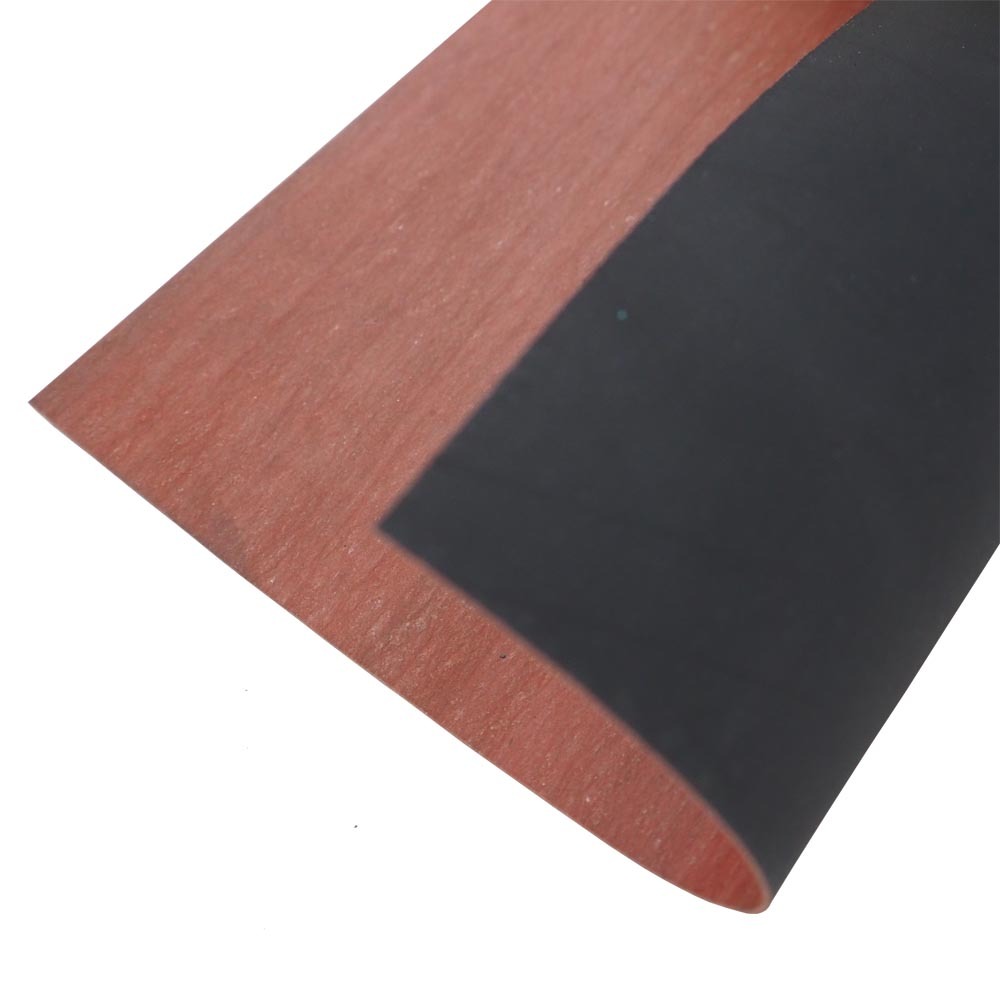

C-6327 is produced using a combination of SBR (styrene-butadiene rubber) bound aramid fibres and organic binders. It has a smooth surface finish and is red/maroon on one side and black on the other. The surface finish naturally inhibits adhesion which helps limit old gaskets becoming stuck to the flange face.

A summary of C6327 Gasket Sheets characteristics and features is included below. More information can be found on the Specifications Tab or our C6327 Technical Data Sheet (on the media tab).

C6327 Gasket Material Performance Characteristics.

Colour Red One Side / Black One Side
Compressibility (ASTM F 36 J) 25%
Recovery (ASTM F 36 J) 45%
Density 1.7g/cm³
Stress Relaxation (DIN 52913)
50 MPa, 16 Hours @ 175°C
25 MPa
Average Dielectric Strength 13 kV/mm
Thickness Increase After Fluid Immersion (ASTM F 146)
Oil 45% IRM 903, 5 Hours at 150°C
Fuel B 30% 5 Hours at 23°C

Available Sizes of C6327 Gasket Material.

This page lists our small, cut sheets of C-6327 Gasket Fibre Sheeting. We are pleased to also offer our C6327 in a large selection of thicknesses and numerous other standard sheet sizes. Both are listed below:

C6327 Stanadrd Thicknesses.

  • 0.4mm
  • 0.5mm
  • 0.8mm
  • 1mm
  • 1.5mm
  • 3mm

Our Standard Sheet Sizes.

  • 495mm Square
  • 1000mm Square
  • 1000mm Wide x 1500mm Long
  • 1500mm Wide x 2000mm Long

If you don't see the size you need listed here, or would prefer to buy C6327 already cut into gaskets to suit your specifications, please do contact us. Custom cut C6327 Gaskets and special sheet sizes are available upon request.

Typical Applications for C-6327.

C6327 Gasket Material is often used for low pressure & low temperature gaskets. Some of the more frequent applications we’ve seen include:

  • Making radiator gaskets.
  • Gaskets for water pipes (C6327 is approved to AS4020 Potable Water Standards).
  • Gaskets for transformers.
  • Flange gaskets for assemblies with low surface loads.
  • Sealing oil and fuel storage tanks.
Colour Red One Side / Black One Side
Compressibility (ASTM F 36 J) 25%
Recovery (ASTM F 36 J) 45%
Density 1.7g/cm³
Stress Relaxation (DIN 52913)
50 MPa, 16 Hours @ 175°C
25 MPa
Klinger Cold / Hot Compression (50MPa)
Thickness Decrease at 23°C 20%
Thickness Decrease at 300°C 32%
Average Surface Resistance ? 4.5x10E14
Average Specific Volume Resistance ? cm 6.8x10E13
Average Dielectric Strength 13 kV/mm
Average Power Factor (50 Hz) tan ? 0.049
Average Dielectric Coefficient (50 Hz) ?r 5.8
Thickness Increase After Fluid Immersion (ASTM F 146)
Oil 45% IRM 903, 5 Hours at 150°C
Fuel B 30% 5 Hours at 23°C

C6327 is approved for use with potable water as per AS4020. It is also certified by Germanischer Lloyd.
