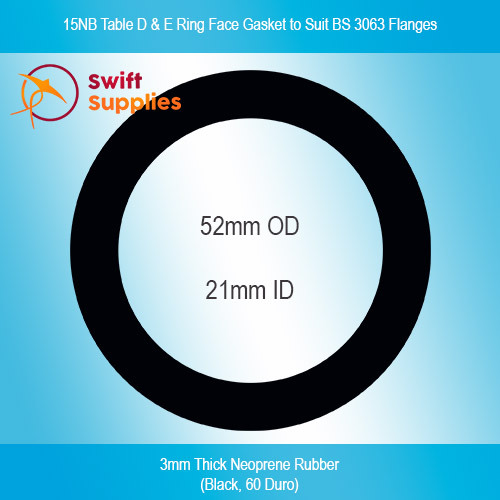

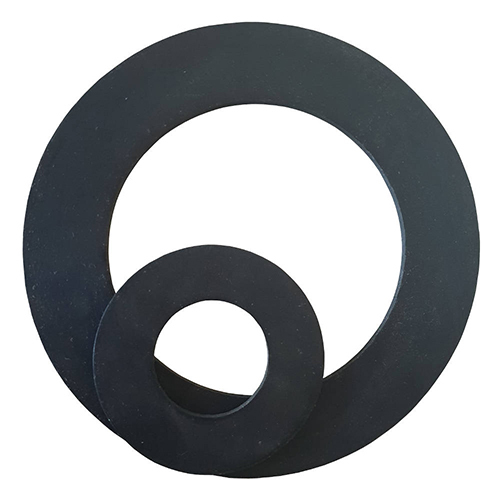

15NB Table D & E BS3063 Ring Face Gasket, 3mm Neoprene Rubber

SKU: SWM000012P05V0001
Availability: Cut to Order, Ships in 2-3 W/Days.
$0.62
INC. GST
$0.56
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 10 - 24 and pay only $0.41 each
Buy 25 - 49 and pay only $0.37 each
Buy 50 or above and pay only $0.35 each
  • Economical type of Neoprene flange gasket for BS 3063 Table D & E Flanges.
  • Cut to size in our Australian factory to meet the precise requirements of these specifications.
  • Made from our industrial grade Neoprene rubber. Good resistance to oils, water and many common fluids.
  • Available in the full range of standard flange sizes. Custom cut Neoprene ring face gaskets also available upon request.

Neoprene Rubber Flange Gaskets are widely used for sealing pipelines and tanks that operate at low pressure and temperatures.

This versatile, economical rubber material is ideal for these applications as it offers a good combination of economy, performance, reliability and versatility. It is used in sealing applications where temperatures are between -20°C and +100°C.

These gaskets are cut from our industrial grade Neoprene Rubber Sheet to suit BS 3063 flanges 15NB through 600NB) in Table D and/or Table E.

This is a 60 Duro (±5) Shore A Neoprene Rubber that is black in colour. For more information on it, please consult our Neoprene Rubber Technical Data Sheet or our comprehensive Rubber Chemical Compatibility guide. For more info on the gaskets, read on.

Flange Gaskets to Suit BS 3063 Size Info.

This page lists ring types gaskets (full face for the same flange style listed here). This style of gasket is designed to sit inside the bolts of the flanges and is known by quite a few names, including:

  • RF Flange Gaskets.
  • IBC Gaskets (Inner Bolt Circle).
  • Raised Face Gaskets (as they are often used on raised face type flanges).
  • Ring Face Gaskets.

Theseg askets are all cut to suit BS 3063 Flanges in either Table D or Table E configurations (the two most common). In almost all pipe nominal bores (except 150NB, 200NB & 300NB) there’s no difference in gasket size between Table D or Table E (the gasket fits both) when using ring type gaskets.

For those where there is a difference, both Table D and Table E variations are offered separately.

Ring Face Flange Gaskets to suit BS 3063 Table D and Table E Size Info Table.

BS 3063 Table D Rubber Gaskets Sizing.

All Dimensions below are given in millimeters (mm).

Flange Nominal
Bore
Imperial
Short-Hand
Gasket ID Gasket OD Matches
Table
15NB 1/2" 21 52 E
20NB 3/4" 27 59 E
25NB 1" 34 68 E
32NB 1 1/4" 43 73 E
40NB 1 1/2" 48 84 E
50NB 2" 60 97 E
65NB 2 1/2" 76 110 E
80NB 3" 89 129 E
90NB 3 1/2" 102 148 E
100NB 4" 114 160 E
125NB 5" 140 191 E
150NB 6" 168 216 -
200NB 8" 219 273 -
250NB 10" 273 333 E
300NB 12" 324 384 -
350NB 14" 381 444.5 E
400NB 16" 432 495 E
450NB 18" 483 559 E
500NB 20" 533 616 E
600NB 24" 635 728 E

BS 3063 Table E Rubber Gaskets Sizing.

All Dimensions below are given in millimeters (mm).

Flange Nominal
Bore
Imperial
Short-Hand
Gasket ID Gasket OD Matches
Table
15NB 1/2" 21 52 D
20NB 3/4" 27 59 D
25NB 1" 34 68 D
32NB 1 1/4" 43 73 D
40NB 1 1/2" 48 84 D
50NB 2" 60 97 D
65NB 2 1/2" 76 110 D
80NB 3" 89 129 D
90NB 3 1/2" 102 148 D
100NB 4" 114 160 D
125NB 5" 140 191 D
150NB 6" 168 213 -
200NB 8" 219 270 -
250NB 10" 273 333 D
300NB 12" 324 381 -
350NB 14" 381 444.5 D
400NB 16" 432 495 D
450NB 18" 483 559 D
500NB 20" 533 616 D
600NB 24" 635 728 D
Colour Black
Insertion None
Polymer CR/SBR (Chloroprene / Styrene Butadiene Rubber)
Hardness 60 Shore A (+/- 5) Durometer
Continuous Operating Temperature -20°C to 100°C
Elongation at Break 300%
Tear Strength 12 N / mm
Specific Gravity 1.49 g/cm³
Potable Water No
Food Grade No
Abrasion Resistance Fair
Oil and Petroleum Products Resistance Fair
Tearing Resistance Average
SKU SWM000012P05-3.0
