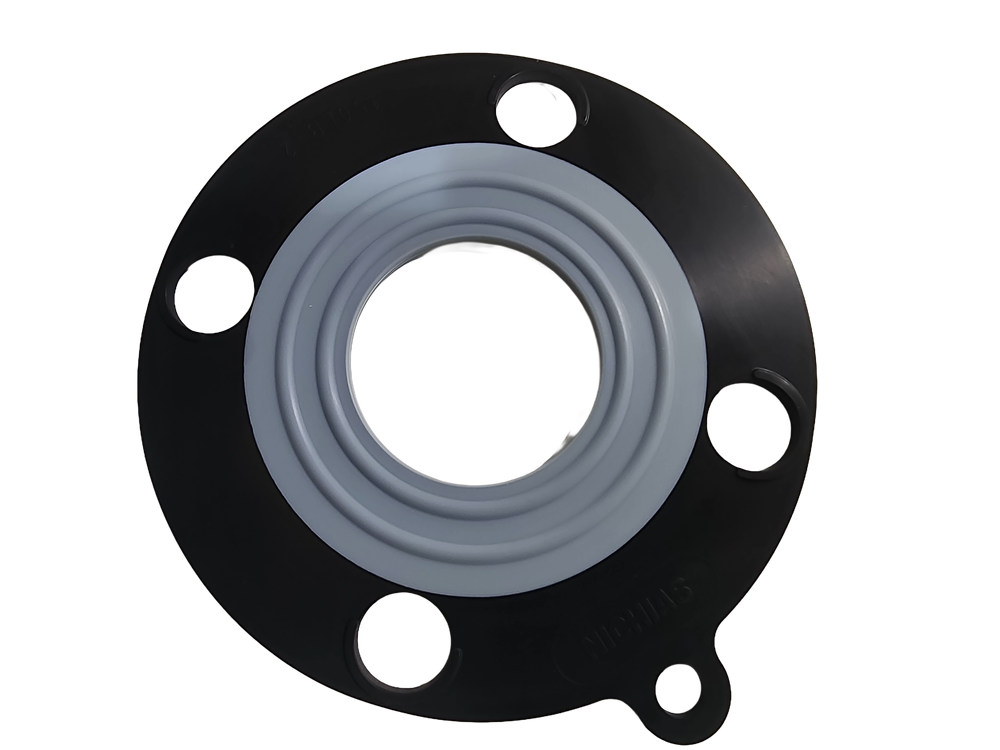

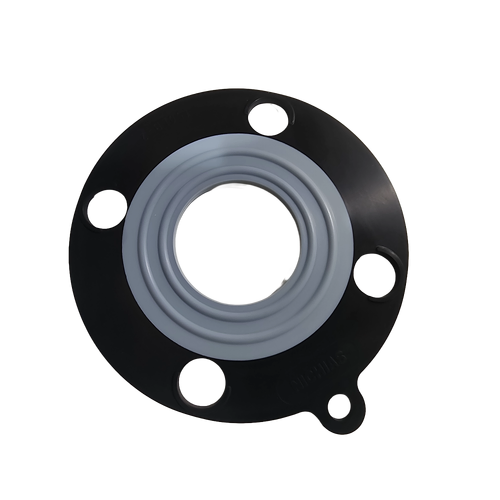

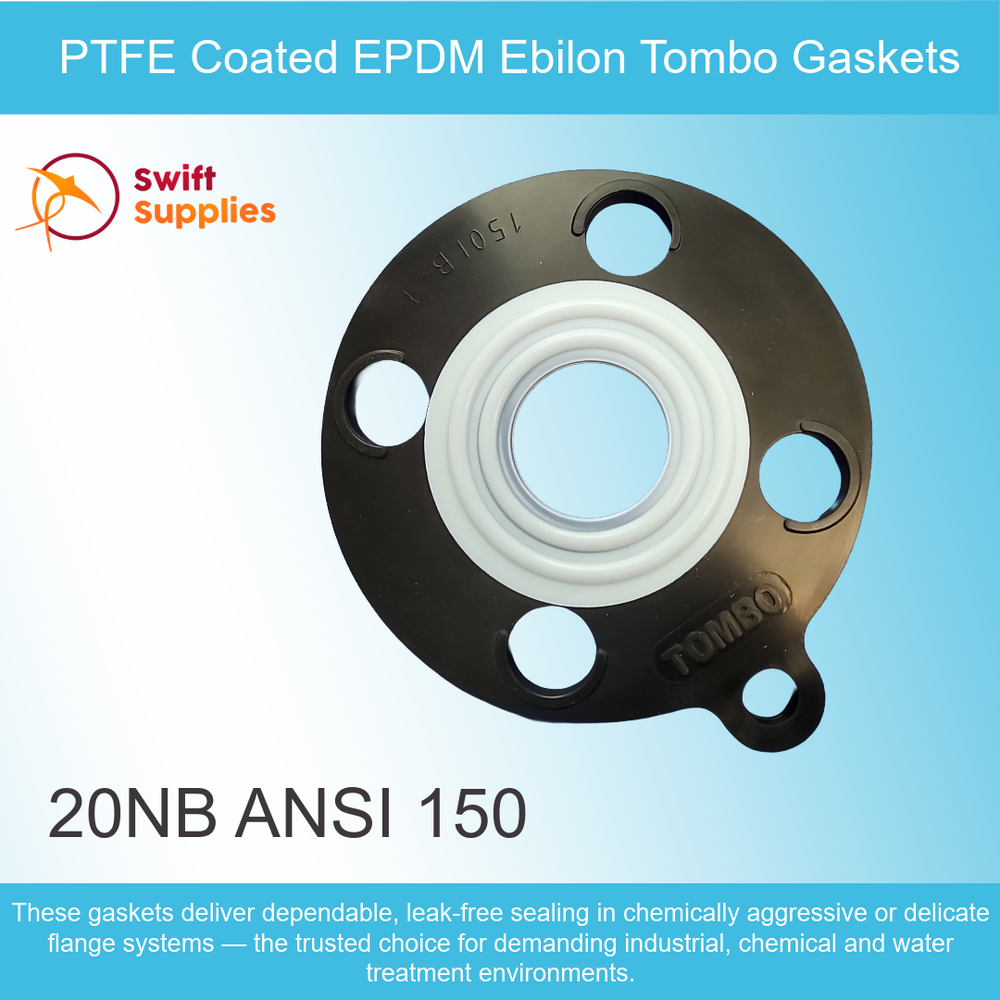

PTFE EPDM Ebilon Tombo Gasket - 20NB ANSI 150

• Continuous operating range: -20 °C to +120 °C (approx.)
• Pure PTFE coating with EPDM elastomer core
• Excellent chemical, ozone and UV resistance
• Non-contaminating and asbestos-free
• Performs under low flange load conditions
• Compliant with ANSI 150 dimensions

Ebilon™ PTFE Coated EPDM Gaskets combine the chemical resistance of PTFE with the flexibility and resilience of EPDM rubber. Designed for reliable sealing on ANSI 150 flanges, these gaskets offer superior performance in corrosive or low-load applications where conventional rubber or solid PTFE gaskets fall short.

Exceptional Chemical and Corrosion Resistance

Manufactured using Tombo 9013 technology, these gaskets feature a pure PTFE facing permanently bonded to an EPDM core. This structure provides the inert chemical resistance of PTFE (pH 0–14) while maintaining the compressibility and sealing recovery of an elastomer.

The result is a non-contaminating, corrosion-resistant seal suitable for aggressive media including acids, alkalis and solvents.

Designed for Non-Metallic and Glass-Lined Flanges

Ebilon gaskets achieve tight, stable sealing under lower bolt loads than solid PTFE or envelope-style gaskets.

They are ideal for PVC, FRP, PVDF, CPVC, polypropylene and glass-lined steel piping systems, where excessive bolt torque can damage flanges.

Typical Applications

• Chemical and water treatment systems
• Food and pharmaceutical process equipment (white EPDM option available)
• Electrolysis tanks and acid transfer lines
• Non-metallic or lined piping in marine, mining and industrial plants

Sizes & Availability

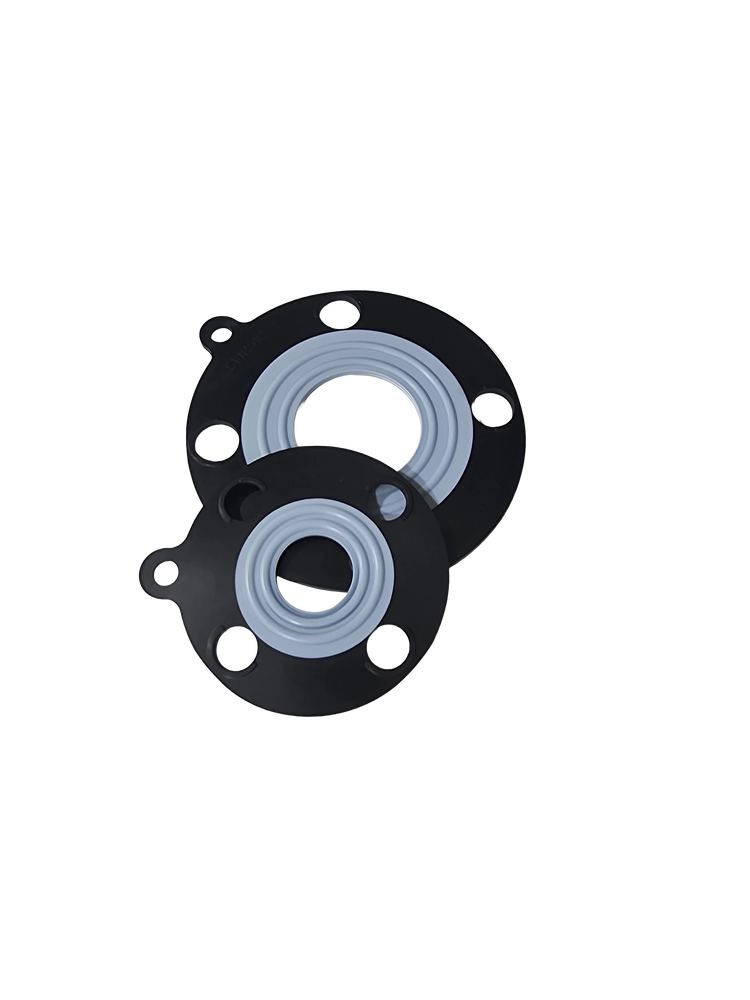

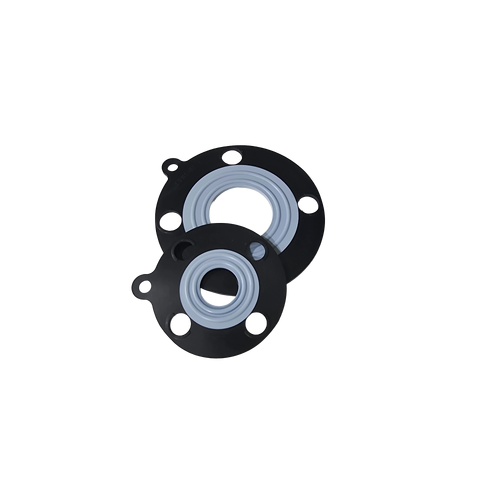

20 NB through 250 NB, all sizes suit ANSI 150 flanges.

Custom sizes or JIS equivalents available on request.
