PVC Flange Spray Shield / Cover - 20NB ANSI 300

SKU: SWM000237B02V0002
Availability: Available for Fast Dispatch.


All Bulk Prices Below Are Quoted Including GST.
Buy 5 - 9 and pay only $42.12 each
Buy 10 - 24 and pay only $38.91 each
  • Reliable, cost effective protection against damage from leaks.
  • Integrated pH indicator makes identification of a leaking flange easy.
  • Very good resistance to uV and many chemicals for long lasting performance.
  • Available in a variety of standard sizes to suit most flanges with custom and other flange tables available upon request.

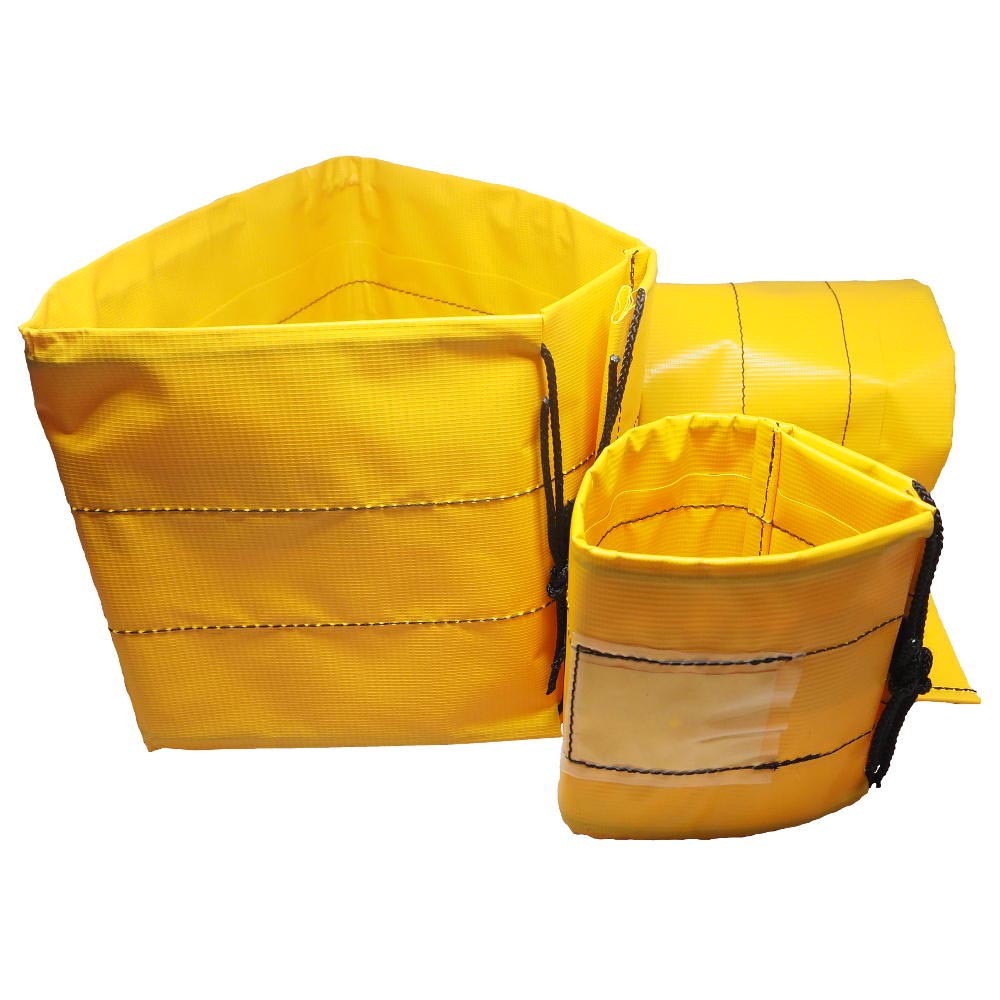

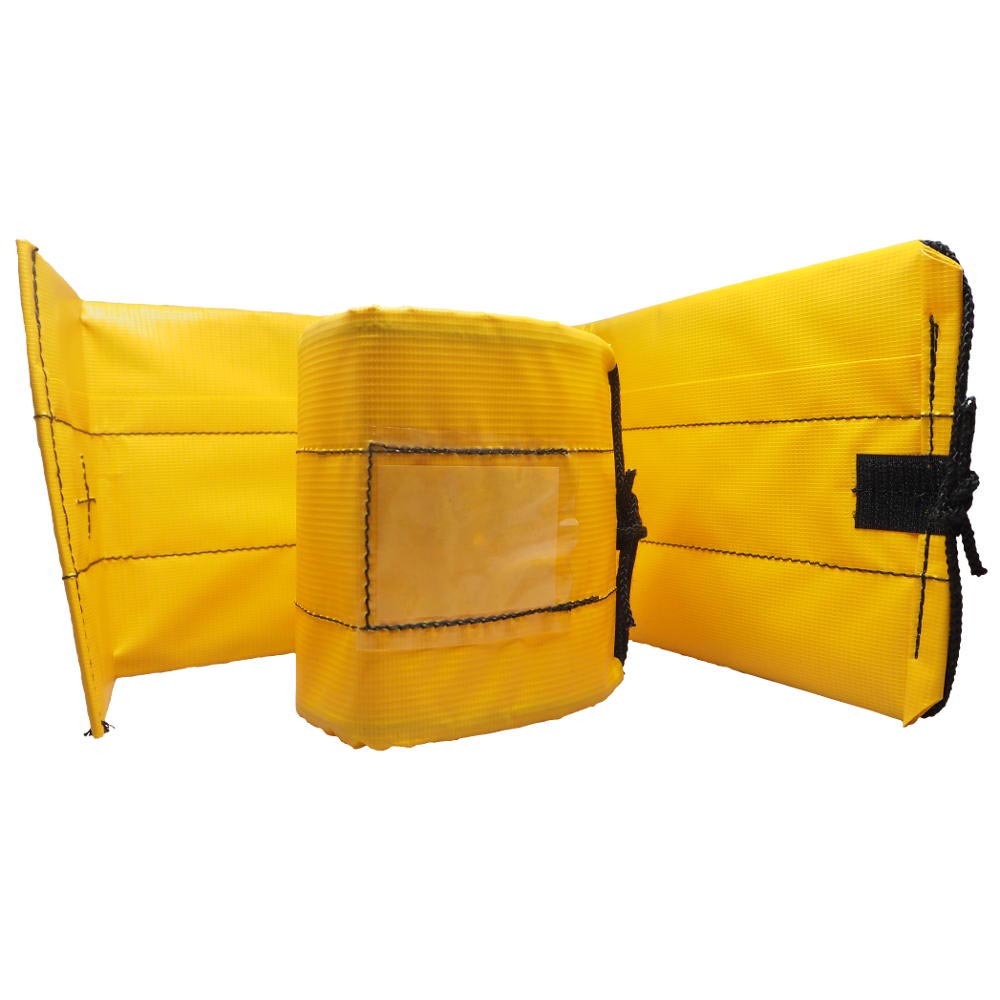

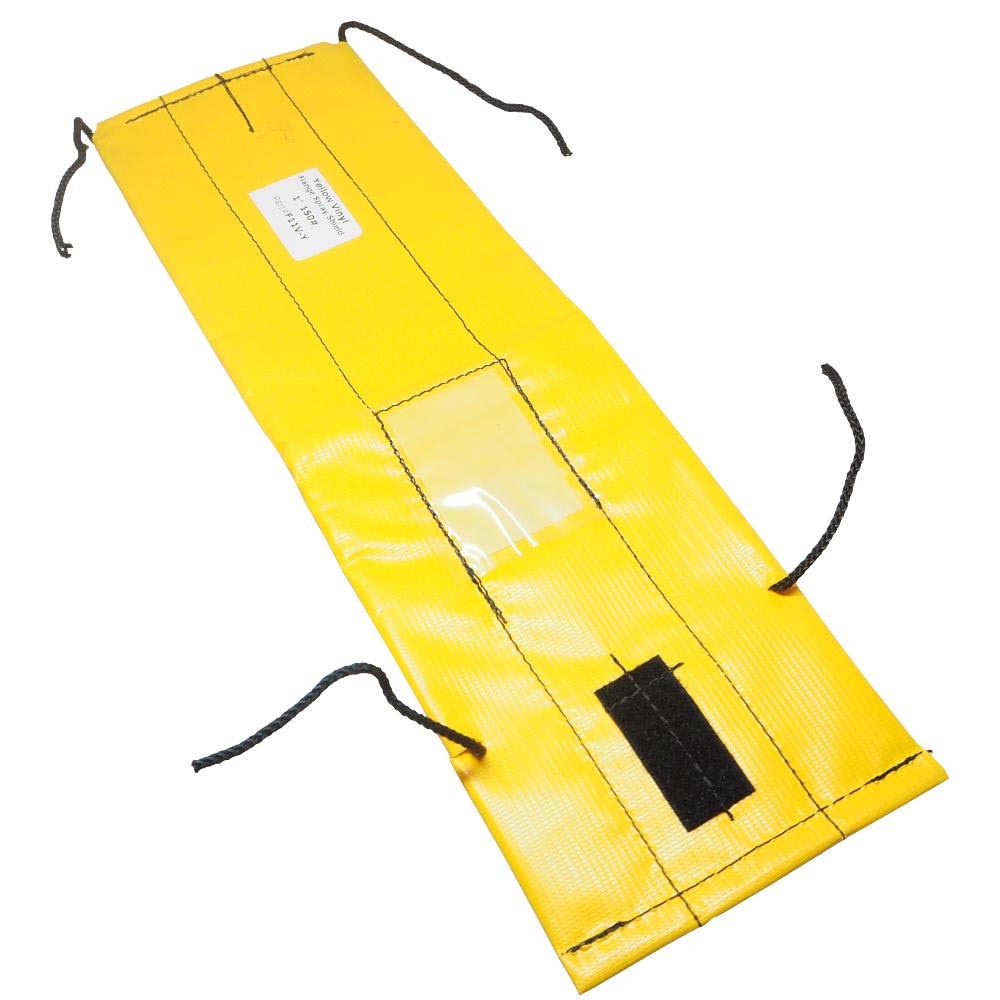

Our PVC Flange Spray Shields are designed to help protect plant, equipment and workers from problems caused by leaking flanges. Available in a selection of sizes, they are wrapped around the flange and secured with hook-and-loop and a draw string.

Once in place around the flange, Flange Spray Shields help shield surrounding equipment or personnel from potential leaks. They can also help you to identify small or slow leaks in your pipelines as each spray shield incorporates pH indicator pad that will change colour when it comes into contact with fluid.

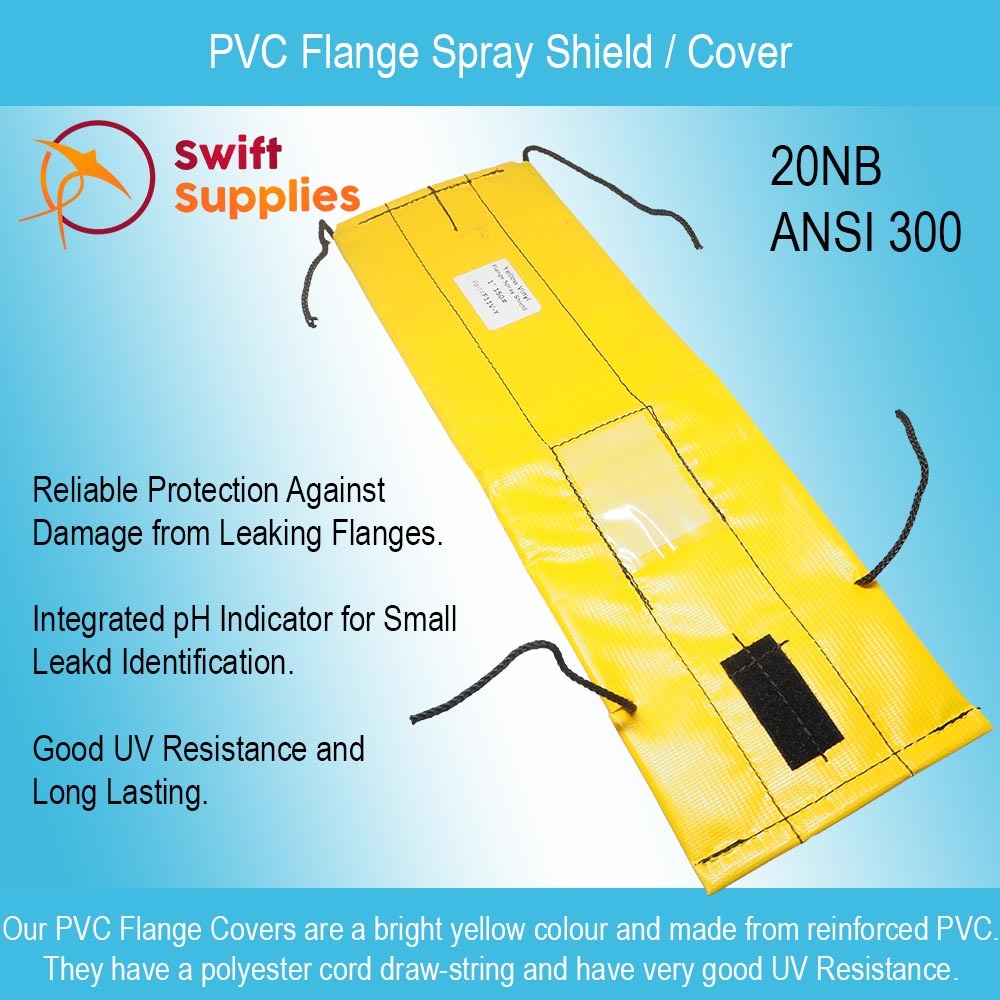

Our PVC Flange Covers are a bright yellow colour and made from reinforced PVC. They utilise a polyester cord for their draw-string and have very good resistance to UV and many chemicals. They are somewhat temperature limited and are only suggested for flanges where external temperatures reach no higher than 75°C.

Colour Yellow
Construction Reinfroced PVC with Replaceable pH Indicator Pad
in a Clear PVC Pouch
Draw String Polyester Cord
Temperature Rating 75°C Maximum
Leak Detection Method pH Indicator Pad
Chemical Resistance Very Good
Weather & UV Resistance Very Good
SKU SWM000237B02
Brand Gaskaseal
