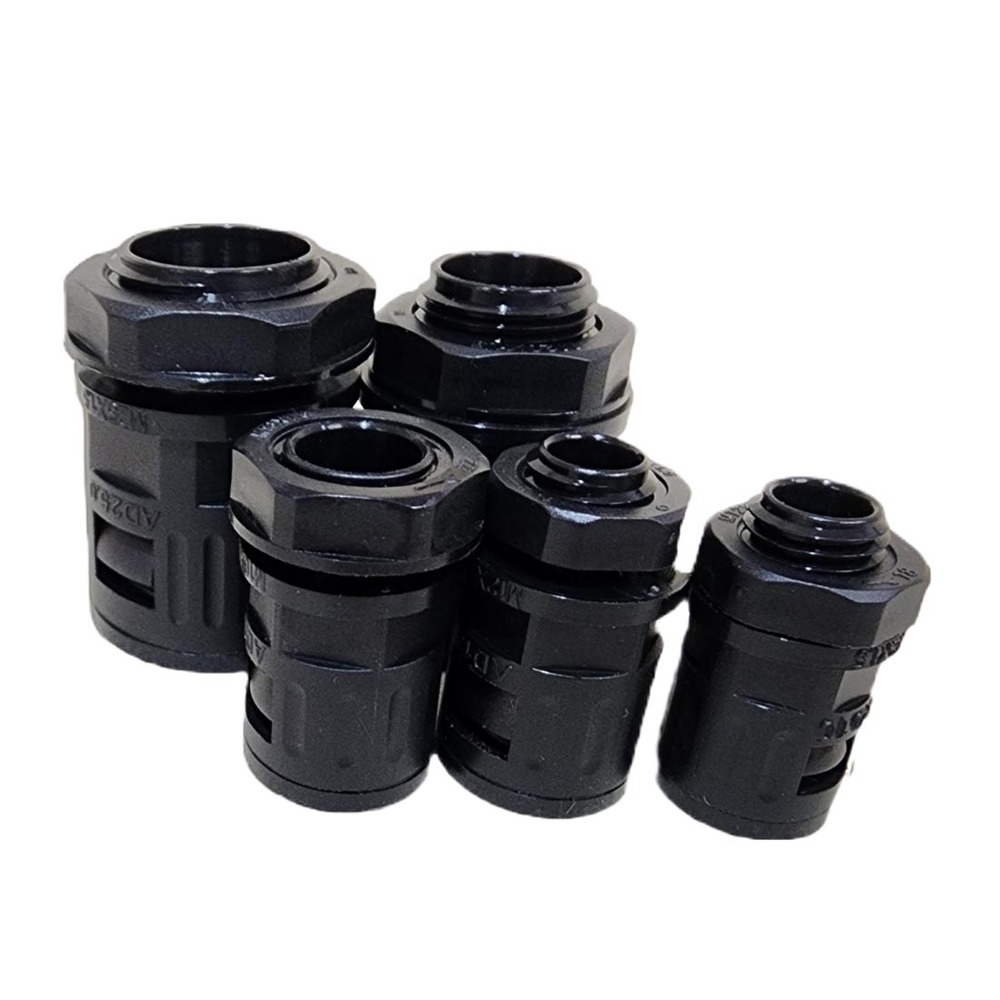

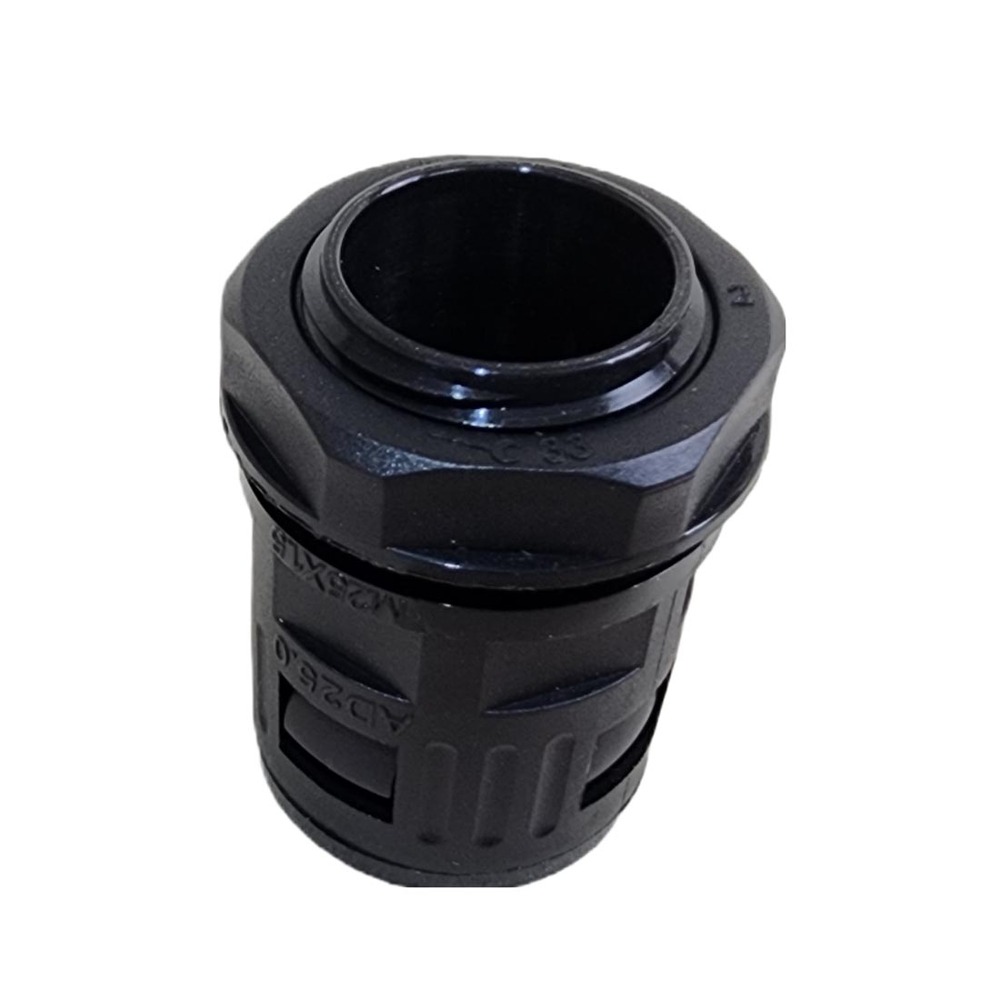

Our Nylon Quick Connect Corrugated Conduit Glands are ideal for those of you who go through a bit of conduit and need a fast, simple and easy way to install the cable into a box or panel.
These glands are made from UL Approved Nylon (PA66) and are available in a range of sizes to suit all of our conduit.
They effectively seal the connection and are able to withstand continuous exposure to temperatures between -40°C and +100°C (short term spikes outside this range may be tolerated).
They make installation and connection easy. To find the right size Quick Connect Conduit Gland for your conduit, please refer to the table below.

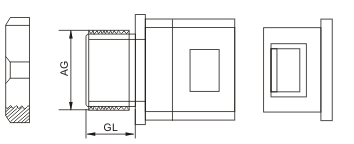

| Thread Diameter AG | Thread Depth GL | Suits Nylon Corrguated Conduit Size | Our Gland Part Number |
|---|---|---|---|

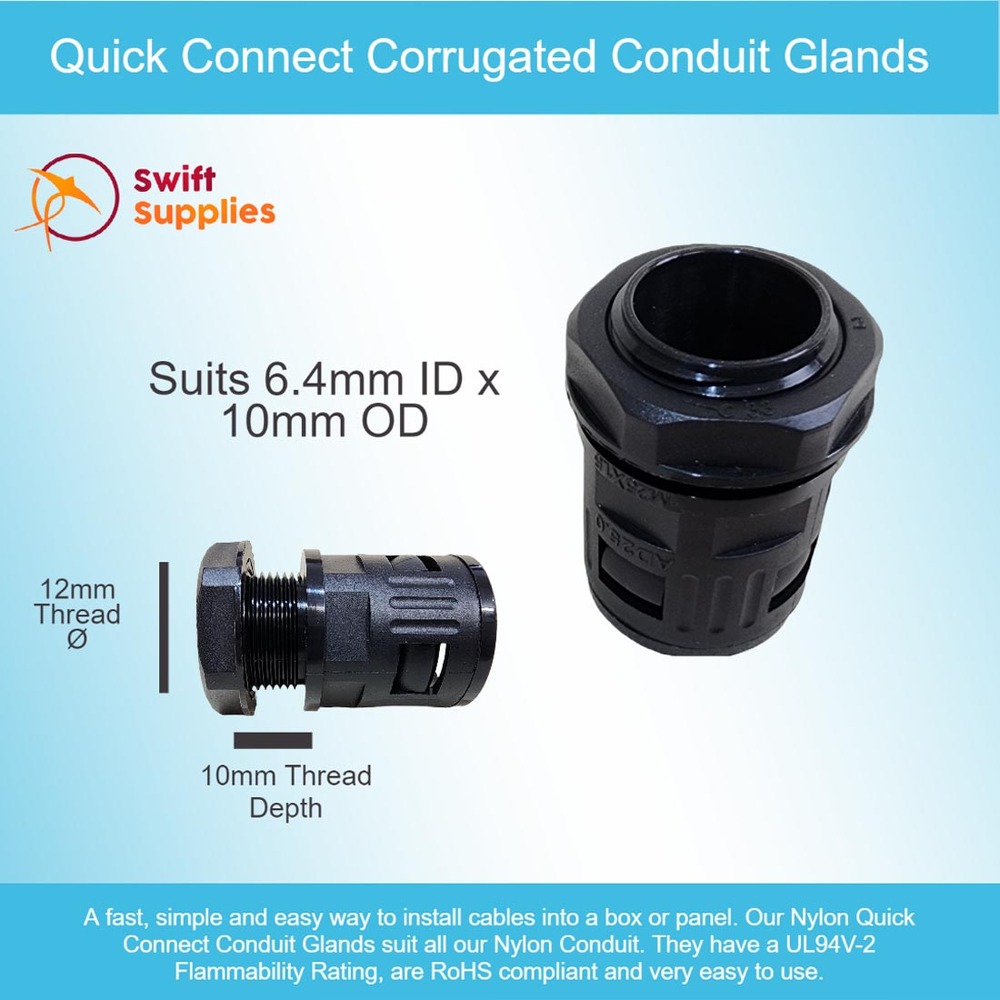

| 12mm Ø | 10mm | 6.4mm ID x 10mm OD | SWM000581B01V0001 |
| 12mm Ø | 12mm | 9.9mm ID x 13mm OD | SWM000581B01V0002 |
| 16mm Ø | 10mm | 9.9mm ID x 13mm OD | SWM000581B01V0003 |
| 16mm Ø | 12.5mm | 12.8mm ID x 15.9mm OD | SWM000581B01V0004 |
| 20mm Ø | 12.5mm | 12.8mm ID x 15.9mm OD | SWM000581B01V0005 |
| 20mm Ø | 13mm | 16.6mm ID x 21.2mm OD | SWM000581B01V0006 |
| 25mm Ø | 13mm | 16.6mm ID x 21.2mm OD | SWM000581B01V0007 |
| Colour | Black |
| Material | UL Approved Nylon 6/6 |
| Continuous Temperature Rating | -40°C to +100°C |
| Maximum Short-Term Peak Temperature Rating | +120°C |
| Flammability | UL94V-2 |
| RoHS | Compliant |
| Thread Diameter | Thread Depth | Suits Nylon Corrguated Conduit Size |
|---|---|---|
| 12mm Ø | 10mm | 6.4mm ID x 10mm OD |
| 12mm Ø | 12mm | 9.9mm ID x 13mm OD |
| 16mm Ø | 10mm | 9.9mm ID x 13mm OD |
| 16mm Ø | 12.5mm | 12.8mm ID x 15.9mm OD |
| 20mm Ø | 12.5mm | 12.8mm ID x 15.9mm OD |
| 20mm Ø | 13mm | 16.6mm ID x 21.2mm OD |
| 25mm Ø | 13mm | 16.6mm ID x 21.2mm OD |
| SKU | SWM000581 |
|---|
