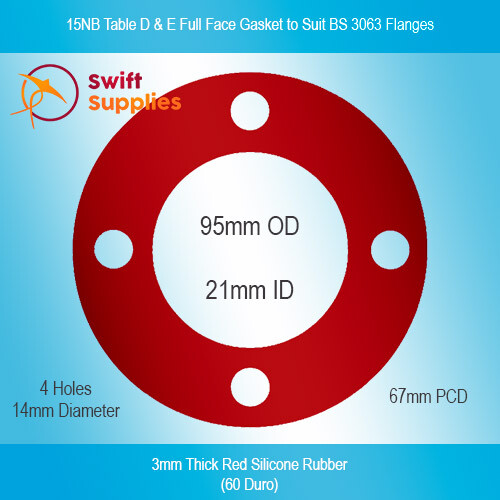

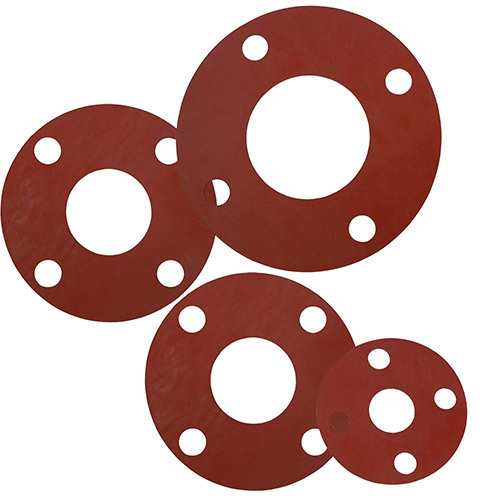

15NB Table D & E BS3063 Full Face Gasket, 3mm Red Silicone Rubber

SKU: SWM000132P04V0001
Availability: Cut to Order, Ships in 2-3 W/Days.
$3.30
INC. GST
$2.97
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 10 - 24 and pay only $3.01 each
Buy 25 - 49 and pay only $2.77 each
Buy 50 or above and pay only $2.53 each
  • High temperature resistant gaskets for BS 3063 Table D and Table E flanges.
  • Suitable for use with potable water.
  • Made from industrial-grade silicone rubber.
  • Cut to size in our Australian facilities to suit the precise requirements of BS 3063.

Silicone Rubber Gaskets are a popular choice for sealing flanges in applications with elevated temperatures.

This page lists our range of 3mm thick Red Silicone Gaskets to suit BS 3063 Table D and Table E flanges in the Full Face configuration (with bolt holes). They are quality rubber gaskets, cut to size in Australia, with a maximum operating temperature of 260°C and a range of other performance benefits.

Sealing Capabilities of Red Silicone Rubber Gaskets.

Our Red Silicone Rubber is a premium-quality, industrial grade Silicone Rubber Sheet with excellent sealing properties. This rubber has excellent temperature resistance, very good electrical insulation properties and wide-ranging chemical resistance. These, and other properties, are expanded on more below:

Food Grade and Potable Water Approved.

Washers, gaskets and seals cut from our Red Silicone Rubber inherit this materials food and potable water certification. Red Silicone Rubber Gaskets from Swift are made from food grade rubber which allow them to be used in sealing equipment that will have direct contact with food (as per FDA and EU standards) and for sealing potable (drinking) water (as per WRAS).

This rubber also carries certifications for several other applications which are detailed more on the attached technical data and over on the specifications tab.

Excellent Heat and Cold Temperature Resistance.

Seals made from our Red Silicone Rubber will withstand ongoing exposure to temperatures between -60°C and +230°C as well as short-term spikes to 250°C.

This is important as most other rubbers (Viton/FKM is the other exception) simply will become brittle and crack well before -50°C and will exhibit serious degradation before 160°C. Silicone doesn't and maintains excellent flexibility and sealing performance. An important attribute for high or low temperature seals.

Excellent Sealing Characteristics.

Silicone Gaskets are often selected because of this rubber excellent sealing performance. All the gaskets featured on this page are made from 60 Shore A Durometer Rubber sheet and have excellent compression, recovery and mechanical strength.

This results in flange gaskets which are very long lasting and offer reliable sealing performance.

Silicone Flange Gaskets to Suit BS 3063 Size Info.

The gaskets featured on this page are all cut to suit BS 3063 Flanges in either Table D or Table E configurations (the two most common). In some pipe nominal bores (e.g. 15NB, 80NB) there’s no difference in gasket size between Table D or Table E (the gasket fits both). In others, there are differences in number of holes or hole diameter.

Where there are differences between Table D and Table E; both are offered. Where there are no differences, a single gasket is listed here which will suit both. The sizing tables below provide more information on which nominal bores use the same gasket and which require their own size.

All the gaskets listed on this page are Full Face gaskets. These are so-named because they take up the full flange face and cover the bolt holes. Both ring and full-face gaskets can be used on these flanges depending on requirements and user preferences.

Full Face Flange Gaskets to suit BS 3063 Table D and Table E Size Info Tables.

BS 3063 Table D Red Silicone Rubber Gaskets Sizing.

All Dimensions below are given in millimeters (mm).

Flange Nominal
Bore
Gasket OD Gasket ID Number of
Holes
Hole
Diameter
PCD Matches
Table
15NB 95 21 4 14 67 E
20NB 102 27 4 14 73 E
25NB 114 34 4 14 83 E
32NB 121 43 4 14 87 E
40NB 133 48 4 14 98 E
50NB 152 60 4 19 114 E
65NB 165 76 4 19 127 E
80NB 184 89 4 19 146 E
90NB 203 102 4 19 165 -
100NB 216 114 4 19 178 -
125NB 254 140 8 19 210 E
150NB 279 168 8 19 235 -
200NB 337 219 8 19 292 -
250NB 406 273 8 22 356 -
300NB 457 324 12 22 406 -
350NB 527 381 12 25 470 E
400NB 578 432 12 25 521 E
450NB 641 483 12 25 584 -
500NB 705 533 16 25 641 E
600NB 825.5 635 16 29 756 -

Return to Top of Page.

BS 3063 Table E Red Silicone Rubber Gaskets Sizing.

All Dimensions below are given in millimeters (mm).

Flange Nominal
Bore
Gasket OD Gasket ID Number of
Holes
Hole
Diameter
PCD Matches
Table
15NB 95 21 4 14 67 D
20NB 102 27 4 14 73 D
25NB 114 34 4 14 83 D
32NB 121 43 4 14 87 D
40NB 133 48 4 14 98 D
50NB 152 60 4 19 114 D
65NB 165 76 4 19 127 D
80NB 184 89 4 19 146 D
90NB 203 102 8 19 165 -
100NB 216 114 8 19 178 -
125NB 254 140 8 19 210 D
150NB 279 168 8 22 235 -
200NB 337 219 8 22 292 -
250NB 406 273 12 22 356 -
300NB 457 324 12 25 406 -
350NB 527 381 12 25 470 D
400NB 578 432 12 25 521 D
450NB 641 483 16 25 584 -
500NB 705 533 16 25 641 D
600NB 825.5 635 16 32 756 -

Return to Top of Page.

Colour Red
Insertion None
Hardness (ASTM D2240) 60 Shore A (+/- 5) Durometer
Continuous Operating Temperature -60°C to +230°C
Short-Term Operating Temperature 250°C
Brittle Point -80°C
Elongation at Break (ASTM D412) 340%
Tear Strength (ASTM D624) 14.2 N / mm
Tensile Strength (ASTM D412) 1146 PSI
Potable Water WRAS Approved for Potable Water
at Temperatures up to 85°C
FDA Compliant As Per 21 CFR 177.2600
(Suitable for Direct Food Contact)
EC Food Safe Compliant with EC 1935/2004
(Suitable for Direct Food Contact)
RoHS and REACh Both Fully Compliant
FMVSS 302 Meets Part 571 Flammability Test
SKU SWM000132P04-3.0
