HellermannTyton

Straight Through Cable Joint Resin Kit - 3 x 1.5mm² to 5 x 2.5mm²

SKU: SWM000642B01V0001
Availability: Available for Fast Dispatch
$69.23
INC. GST
$62.94
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 3 - 4 and pay only $67.19 each
Buy 5 or above and pay only $65.92 each
Browse All Our Electrical Insulation, Conductors & ToolsBrowse All Our Other Electrical Parts & AccessoriesBrowse All Our Straight Through Cable Joint Resin Kit - 3 x 1.5mm² to 5 x 2.5mm²
  • High-performance polyurethane resin engineered for low-voltage sealing and electrical insulation
  • Fully watertight and chemical-resistant, ideal for underground and outdoor jointing

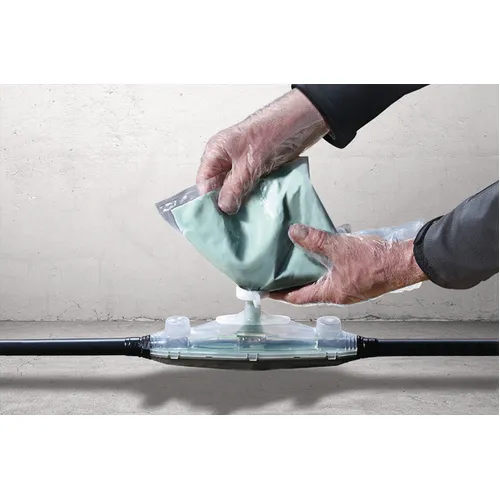

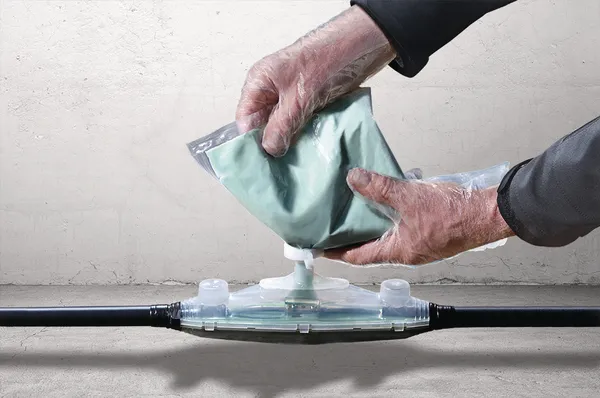

  • Fast curing compound supplied in two-part twin-sachets for clean, accurate mixing
  • Impact-resistant joint shell with designed cavity for complete encapsulation
  • Halogen-free, non-toxic resin with excellent adhesion and long-term dielectric strength
  • Suitable for power, control, signal, lighting and pump cables
  • Work with both solid and stranded conductors
  • Compatible with common inline connectors and crimp sleeves (connectors not always included—varies by kit)

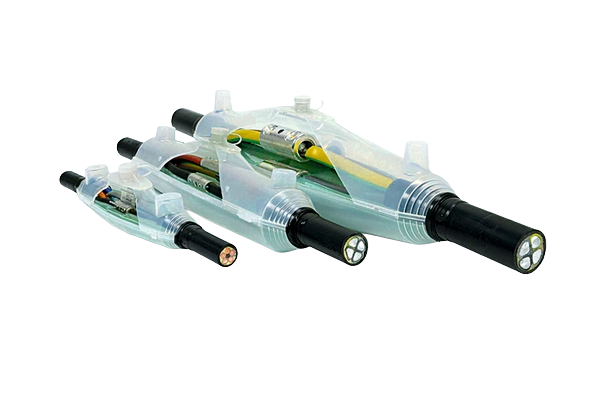

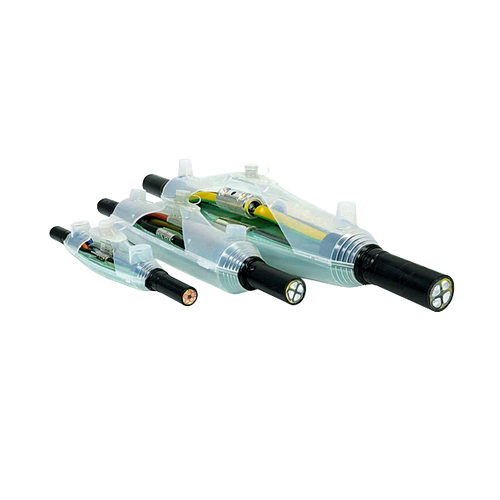

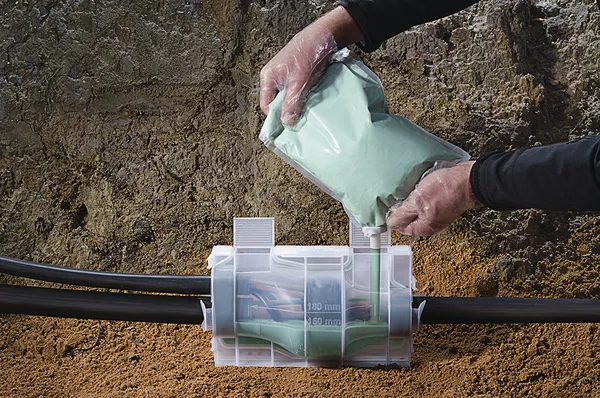

Our Relicon Straight Through Cable Joint Resin Kits provide a reliable, fully sealed solution for joining and repairing low-voltage power and control cables.

Designed for fast on-site installation, each kit includes a robust two-part mould, high-performance resin compound and all accessories required to create a mechanically strong, electrically insulated and water-resistant joint.

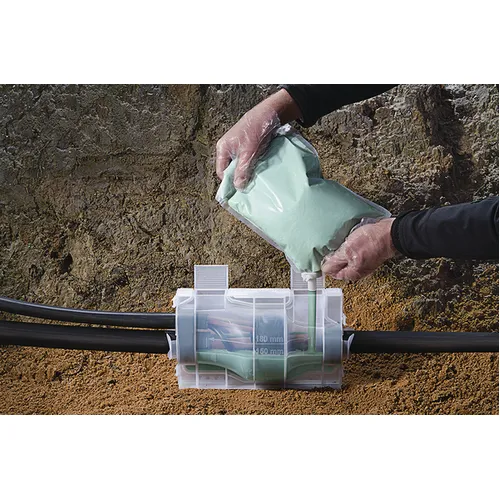

These kits are suitable for underground, outdoor and indoor installations, delivering excellent resistance to moisture, vibration, chemicals, UV and long-term electrical stress. The transparent or semi-transparent mould allows easy visual inspection during pouring and curing, ensuring a complete fill and consistent joint quality.

Compatible with a wide range of cable types—including XLPE, PVC, EPR, rubber-flex, multi-core and armoured cables—these joint kits provide dependable protection in commercial, industrial, mining, rural and construction environments.

Typical Applications

  • LV power distribution networks
  • Underground cable repairs
  • Pump, irrigation and bore installations
  • Outdoor lighting circuits and garden power
  • Industrial machinery, conveyors and plant cabling
  • Mining and quarry equipment cable repairs
  • Control, automation and instrumentation circuits
  • Marine, agricultural and wash-down environments

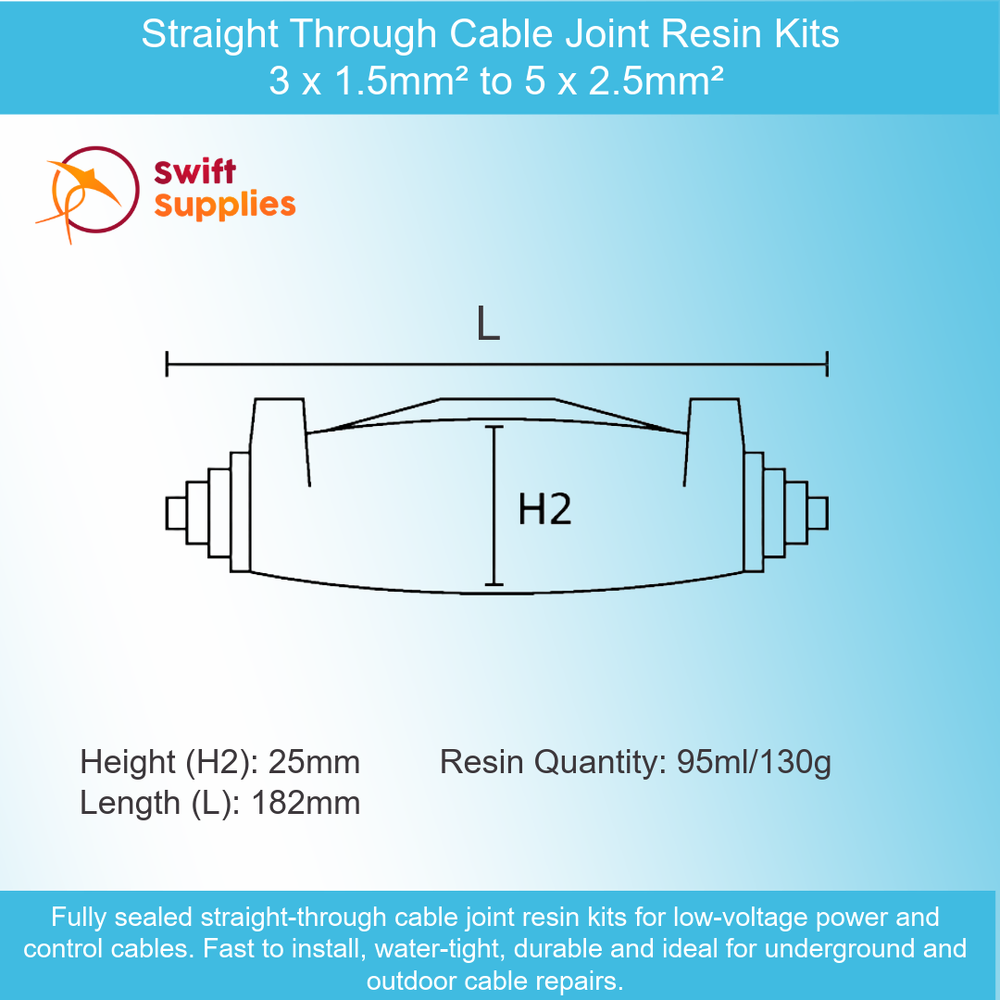

Cable Resin Kit Dimensions and Compatibilities

Kit Size Main Cable
mm² Min		 Main Cable
Ø Range		 Cable Size
(Strands)		 Length Height Resin
Quantity
3 x 1.5mm²
to
5 x 2.5mm²		 3 x 1.5mm²  6mm - 16mm 5 x 2.5mm² 182mm 25mm 95ml
3 x 1.5mm²
to
5 x 6mm²		 3 x 1.5mm²  6mm - 24mm 5 x 6mm² 190mm 36mm 165ml
3 x 1.5mm²
to
5 x 10mm²		 3 x 1.5mm²  6mm - 24mm 5 x 10mm² 215mm 39mm 220ml
5 x 1.5mm²
to
5 x 16mm²		 5 x 1.5mm²  14mm - 32mm 5 x 16mm² 276mm 49mm 400ml
5 x 10mm²
to
5 x 35mm²		 5 x 10mm²  21mm - 39mm 5 x 35mm² 360mm 54mm 655ml
4 x 25mm²
to
4 x 95mm²		 4 x 25mm²  28mm - 50mm 4 x 95mm² 400mm 69mm 1,140ml

Cable Resin Kit Contents

Each of our Relicon Straight Cable Joint Resin Kits contact the following. Please note, Connectors Are Not Included.

  • Cast resin PUR 33
  • Two-chamber pouch, transparent
  • Moulding shells, transparent

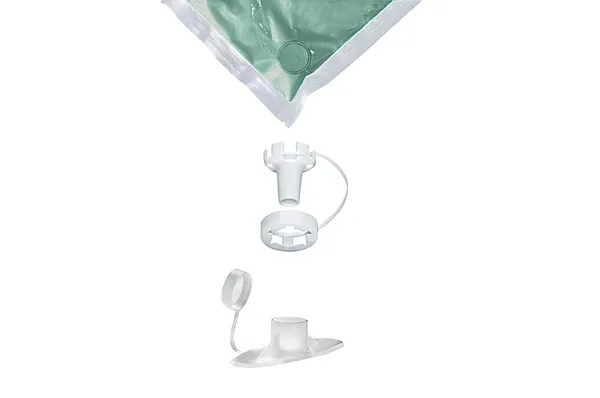

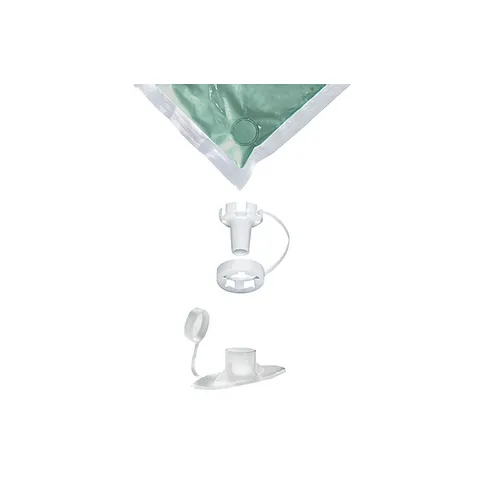

  • SF-system and nozzle
  • Protective gloves, emery cloth, installation instructions
  • HelaTape vinyl electrical tape
  • Spacer for max. 5 core cable (i-1 to i-4)



Operating Temperature -25 °C to +120 °C
Voltage Range (ETIM) 0.6/1kV
Material Polyurethane Resin 33 (PUR33)
Vibration Absorbing No
Colour Green Resin
Hazardous Goods No
Halogen-free No
ELV Compliant (Article 4 - 2) Yes
RoHS Yes



SKU SWM000642B01
Brand HellermannTyton
