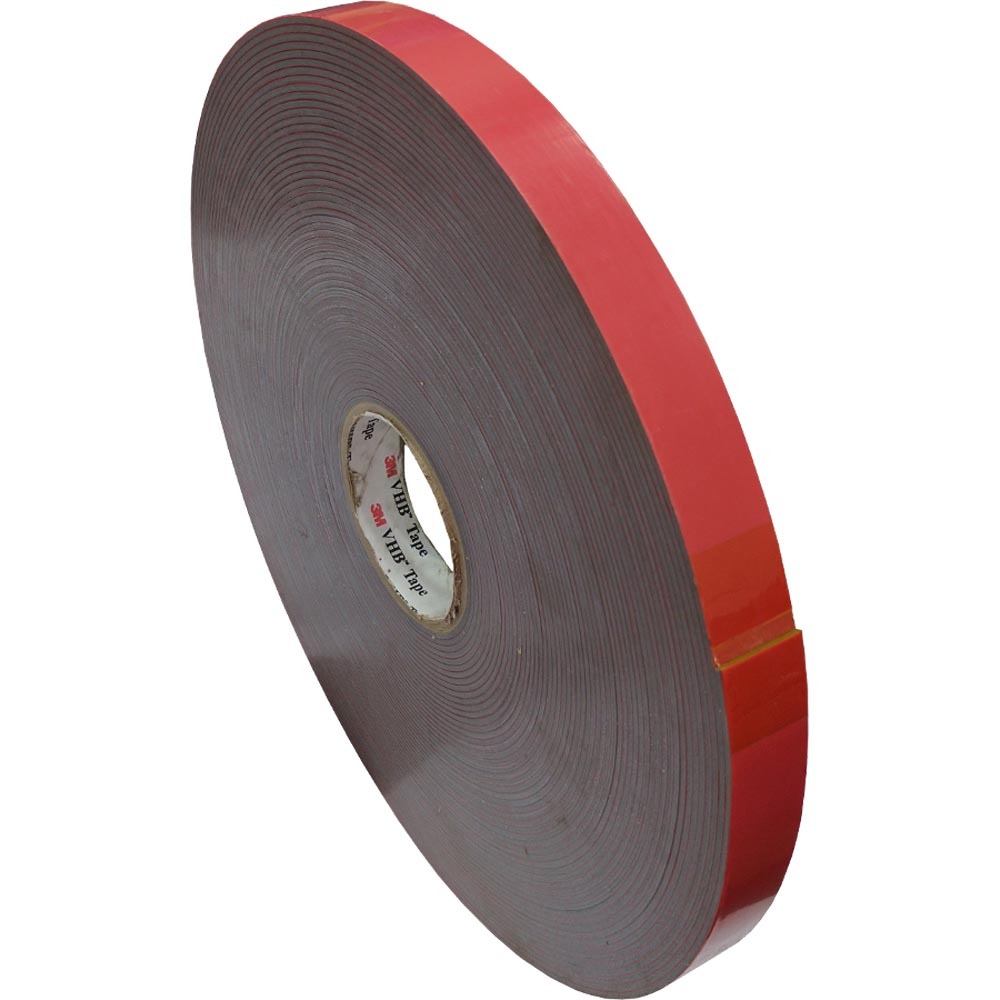

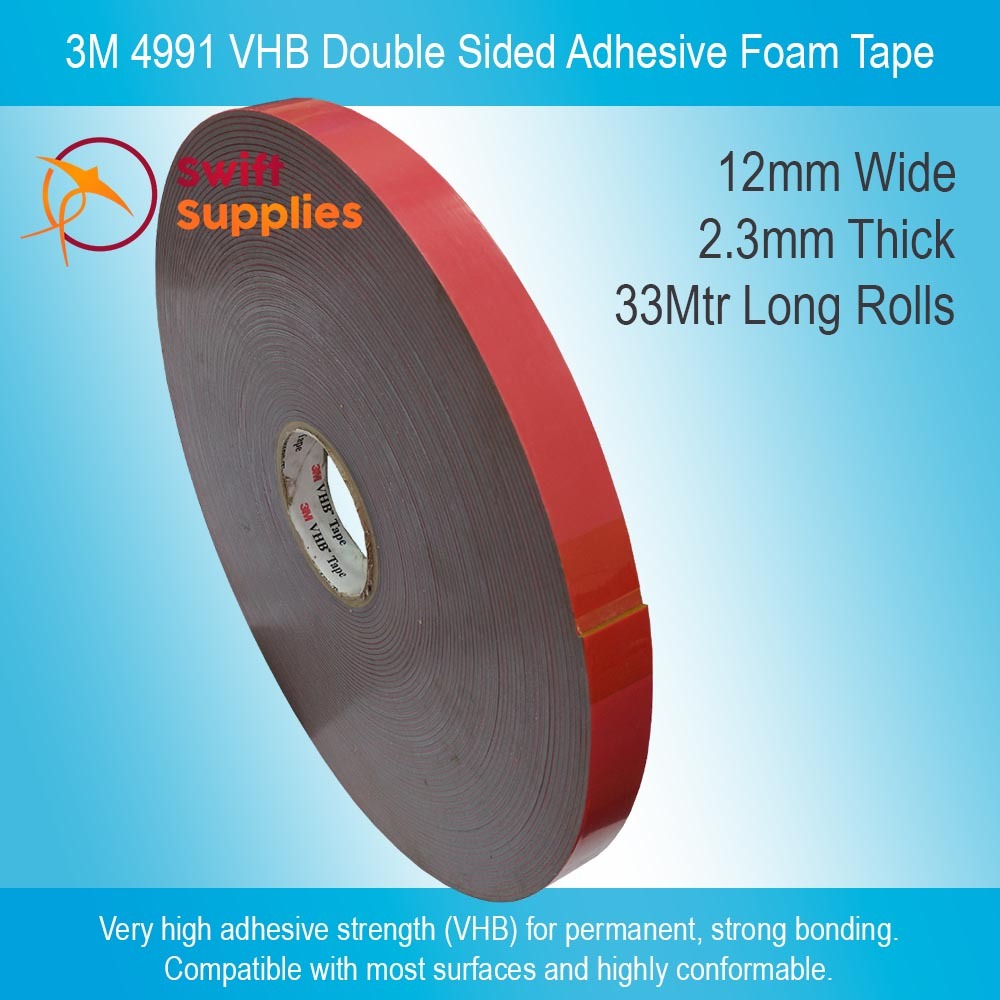

3M 4991 VHB Double Sided Adhesive Foam Tape - 12mm Wide x 33 Metres

SKU: SWM000071B01V0001
Availability: Ships in 1-3 W/Days.


All Bulk Prices Below Are Quoted Including GST.
Buy 3 - 4 and pay only $140.27 each
Buy 5 or above and pay only $138.69 each
  • High strength 3M VHB tape with excellent adhesion and good durability
  • Highly conformable foam backing assists with gap and void filling and flexibility
  • Long lasting adhesive performance in demanding conditions and on a range of surfaces

3M 4991 VHB Double Sided Adhesive Foam Tape is a premium grade of double sided adhesive foam tape and part of the 3M VHB tape family. This exceptional tape is manufactured from a 2.3mm thick grey foam backing that is coated on both sides with an acrylic based multi-purpose adhesive. Finally, the outer layer is protected with a red, polyethylene film liner that is easy to remove.
The conformable foam used for 3M 4991 VHB Double Sided Adhesive Foam Tape is very flexible and compressible. This makes the tape ideal for filling gaps or voids. It also makes it highly suitable for use when bonding to irregular or painted or sealed porous surfaces like wood or concrete. It also allows the tape to provide good cushioning, dampening and impact resistance.

The acrylic adhesive on both sides of the foam is a multi-purpose type which works with most materials. These include aluminium composite panels, glass, acrylics, polycarbonate (plexiglass, Lexan), architectural facades and most medium surface energy plastics (plasticised vinyl, rigid PVC). It can be used outdoors where it provides good, long-term performance.

3M 4991 VHB Double Sided Adhesive Foam Tape is an attractive alternative to many kinds of mechanical fasteners like bolts, screws or rivets. Compared to these devices it allows you to easily hide the fastening device to create a clean final appearance and also distributes stress and weight across the entire bonding area.

3M 4991 VHB Double Sided Adhesive Foam Tape adheres immediately to surfaces on which it is applied and then develops greater and greater strength over time. Full bond will be achieved in about 72 hours (depending on installation conditions like temperature and humidity). This tape will withstand continuous exposure to temperatures up to 93°C plus short-term spikes up to 121°C.

3M and VHB are both trademarks of 3M.

Applications for 3M 4991 VHB Tape.

  • Where a tape needs to both bond and provide a water-tight seal between surfaces.
  • Bus, truck and trailer skin mounting and installation
  • Body side moulding
  • Mounting architectural composite panels
  • Installing aftermarket automotive trims
  • Mounting exterior building cladding
  • Sign installation
  • Craft and model making
  • Attaching decorative fasciae
  • General decoration and the mounting of house numbers, signage and facades
Colour Grey
Adhesive Type Acrylic VHB Multi-Purpose Adhesive
Backing Material Conformable Foam
Liner Red (Printed) PE Film Liner
Total Thickness 2.3mm
Continuous Temperature Rating +93°C
Maximum Short-Term Temperature +121°C
Density 720 kg/m³
90° Peel Adhesion 85 N/100mm
Dynamic Overlap Shear Strength 450 KPa
SKU SWM000071B01
Brand 3M

Is there any limit to the temperatures this should be used in?

Room temperature is fine but try and make sure the room isn’t too cold. Anything above about 15°C is ideal.

Are other colours available?

Not of this particular grade. We do have quite a selection of double sided tapes though and all are classified by colour. You can check them out here.

Are other sizes available?

Thicknesses and/or lengths, no. At least not in this particular grade of VHB tape. Widths, yes. In fact, we can arrange custom-slit rolls of 3M 4991 VHB Double Sided Adhesive Foam Tape as they are required. If you’d like us to arrange a quote, please do get in touch and we’ll sort it out for you.
