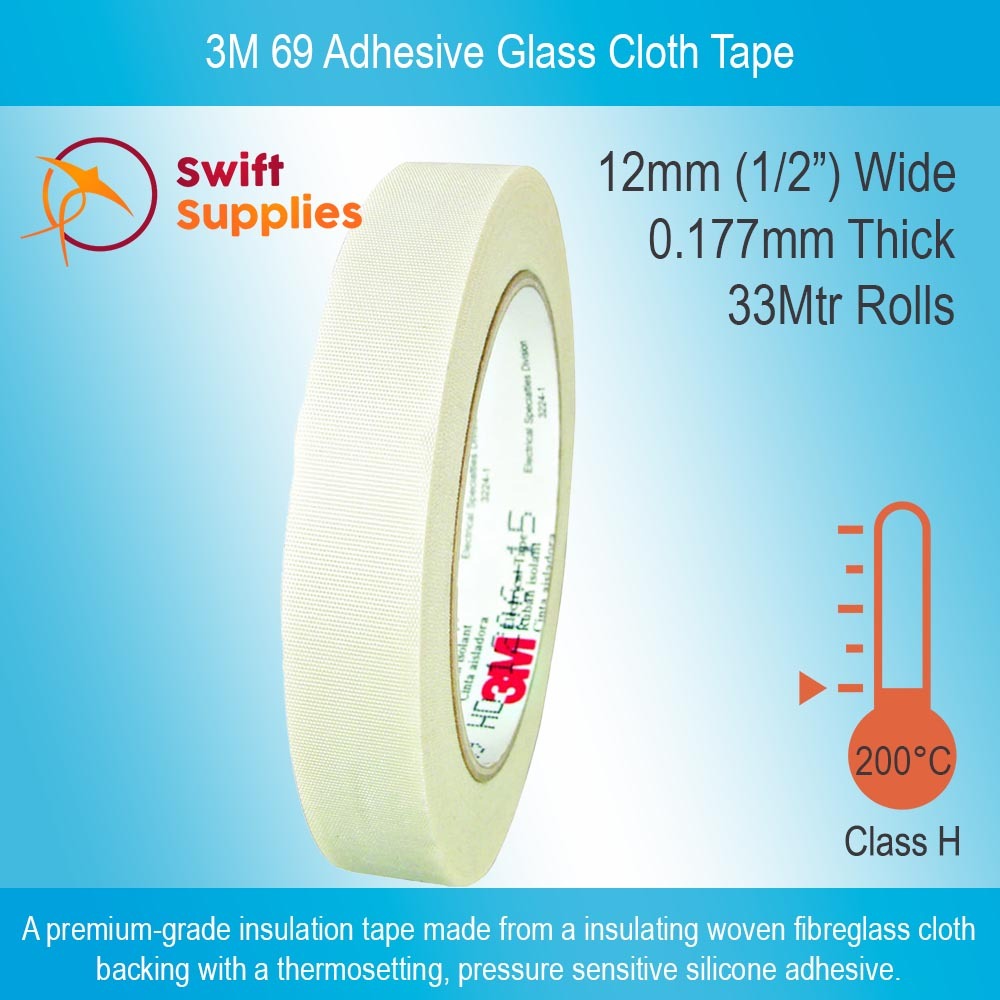

3M 69 Adhesive Glass Tape - 12mm Wide x 33 Metres

SKU: SWM000457P01V0001
Availability: Cut to Order, Ships in 2-5 W/Days.
$36.12
INC. GST
$32.51
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 5 - 9 and pay only $33.20 each
Buy 10 or above and pay only $31.66 each
  • High temperature (200°C) resistant adhesive tape.
  • Good mechanical strength.
  • Strong electrical properties.
  • Glass cloth backing optimally resists resist shrinking and burning and can be printed.

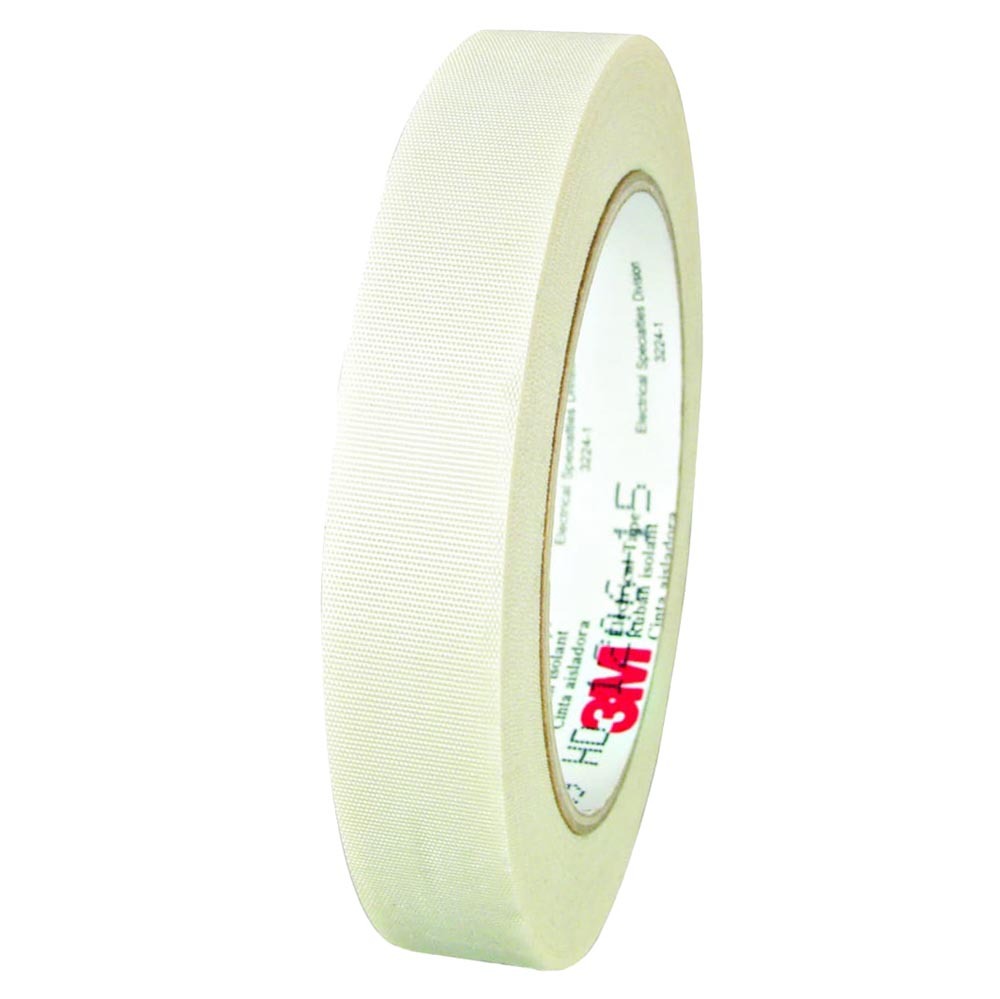

3M 69 Glass Cloth Electrical Tape with Silicone Adhesive is a high quality, high performance tape made from woven glass cloth coated on one side with a thermosetting, pressure-sensitive silicone adhesive.

This tape has excellent temperature resistance and can be used in environments between 0°C and 200°C.

The fibreglass backing has excellent mechanical strength and is also highly conformable to make taping around turns and irregular objects easier. It does not stretch (elongation at break of 5%) and resists rotting and shrinking while providing excellent stability.

This premium grade tape has a total thickness of 0.177mm and is white in colour. Dielectric breakdown is 3,000 volts.

3M 69 Glass Tape has been tested in accordance with a range of different international standards. It is flame retardant (UL 510), CSA Certified and ‎RoHS 2011/65/EU Compliant.

Typical Applications for 3M 69 Adhesive Glass Tape.

  • Insulating electric and induction-type furnace power supply leads.
  • Securing high-temperature, non-PSA insulation (such as asbestos and glass) in high-temperature areas.
  • Securing Scotch® Fire Retardant Electric Arc Proofing Tape 77.
  • Splicing wire SF and SFF rated 150°C, 180°C.
  • Reinsulating and repairing coils on mining machines.
  • Splicing silicone-covered glass wire where splices require more abrasion resistance and mechanical strength than can be provided by silicone tapes Insulating Class “H” dry-type transformer leads.
  • Insulating splices made on SA type wire in heat treat areas.
  • Especially suited to high-temperature applications.
  • Used in a variety of coil/transformer and motor applications, including an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold down, end turn and lead anchor and connections.
Colour White
Adhesive Silicone Thermosetting, Pressure-Senstive Adhesive
Backing Material Fibreglass Cloth
Backing Thickness 0.125mm
Total Tape Thickness 0.177mm
Continuous Temperature Rating 200°C (Class H)
Dielectric Breakdown 3,000 Volts
Adhesion to Steel 4.4 N / 10mm
Elongation at Break 5%
Breaking Strength 314 N / 10mm
Insulation Resistance 4.8 x 104 megohms
Roll Length 55 Metres
SKU SWM000457P01
Brand 3M
