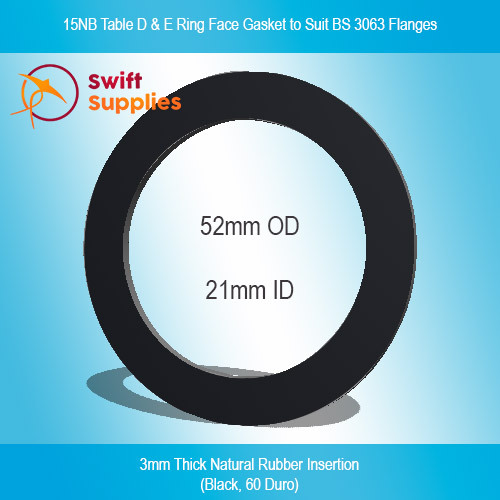

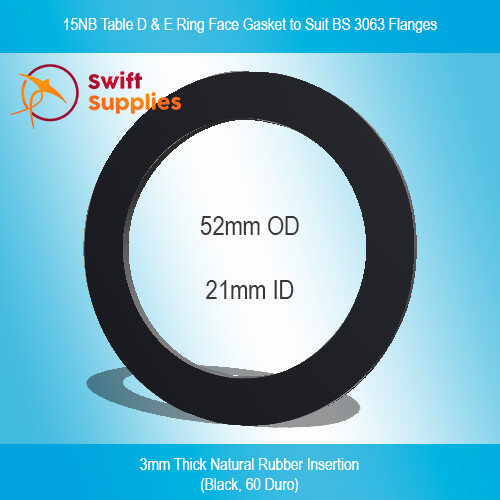

15NB Table D & E BS3063 Ring Face Gasket, 3mm NRI

SKU: SWM000005P05V0001
Availability: Cut to Order, Ships in 2-3 W/Days.
$0.61
INC. GST
$0.55
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 10 - 24 and pay only $0.47 each
Buy 25 - 49 and pay only $0.46 each
Buy 50 or above and pay only $0.42 each
  • Economical gaskets for sealing at low pressures & temperatures.
  • Cut in our Australian factory to the precise size requirements of BS 3063.
  • Full range of standard flange tables available. Custom size gaskets also available upon request.

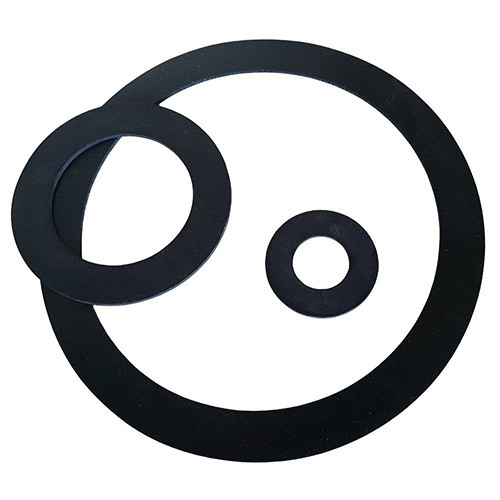

Natural Rubber Insertion (NRI) Flange Gaskets are often used in low temperature and low-pressure sealing. Cut in our Australian factory from our Natural Rubber Insertion sheet, the gaskets featured on this page are all designed to suit BS 3063 Table D and/or Table E flanges.

Widely used in many different industries, Insertion Rubber Gaskets are suitable for sealing applications where temperatures are between 0°C and 70°C. They are often used for hydro-testing or permanent, low pressure flange sealing because of their economic nature.

For more information on this material, please consult our Natural Insertion Rubber Technical Data Sheet. For more info on the gaskets, read on.

Flange Gaskets to Suit BS 3063 Size Info.

This page lists ring types gaskets. This style of gasket is designed to sit inside the bolts of the flanges and is known by quite a few names, including:

  • RF Flange Gaskets.
  • IBC Gaskets (Inner Bolt Circle).
  • Raised Face Gaskets (as they are often used on raised face type flanges).
  • Ring Face Gaskets.

Theseg askets are all cut to suit BS 3063 Flanges in either Table D or Table E configurations (the two most common). In almost all pipe nominal bores (except 150NB, 200NB & 300NB) there’s no difference in gasket size between Table D or Table E (the gasket fits both) when using ring type gaskets.

For those where there is a difference, both Table D and Table E variations are offered separately.

Ring Face Flange Gaskets to suit BS 3063 Table D and Table E Size Info Table.

BS 3063 Table D Rubber Gaskets Sizing.

All Dimensions below are given in millimeters (mm).

Flange Nominal
Bore
Imperial
Short-Hand
Gasket ID Gasket OD Matches
Table
15NB 1/2" 21 52 E
20NB 3/4" 27 59 E
25NB 1" 34 68 E
32NB 1 1/4" 43 73 E
40NB 1 1/2" 48 84 E
50NB 2" 60 97 E
65NB 2 1/2" 76 110 E
80NB 3" 89 129 E
90NB 3 1/2" 102 148 E
100NB 4" 114 160 E
125NB 5" 140 191 E
150NB 6" 168 216 -
200NB 8" 219 273 -
250NB 10" 273 333 E
300NB 12" 324 384 -
350NB 14" 381 444.5 E
400NB 16" 432 495 E
450NB 18" 483 559 E
500NB 20" 533 616 E
600NB 24" 635 728 E

BS 3063 Table E Rubber Gaskets Sizing.

All Dimensions below are given in millimeters (mm).

Flange Nominal
Bore
Imperial
Short-Hand
Gasket ID Gasket OD Matches
Table
15NB 1/2" 21 52 D
20NB 3/4" 27 59 D
25NB 1" 34 68 D
32NB 1 1/4" 43 73 D
40NB 1 1/2" 48 84 D
50NB 2" 60 97 D
65NB 2 1/2" 76 110 D
80NB 3" 89 129 D
90NB 3 1/2" 102 148 D
100NB 4" 114 160 D
125NB 5" 140 191 D
150NB 6" 168 213 -
200NB 8" 219 270 -
250NB 10" 273 333 D
300NB 12" 324 381 -
350NB 14" 381 444.5 D
400NB 16" 432 495 D
450NB 18" 483 559 D
500NB 20" 533 616 D
600NB 24" 635 728 D
Colour Black
Insertion Cotton
Polymer NR/SBR (Natural Rubber / Styrene Butadiene Rubber)
Hardness 60 Shore A (+/- 5) Durometer
Continuous Operating Temperature 0°C to 70°C
Elongation at Break 300%
Tear Strength 12 N / mm
Specific Gravity 1.55
Potable Water No
Food Grade No
Abrasion Resistance High
Hydrocarbon and Fuel Resistance Low
Tearing Resistance High
UV / Sunllight Resistance Medium
SKU SWM000005P05
