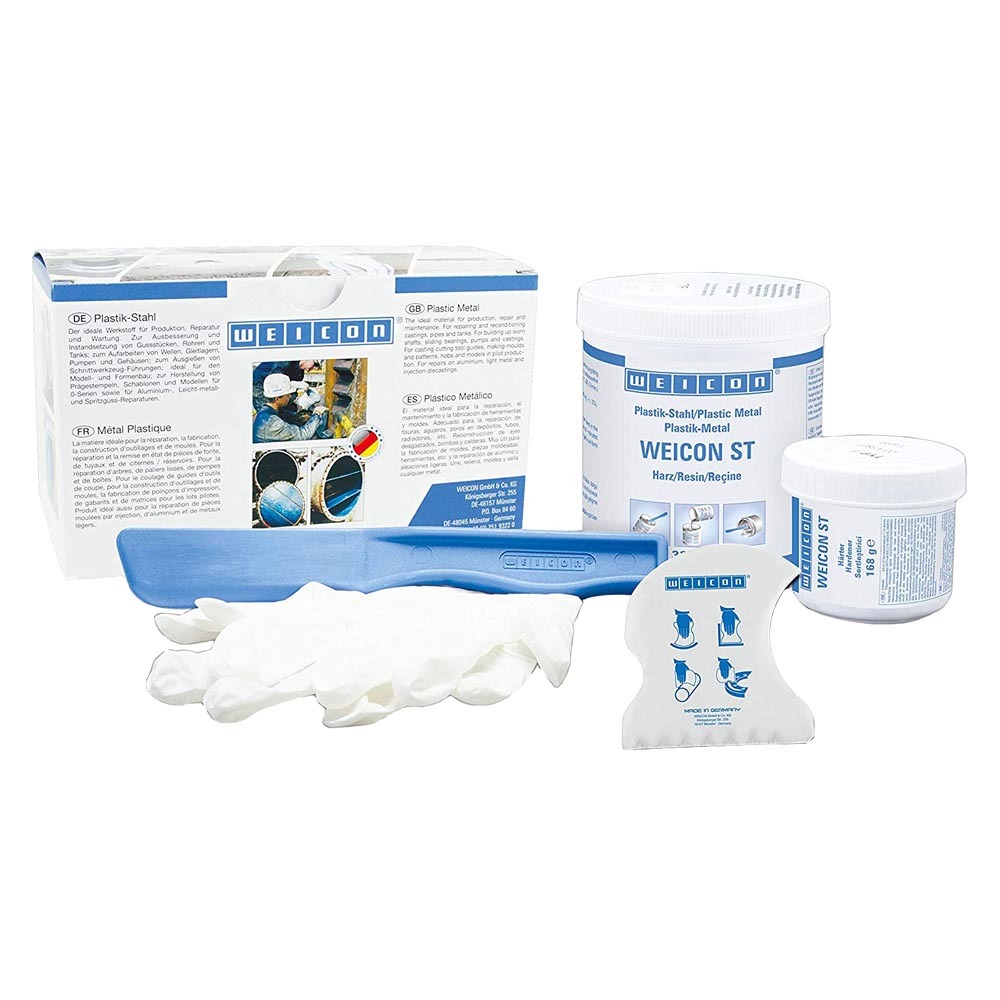

Plastic Metal ST Stainless Steel Repair Epoxy - 500gm Kit
$120.26
INC. GST
$109.33
EX. GST
Container Size
BULK DISCOUNT RATES
All Bulk Prices Below Are Quoted Including GST.
| Buy 2 or above | and pay only $117.70 each |
Description
- Viscous Epoxy Resin for Repairs to Stainless Steel Parts and Surfaces.
- Can be applied with a spatula.
- Metal-Filled, hard-wearing epoxy compound.
- Non-corrosive.
Our Plastic Metal ST is a specialised type of epoxy putty made specifically for repairs and reconditioning stainless steel. It is used for everything from repairing machines parts and work pieces through to tanks, pipes, containers, funnels and SS flanges.
This grade of plastic steel is made from epoxy resin with metal fillers. Like most epoxies, it is a two part system. Once it is mixed, it has a pasty consistency and can be applied with a spatula.
Pot life for Plastic Metal ST is about 60 minutes so you have a good amount of time to apply. After 6 hours, it will reach around 35% cure and it is at this point that additional layers can be applied if needed (max. depth per layer is 10mm).
Plastic Metal ST will be fully cured after about 12 hours depending on the environment.
Once fully cured, this epoxy putty will be grey in colour and have set hard (shore hardness is 85 Shore D). More information on its compressive, impact and tensile strength is available on the TDS.
Our Weicon Plastic Metal ST can withstand temperatures between -35°C and +120°C. It is electrically insulating and non-magnetic.
Specifications
| Basis | Metal Filled Epoxy Resin |
|---|---|
| Mix Ratio (by Weight) | 100 : 50 (Resin / Hardener) |
| Density of the Mixture | 1.7 g/cm³ |
| Viscosity of the Mixture | 550,000 mPa·s |
| Colour | Grey |
| Maximum Layer Thickness | 10mm |
| Mechanical Strength (80% of Final) | 9 Hours (when curing at 20°C) |
| Final Strength | 12 Hours (when curing at 20°C) |
| Mean Compressive Strength | 96 MPa (DIN EN ISO 604) |
| Mean Tensile Strength | 48 MPa (DIN EN ISO 527-2) |
| Bending Strength | 38 MPa (DIN EN ISO 178) |
| e-Modulus (Tensile) | 7,300 - 7,900 MPa (DIN EN ISO 527-2) |
| Shore Hardness | 85 Shore D (DIN ISO 7619) |
| Continuous Temperature Rating | -35°C to +120°C |
| Thermal Conductivity | 0.8 W/m·K (DIN EN ISO 22007-4) |
| IMPA Reference Numbers | 812943 (500gm) / 812944 (2kg) |
| ISSA Reference Numbers | 75.509.34 (500gm) / 75.509.35 (2kg) |
| SKU | SWM000533B01 |
|---|---|
| Brand | Weicon |
