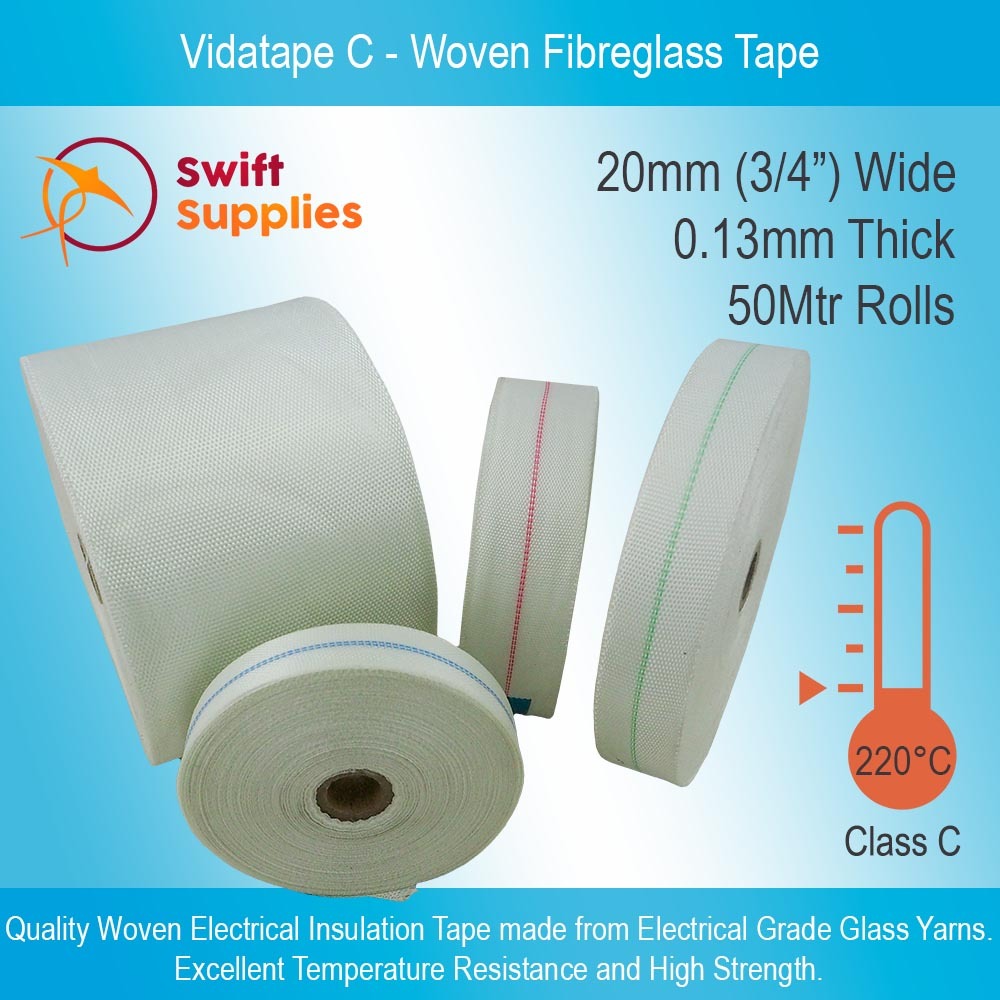

Vidatape C Woven Fibreglass Electrical Tape - 0.13mm x 20mm x 50Mtrs

SKU: SWM000487B01V0004
Availability: Available for Fast Dispatch.
$19.35
INC. GST
$17.41
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 5 - 9 and pay only $17.99 each
Buy 10 or above and pay only $17.44 each
  • High strength insulating, consolidating and finishing tape used in all kinds of electrical equipment.
  • Suitable for use in high temperature applications. 220°C rated for continuous use (electrical), 500°C short-term.
  • Used as a fire barrier and overwrap protection tape for power and communication cables.
  • Available in a large selection of thicknesses and widths.

Vidatape C Woven Fibreglass Tape is a electrical insulation tape manufactured from plain weave ‘E’ glass yarns. This tape combines excellent tensile strength, very high temperature resistance and solid dielectric strength. This tape is highly impregnable and compatible with most electrical varnishes and resins.

High Temperature Woven Electrical Tape.

Vidatape C Woven Glass Tape has a thermal class (IEC 60085) of 220°C making it suitable for use in Class H or Class C electrical applications. Maximum short-term temperature rating is 500°C.

Quality Construction for Consistent Performance.

Manufactured ‘E’ glass yarns, Vidatape C is supplied in loom state with a controlled organic size treatment on the glass yarns to limit filamentation during winding and application. The edges of Vidatape C are sewn to reduce fraying and make application easier.

Coloured Centre-Lines for Accurate Taping and Identification.

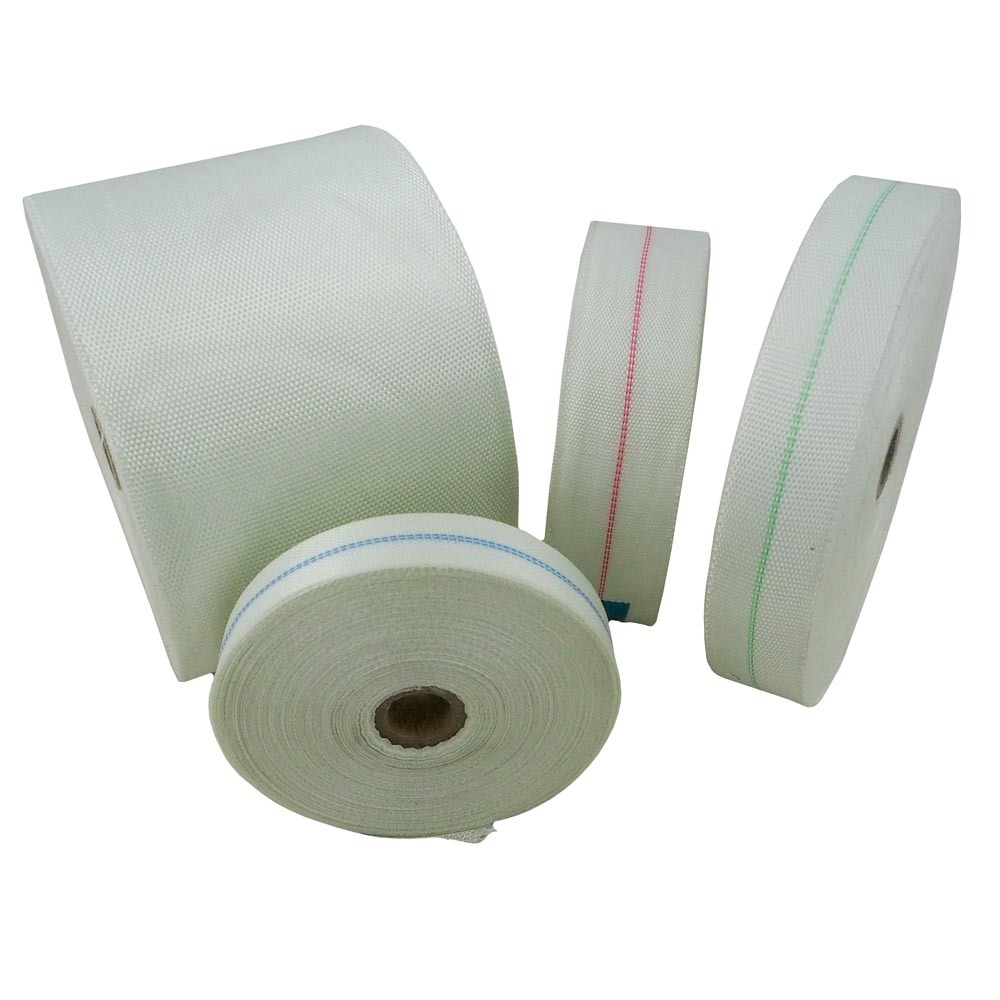

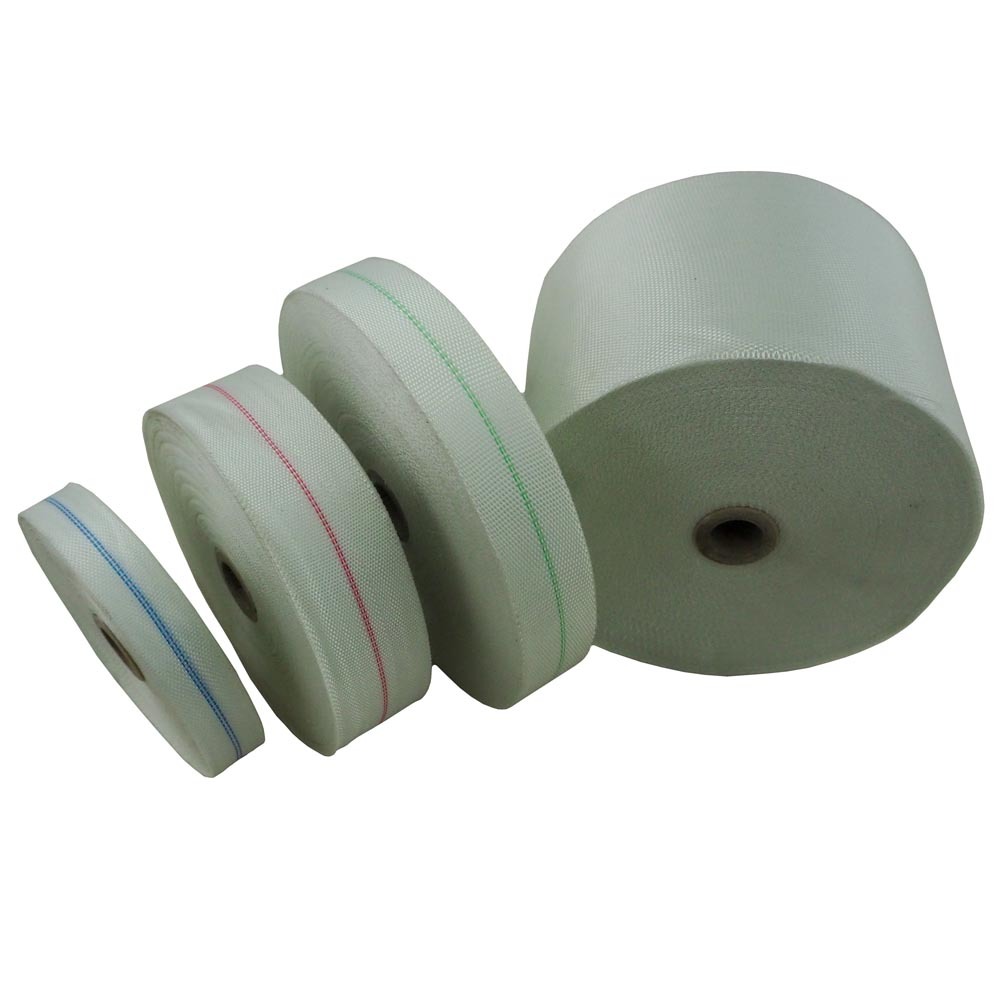

Each roll of Vidatape C is supplied with two coloured centrelines. These are used to identify the type of tape (two lines of the same colour denotes fibreglass in the Vidatape range) and as an application guide to ensure good, consistent 50% overlap.

Thickness 0.09mm 0.13mm 0.18mm 0.23mm
Centre Identification Lines Blue / Blue Red / Red Orange / Orange Green / Green
Thickness Tolerance -0.01 / +0.02mm -0.01 / +0.04mm -0.01 / +0.04mm -0.01 / +0.05mm

Please note, our 0.18mm thick, 50mm Wide, 75mm Wide & 100mm Wide varieties do not have centre-lines.

High Physical Strength.

Made from 100% fibreglass yarns, Vidatape C exhibits excellent physical strength. Exact figures vary depending on the thickness of the tape and are summarised in the table below:

Thickness 0.09mm 0.13mm 0.18mm 0.23mm
Tensile Strength (@ 20°C)
(IEC 61067-2)
25 N/mm 30 N/mm 35 N/mm 50 N/mm

Typical Applications for Vidatape C Woven Glass Electrical Tape.

  • As a finishing and consolidating tape in medium and high voltage electrical equipment (especially motors with a high temperature class).
  • As primary insulation in low voltage machines.
  • As a fire barrier for power and communication cables.
  • Underlying insulation during the metal sheathing operation.
Thickness 0.09mm 0.13mm 0.18mm 0.23mm
Centre Identification Lines Blue / Blue Red / Red Orange / Orange Green / Green
Thickness Tolerance -0.01 / +0.02mm -0.01 / +0.04mm -0.01 / +0.04mm -0.01 / +0.05mm
Tensile Strength (@ 20°C)
(IEC 61067-2)
25 N/mm 30 N/mm 35 N/mm 50 N/mm
Warp (ends / cm)
(IEC 61067-2)
25 20 10 10
Weft (picks / cm)
(IEC 61067-2)
14 10 9 9
Area Weight
(IEC 61067-2)
125 g / m² 154 g / m² 209 g / m² 243 g / m²
Thermal Class
(IEC 60085)
220°C (Class C)
Maximum Short-Term Temperature 500°C



SKU SWM000487B01-013
Brand Krempel
