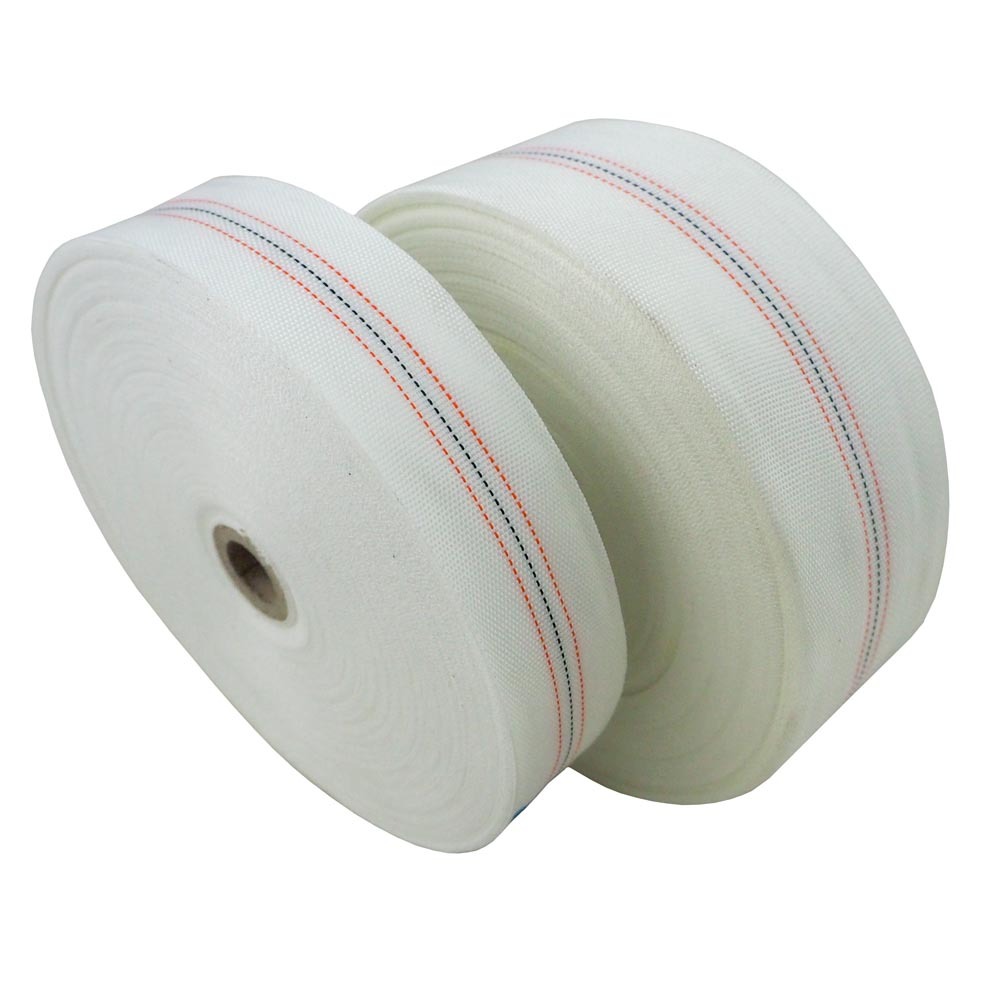

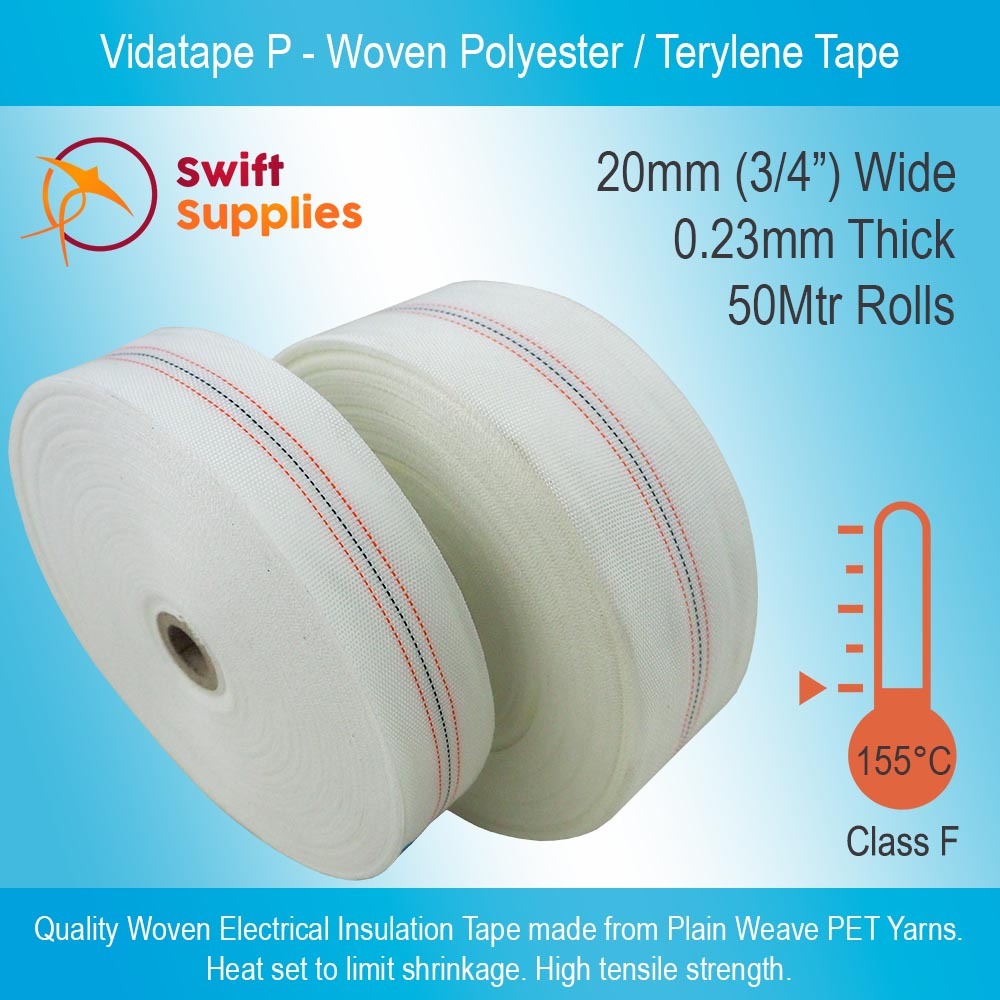

Vidatape P Woven Polyester Electrical Tape - 0.23mm x 20mm x 50Mtrs

SKU: SWM000476B01V0007
Availability: Available for Fast Dispatch.
$18.52
INC. GST
$16.67
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 5 - 9 and pay only $16.76 each
Buy 10 or above and pay only $16.03 each
  • Quality Woven Electrical Insulation Tape made from Plain Weave PET Yarns.
  • Heat set to limit shrinkage. High tensile strength.
  • RoHS & REACH Compliant.
  • Often used for hand taping of motor coils on Class F motors where fibreglass may irritate the skin.

Vidatape P has been trusted for decades and is a common sight in most electric motor rewind workshops. This high-quality tape is produced by JSI-Krempel and is relied on for consistent performance and ease of use.

Vidatape P is known by many names; woven polyester tape, PET tape, terylene tape. It is distinguished by its orange-black-orange centre-lines and is soft, easy to handle and highly conformable. These distinctive central-lines also help with identifying the tape in your workshop and consistent, even application.

This quality electrical insulation tape is commonly used as a consolidating and finishing tape for electrical equipment rated up to Class F (155°C). It is made from polyester PET yarns that are braided to create a tape with very little stretch. Vidatape P has been heat set to limit the amount of shrinkage. That said, some linear shrinkage will occur when exposed to temperatures above 120°C.

Applications for Terylene Tape.

Woven Polyester Electrical Tapes are commonly used for hand taping of equipment that has a low to medium operating temperature. It is typically used for the consolidation or finishing or electric motor coils with a operating temperature classification of Class B (130°C) or Class F (155°C).

Thickness 0.13mm 0.23mm
Centre Identification Lines Orange - Black - Orange
Tensile Strength (@ 20°C)
(IEC 61067-2)
16 N/mm 40 N/mm
Warp (ends / cm)
(IEC 61067-2)
36 28
Weft (ends / cm)
(IEC 61067-2)
13 15
Area Weight
(IEC 61067-2)
71 g / m² 125 g / m²



SKU SWM000476B01-023
Brand Krempel
