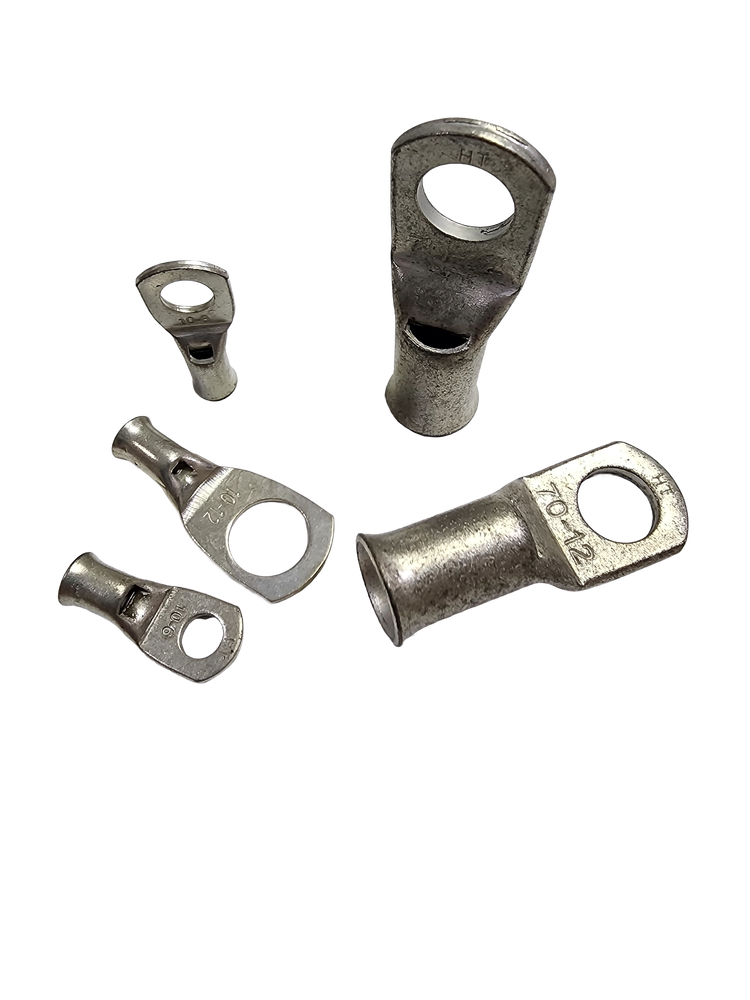

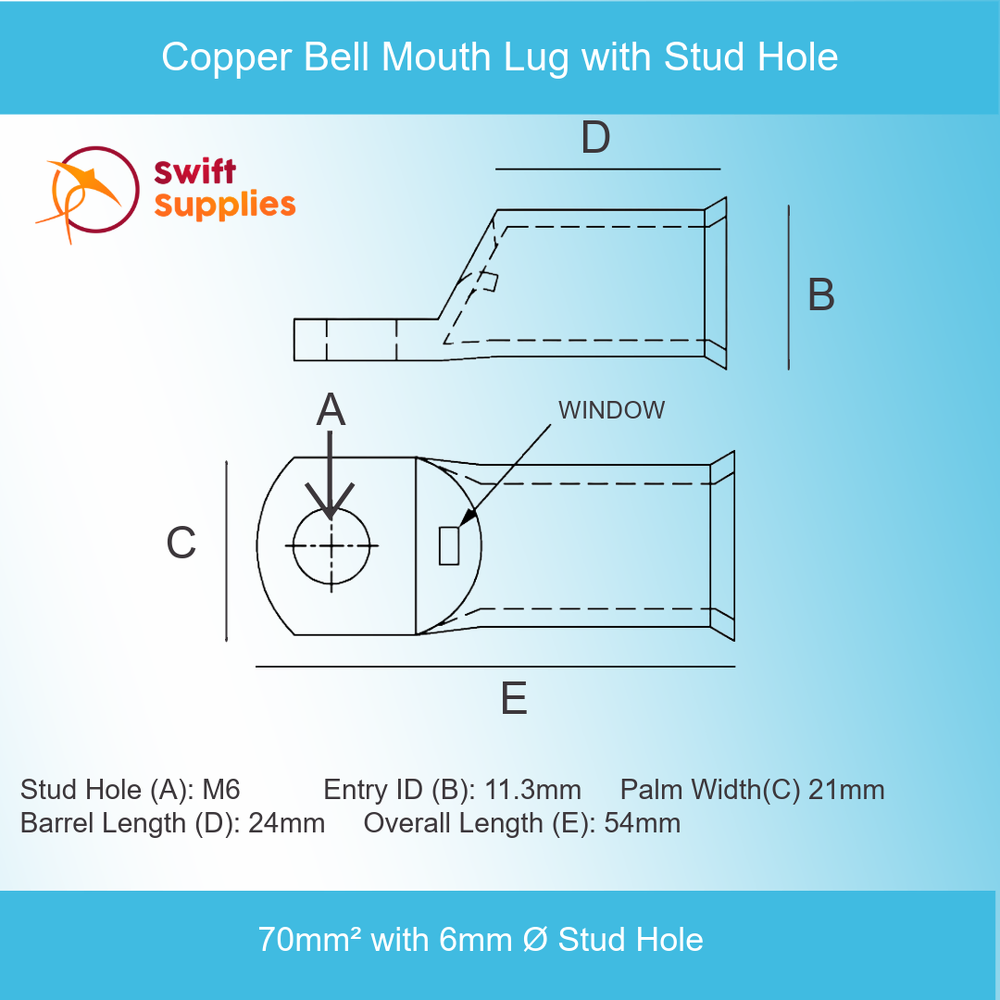

Copper Bell Mouth Cable Lugs - 70mm² with 6mm Ø Stud Hole

• Flared bell-mouth entry for easy insertion of fine-stranded and flexible cables
• Made from high-conductivity electrolytic copper
• Tin plated for excellent corrosion resistance
• Thick-walled, heavy-duty barrel for strong mechanical performance
• Compatible with standard compression crimp tools
• Clean, professional finish that protects conductor strands during termination

Our Copper Bell Mouth Cable Lugs are premium, heavy-duty compression lugs designed for fast, reliable terminations on flexible and finely-stranded cables. The flared “bell mouth” entry allows the strands to glide smoothly into the barrel without catching, folding or splaying, ensuring a secure termination every time—especially when working with high-flex or Class 5/6 cable.

Manufactured from electrolytic grade copper tube, these lugs provide excellent conductivity, low resistance and long service life. Each lug is tin plated for maximum corrosion resistance, making them suitable for harsh industrial, marine and automotive environments. They are compatible with standard hex and indent crimping tools and comply with common Australian installation practices.

Typical Applications

• Switchboards, control panels and MCCs
• Automotive and 4×4 wiring upgrades
• Battery, inverter and solar installations
• Marine electrical systems
• UPS equipment and power distribution builds
• Industrial and mining equipment wiring

Bell Mouth Cable Lug Sizes

This page lists our Bell Mouth Lugs for 70mm² cross section cables and wires. These are available with a selection of stud hole sizes.
