Corrugated Conduit Mounting Clamp for 6.4mm Ø Corrugated Tube
$1.39
INC. GST
$1.26
EX. GST
BULK DISCOUNT RATES
All Bulk Prices Below Are Quoted Including GST.
| Buy 10 - 24 | and pay only $1.14 each |
| Buy 25 - 49 | and pay only $1.03 each |
Description

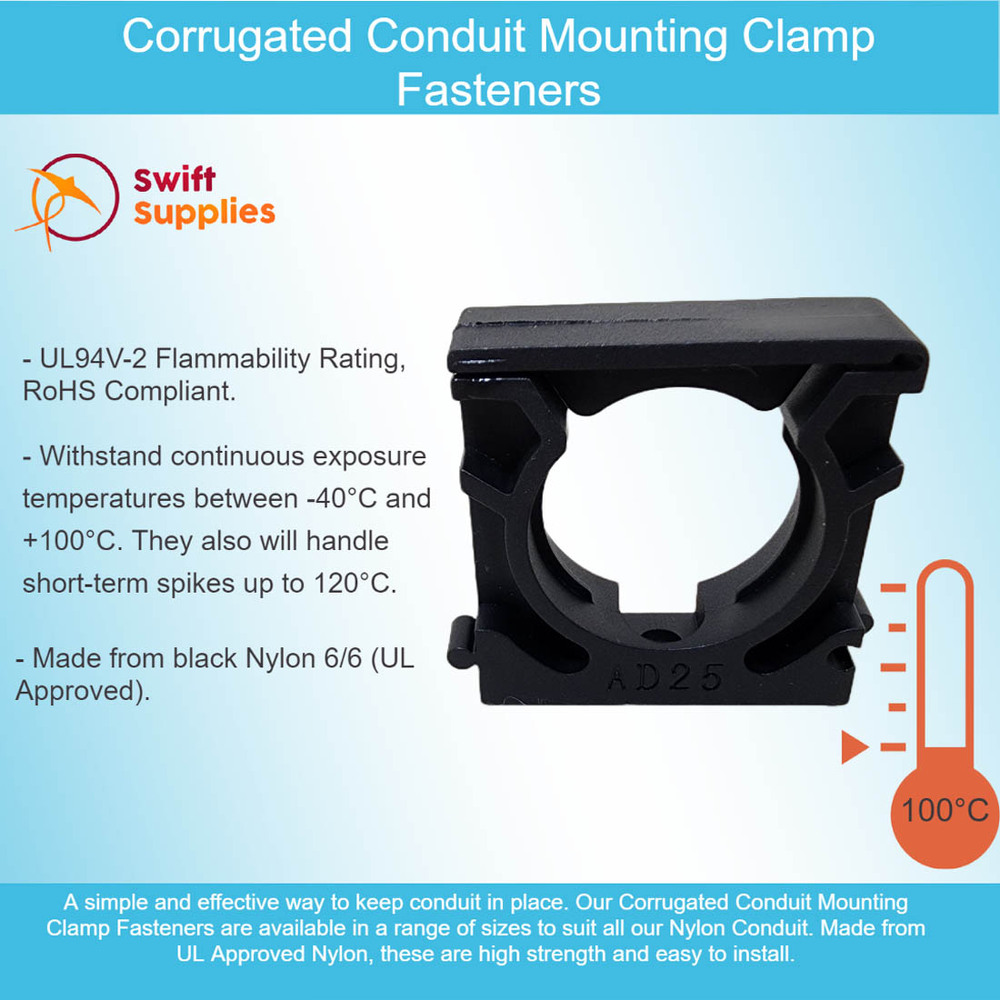

- A simple solution to securing Nylon conduit to a wall, panel or surface.
- Available in a range of sizes to suit all our corrugated conduit.
- Made from UL Approved Nylon 6/6.
- UL94V-2 Flammability Rating and RoHS Compliant.
Our easy-to-use Corrugated Conduit Mounting Clamp Fasteners are available in a range of sizes. Made from good quality black Nylon, these clamps can be easily screwed to all kinds of surfaces and make securing conduit easy.
They are made from black Nylon 6/6 (UL Approved) and can withstand temperatures between -40°C and +100°C. They will also handle short-term spikes up to 120°C.

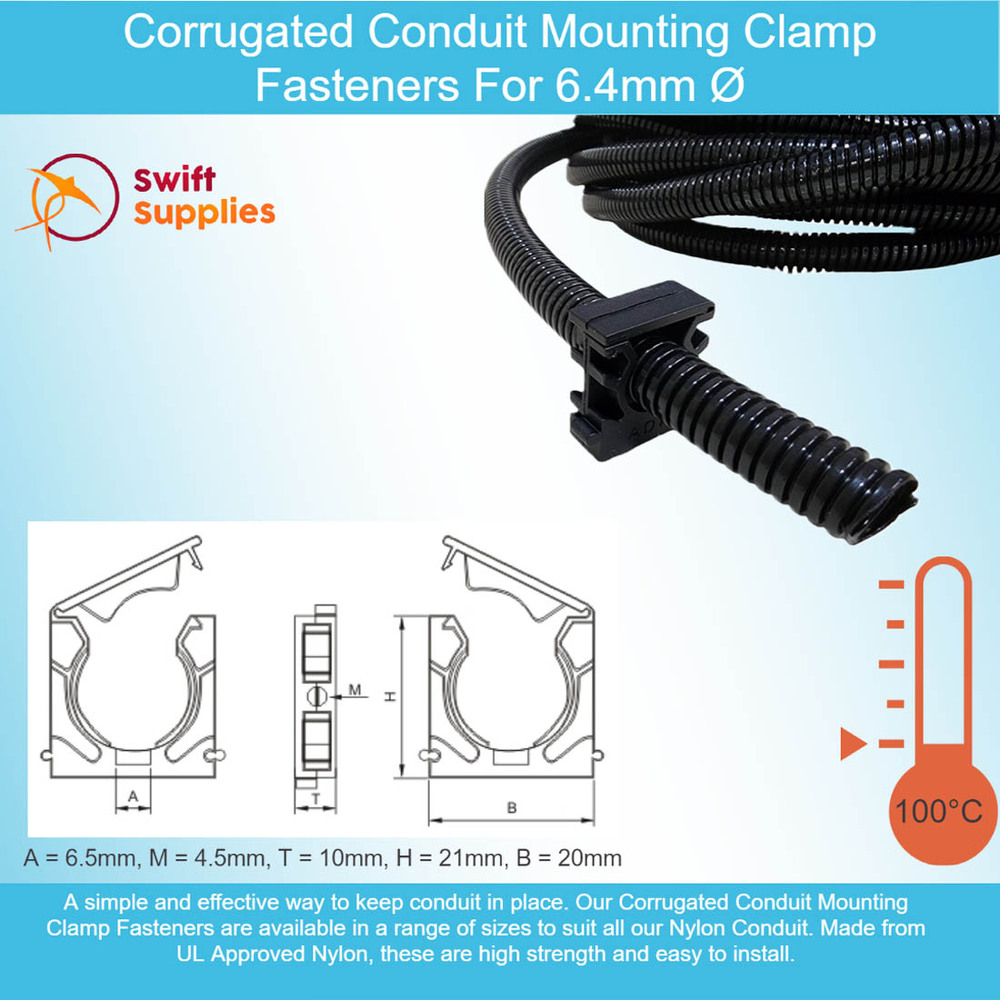

For information on finding the right size conduit mount for your conduit, please refer to the table below. For more technical specs, please see the specifications tab.
|
Conduit Size |
A |
M |
T |
H |
B |
|---|---|---|---|---|---|
|
6.4mm Ø |
6.5mm |
4.5mm |
10mm |
21mm |
20mm |
|
8.5mm Ø |
6.5mm |
4.5mm |
10mm |
23.7mm |
22.7mm |
|
9.9mm Ø |
6.5mm |
4.5mm |
10mm |
26.34mm |
25.5mm |
|
12.8mm Ø |
6.5mm |
4.55mm |
10mm |
31.5mm |
31.3mm |
|
16.6mm Ø |
6.5mm |
4.5mm |
10mm |
35mm |
36.5mm |
|
21.2mm Ø |
11.5mm |
5.4mm |
12mm |
46.26mm |
47.2mm |
Specifications
Specifications
|
Colour |
Black |
|
Material |
UL Approved Nylon 6/6 |
|
Minimum Continuous Temperature Rating |
-40°C |
|
Maximum Continuous Temperature Rating |
100°C |
|
Maximum Short-Term Peak Temperature Rating |
120°C |
|
Flammability |
UL94V-2 |
|
RoHS |
Compliant |
Chemical Resistance Information
|
Media |
Resistant |
|
Oils / Greases |
Yes |
|
Brake / Hydraulic Fluid |
Yes |
|
Esters |
Yes |
|
Ketones |
Yes |
|
Ethers |
Yes |
|
Aliphatic Hydrocarbons |
Yes |
|
Aromatic Hydrocarbons |
Yes |
|
Organic Acids |
No |
|
Inorganic Acids |
No |
| SKU | SWM000585 |
|---|
