Silicone Bonded Mica Sheet 0.8mm Thick x 600mm X 1000mm

SKU: SWM000207P01V0020
Availability: Cut to Order, Ships in 2-4 W/Days


All Bulk Prices Below Are Quoted Including GST.
Buy 2 - 4 and pay only $54.89 each
  • High temperature insulation and heat protection material capable of 500°C.
  • Excellent dielectric strength and electrical properties.
  • Can be cut into components and parts to suit various applications.

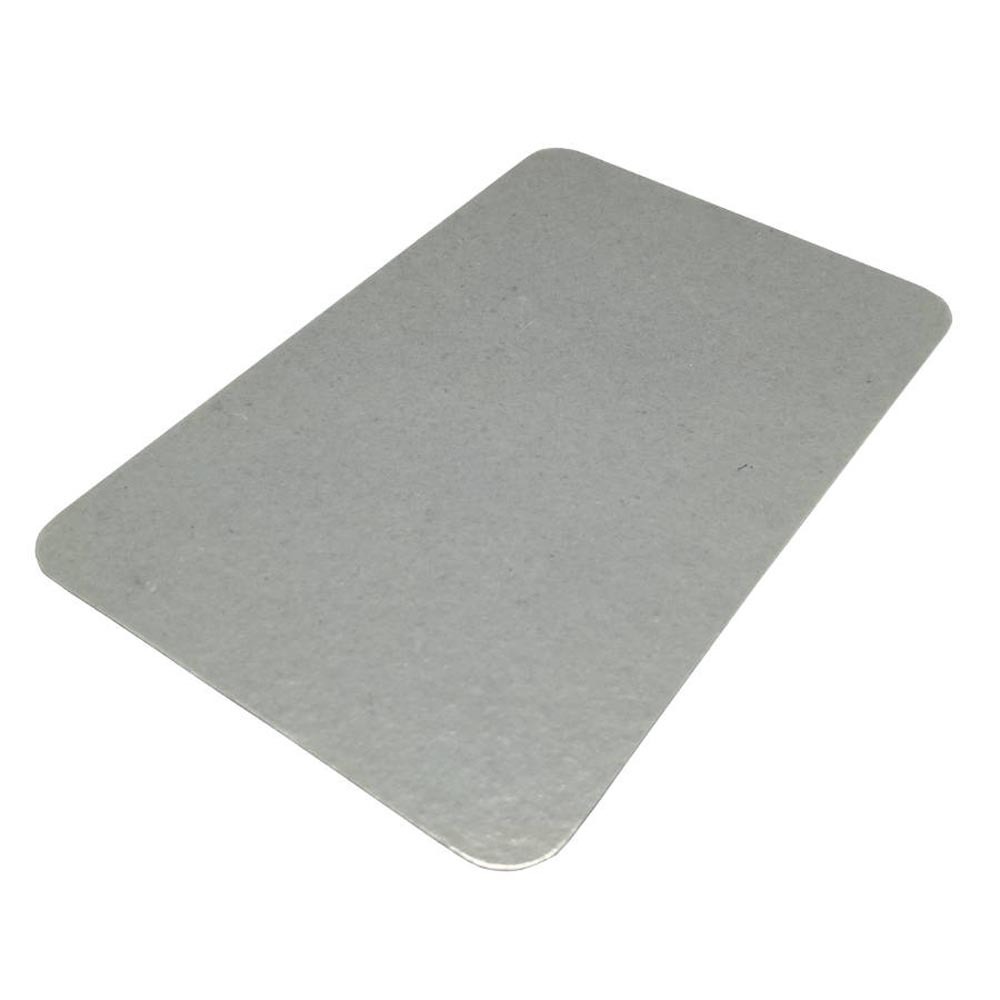

Our Silicone Bonded Mica Sheet is a versatile and high-performance heat and electrical insulation material. It is made from a combination of muscovite mica bonded with a special silicone resin. The result is a rigid sheet that can withstand elevated temperatures and provide very good dielectric strength.

Because of its combination of thermal and electrical properties, Silicone Bonded Mica is used in a variety of areas. These include high temperature washers and gaskets, brake grid insulators, thermal and electrical barriers and more.

This type of mica sheet will withstand continuous temperatures up to 500°C plus short-term spikes to 600°C. It has a very low thermal conductivity that effectively prevents heat transfer.

Silicone Bonded Mica is a rigid sheet with good mechanical strength. At ambient temperatures it has a compressive strength of 350 MPa. It can also be cut, machined and drilled very accurately.

Applications for Silicone Bonded Mica Sheet

  • Electrical and thermal insulation for high temperature ovens.
  • The manufacture of insulators for heat exchangers.
  • Brake grid insulators.
  • Custom stand off insulators for high temperature requirements.
  • High temperature, dielectric gaskets and washers.
  • Bolt insulators.
  • The manufacture of insulation components for high voltage machinery, switchgear, furnaces and welding machines.
  • As an insulation material in the glass, ceramic, metal processing and power generation sectors.

For more information on this high temperature heat and electrical insulation material, please consult the specifications tab.

How to Buy Mica Sheet Online.

This page lists our range of standard thicknesses of Silicone Bonded Mica in cut, 600mm wide x 1000mm long sheets.

To buy, select the thickness you need and the number of sheets.

Our online store also has this same material in a few other sheets sizes. Links to these are included at the bottom of this page.

We are also able to provide custom cut sheets, washers & parts made from mica. To enquire about a specific size, please do contact us.

Colour Light / Silver Grey
Mica Muscovite Mica
Maximum Continuous Temperature Resistance 500°C
Maximum Short-Term Temperature Resistance 600°C
Binding Resin Silicone
Resin Content <12%
Compressive Strength (ambient) 350 mPA
Compressive Strength (@ 350°C) 200 mPA
Specific Gravity (@ 20°C) 2.05 to 2.15
Dielectric Strength (ambient) >20 kV/mm
Weight Loss after Initial Heating <2%
Thermal Conductivity Low
Chemical Resistance Excellent
SKU SWM000207P01-6x10
Brand HeatProtect

Technical Data Sheet.

TDS Link
Silicone Bonded Mica TDS
