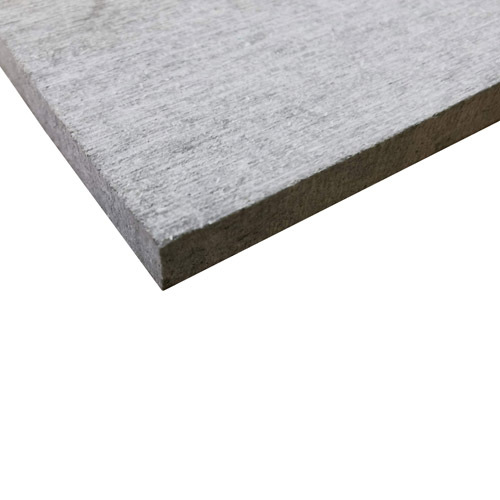

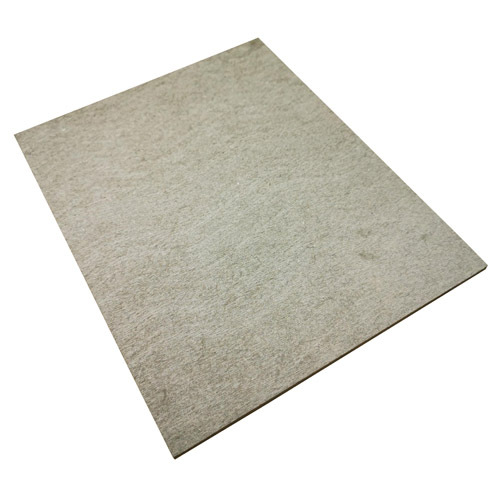

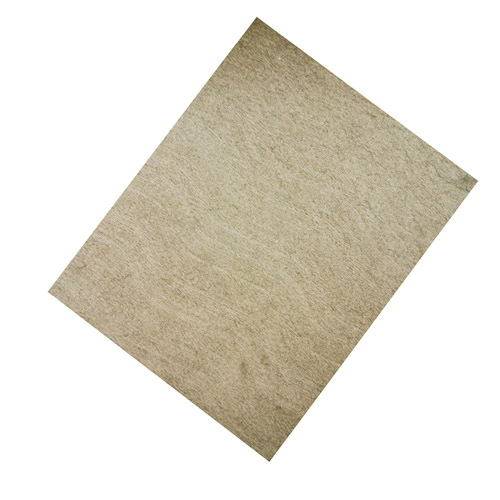

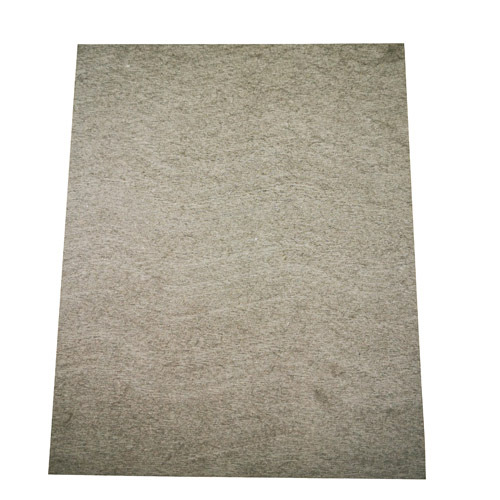

Sindanyo H91 Insulation Board, 6mm Thick x 400mm x 460mm

SKU: SWM000374P02V0001
Availability: Cut to Order, Ships in 2-4 W/Days.
$188.99
INC. GST
$170.09
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 3 or above and pay only $174.00 each
  • Engineering cement that withstands up to 700°C.
  • Excellent mechanical strength maintained at elevated temperatures.
  • Can be precisely machined.
  • Good electrical insulation properties.

Our Sindanyo H91 Insulation Board is designed for applications that require both high physical strength and heat resistance. This engineering cement has excellent compressive, flexural and impact strength and that is maintained even at elevated temperatures.

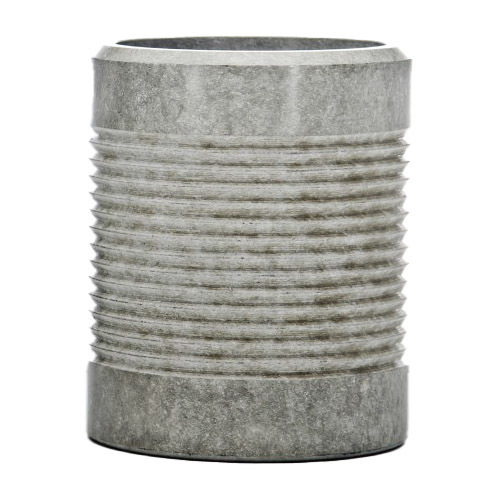

Sindanyo H91 Heat Insulation Board can withstand continuous exposure to temperatures up to 700°C. Grey in colour, this material can be cut and machined to produce various insulating and structural parts used in all kinds of industries and applications.

Sindanyo H91 also has good electrical insulation properties. Electrical strength (at 90°C) is rated as 2.1kV/mm (in air). Surface breakdown (at 90°C, in air) is 15kV.

We are pleased to offer this strong, high performance insulation material in a wide range of standard panel sizes (all available to browse online here). Custom cut and machined parts are also available upon request. For more information on these or to enquire, please do contact us.

More information on the physical properties of Sindanyo H91 is included in the tables below:

H91 Insulation Board Compressive Strength.

Ambient 90 MPa
24 Hours @ 350°C 38 MPa
24 Hours @ 500°C 31 MPa
24 Hours @ 700°C 29 MPa



H91 Insulation Board Flexural Strength.

Ambient 30 MPa
24 Hours @ 350°C 16 MPa
24 Hours @ 500°C 13 MPa
24 Hours @ 700°C 13 MPa



H91 Insulation Board Impact Strength.

Ambient 4 Kj/mm
24 Hours @ 350°C 2.4 Kj/mm
24 Hours @ 500°C 2.4 Kj/mm
24 Hours @ 700°C 2.4 Kj/mm



H91 Insulation Board Properties

Density 1.6 g/cm³
Linear Shrinkage 0.36% @ 350°C
Water Absorption 15% in 24 Hours @ 230°C
Electrical Strength 2.1kV/mm in air @ 90°C
Surface Breakdown 15kV in air @ 90°C
Maximum Continuous Operating Temperature 700°C



H91 Insulation Board Compressive Strength.

Ambient 90 MPa
24 Hours @ 350°C 38 MPa
24 Hours @ 500°C 31 MPa
24 Hours @ 700°C 29 MPa



H91 Insulation Board Flexural Strength.

Ambient 30 MPa
24 Hours @ 350°C 16 MPa
24 Hours @ 500°C 13 MPa
24 Hours @ 700°C 13 MPa



H91 Insulation Board Impact Strength.

Ambient 4 Kj/mm
24 Hours @ 350°C 2.4 Kj/mm
24 Hours @ 500°C 2.4 Kj/mm
24 Hours @ 700°C 2.4 Kj/mm



SKU SWM000374P02
