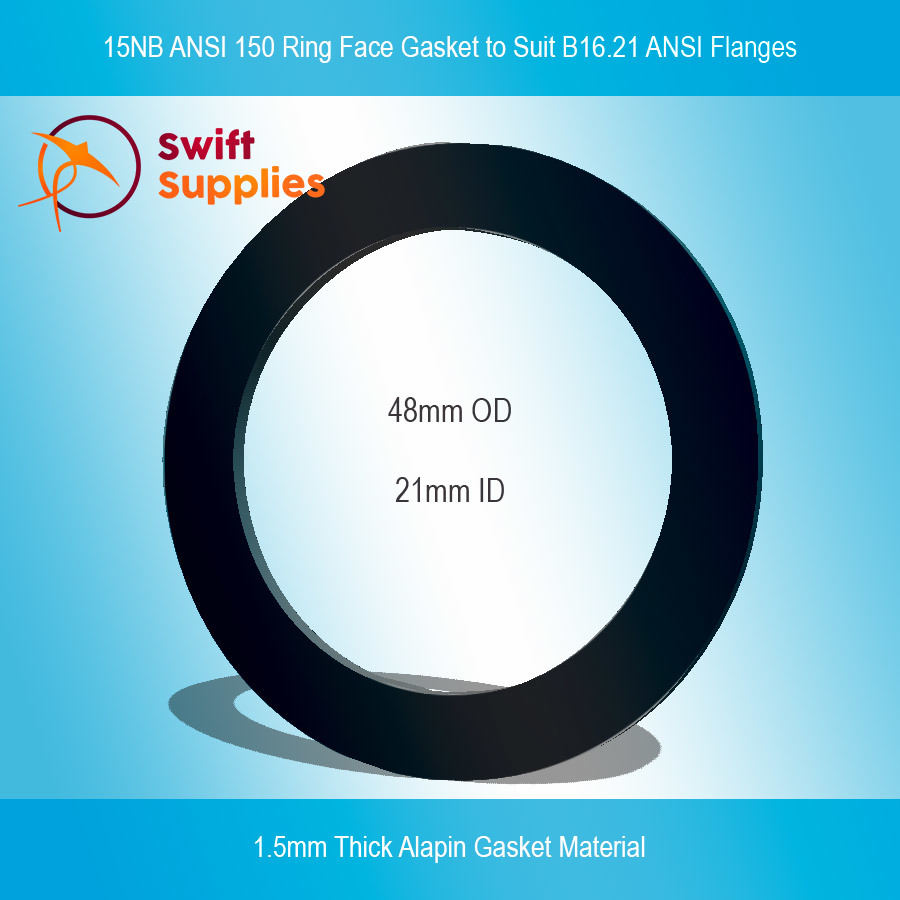

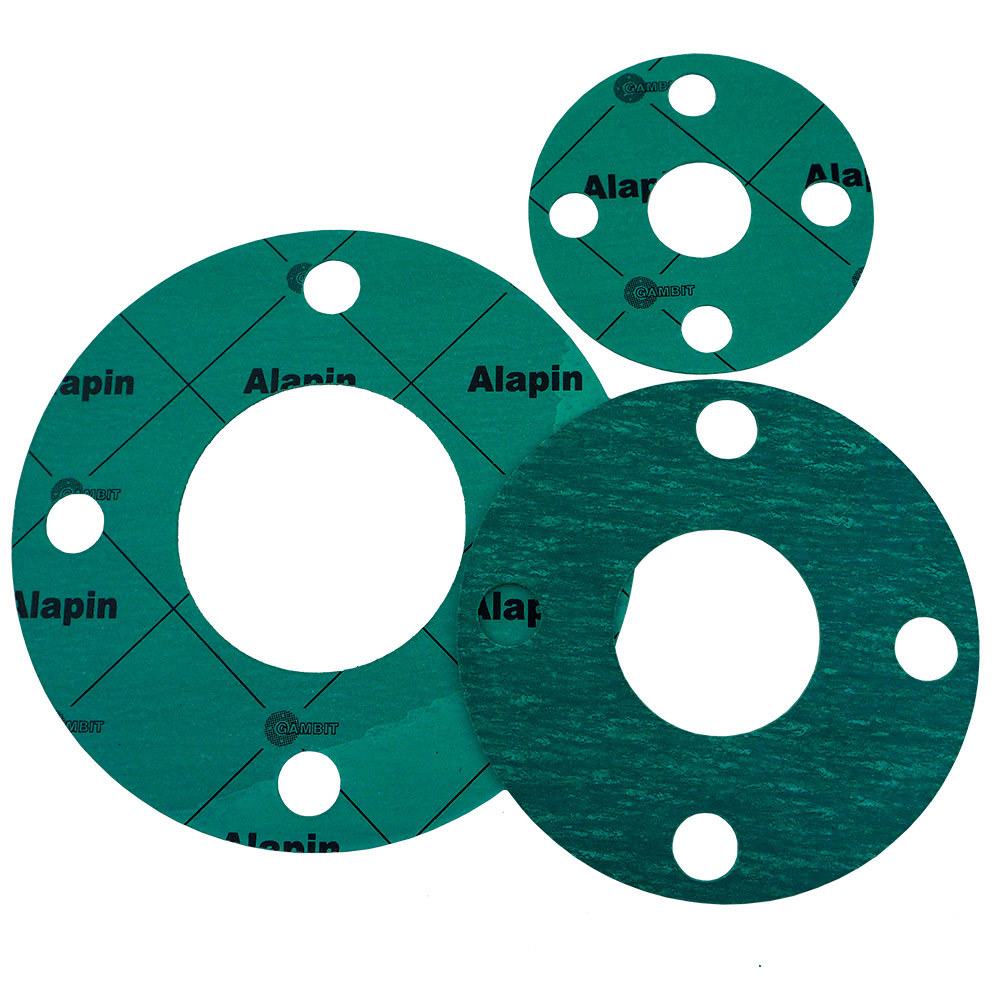

15NB ANSI 150 Ring Face Flange Gasket, 1.5 mm Alapin
$1.15
INC. GST
$1.05
EX. GST
BULK DISCOUNT RATES
All Bulk Prices Below Are Quoted Including GST.
| Buy 10 - 24 | and pay only $1.10 each |
| Buy 25 or above | and pay only $1.06 each |
Description
- General-Purpose Flange Gaskets for medium temperatures and pressures.
- Very good compatibility with oils, hydrocarbons, lubricants, fuels, water and steam.
- Used for sealing steam to 255°C, other media to 340°C.
- Cut to size in our Australia facilities and available in ANSI 150, 300, 600, 900 & 1500 pound sizes as standard.
Alapin Flange Gaskets are an economical, versatile solution for sealing many common fluids, gases and media at medium temperatures and pressures. This type of gasket has excellent resistance to oils, lubricants, fuels, water & steam and has a maximum, continuous, temperature rating of 340°C for sealing fluids & gases, 255°C for sealing steam.
ANSI B 16.5 Flanges and the associated ANSI B 16.21 Gaskets are widely used in a variety of industries around Australia. The following sections provide more information on the ring gaskets listed on this page, the capabilities of Alapin as a gasket material, and the individual gasket sizes for each standard, ring-face table gasket up to 600NB.
Alapin CNAF Flange Gaskets to Suit ANSI Size Info.
This page lists ring type gaskets. This style of gasket is designed to sit inside the bolts of the flanges and is known by quite a few names, including:
- RF Flange Gaskets.
- IBC Gaskets (Inner Bolt Circle).
- Raised Face Gaskets (as they are often used on raised face type flanges).
- Ring Face Gaskets.
The gaskets featured on this page are all cut to suit the size requirements of ANSI B16.21 and used with ASME B16.5 Flanges. This specification contains 5 different flange tables listed below:
- ANSI 150 (Class 150)
- ANSI 300 (Class 300)
- ANSI 600 (Class 600)
- ANSI 900 (Class 900)
- ANSI 1500 (Class 1500)
Ii many nominal pipe sizes (NB), the Class 300 and Class 600 call for the same size gasket. The same is true with Class 900 and Class 1500. When this is true, a single gasket is offered that will fit both (denoted on the list as Class 300 / 600). When the specification calls for different size gaskets, individual options for each are listed.
What this means in practice is…
ANSI 150
Does not share it’s sizing with any other flange table at any nominal bore.
ANSI 300
Shares it’s sizing with ANSI 600 up to 80NB (3”). For pipes larger than this, individual gaskets are offered as the sizes differ.
ANSI 600
Shares it’s sizing with ANSI 300 up to 80NB (3”). For pipes larger than this, individual gaskets are offered as the sizes differ.
ANSI 900
Shares it’s sizing with ANSI 1500 up to 65NB (2.5”). For pipes larger than this, individual gaskets are offered as the sizes differ.
ANSI 1500
Shares it’s sizing with ANSI 900 up to 65NB (2.5”). For pipes larger than this, individual gaskets are offered as the sizes differ.
Alapin Cut Pipe Flange Gaskets Information.

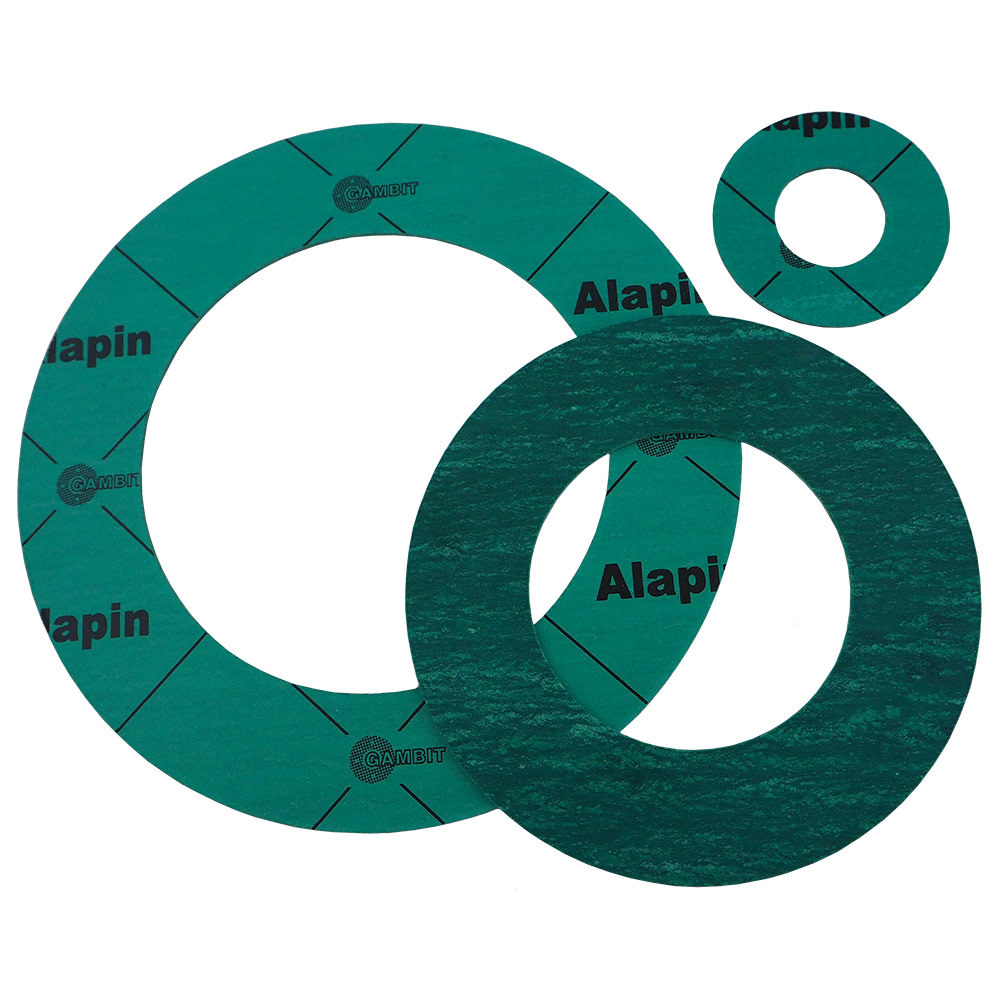

Alapin is a high quality, industrial-grade compressed non-asbestos fibre (CNAF) gasket material. It is made from a combination of mineral fibres and genuine DuPont Kevlar Aramid Fibres which are bound with a Nitrile Butadiene Rubber (NBR) binder.
The resulting gasket sheet exhibits excellent flexibility, compressibility, sealing performance and recovery. These features, and more, are expanded on below:
 |
|

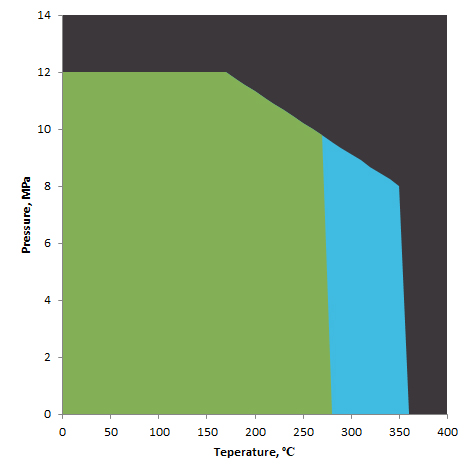

| Green | If operating temperatures and pressures fall within this field, a technical examination is normally unnecessary. |
| Blue | For steam sealing applications, a technical evaluation is suggested. |
| Black | If operating temperatures and pressures are within this “open“ field, a technical examination is always necessary. |
Good Temperature Resistance.
Like all gasket fibre sheets, the temperature resistance of Alapin is linked to the pressure of the sealing application and the type of media being sealed. That said, a rough guide for this material is:
Maximum Temperature
Continuous, Non-Steam: 340°C.
Short-Term, Non-Steam: 375°C.
Continuous, Sealing Steam: 255°C.
Wide-Ranging Chemical Compatibility.
Alapin Industrial Gasket Material is resistant a wide range of chemicals, fluids and media. The list below is by no means comprehensive, rather just a summary of the most common types of media that Alapin is known to be compatible with:
- Water.
- Steam.
- Oils.
- Fuel.
- Kerosene.
- Salt Solutions.
- Natural Gas.
- Lubricants.
- Refrigerants.
- Moderate organic and inorganic acids.
Suitable for Medium Sealing Pressures.
Maximum operating pressure is directly linked to the temperature of the application (as illustrated on the above Alapin pT Diagram). The figures below should be considered in this context.
Maximum Pressure
Continuous: 12 MPa (up to about 170°C, less after this temperature is reached).
Excellent Sealing Characteristics.
In addition to its ability to withstand elevated temperatures & pressures, as well as a wide range of fluids and gases, Alapin has excellent sealing characteristics. Some of these are summarised in the table below with more information available on our Alapin Gasket Material Technical Data Sheet.
| Density | 2 g/cm³ |
|---|---|
| Compressibility | 10% (ASTM F 36) |
| Recovery | 55% (ASTM F 36) |
| Creep Relaxation | 20% (ASTM F 38) |
| Tensile Strength (Across Grain) | 12 MPa (DIN 52910) |
| Thickness Change After Immesion In... | |
| Fuel B - 5 Hours @ 20°C | 6% (ASTM F146) |
| Oil - 5 Hours @ 150°C | 6% (IRM 903) |
| Kerosene - 24 Hours @ 20°C | 5% (ASTM F146) |
Ring Face Flange Gaskets to suit ANSI B16.5 Flanges Size Tables.
Class 150 Ring Gasket Sizes.
All Dimensions below are given in millimeters (mm).
| Flange Nominal Bore |
Imperial Short-Hand |
Gasket ID | Gasket OD | Matches Table |
| 15NB | 1/2" | 21 | 48 | - |
| 20NB | 3/4" | 27 | 57 | - |
| 25NB | 1" | 33 | 67 | - |
| 32NB | 1 1/4" | 42 | 76 | - |
| 40NB | 1 1/2" | 48.4 | 86 | - |
| 50NB | 2" | 60.3 | 105 | - |
| 65NB | 2 1/2" | 73 | 124 | - |
| 80NB | 3" | 89 | 136.5 | - |
| 90NB | 3 1/2" | 102 | 162 | - |
| 100NB | 4" | 114.3 | 175 | - |
| 125NB | 5" | 141.3 | 197 | - |
| 150NB | 6" | 168 | 222 | - |
| 200NB | 8" | 219 | 279 | - |
| 250NB | 10" | 273 | 340 | - |
| 300NB | 12" | 324 | 410 | - |
| 350NB | 14" | 356 | 450 | - |
| 400NB | 16" | 406 | 515 | - |
| 450NB | 18" | 457 | 550 | - |
| 500NB | 20" | 508 | 605 | - |
| 600NB | 24" | 610 | 715 | - |
Class 300 Ring Gasket Sizes.
All Dimensions below are given in millimeters (mm).
| Flange Nominal Bore |
Imperial Short-Hand |
Gasket ID | Gasket OD | Matches Table |
| 15NB | 1/2" | 21 | 54 | ANSI 600 |
| 20NB | 3/4" | 27 | 67 | ANSI 600 |
| 25NB | 1" | 33 | 73 | ANSI 600 |
| 32NB | 1 1/4" | 42 | 83 | ANSI 600 |
| 40NB | 1 1/2" | 48.4 | 95 | ANSI 600 |
| 50NB | 2" | 60.3 | 111 | ANSI 600 |
| 65NB | 2 1/2" | 73 | 130 | ANSI 600 |
| 80NB | 3" | 89 | 149 | ANSI 600 |
| 90NB | 3 1/2" | 102 | 165 | - |
| 100NB | 4" | 114.3 | 181 | - |
| 125NB | 5" | 141.3 | 216 | - |
| 150NB | 6" | 168 | 251 | - |
| 200NB | 8" | 219 | 308 | - |
| 250NB | 10" | 273 | 362 | - |
| 300NB | 12" | 324 | 422 | - |
| 350NB | 14" | 356 | 486 | - |
| 400NB | 16" | 406 | 540 | - |
| 450NB | 18" | 457 | 597 | - |
| 500NB | 20" | 508 | 654 | - |
| 600NB | 24" | 610 | 775 | - |
Class 600 Ring Gasket Sizes.
All Dimensions below are given in millimeters (mm).
| Flange Nominal Bore |
Imperial Short-Hand |
Gasket ID | Gasket OD | Matches Table |
| 15NB | 1/2" | 21 | 54 | ANSI 300 |
| 20NB | 3/4" | 27 | 67 | ANSI 300 |
| 25NB | 1" | 33 | 73 | ANSI 300 |
| 32NB | 1 1/4" | 42 | 83 | ANSI 300 |
| 40NB | 1 1/2" | 48.4 | 95 | ANSI 300 |
| 50NB | 2" | 60.3 | 111 | ANSI 300 |
| 65NB | 2 1/2" | 73 | 130 | ANSI 300 |
| 80NB | 3" | 89 | 149 | ANSI 300 |
| 90NB | 3 1/2" | 102 | 162 | - |
| 100NB | 4" | 114.3 | 194 | - |
| 125NB | 5" | 141.3 | 241 | - |
| 150NB | 6" | 168 | 267 | - |
| 200NB | 8" | 219 | 320.7 | - |
| 250NB | 10" | 273 | 400 | - |
| 300NB | 12" | 324 | 457 | - |
| 350NB | 14" | 356 | 492 | - |
| 400NB | 16" | 406 | 565 | - |
| 450NB | 18" | 457 | 613 | - |
| 500NB | 20" | 508 | 683 | - |
| 600NB | 24" | 610 | 791 | - |
Class 900 Ring Gasket Sizes.
All Dimensions below are given in millimeters (mm).
| Flange Nominal Bore |
Imperial Short-Hand |
Gasket ID | Gasket OD | Matches Table |
| 15NB | 1/2" | 21 | 64 | ANSI 1500 |
| 20NB | 3/4" | 27 | 70 | ANSI 1500 |
| 25NB | 1" | 33 | 79 | ANSI 1500 |
| 32NB | 1 1/4" | 42 | 89 | ANSI 1500 |
| 40NB | 1 1/2" | 48.4 | 98 | ANSI 1500 |
| 50NB | 2" | 60.3 | 143 | ANSI 1500 |
| 65NB | 2 1/2" | 73 | 165 | ANSI 1500 |
| 80NB | 3" | 89 | 168 | - |
| 90NB | 3 1/2" | N/A | N/A | - |
| 100NB | 4" | 114.3 | 206 | - |
| 125NB | 5" | 141.3 | 248 | - |
| 150NB | 6" | 168 | 289 | - |
| 200NB | 8" | 219 | 359 | - |
| 250NB | 10" | 273 | 435 | - |
| 300NB | 12" | 324 | 498 | - |
| 350NB | 14" | 356 | 520 | - |
| 400NB | 16" | 406 | 575 | - |
| 450NB | 18" | 457 | 638 | - |
| 500NB | 20" | 508 | 699 | - |
| 600NB | 24" | 610 | 840 | - |
Class 1500 Ring Gasket Sizes.
All Dimensions below are given in millimeters (mm).
| Flange Nominal Bore |
Imperial Short-Hand |
Gasket ID | Gasket OD | Matches Table |
| 15NB | 1/2" | 21 | 64 | ANSI 900 |
| 20NB | 3/4" | 27 | 70 | ANSI 900 |
| 25NB | 1" | 33 | 79 | ANSI 900 |
| 32NB | 1 1/4" | 42 | 89 | ANSI 900 |
| 40NB | 1 1/2" | 48.4 | 98 | ANSI 900 |
| 50NB | 2" | 60.3 | 143 | ANSI 900 |
| 65NB | 2 1/2" | 73 | 165 | ANSI 900 |
| 80NB | 3" | 89 | 175 | - |
| 90NB | 3 1/2" | N/A | N/A | - |
| 100NB | 4" | 114.3 | 210 | - |
| 125NB | 5" | 141.3 | 254 | - |
| 150NB | 6" | 168 | 283 | - |
| 200NB | 8" | 219 | 352 | - |
| 250NB | 10" | 273 | 435 | - |
| 300NB | 12" | 324 | 520 | - |
| 350NB | 14" | 356 | 580 | - |
| 400NB | 16" | 406 | 641 | - |
| 450NB | 18" | 457 | 705 | - |
| 500NB | 20" | 508 | 755 | - |
| 600NB | 24" | 610 | 901 | - |
Specifications
| Colour | Green |
|---|---|
| Max. Continuous Operating Temperature (non-Steam) | 340°C |
| Max. Intermittent Operating Temperature (non-Steam) | 375°C |
| Max. Continuous Operating Temperature (Steam) | 255°C |
| Base Materials | Kevlar Aramid Fibres, Mineral Fibres and an NBR Binder |
| Maximum Continuous Operating Pressure | 12 MPa |
| Density | 2 g/cm³ |
| Compressibility | 10% (ASTM F 36) |
| Recovery | 55% (ASTM F 36) |
| Creep Relaxation | 20% (ASTM F 36) |
| SKU | SWP000409 |
|---|
