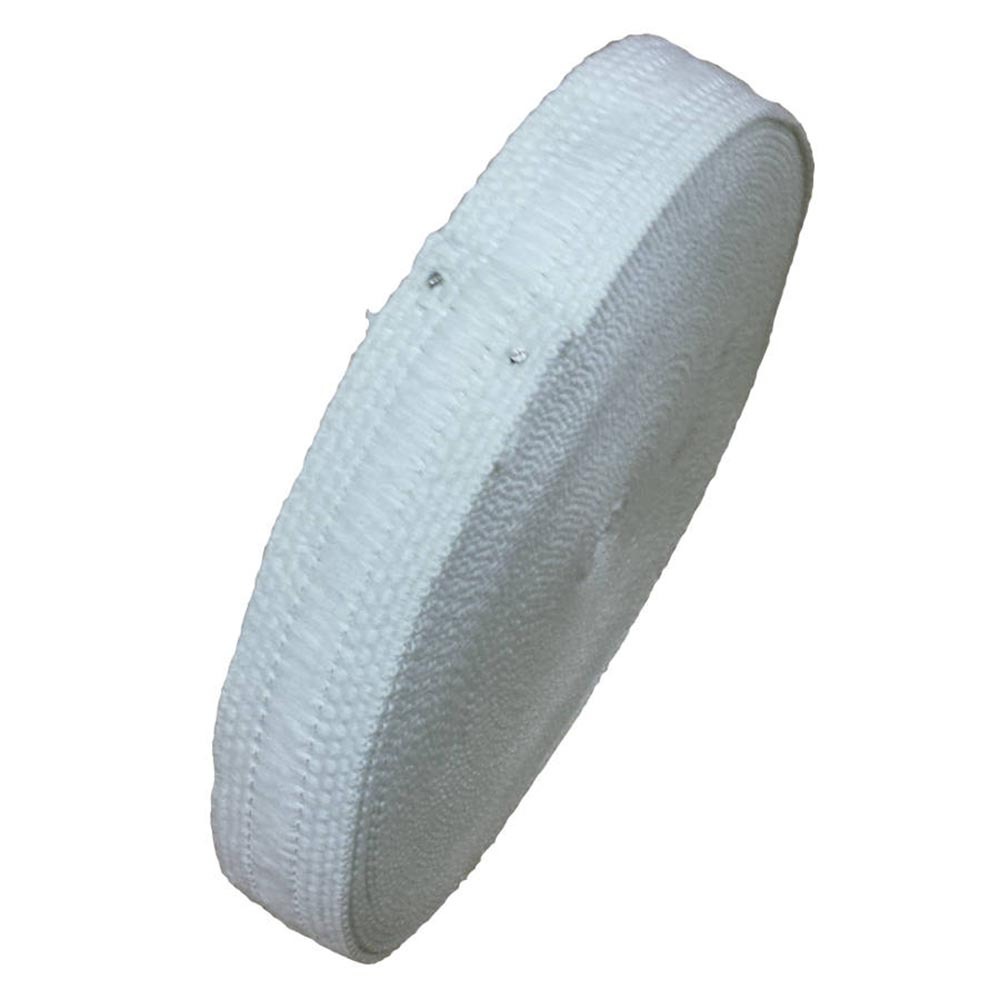

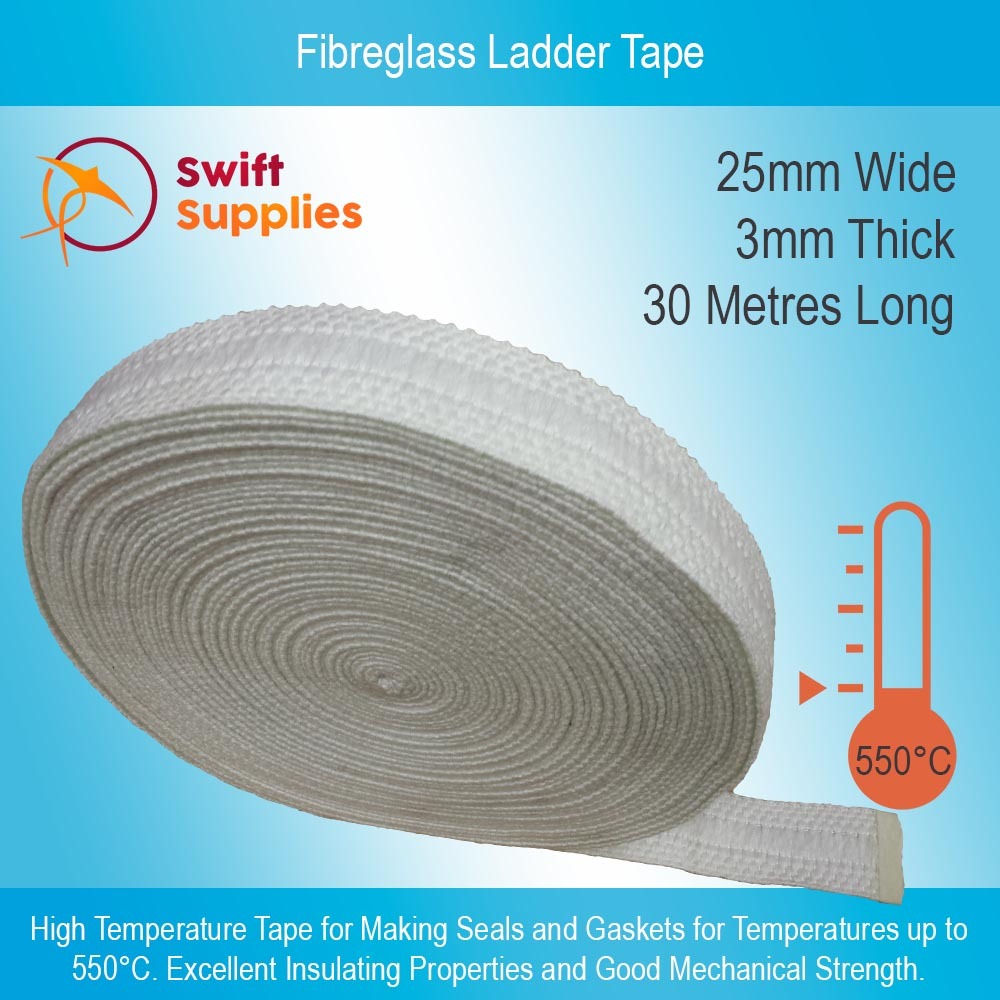

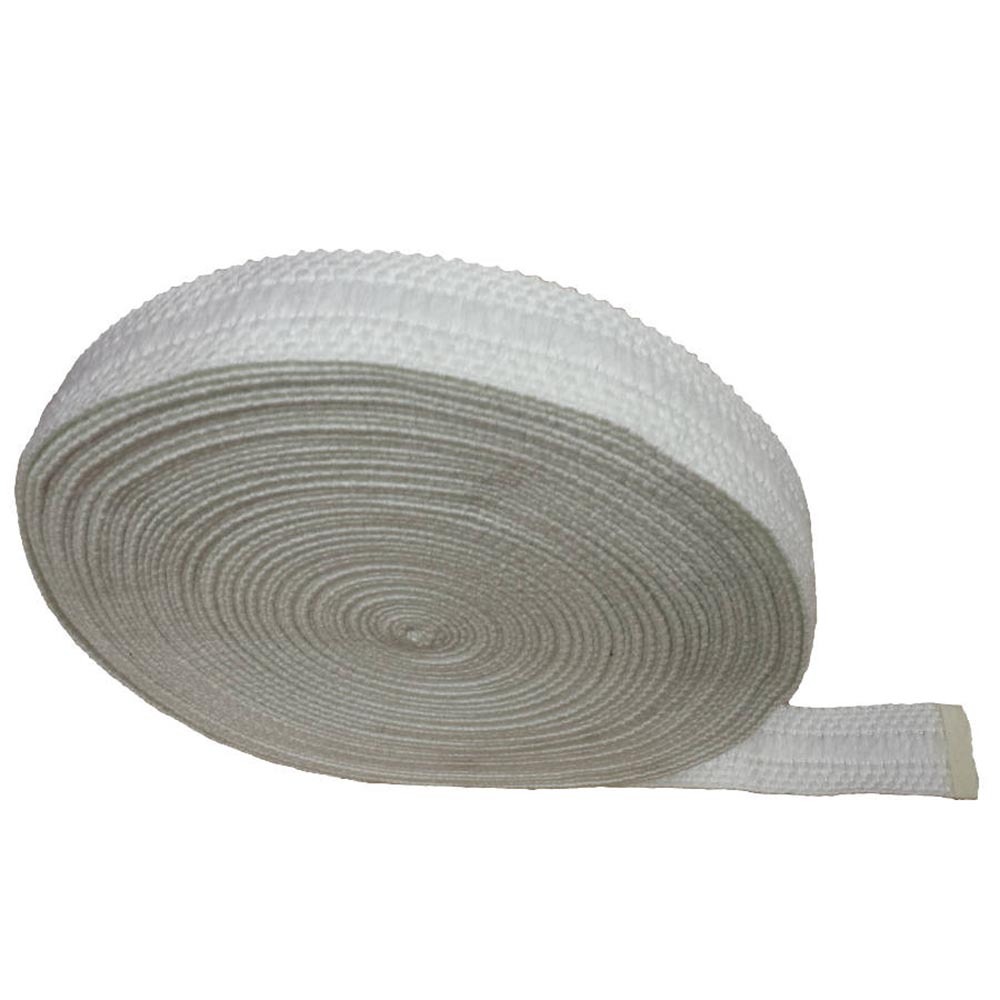

Fibreglass Ladder Tape - 3mm Thick x 25mm Wide x 30 Metres

SKU: SWM000215B01V0001
Availability: Available for Fast Dispatch.


All Bulk Prices Below Are Quoted Including GST.
Buy 3 - 4 and pay only $42.75 each
Buy 5 or above and pay only $40.48 each
  • High temperature resistant tape with spaces left in the centre to allow bolts to be put through without fraying.
  • Withstands 550°C and is available in a range of sizes.
  • Used in insulating furnaces, ovens and for making high temperature gaskets that require bolts to go through.

Fibreglass Ladder Tape is a special kind of heat resistant tape used for making high temperature seals and gaskets.

This tape is almost identical to our Fibreglass Exhaust Wrap Tape with the exception of its construction. Yarns have been purposefully left out of the ladder tape so that bolts can be fit through easily. This removes the need for punching, reduces the chance of fraying and makes this heat insulation tape ideal for insulating furnaces, ovens, boiler doors and for high temperature gasketing.

Sometimes called drop-weave tape in a nod to how it’s made, Fibreglass Ladder Tape is available in a selection of widths and thicknesses.

Like our Exhaust Wrap Tape, Fibreglass Ladder Tape is capable of withstanding temperatures up to 550°C and has good mechanical strength. It is highly flexible with very good thermal properties that ensure very low rates of thermal conductivity. It also offers very good chemical and solvent resistance in addition to resisting attack from UV or sunlight.

Since it’s made from fibreglass, this tape is extremely dielectric. It has good thickness consistency and the edges are made so that they reduce fraying.

Typical Applications for Fibreglass Ladder Tape

  • Sealing and insulating oven doors.
  • High temperature tank lid seals.
  • Stress relieving and lagging.
  • Hose and pipe lagging to protect from heat sources or to prevent heat loss.
  • High temperature gasketing.
  • Furnace sealing and door insulating.
  • General insulation work.

How to Buy Fibreglass Ladder Tape Online.

This page lists our various widths of 3mm Thick Ladder Tape.

We also stock this tape in (some) sizes that are 6mm Thick. A link to the page with these is included below.

Colour White
Adhesive No
Basis Fibreglass Filament Yarn
Maximum Continuous Operating Temperature 550°C
Abrasion Resistance Average
Strength Retention @ 400°C 50%
Chemical and Solvent Resistance Good
SKU SWM000215B01-3
Brand HeatProtect
