Premium Quality Woven Fibreglass Cloth – Plain Weave, 2.77mm x 1000mm, Per Metre
High Density Fibreglass Insulation Fabric.
All Prices Include GST.
Browse Our Range of Flexible Heat Insulation Cloths.
- High temperature heat insulation cloth that withstands up to 540°C (1,000°F).
- Excellent physical strength, resistance to abrasion and most chemicals.
- Manufactured in the USA and able to be used in a variety of applications.
- 2.77mm thick. Available by the lineal metre (1 metre wide).

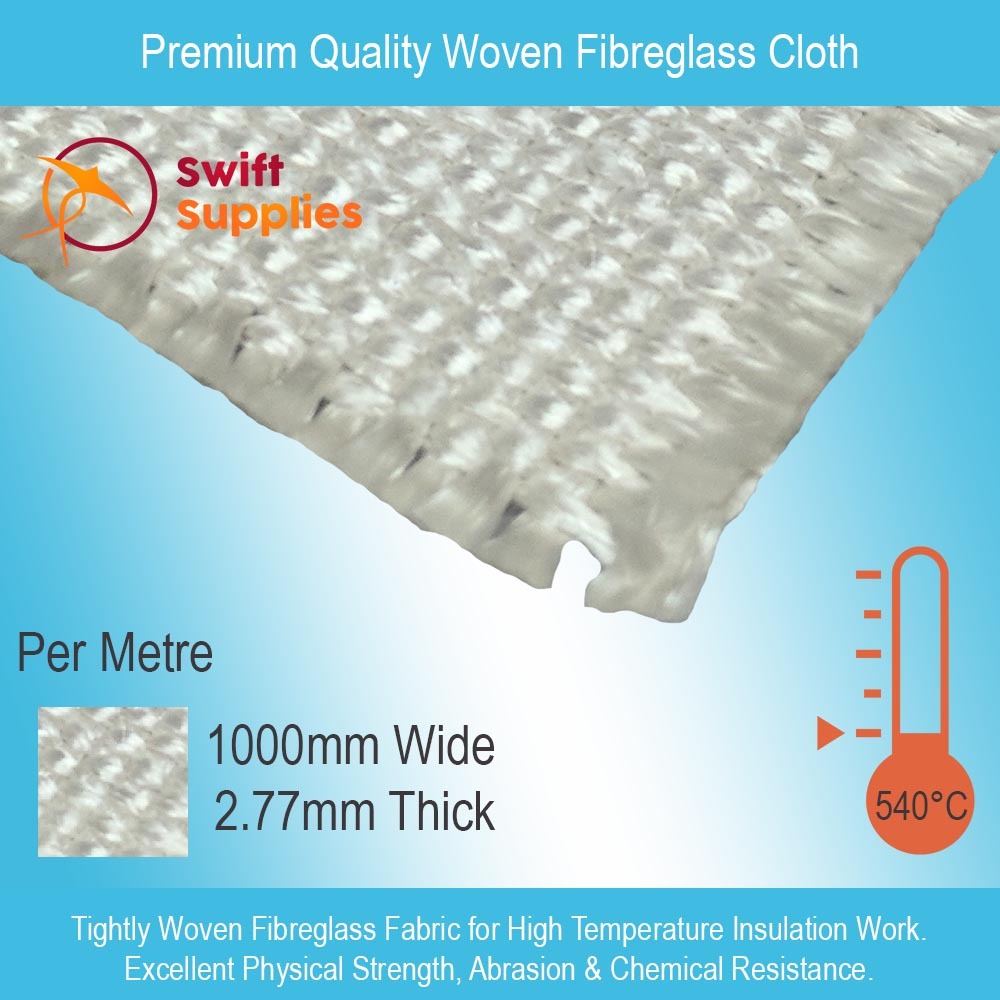

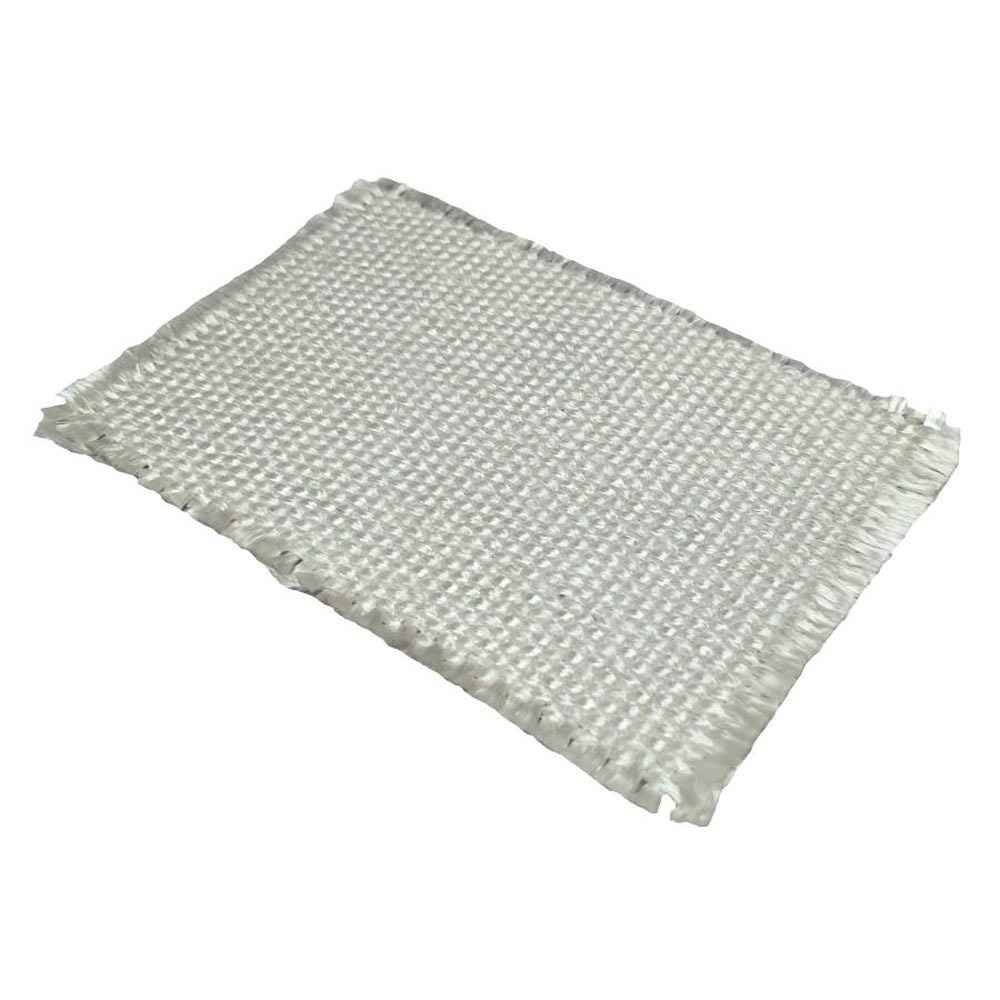

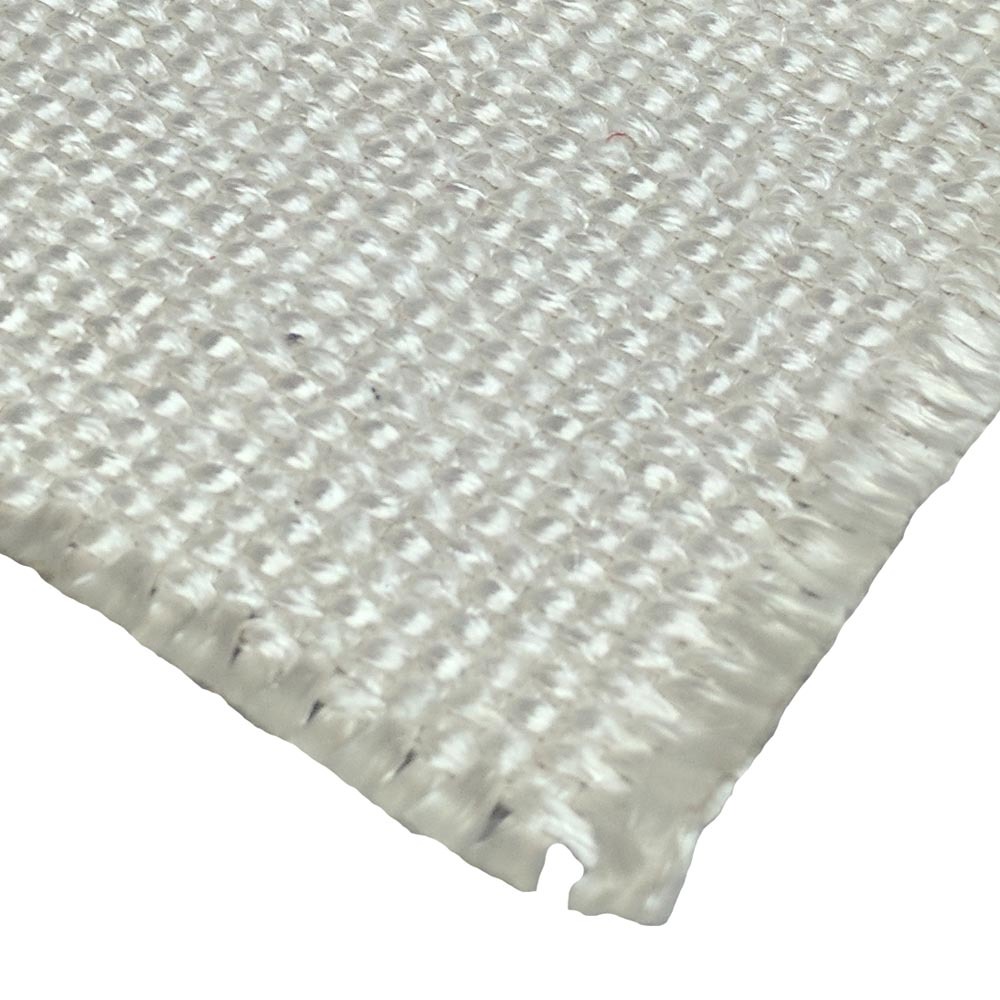

Our Premium Quality Woven Fibreglass Cloth is designed for high temperature insulation. This cloth will withstand temperatures up to 540°C (1,000°F) and has exceptional physical strength.
This particular grade of fibreglass cloth is 2.77mm (0.109”) thick and has a loom stage finish). It is made in the USA utilising a plain weave method and has a loom stage finish.
These cloths are widely used for all kinds of heat protection and insulation applications. Typical examples include:
- Welding blankets and curtains.
- Insulation pads.
- Oil waste retaining.
- Pump covers.
- Wrapping of pipes, cables and hoses.
- Exhaust lagging.
Produced from pure fibreglass yarns, these high-performance insulation fabrics also offer very good resistance to sunlight, aging and solvents. They have excellent chemical resistance except for hydrofluoric and hot phosphoric acid and wet hydrogen chloride.
Fibreglass is known for its physical strength and these cloths utilise that. They have excellent resistance to abrasion and very good strength in both the warp (lengthwise along the roll) and weft/fill (across the roll) directions. More information on these strength characteristics is located on the specifics tab or on our technical data sheet for this cloth.
|Fabric Weight (Average)||2,380 gm/m² (70 oz. / square yard) (± 10%)|
|Fabric Thickness||2.7mm (0.109") (± 5.0 mils)|
|Warp Strength||227 kg / 25.4mm (500 lbs/in.)|
|Fill Strength||136 kg / 25.4mm (300 lbs/in.)|
|Temperature Tolerance||540°C (1,000°F)|
|Chemical Resistance||Excellent (except for Hydrofluoric & hot phosphoric acid & wet hydrogen chloride)|
|Sunlight & Ageing Resistance||Excellent|
|Electrical Properties||High Dielectric Strength and Low Constants|
|Roll Width||1000mm (40")|
|Full Roll Length||45.7 Metres (50 Yards)|
|Unit Of Measure||m|
Technical Data Sheet.
|Premium Quality Woven Fibreglass Cloth
Plain Weave, 2.77mm Thick, G70P TDS
