Multi Cable and Wire Stripper No. 400

SKU: SWM000561B01V0001
MPN: 51000400
Availability: Available for Fast Dispatch.
$40.93
INC. GST
$36.84
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 6 - 11 and pay only $37.90 each
  • Versatile tool that combines four functions into one.
  • Circular and longitudinal stripping of a variety of cables.
  • Flush stripping in hard-to-reach areas.
  • Side cutter for flexible conductors up to 6mm.

Our Multi Cable and Wire Stripper No 400 is a versatile little tool for stripping various cables and wires. This multifunctional wire stripper features several different functions explored in a little more detail below.

The short video linked above also provides a great overview of how this stripper works and what it is capable of.

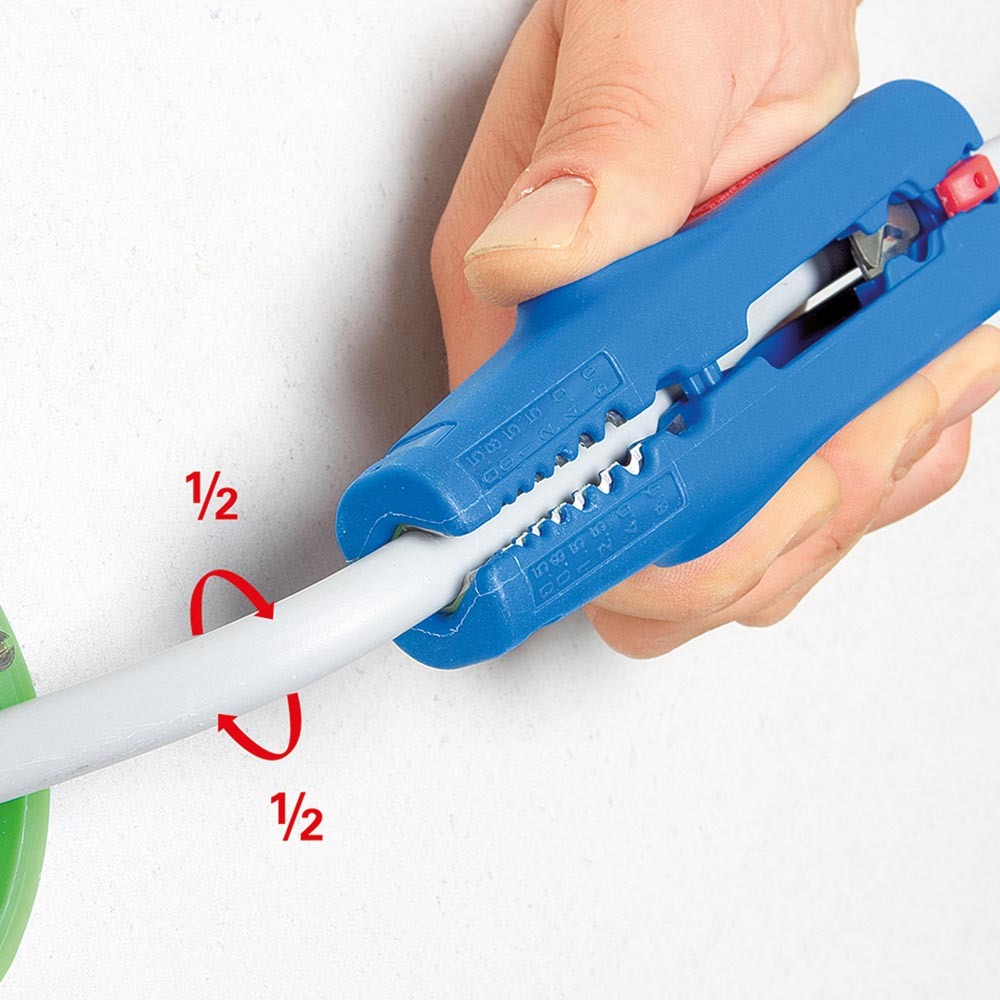

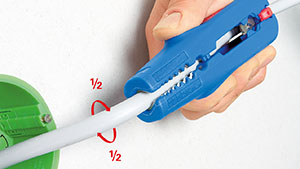

Strip 8mm to 13mm Diameter Cables with the Main Blades.

The blades at the front of the No. 400 Multi-Stripper are used for stripping the insulation on all common round cables between 8–13 mm Ø (e.g. NYM 3 x 1,5mm² up to 5 x 2,5mm²).

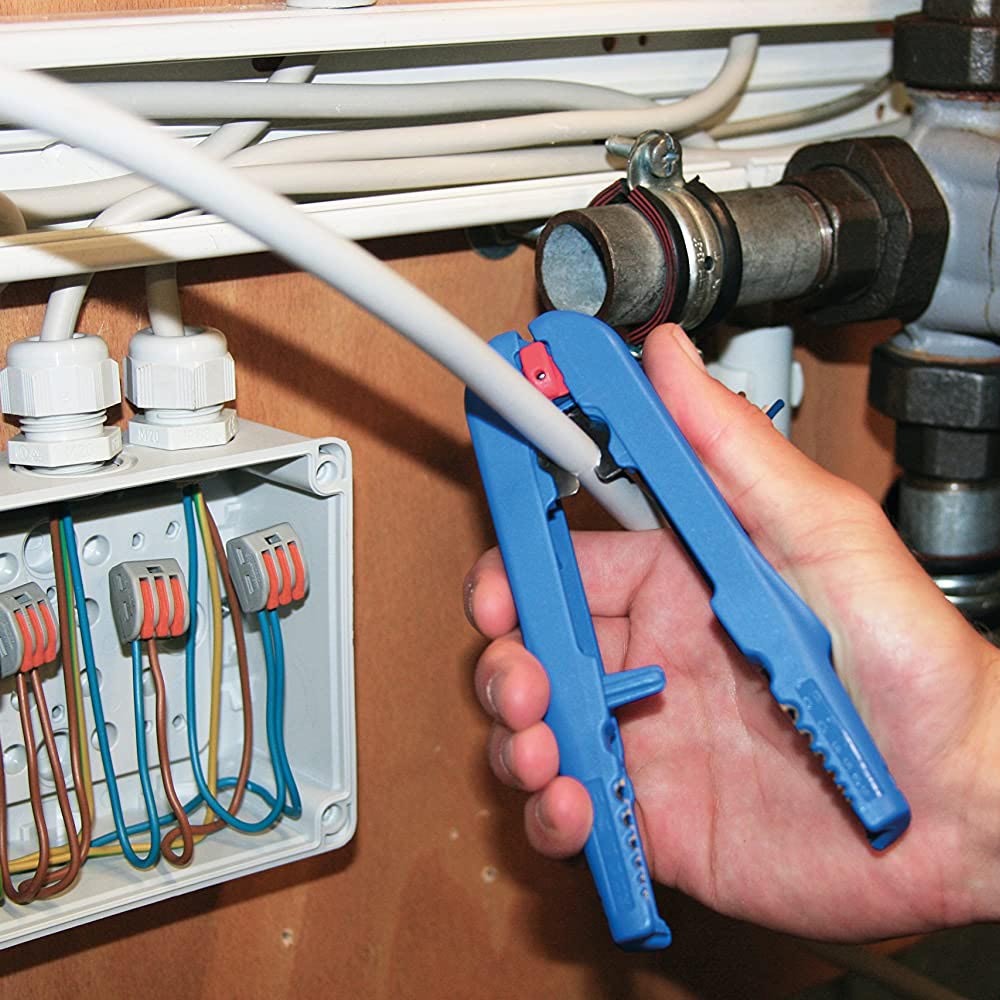

The placement of this front blade makes flush stripping cables in limited space easier. This can be especially useful for those of you who work with cables in ceilings, walls or switch cabinets.

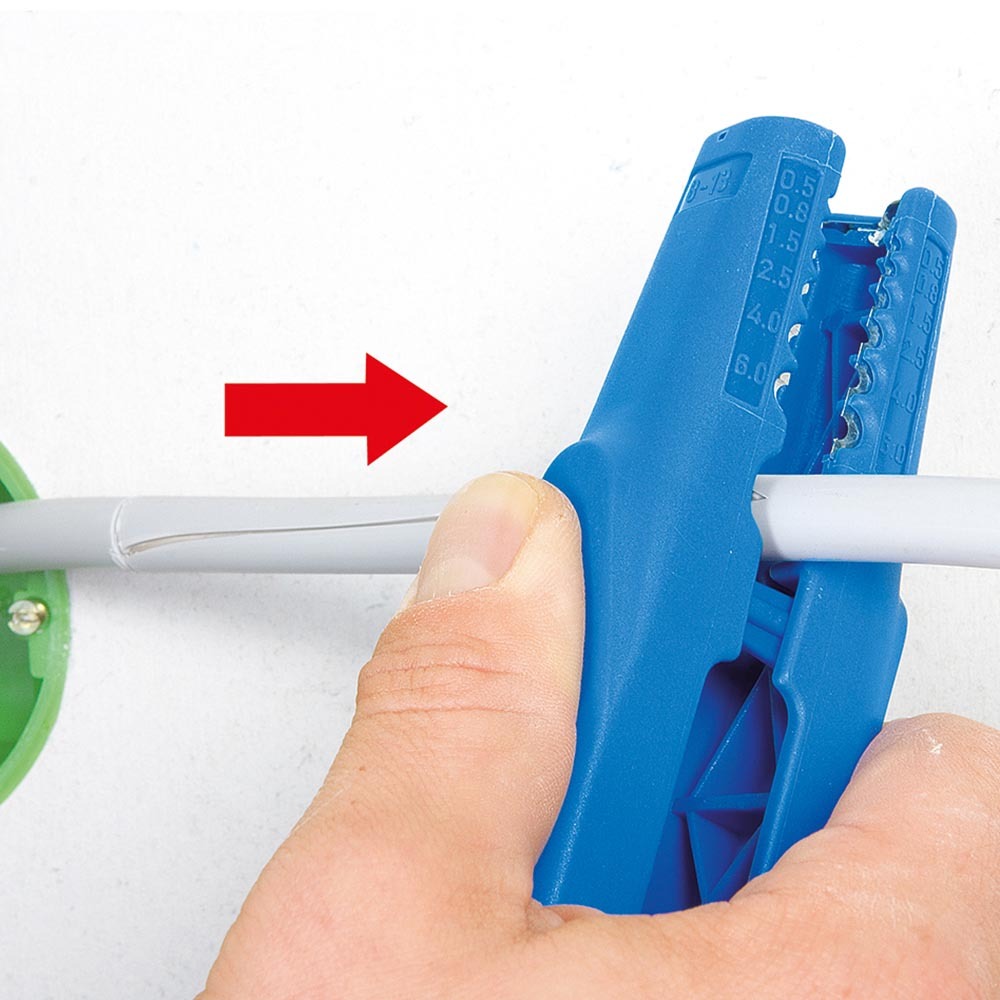

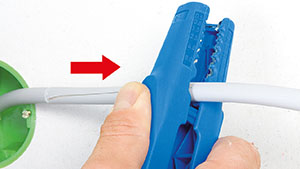

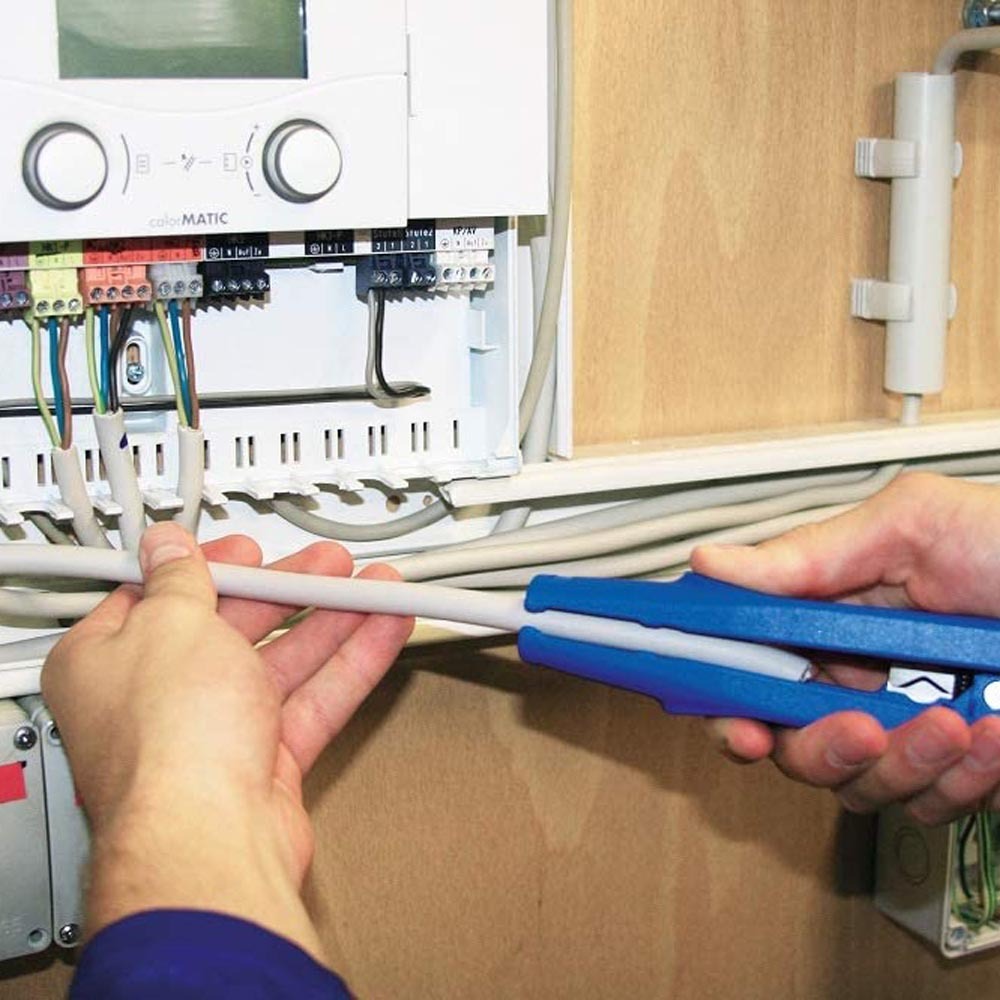

Meanwhile, the blade just past the dedicated small wire stripping points can perform longitudinal cutting of cable insulation.

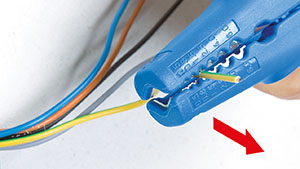

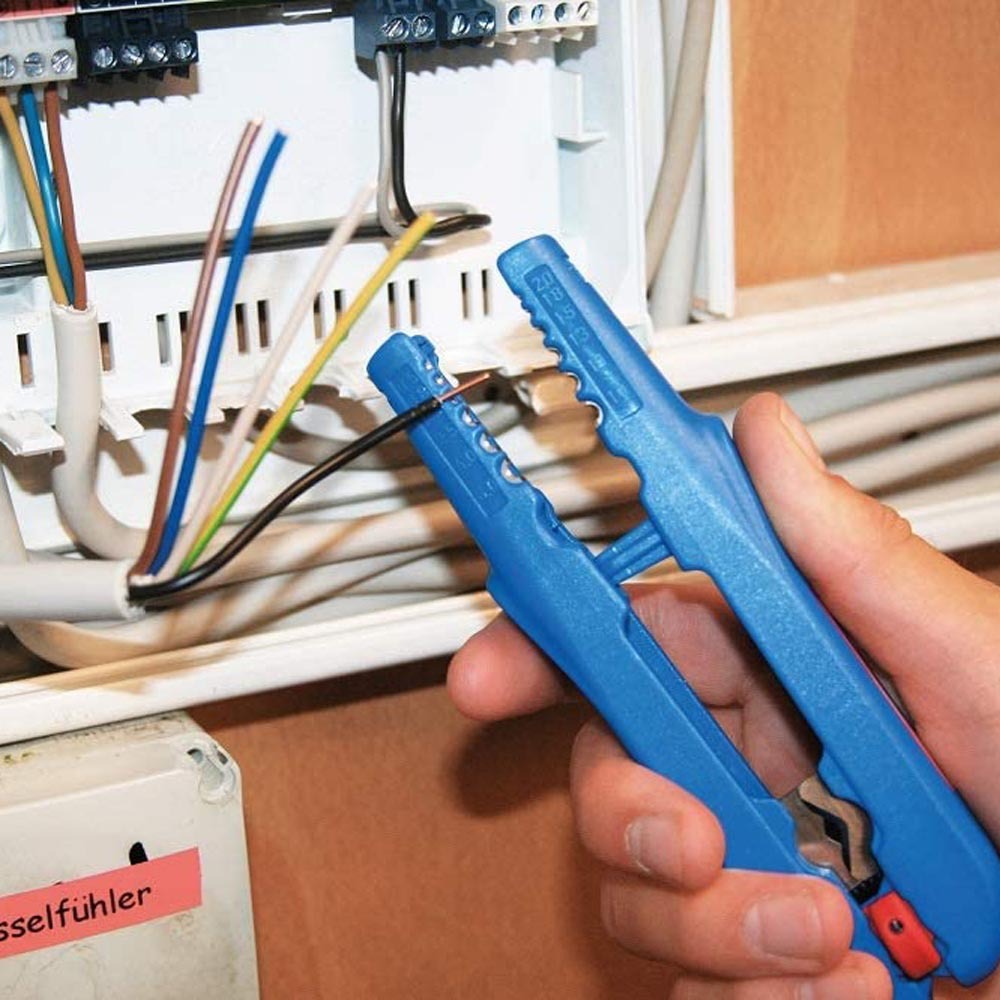

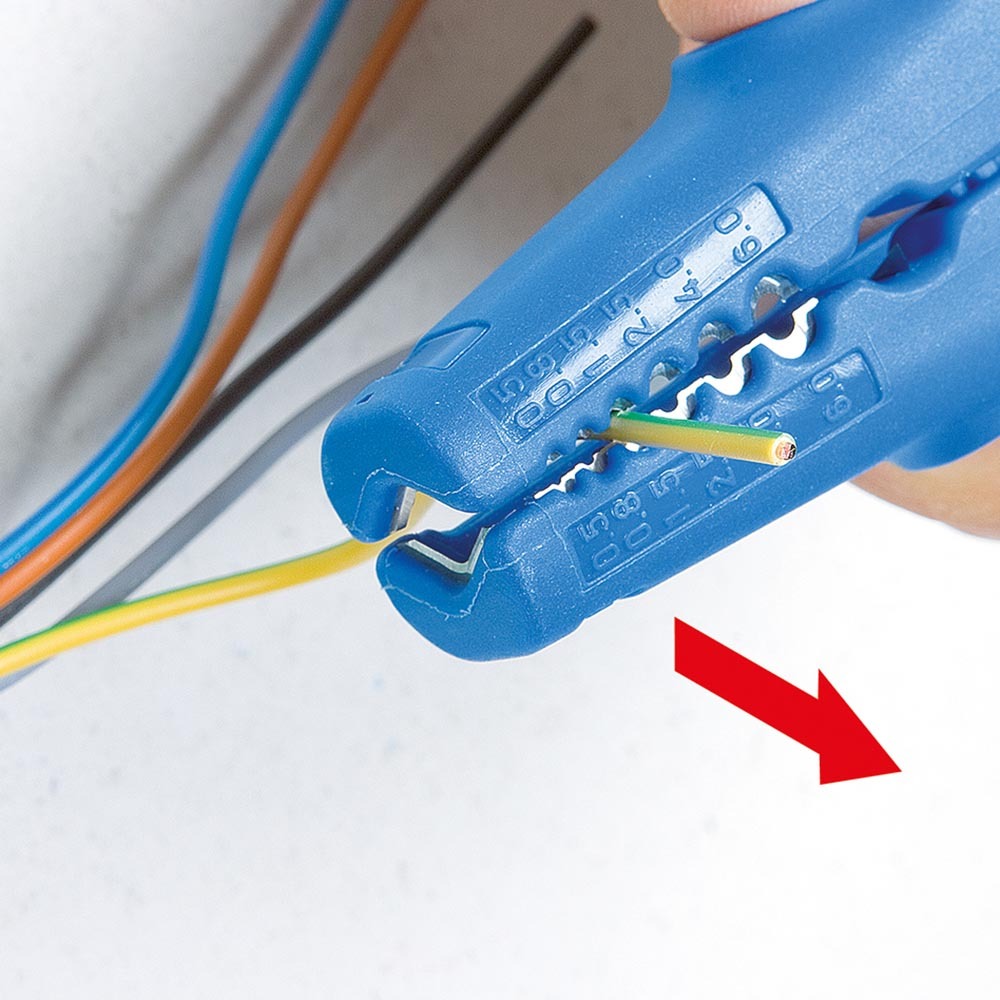

Strip Small Wires.

Our Multi-Stripper 400 also has six slotted blades for stripping small cables and wires. Located towards the front, these stripping points are designed for the following sizes:

0.5mm² 0.8mm² 1.5mm² 2.5mm² 4mm² 6mm²
AWG 20 AWG 18 AWG 15 AWG 13 AWG 11 AWG 10

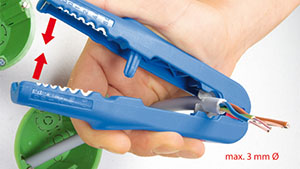

Cutting Blades for Cables Up To 6mm².

At the rear of the tool (near the hinge and lock) you’ll find a built-in cable cutting blade. This can easily slice through flexible conductor cables up to 6mm² and solid conductors up to 4mm².

Locking Mechanism.

The No. 400 Multi-Stripper can be locked closed to save space in the toolbox and for added safety.

Multi Cable Stripper 400 Circular Stripping Multi Cable Stripper 400 Long strippingMulti Cable Stripper 400 Small Wire StrippingMulti Cable Stripper 400 Side Cutter

Cable Type Fine wired and solid conductors with PVC insulation
Field of Use 0.5mm² - 6mm² Cross Section Cable Slotted Blades
8mm to 13mm Dia Cable With Front and Longitudinal Cutting Blades
Inner Blade Not Replaceable
Additional Features / Benefits Side Cutter, Cuts up to 4mm² Solid Cableor 6mm² Flexible
Approvals / Certifications Safety Tested by TUV NORD
Material Fibreglass Reinforced Polyamide
Weight 79gm



SKU SWM000561B01V0001
Model # 51000400
Brand Weicon
