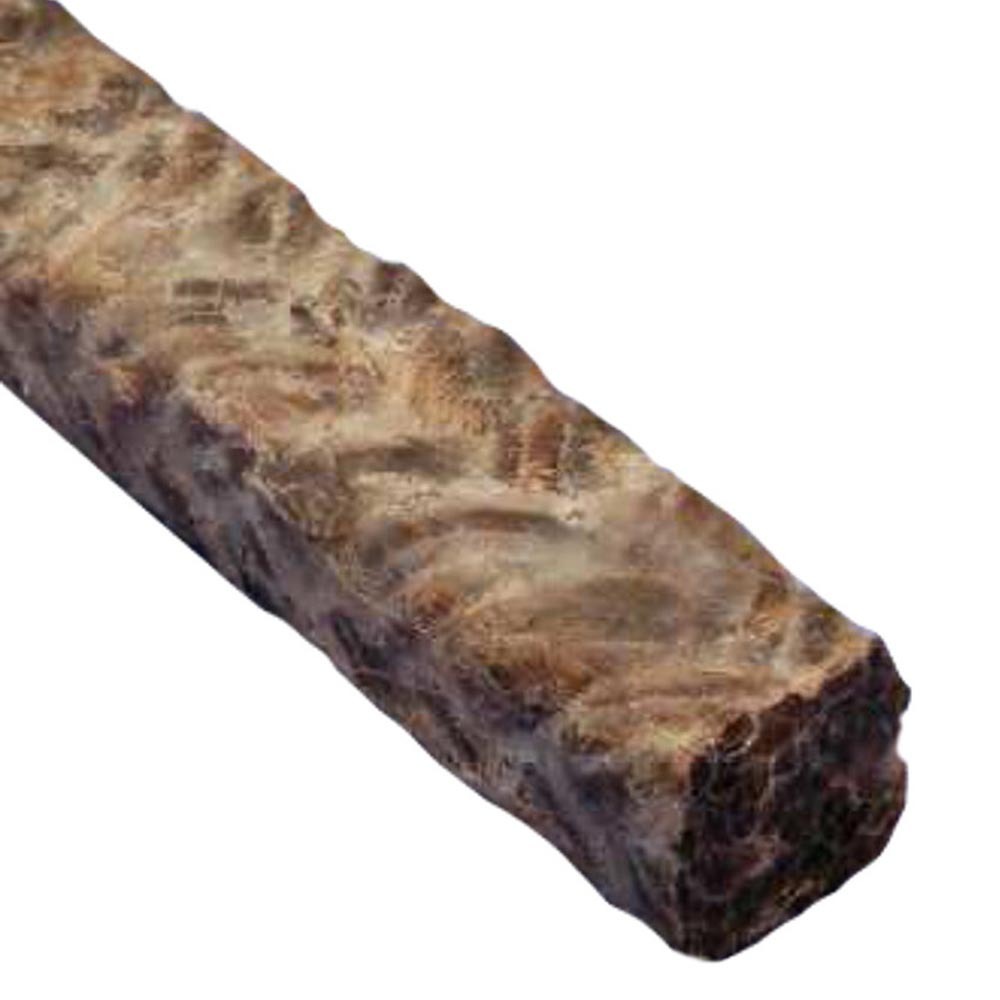

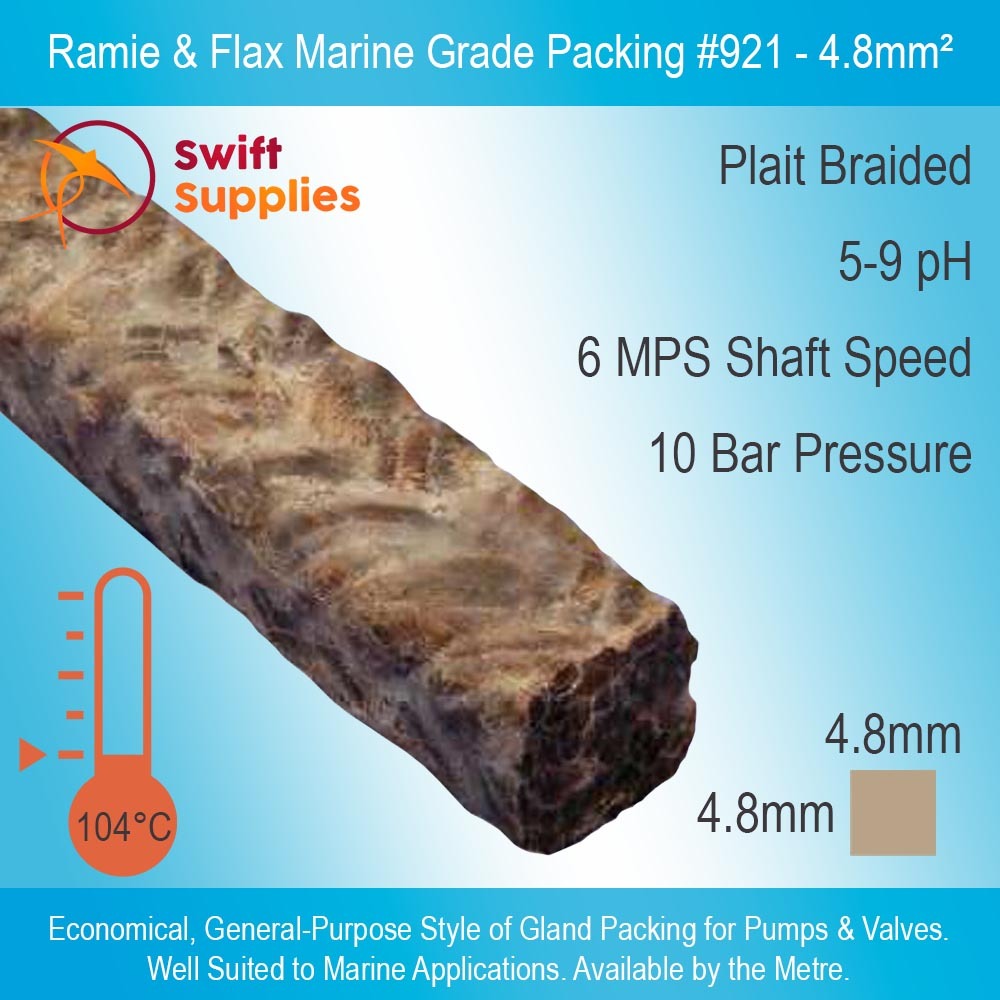

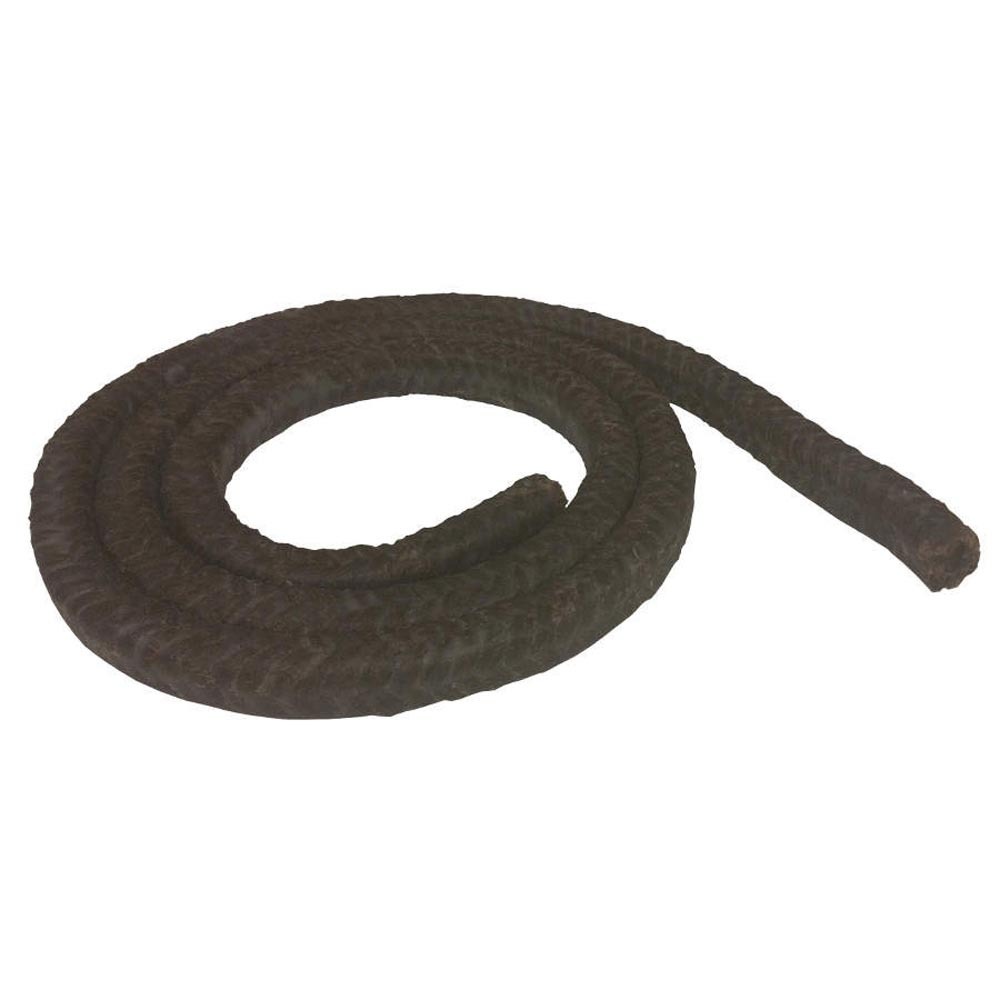

Ramie and Flax Marine Packing Style 921 - 4.8mm Square (Per Metre)

SKU: SWM000024B01V0002
Availability: Available for Fast Dispatch.
$5.06
INC. GST
$4.55
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 4 - 7 and pay only $3.92 each
Buy 8 or above and pay only $3.36 each
  • Very economical grade of gland packing.
  • Designed for marine pump and valve applications.
  • Braided from flax and ramie fibres with a proprietary lubricant.

Ramie and Flax Marine Packing Style 921 is an economical, general purpose style of compression packing. This type is able to be used in both pump and valve sealing applications and is highly flexible yet dense and long lasting. It’s made in the USA from a combination of flax and ramie fibres which are thoroughly impregnated with a proprietary tallow and wax lubricant.

The result is a low cost packing which creates long lasting seals with low friction. Ramie and Flax Marine Packing Style 921 is able to be used in temperatures up to 105°C and has excellent resistance to cold water, sea water and cold oils.

Ramie and Flax Marine Packing Style 921 is rated for use with shaft speeds up to 5 MPS and pressures up to 10 BAR.

Applications for Style 921 Ramie & Flax Gland Packing

  • Gland and stuffing box sealing.
  • Sealing stern bearing.
  • Rudder post sealing.
  • Water pump sealing.
  • General purpose pump and valve sealing.

Metric to Imperial Packing Conversion Table

Millimetre Square Inches Square Fraction of an Inch Sqaure
3.2mm² 0.13" 1/8"
4.8mm² 0.19" 3/16"
6.4mm² 0.25" 1/4"
8mm² 0.32" 5/16"
9.5mm² 0.37" 3/8"
12.7mm² 0.5" 1/2"
16mm² 0.63" 5/8"
19mm² 0.75" 3/4"
22mm² 0.87" 7/8"
25mm² 1" 1"
Max. Continuous Operating Temperature 104°C
Colour Brown
Service Type Pumps & Valves
Base Fibre(s) Ramie & Flax
Lubricant Tallow & Wax
Construction Plait Braided
Shaft Speed Rating 6 MPS
Pressure Rating 10 BAR
Chemical Resistance 5-9 pH
SKU SWM000024B01

Technical Data Sheet.

Replace
Ramie and Flax
Marine Grade Packing
Style 921 TDS


Related Content & Resources.

Quick Reference Guide Link
Ramie and Flax Marine Packing Style 921 Quick Reference Guide


How do I Cut It?

A box cutter (AKA Stanley knife) will get through our Marine Packing, though you may need to make multiple slices (especially with the thicker sizes). If you’re looking to ensure you achieve an exact 45° cut (for making packing rings) specialised packing scissors are best.

Do you make Packing Rings?

We can supply them, yes. We don’t make them ourselves but we do have some great partners who do here in Australia. If you’d like us to arrange some for you shoot us an email with the sizes and details of what you’re after and we can arrange a quote. We can usually turn these around fairly quickly (local stock and a local ring manufacturer helps a lot with this).
