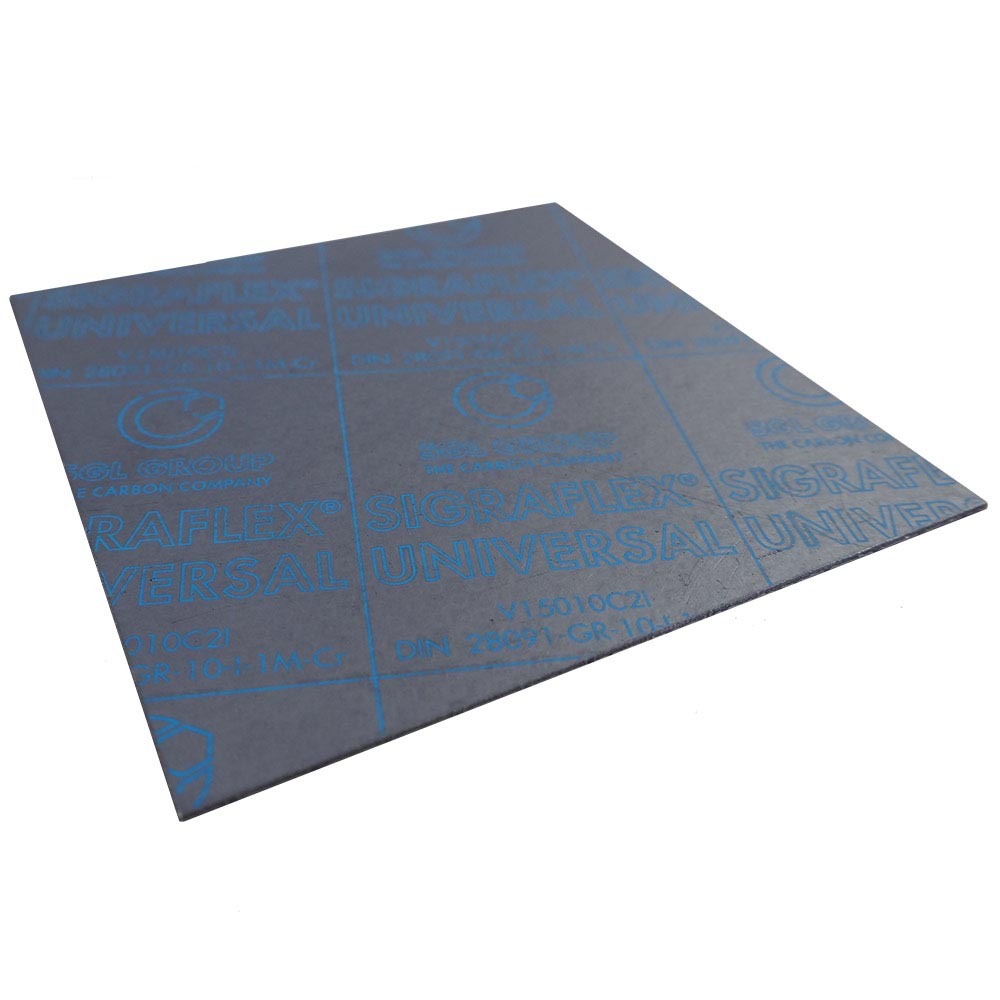

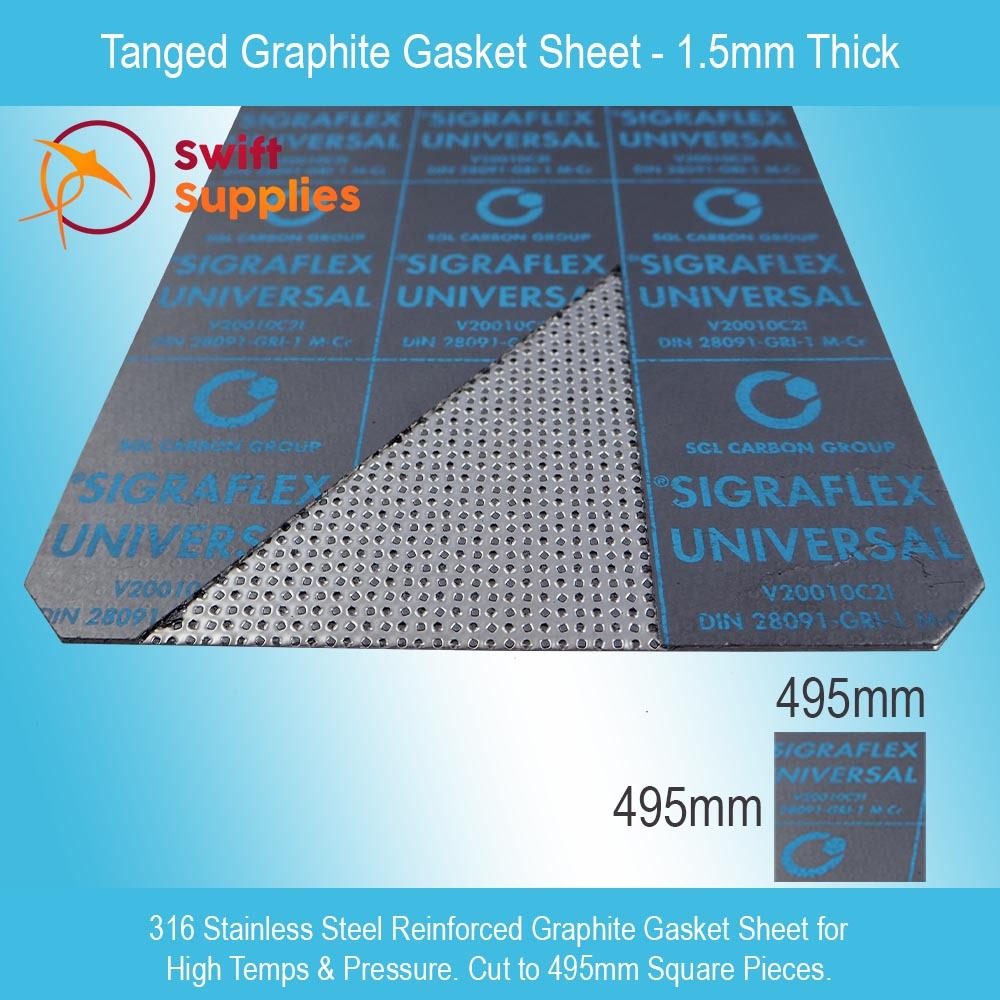

Sigraflex Universal Tanged Graphite Gasket Sheet - 1.5mm Thick x 495mm Square

SKU: SWM000283P01V0001
Availability: Cut to Order, Ships in 2-3 W/Days.
$143.76
INC. GST
$130.69
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 3 or above and pay only $137.49 each
  • High Performance Gasket Material for high temperatures and operating pressures.
  • Manufactured from high quality graphite that is reinforced with tanged 316L stainless steel.
  • Excellent strength, very good pressure resistance and the ability to withstand temperatures between -250°C and +450°C (up to 550°C in some applications).
  • Produced using an adhesive-free system for reduced leakage and long-lasting performance.

Our Sigraflex® Universal is a high-quality grade of Tanged Graphite Stainless Steel Reinforced Gasket Sheet used for demanding sealing applications. This gasket material has excellent temperature resistance as well as the ability to withstand very high sealing pressures (Vacuum to 100 Bar).

Produced by SGL Carbon, this material is often used for high pressure automotive or marine gaskets, high temperature flange gaskets in the energy sector and for gaskets used in the food processing, petrochemical, oil & gas, heating, chemical processing and mining industries.

The sections below provide more information on this graphite gasket material while the Specifications Tab and Media tab also contain more information on its technical properties.

High Temperature Gasket Sheet.

One of the most common factors leading to the specification or selection of our Tanged Graphite Gasket Material is temperature. Gaskets made from our Sigraflex Universal are able to withstand temperatures down to -250°C and as high as 550°C depending on the media type being sealed.

For temperatures over 450°C it is suggested that an engineering appraisal be conducted first to determine suitability. This quality gasket material is highly resistant to thermal shock.

Excellent Pressure Resistance.

The Stainless-Steel Reinforcement in our Universal Tanged Graphite Sheet ensures this gasket material has excellent pressure resistance. Gaskets made from Sigraflex Universal are able to withstand operating pressures from vacuum up to 100 Bar.

This material has high blow-out resistance and excellent mechanical strength.

Sigraflex Universal Tanged Graphite GraphicSpecial Production Method Ensures High Performance.

This grade of tanged graphite is produced using a specialised process that combines the layers without the use of adhesives or binding agents. This helps to ensure good, consistent performance and reduces the chance of aging or embrittlement over time.

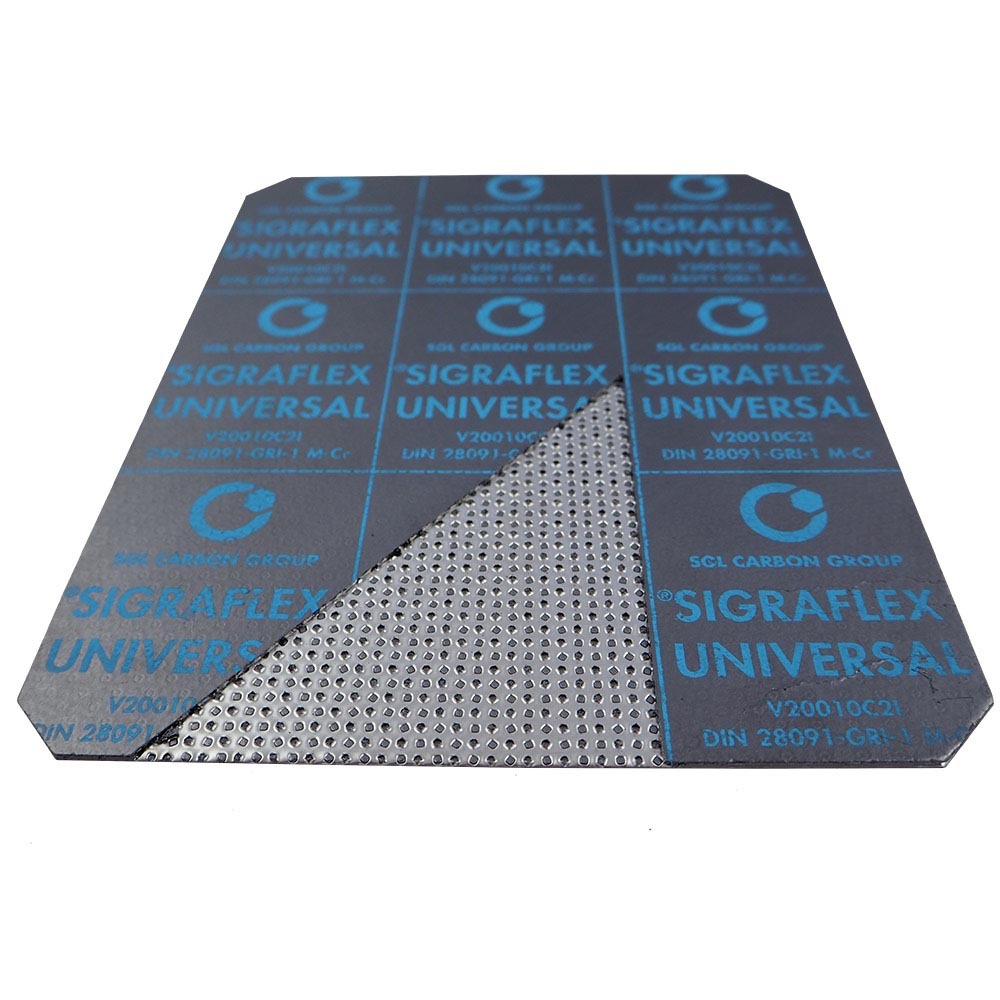

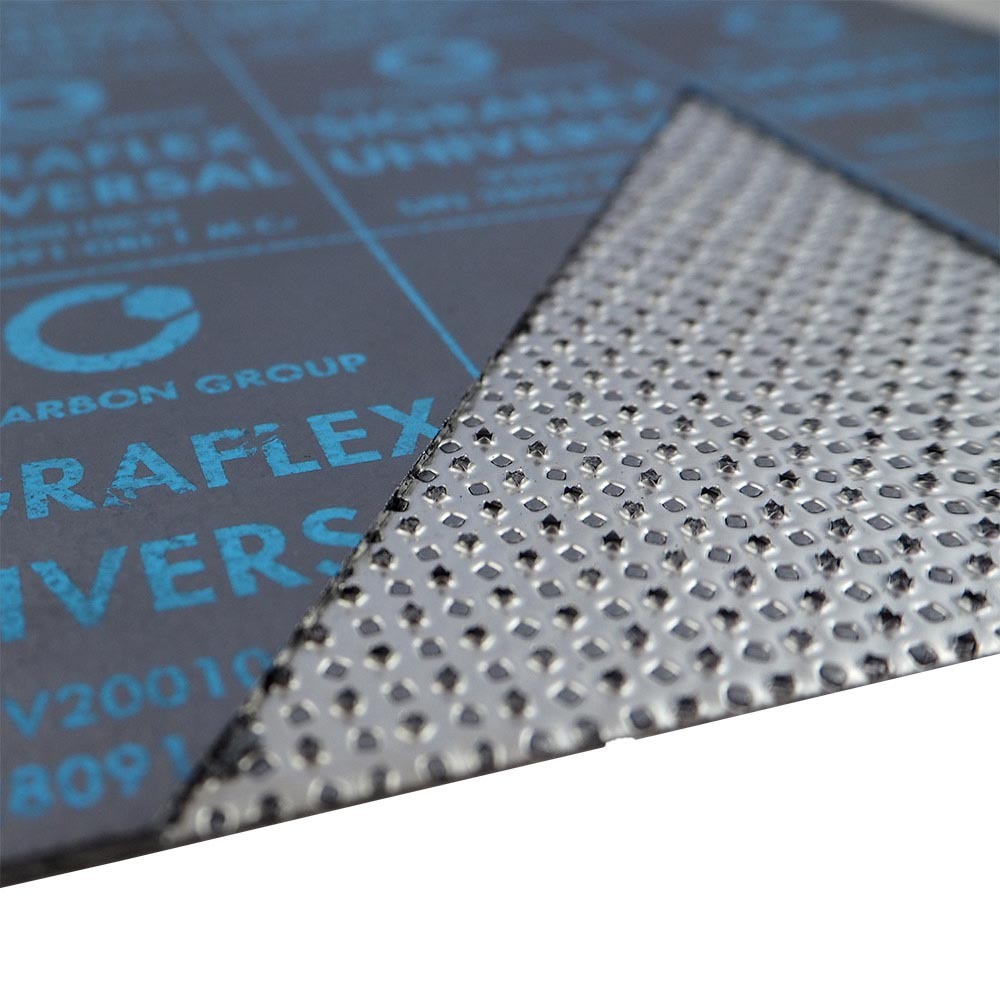

Sigraflex Universal Tanged Graphite is made from flexible graphite foil with one or two tanged 316L stainless-steel reinforcement layers. The sealing sheet is impregnated using a special methodology which reduces leakage and improves handling. Specifically, it gives the sheet a scratch resistant, anti-stick finish which assists with installation and gasket removal in the future.

Excellent Sealing Characteristics.

Our Tanged Graphite Gasket Sheet exhibits very good long-term stability of compressibility and recovery. This performance holds up even when the gaskets are subjected to fluctuating temperatures to ensure long term, reliable sealing.

In addition, Sigraflex Universal Tanged Graphite Gaskets exhibit no measurable cold or warm flow characteristics up to the maximum permissible gasket stress (data on this is contained on the linked TDS). Our Tanged Graphite Sheet has a very low coefficient of friction and excellent residual stress.

Very Good Chemical Resistance.

Since they are produced from very high purity (98%) graphite, our Sigraflex Universal Tanged Graphite sheets offer exceptional chemical resistance. They are widely used for sealing many different types of corrosive media as well as steam, gases and more.

 Sigraflex Universal Tanged Graphite is impermeable to gases & liquids. An inert material, it is also highly resistant to radiation.

Numerous Approvals and Certifications.

Manufactured by SGL Carbon and used all around the world for demanding sealing applications, Sigraflex Universal has been subjected to and certified in accordance with numerous testing authorities. Some of the relevant approvals include:

  • Fire Safe According to BS 6755-2
  • Blow Out Resistance (TÜV @ 2.5 times Nominal Pressure)
  • Germanischer Lloyd
  • US Coast Guard
  • DVGW (DIN 3535-6)
  • BAM Oxygen
  • BAM Ethylene Oxide & Propylene Oxide

Typical Applications for our Tanged Graphite Gasket Material.

  • Heat exchangers and heat transfer lines in oil & heating Facilities.
  • Gaskets for power stations and energy generation.
  • Flange gaskets for the chemical processing and petrochemical industry.
  • Chemical storage tank gaskets.
  • For marine exhaust and engine gaskets.
  • High performance automotive gaskets for high pressure / high temperature sealing.
  • Gaskets for inspection glass.
  • Gaskets & seals for boilers, feed lines and vessels.
  • Sealing corrosive media at elevated temperatures and/or pressures.
  • High pressure / temperature pump gaskets.
  • Gaskets for commercial machinery operating at elevated pressures and temperatures.

How to Buy Tanged Graphite Gasket Material Online.

This page lists our range of small sheets of Tanged Graphite. Our online store also has this quality gasket sheet in a number of other sheet sizes; links to each are included at the bottom of this page.

In addition to these standard sizes, we are also able to provide custom cut sheets, gaskets & seals made from steel reinforced gasket material. To enquire about a specific size, please do contact us.

Colour Black
Property         Units
Thickness 1 1.5 2 3 mm
Bulk Density of Graphite 1 1 1 1 g/cm³
Ash Content of Graphite ? 2.0 ? 2.0 ? 2.0 ? 2.0 %
Purity ? 98 ? 98 ? 98 ? 98 %
Total Chloride Content ? 25 ? 25 ? 25 ? 25 ppm
Total Halogen Content ? 70 ? 70 ? 70 ? 70 ppm
Total Sulphur Content < 300 < 300 < 300 < 300 ppm
Oxidation Rate in Air
at 670°C (TGA)
< 4 < 4 < 4 < 4 % / h
Oxidation Inhibitor Yes Yes Yes Yes -
Tanged Stainless Steel Sheet Details
ASTM Material Number 316 (L) 316 (L) 316 (L) 316 (L) -
Thickness 0.1 0.1 0.1 0.1 mm
Number of Sheets 1 1 1 2 -
Gasket Factors (DIN E 2505 / DIN 28090-1)
See Technical Data Sheet
Compressibility (? KSW) 35 40 40 40 %
Recovery at 20°C (?KRW) 5 5 5 5 %
Hot Creep (?WSW) < 4 < 4 < 4 < 4 %
Recovery at 300°C (?WRW) 4 4 4 4 %
E-Modul 20 N/mm² (DIN 28090-1) 850 850 850 850 N/mm²
Compressibility (ASTM F36) 35 40 40 40 %
Recovery (ASTM F 36) 15 12 12 12 %
ASME Code Sealing Factors
M Factor 2.5 2.5 2.5 2.5 -
Y Factory 2000 2000 2000 2000 -
SKU SWM000283P01-Sml
Brand SGL Carbon

Technical Data Sheet.

Replace
Tanged Graphite Stainless Steel Reinforced
Gasket Sheet Technical Data Sheet
