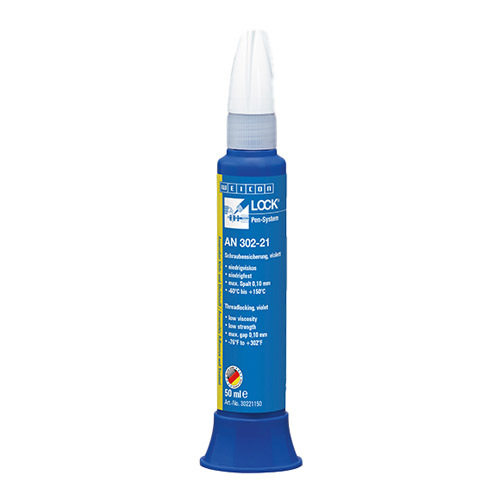

Weiconlock AN 302-21 Threadlocking Adhesive - 50ml Pen

SKU: SWM000202B01V0002
MPN: 30221150
Availability: Special Order Item, Please Contact Us for Availability
Container Size


All Bulk Prices Below Are Quoted Including GST.
Buy 3 - 5 and pay only $33.86 each
Buy 6 or above and pay only $32.47 each
  • Low Viscosity for Smaller Gauge Bolts and Nuts.
  • Low Strength for Easy to Disassemble, Removable Bonds.
  • Non-Marking.
  • Vibration Proof.

Weiconlock AN 302-21 Threadlocking Adhesive is a low strength, low viscosity (runny) grade designed to lock and seal threaded connections and prevent against unwanted loosening.

This grade of anaerobic adhesive is manufactured in Germany by Weicon and offers a variety of benefits. These are expanded on in the sections below:

Low Viscosity.

Weiconlock AN 302-21  has a viscosity of just 125 mPa·s (according to Brookfield at 25°C). We classify this as a low viscosity which means it will run a nicely to fill smaller threads.

Weiconlock AN 302-21 is able to cover gaps up to 0.1mm and is used on threaded joints up to M 12.

Low Strength, Easy to Disassemble Joins.

Weiconlock AN 302-21 cures with low strength for bonding and sealing connections that should be easy to disassemble for frequent servicing or removal. Strength ratings are summarised further below.


Weiconlock AN 302-21 is a non-marking grade of threadlocker.

Vibration Proof.

Weiconlock AN 302-21 is vibration proof and maintains its adhesion for extended durations. This allows it to keep locked bolts in place until they are deliberately removed.

Weiconlock AN 302-21 Key Specs Overview.

Colour Purple (Violet)
Threaded Joints Up To... M 12
Viscosity 125 mPa·s
Maximum Gap Bridging 0.1mm
Prevailing stregth 3 - 6 Nm
Handling Strength at Room Temperature 10 - 20 Minutes
Temperature Resistance -60°C to +150°C.

For more detailed information on this high-quality adhesive, please consult the specifications tab or the Technical Data Sheet via the Media Tab.

The Weiconlock Pen System.

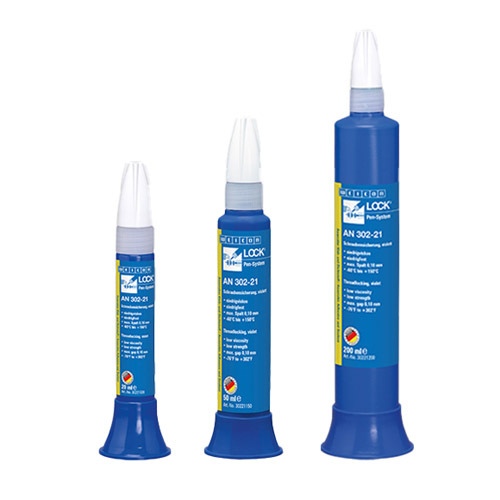

One of the features of all Weiconlock Threadlockers, Flange Sealants, Retaining Adhesives and Pipe Sealers is the pen system they use for most size containers (300ml varieties are supplied in cartridges and are the one exception).

This special pen makes accurate application natural and easy. It also helps to reduce wastage as there’s less chance of spillage.

The Weicon Pen System has been used in all kinds of industries all over the world for decades and continues to be a key point of difference for these German-Made adhesives.

Common Features of All Weiconlock Anaerobic Adhesives.

WEICONLOCK® are one-component anaerobic adhesives and sealants, especially made for metal assembly parts.

The full range covers over 60 different grades designed for everything from Thread Locking, Pipe Sealing, Flange Sealing and Retaining Cylindrical Assemblies like bearings. There are special grades for potable water applications, gas lines, oxygen service and more.

No matter the grade chosen, all types of Weiconlock Adhesive have a few things in common:

Excellent Chemical Resistance.

All grades of Weiconlock Adhesives are resistant to a large variety of different chemicals, fluids and gases. Some of the more common are summarised in the table below. A more comprehensive list is also available via the Media Tab..

Media Resistance   Media Resistance
Acetic acid 80% o   Oxygen
Aromat, Solvent +   Phenol +
Brake fluid +   Propane +
Diesel, heating oil +   Seawater +
Edible oil +   Silicone oil +
Fuel oil +   Turpentine +
Glycocol, glycine +   Vinegar +
Helium +   Water (acidic) under PH 7 +
Hydrochloric acid +   Water PH 7 to 8 +
Isobutane +   Water (alk.) over PH 8 +
Kerosene +   Water, chlorinated +
Mineral oil +   Water, cooked o
Naphtha, petroleum +   Water, distilled +
Natural gas - dry +   Water, wastewater (sewage) +
Nitrogen gas +   Xylene, dimethylbenzene +

+ = Good Resistance.
o = Resistant
% = Limited Resistance.
- = Not Resistant.

Easy to Use.

In general, WEICONLOCK does not require special pre-treatment as slightly oily surfaces (e.g. on as received parts) will be tolerated.

However, best results will be achieved on cleaned, degreased parts (use WEICON Surface Cleaner). If required, the parts should be slightly roughened.

WEICONLOCK is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). Apply continuous bead on one side of flange, join and tighten parts quickly.

For sealing applications (pipe fitting) apply WEICONLOCK in circular motions on the thread. Screw pipe threads together and tighten until desired orientation.

Do not pour back into the bottle any WEICONLOCK fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended.

Simple to Store.

WEICONLOCK can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps WEICONLOCK liquid.

Colour Purple (Violet)
For Threaded Joints Up To... M 12
Viscosity 125 mPa·s
Maximum Gap Bridging 0.1mm
Breakaway strength (Thread)  7 - 10 Nm
Prevailing strength 3 - 6 Nm
Shear strength Nmm² (DIN 54452)* 4 - 7 N/mm²
Handling Strength at Room Temperature 10 - 20 Minutes
Final strength (100%) after 3 - 6 Hours
Temperature Resistance -60°C to +150°C.

*Strength values based on M 10 screws, 8.8 grade, thickness of nut 0,8.d Static shear strength based on cylindrical parts of abt. Ø 13 mm, tolerance (D-d) = 0,05 mm, l/d = 0,88
