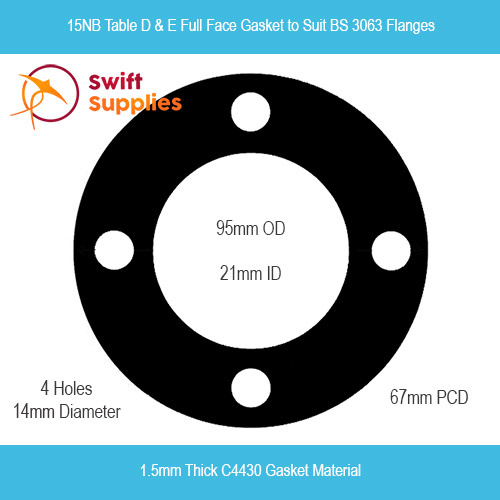

15NB Table D & E Full Face Flange Gasket, 1.5mm C4430

All Prices Include GST.

$3.11
In Stock
Cut to Order, Ships in 2-3 W/Days.

Nominal Bore (NB)
Table
Thickness
Buy In Bulk & Save!
Buy 10 to 25: Pay $2.77
Buy 26 to 50: Pay $2.64
Buy 51 to 99: Pay $2.48
Buy 100 or more: Pay $2.35


Orders Over $100 are Shipped Free within Australia



Delivery - Australia Wide - $9.00
Fast Delivery via Courier. We use Toll Priority (Air Freight) when possible or a combination of Star Track, Couriers Please, TNT and others depending on the size and classification of the item.

  • High Quality Pipe Flange Gaskets made from C4430 premium quality compressed, non-asbestos fibre gasket material.
  • Universal style of gasket sheet with outstanding stress retention and resistance to hot water and steam.
  • Very good compatibility with oils, fuels, alcohols, moderate acids, hydrocarbons, lubricants and more.
  • Cut to size in our Australia facilities and available in the full range of standard sizes.

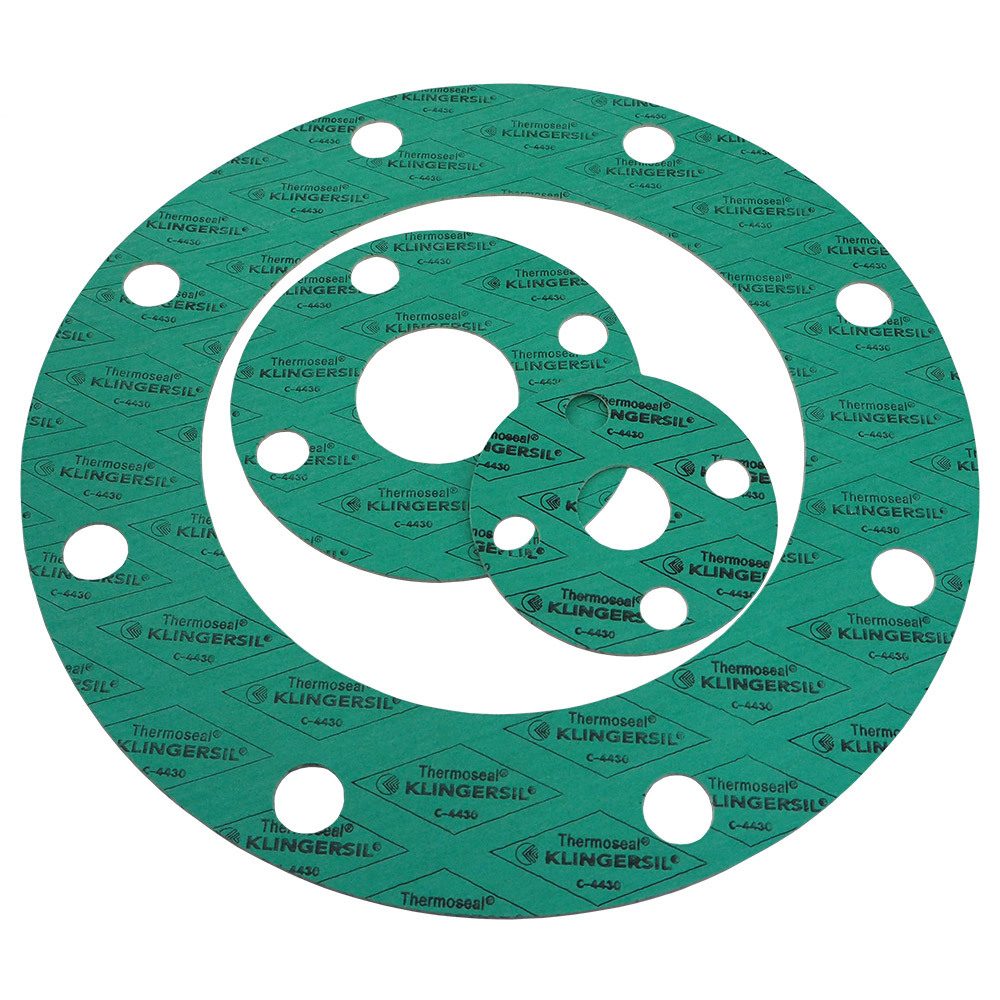

Klingersil C4430 Flange Gaskets are widely used for medium temperature and medium pressure sealing. These gaskets are produced in our Australian facilities to suit the size requirements of BS 3063 Table D and/or Table E Flanges.

Flange Gaskets to Suit BS 3063 Size Info.

The gaskets featured on this page are all cut to suit BS 3063 Flanges in either Table D or Table E configurations (the two most common). In some pipe nominal bores (e.g. 15NB, 80NB) there’s no difference in gasket size between Table D or Table E (the gasket fits both). In others, there are differences in number of holes or hole diameter.

Where there are differences between Table D and Table E; both are offered. Where there are no differences, a single gasket is listed here which will suit both. The sizing tables below provide more information on which nominal bores use the same gasket and which require their own size.

All the gaskets listed on this page are Full Face gaskets. These are so-named because they take up the full flange face and cover the bolt holes. Both ring and full-face gaskets can be used on these flanges depending on particular requirements and user preferences.

C4430 Pipe Flange Gaskets Information.

Gaskets made from C4430 exhibit good all-round sealing capabilities and compatibility with a wide range of fluids and media. Performance characteristics include:

Good Pressure and Temperature Resistance.

Maximum operating temperature and pressure are highly dependent on one another, and the medium being sealed. That said, a rough guideline for this material is:

Temperature: +200°C Continuous / +400°C Maximum for very short periods.

Pressure: 100 BAR

We really do suggest utilised the attached C4430 Data Sheet though as this includes pT diagrams showing the inter-relationship between maximum pressure and temperature.

Certified for Use in a Variety of Critical Sealing Applications.

Klingersil C4430 has been certified in accordance with a number of worldwide standards. These include:

  • Fire safe according to BS 5146.
  • BAM approval in accordance with UVV 28, oxygen( VGB 62) tested up to 100 bar and 85°C.
  • Approved for gas supply in accordance with DIN 3535/6. DIN - DVGW permit NG 5123AN0418.
  • Potable Water approval in accordance with WRS and AS4020.
  • TA Luft (Clean air) approval, tested in accordance with VDI 2440 at 250°C.

For more information on the various certifications and approvals bequeathed on this gasket sheet please refer to the attached C4430 Data Sheet for a full and comprehensive listing.

Good Chemical Resistance.

The full list of chemicals that C4430 Gasket Material can or cannot seal is incredibly long and detailed. The list below is presented as a summary only. For more information on a specific medias’ compatibility please do contact us and we’ll be happy to help.

In general, C4430 is compatible with…

  • Water.
  • Steam.
  • Oils.
  • Gases.
  • Fuels.
  • Alcohols.
  • Moderate organic and inorganic acids.
  • Hydrocarbons.
  • Lubricants.
  • Refrigerants.

Full Face Flange Gaskets to suit BS 3063 Table D and Table E Size Info Table.

BS 3063 Table D C4430 Gaskets Sizing.

All Dimensions below are given in millimeters (mm).

Flange Nominal
Bore
Gasket OD Gasket ID Number of
Holes
Hole
Diameter
PCD Matches
Table
15NB 95 21 4 14 67 E
20NB 102 27 4 14 73 E
25NB 114 34 4 14 83 E
32NB 121 43 4 14 87 E
40NB 133 48 4 14 98 E
50NB 152 60 4 19 114 E
65NB 165 76 4 19 127 E
80NB 184 89 4 19 146 E
90NB 203 102 4 19 165 -
100NB 216 114 4 19 178 -
125NB 254 140 8 19 210 E
150NB 279 168 8 19 235 -
200NB 337 219 8 19 292 -
250NB 406 273 8 22 356 -
300NB 457 324 12 22 406 -
350NB 527 381 12 25 470 E
400NB 578 432 12 25 521 E
450NB 641 483 12 25 584 -
500NB 705 533 16 25 641 E
600NB 825.5 635 16 29 756 -

BS 3063 Table E C4430 Gaskets Sizing.

All Dimensions below are given in millimeters (mm).

Flange Nominal
Bore
Gasket OD Gasket ID Number of
Holes
Hole
Diameter
PCD Matches
Table
15NB 95 21 4 14 67 D
20NB 102 27 4 14 73 D
25NB 114 34 4 14 83 D
32NB 121 43 4 14 87 D
40NB 133 48 4 14 98 D
50NB 152 60 4 19 114 D
65NB 165 76 4 19 127 D
80NB 184 89 4 19 146 D
90NB 203 102 8 19 165 -
100NB 216 114 8 19 178 -
125NB 254 140 8 19 210 D
150NB 279 168 8 22 235 -
200NB 337 219 8 22 292 -
250NB 406 273 12 22 356 -
300NB 457 324 12 25 406 -
350NB 527 381 12 25 470 D
400NB 578 432 12 25 521 D
450NB 641 483 16 25 584 -
500NB 705 533 16 25 641 D
600NB 825.5 635 16 32 756 -

(SWP000400)

Colour Green
Compressibility (ASTM F 36 J) 9%
Recovery (ASTM F 36 J) 50% Minimum
Stress Relaxation
(DIN 52913)
39 MPa
35 MPa
50 MPa, 16 hours / 175°C
50 MPa, 16 hours / 300°C
Stress Relaxation (BS 7531) 31 MPa 40 MPa, 16 hours / 300°C
Klinger Cold / Hot Compression
(50 MPa)
8%
11%
Thickness Decrease at 23°C
Thickness Decrease at 300°C
Tightness According to DIN 3535/6 <0.1 mg/s x m
Tightness Class L 0.1 DIN 28090-1
Specific Leakrate λ 2,13E-05 mbar x l/s x m VDI 2440
Cold Compression 6 - 10% DIN 28091-2
Cold Recovery 2 - 4% DIN 28091-2
Hot Compression 7% DIN 28091-2
Hot Recovery 1% DIN 28091-2
Spring Back R 0.019mm DIN 28091-2
Density 1.75 g/cm³
Average Surface Resistance Ω 4.1x10E13 R0A
Average Specific Volume Resistance Ω cm 4.5x10E12
Average Dielectric Strength 21.3 kV/mm
Average Power Factor 0.02 tan δ 1 kHz, ca. 2mm thickness
Average Dielectric Coefficient 6.4 εr
Thermal Conductivity 0.42 W/mK
Thickness Increase After Fluid Immersion (ASTM F 146)
Oil 3% JRM 903, 5 Hours at 150°C
Fuel B 5% 5 Hours at 23°C
ASME Code Sealing Factors
For 2mm Thick Gaskets Y = 25
M = 5
Tightness Class 0.1 mg / s x m
SKU SWP000400
