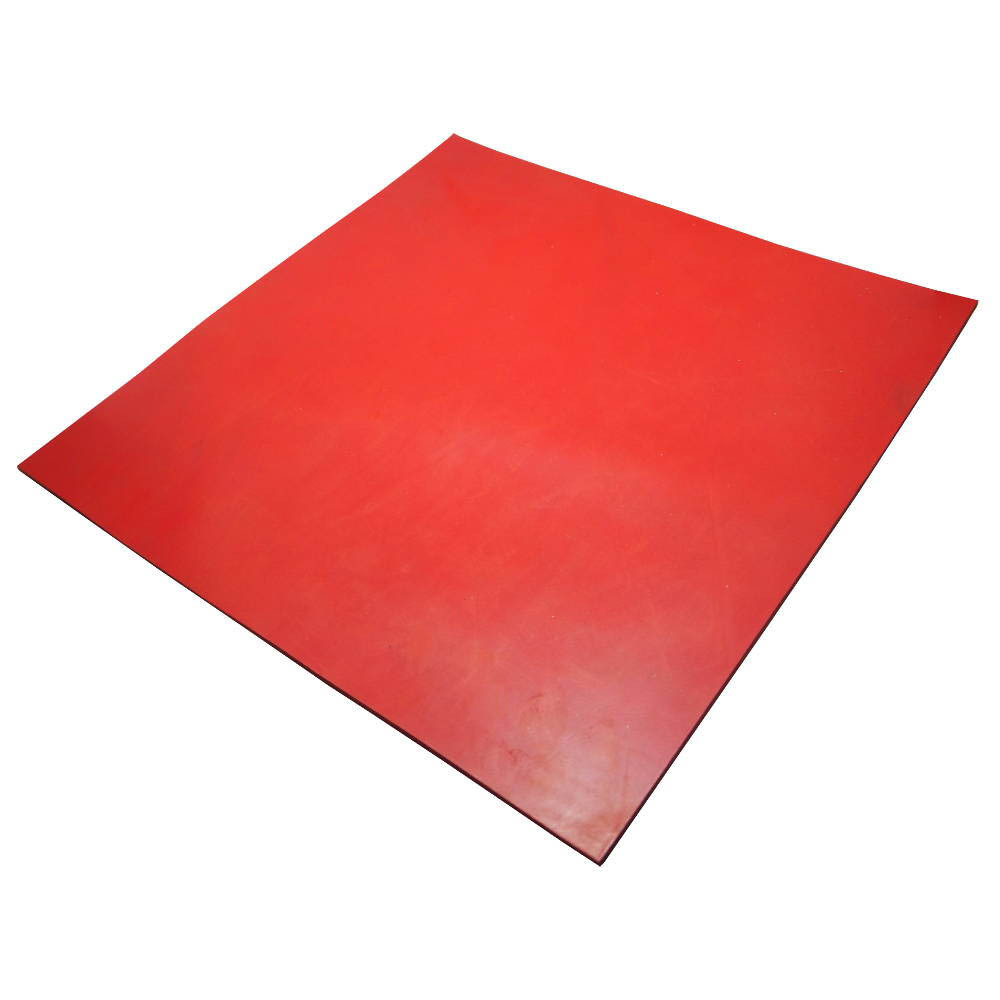

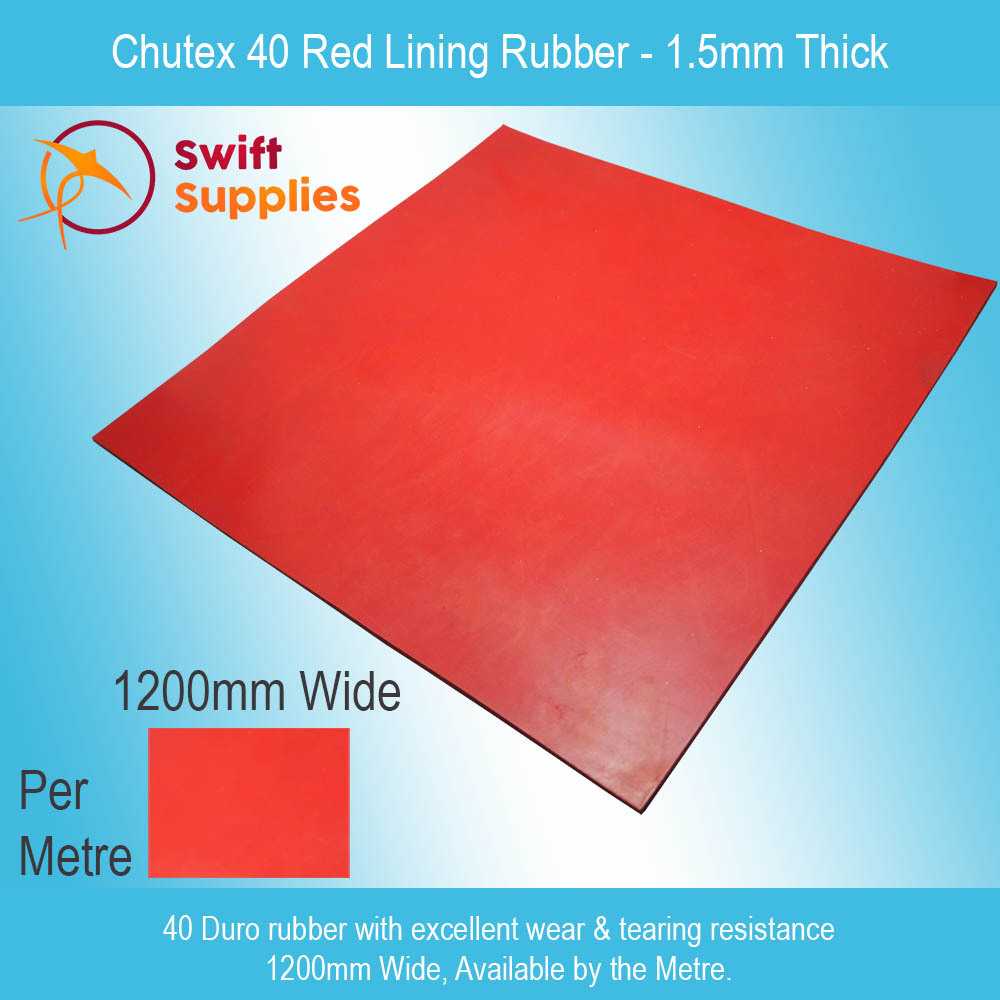

Chutex Red Lining Rubber 1.5mm Thick x 1200mm (40 Duro, Per Metre)

SKU: SWM000227B01V0001
Availability: Ships in 2-3 W/Days.
$83.24
INC. GST
$74.92
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 5 - 9 and pay only $68.58 each
Buy 10 or above and pay only $67.39 each
  • Very good wear resistance. Withstands large amounts of abrasion.
  • Soft, flexible and highly elastic.
  • Very good resistance to tearing.
  • Available by the metre.

Chutex Rubber is a specially developed form of Natural Rubber with excellent wear resistance. This rubber is soft, very flexible, yet also incredibly good at withstanding abrasion or tearing. Chutex is very elastic and is typically used for lining, protection, skirting or sealing.

Chutex has a bright red / pink colouring which makes it very easy to spot. Our Chutex Rubber is a premium, industrial grade rubber that has a smooth surface finish and a shore durometer hardness of 40 Shore A.

Chutex Rubber Sheet will withstand attack from mild chemicals including acids and alkalis typically used in mineral processing. It is highly elastic with an elongation at break rating of 550% (minimum).

This rubber is not particularly resistant to temperatures and has a listed range of -20°C to +70°C. Instead, Chutex Rubber is used for its excellent resistance to wear and abrasion. It has a tear strength of 60 N/mm and a listed tensile strength of 18 MPa.

We are pleased to be able to offer our premium grade Chutex rubber in a selection of thicknesses. Cut components, strips, wear resistant rubber pads and custom fabricated parts can also be arranged upon request. For more information on these, please do contact us.

Typical Applications for Chutex Rubber

Chutex is typically used for wear protection, lining and skirting applications. Some examples of common uses include:

  • Chute lining.
  • Making rubber skirts and skirting.
  • Wear curtains.
  • Dust deflectors.
  • Dust sealing curtains and skirts.
  • As a pipe repair bandage.
  • For producing pipe wipers.
  • Making drill rod seals.
  • Vacuum blankets.
  • Pulley lagging.
  • Tank linings.
  • Conveyor slide guides and curtains.
  • Gasket and sealing applications.
Colour Redish Pink
Insertion None
Polymer Natural Rubber
Hardness 40 Shore A (+/- 5) Durometer
Continuous Operating Temperature -20°C to +70°C
Elongation at Break 550% (minimum)
Tear Strength 60 N / mm (minimum)
Specific Gravity 1.05 g/cm³
Tensile Strength 18 MPa (minimum)
Abrasion 95mm³ (maximum) @ 5N
SKU SWM000227B01

Will you supply my order in one continuous length or multiple lengths?

We’ll always supply as long a roll as possible to give you maximum versatility (nothing worse than being just a little too short). Maximum roll length for all thicknesses listed here is 10 metres so if you ordered 8 of one size, it would be supplied in a single roll.
