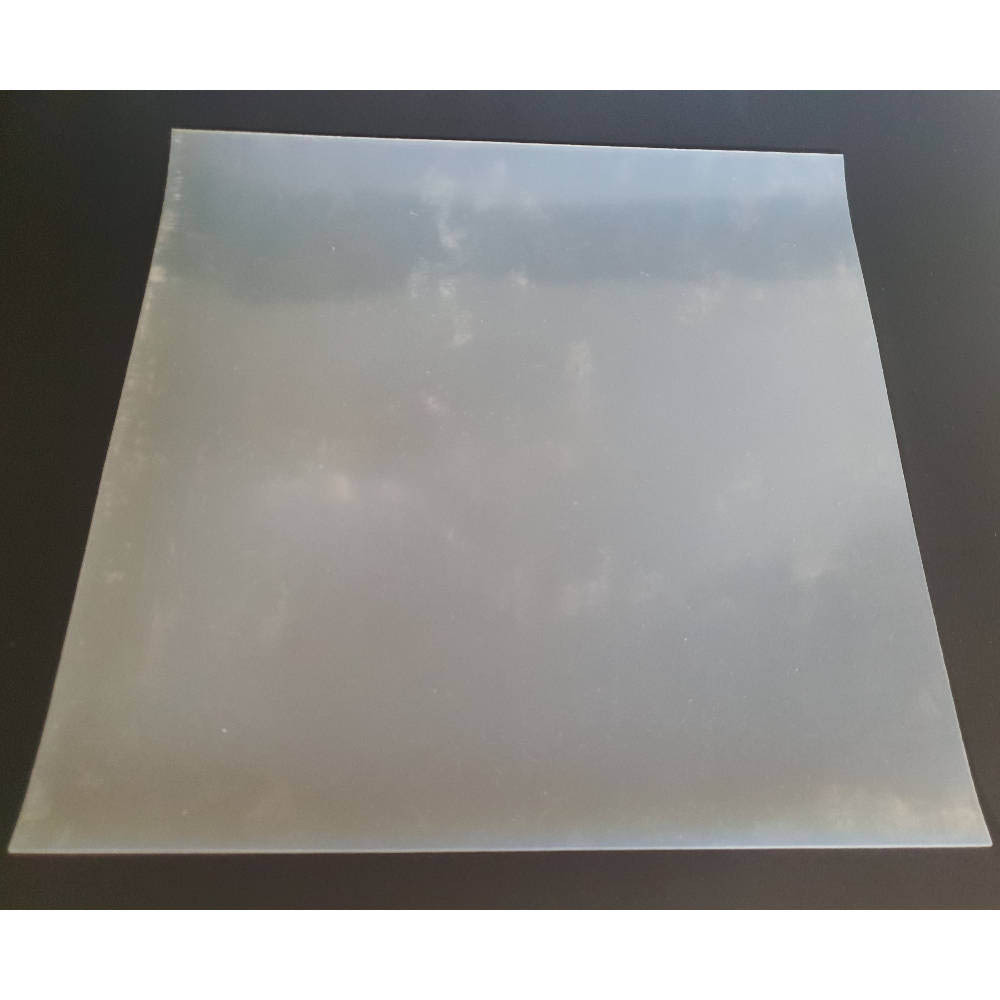

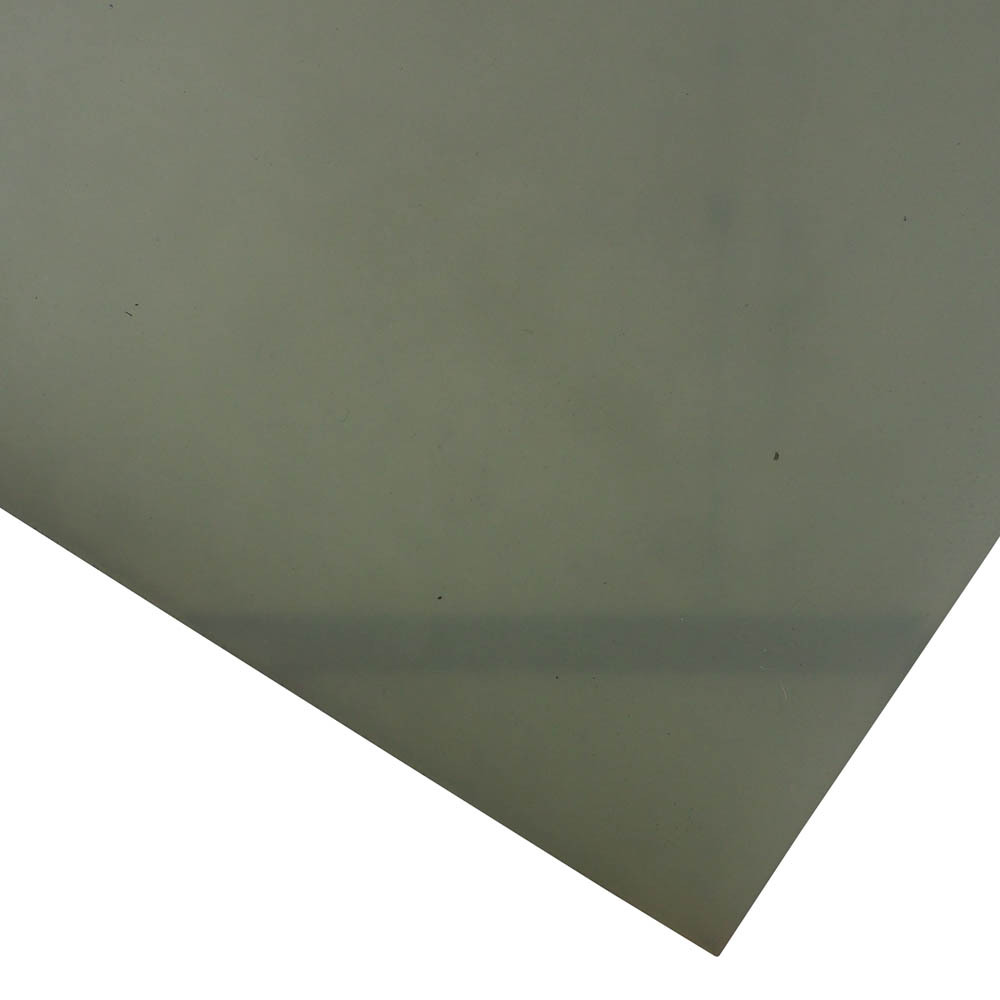

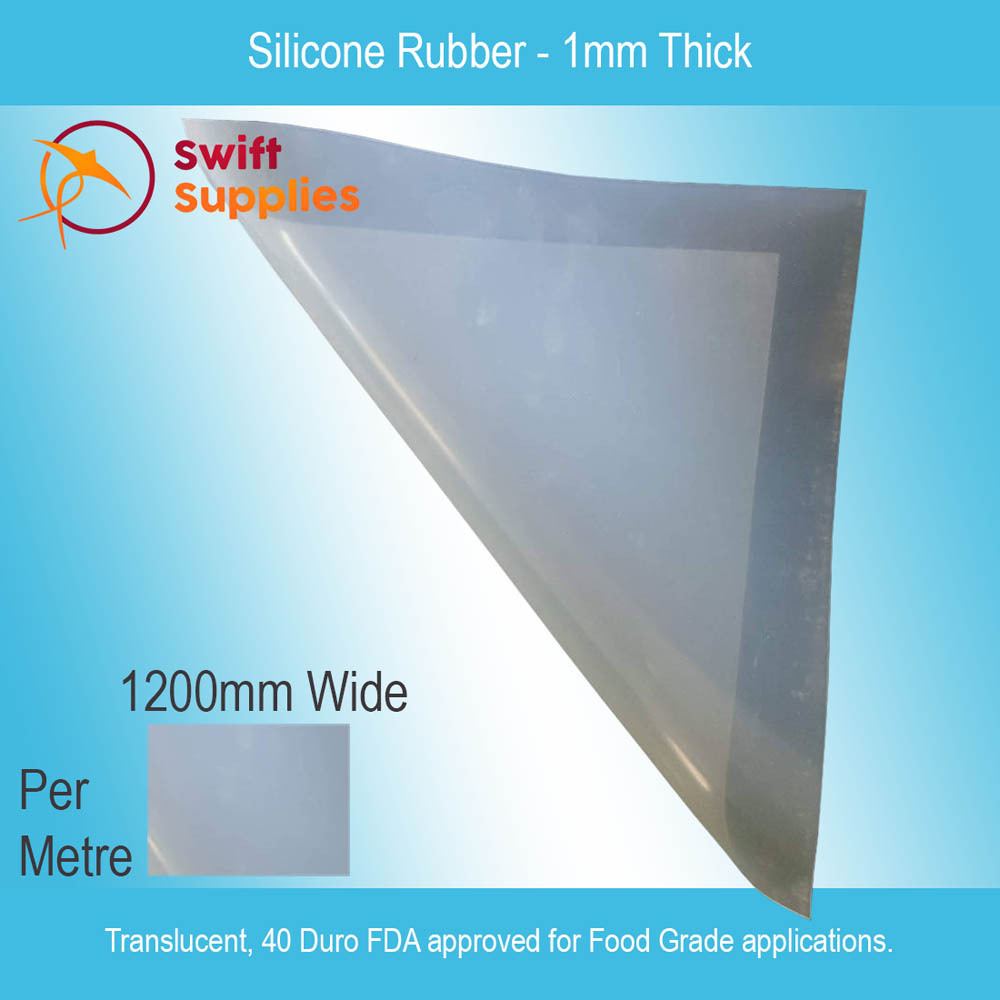

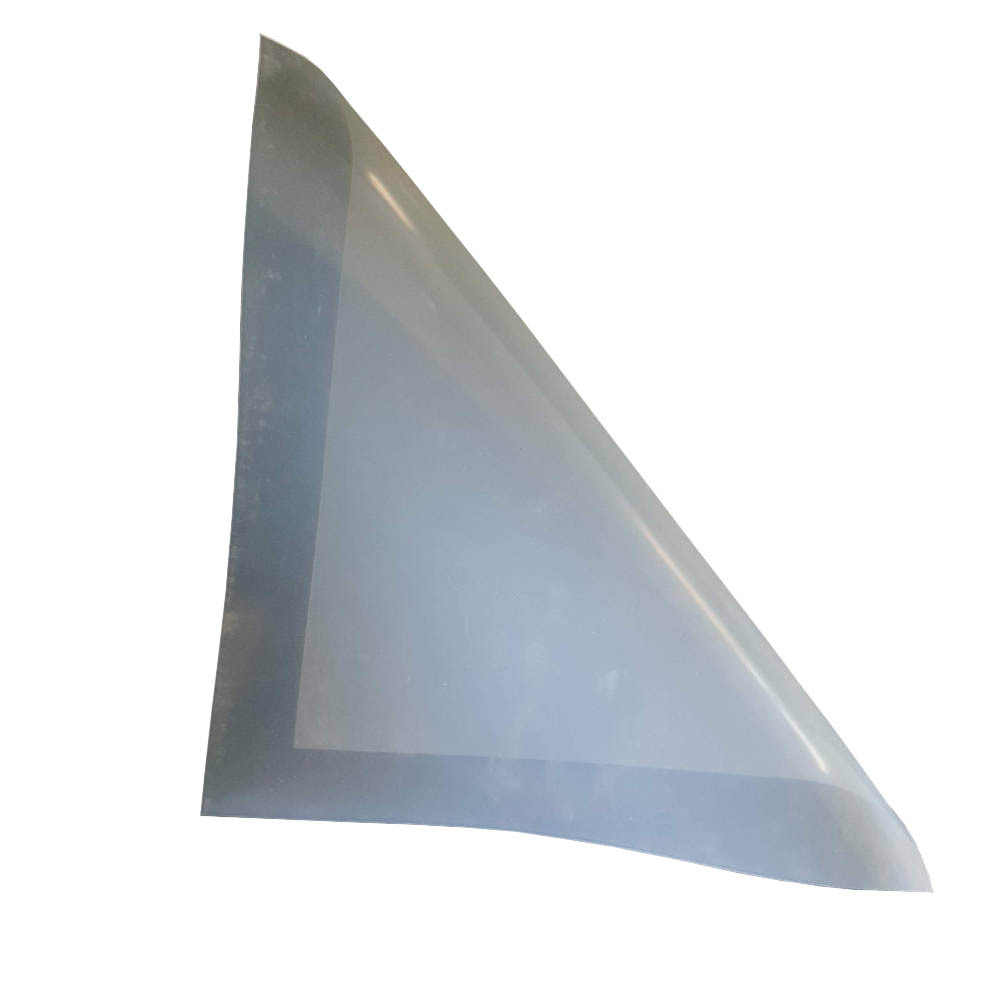

Silicone Rubber Sheet (Translucent, FDA) 1mm Thick x 1200mm (40 Duro, Per Metre)

SKU: SWM000341B01V0001
Availability: Available for Fast Dispatch.


All Bulk Prices Below Are Quoted Including GST.
Buy 5 - 9 and pay only $106.29 each
Buy 10 or above and pay only $102.50 each
  • High Quality Silicone Rubber Sheet in Translucent Colour.
  • FDA Approved for use in food & potable water applications.
  • Can be precision cut to make food grade silicone mats, gaskets, liners, barriers and more.

Our Translucent Silicone Rubber Sheet is a high quality, industrial-grade silicone elastomer. Available in a selection of thicknesses, this rubber is suitable for use in a wide temperature range and has good electrical insulation properties.

Our Translucent Silicone provides consistently high performance. It offers several benefits, including:

Translucent Colour

Translucent, clear, semi-transparent; this rubber has a few different adjectives attached to it. We choose to stick with Translucent because (at least in our minds) it best captures the slightly cloudy nature of its appearance.

FDA Certified for Food Grade Applications.

Our Translucent Silicone is manufactured in the United States using only FDA Approved Ingredients. If meets the requirements of FDA/CFR Title 21 CFR 177.2600 and is WRAS approved for potable water (up to 85°C).

It also meets the requirements of numerous other standards which are detailed more on the attached TDS and on the specifications tab.

Excellent Sealing Properties and Good Media Resistance.

This type of silicone rubber is a solid grade with a shore hardness of 40 Shore A. It is suitable for use in a variety of different gasket, washer and sealing applications. It is also resilient and has a minimum elongation of 625% and a tensile strength of 9 MPa.

Our Translucent Silicone can withstand temperatures between -60°C and +230°C as well as short-term spikes to 250°C.

This rubber also has excellent weather and UV resistance as well as very good dielectric and electrical insulation properties. It also withstands attack from many different types of chemicals and fluids. This includes good resistance to ozone, oxidation, ultraviolet light, corona, discharge, cosmic radiation, ionizing radiation.

Applications for Translucent Silicone Rubber Sheet.

Translucent Silicone Rubber sheet is widely used in the commercial catering, fluid management, electronics, electrical repair and engineering and construction sectors. Some of the common applications include:

  • Rubber liners for food processing areas and equipment.
  • Food grade gaskets and seals for potable water piping.
  • High temperature sealing applications.
  • As an isolator and/or insulator in electronics and for electrical component repairs.
  • For industrial rollers and press-pads.
  • For thermal shielding.
  • In heat sealing equipment and packaging machines.
  • For automotive seals and hoses.
  • Shaft sealing rings.
  • Spark plug caps.
  • For anti-vibration and sound damping applications.
Colour Translucent
Insertion None
Hardness (ASTM D2240) 40 ±5 Shore A
Continuous Operating Temperature -60°C to +230°C
Short-Term Operating Temperature 250°C
Brittle Point -80°C
Elongation at Break 625%
Tear Strength (ASTM D624) 23 N/mm
Tensile Strength (ASTM D412) 9 MPa
Potable Water WRAS Approved for Potable Water
at Temperatures up to 85°C
FDA Compliant As Per 21 CFR 177.2600
(Suitable for Direct Food Contact)
EC Food Safe Compliant with EC 1935/2004
(Suitable for Direct Food Contact)
RoHS and REACh Both Fully Compliant
FMVSS 302 Meets Part 571 Flammability Test

More technical specifications and details on our Silicone Rubber Sheet is available on the Technical Data Sheet located on the media tab.

SKU SWM000341B01
Brand Gaskaseal

Will you supply my order in one continuous length or multiple lengths?

We’ll always supply as long a roll as possible to give you maximum versatility (nothing worse than being just a little too short). Maximum roll length for all thicknesses listed here is 10 metres so if you ordered 8 of one size, it would be supplied in a single roll.
