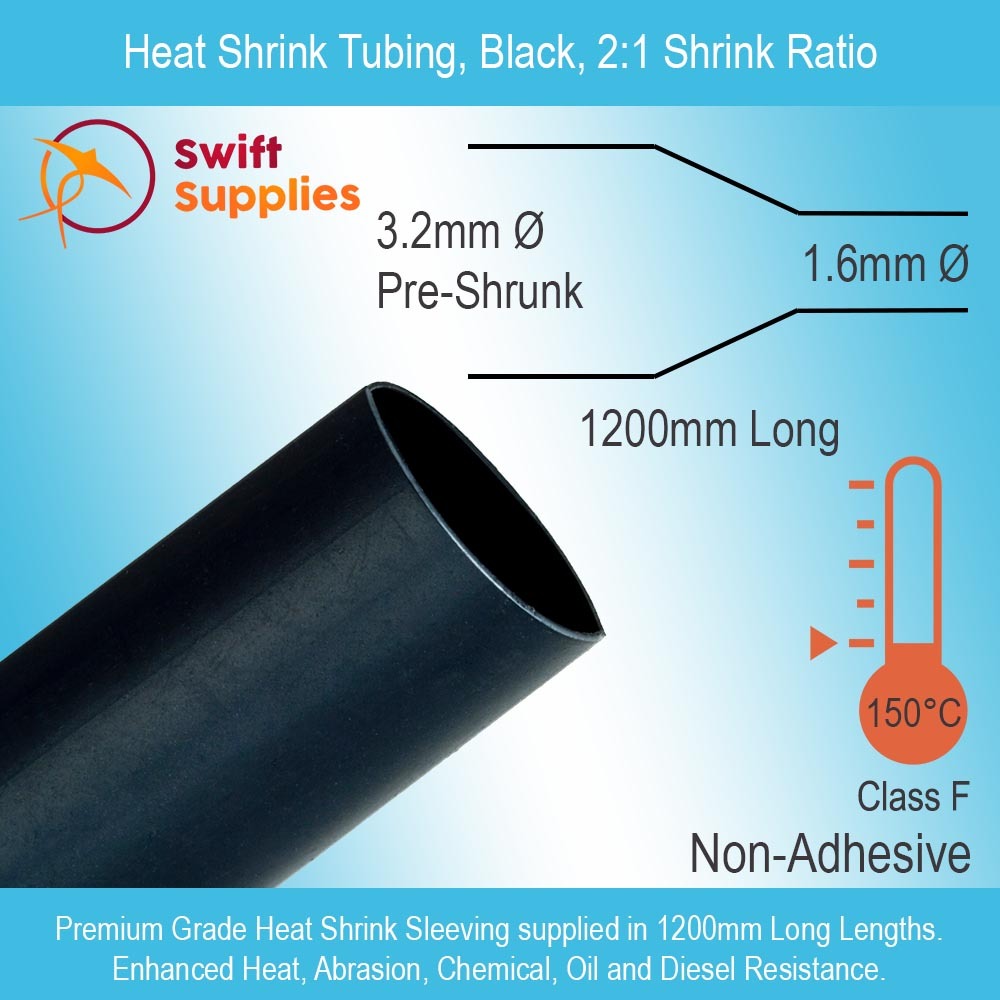

Heat Shrink Tube, Chemical Resistant Black - 3.2mm Dia x 1200mm Long (2:1 Shrink)
BULK DISCOUNT RATES
Buy 5 or above | and pay only $6.23 each |
Buy 5 or above | and pay only $6.23 each |
Our Chemical, Diesel and Oil Resistant High Temp. Heat Shrink is designed for more demanding applications.
This high quality grade of insulation sleeving is tougher than our standard grade of single wall heat shrink and is able to withstand a wider range of chemicals and temperatures.
This page lists all our sizes of this premium, industrial-grade heat shrink tube sold in 1200mm long pre-cut lengths (the 2 inch is 1 metre). We are also pleased to offer this same quality tubing in bulk spools. You can browse that range of sizes here.
Our Chemical Resistant Heat Shrink has good compatibility with diesel fuels, hydraulic fluids, lubricating oils and a variety of other chemicals.
A high temperature grade, it can handle continuous temperatures between -75°C and +150°C. Full recovery temperature for this style is 200°C.
In addition to the enhanced temp resistance, this heat shrink is flame retardant and self-extinguishing. It meets the requirements of UL224 VW1 flammability standards and has been tested in accordance with ASTM-D2671 Procedure B.
This chemical and heat resistant sleeving also exhibits enhanced physical attributes and good resistance to abrasion to protect wires and cables long-term. A breakdown of tensile strength, elongation and more is provided on the specifications tab.
Our Chemical, Diesel and Oil Resistant High Temp Heat Shrink is RoHS Compliant. It also has very good electrical insulation characteristics. Rated voltage is 600V and dielectric strength if >11.9kV/mm.
Property | Typical Value | Test Method |
---|---|---|
Colour | Black | |
Shrink Ratio | 2:1 | |
Tensile Strength | ≥11.7 MPa | ASTM-D412 |
Tensile Strength - After Ageing | ≥10.4 MPa | 150°C for 168h |
Tensile Strength - After Fluid Resistance | >10.3 MPa | AS23053/16 |
Elongation | ≥400% | ASTM-D412 |
Elongation - After Ageing | ≥200% | 150°C for 168h |
Elongation - After Fluid Resistance | ≥200% | AS23053/16 |
Longitudinal Shrink Ratio | + 10 | UL224 |
Operating Temperature | -75°C to +150°C | IEC216 |
Full Recovery Temperature | 200°C | |
Heat Shock | No Cracking | 225°C for 4h |
Flammability | Pass | ASTM-D2671 Procedure B |
RoHS Compliance | Yes | |
Rated Voltage | 600V | |
Dielectric Strength | ≥11.9kV/mm | ASTM-D2671 |
Approval | Pass | AMS-DTL-23053/16 |
SKU | SWM000550B01 |
---|
