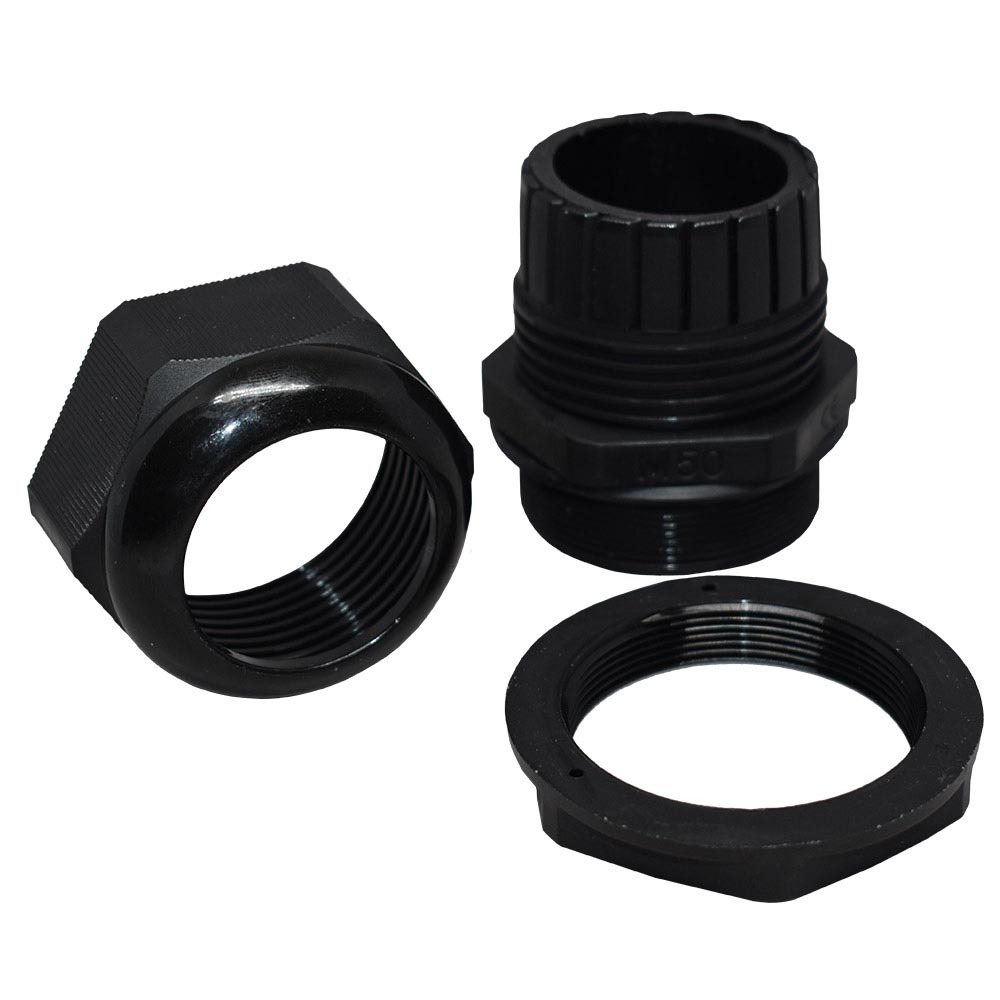

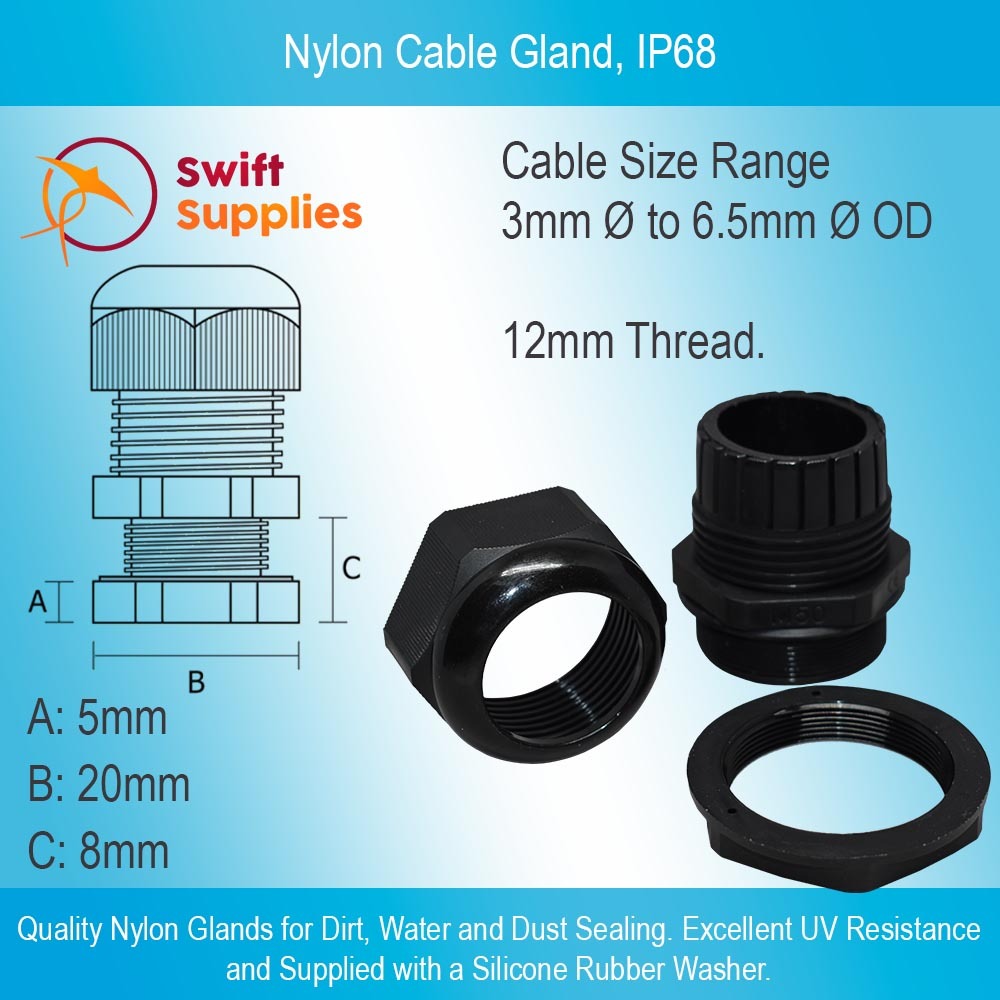

Nylon Cable Gland - 12mm Thread - Suits 3mm to 6.5mm OD Cable

SKU: SWM000290B01V0001
MPN: FGL-33160
Availability: Available for Fast Dispatch.
$0.42
INC. GST
$0.38
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 25 - 49 and pay only $0.40 each
Buy 50 or above and pay only $0.37 each
  • Gland body and fasteners manufactured from Nylon 6/6. Silicone rubber washer included.
  • Vibration resistant ratchet fastener.
  • IP68 Rated and UV Resistant.

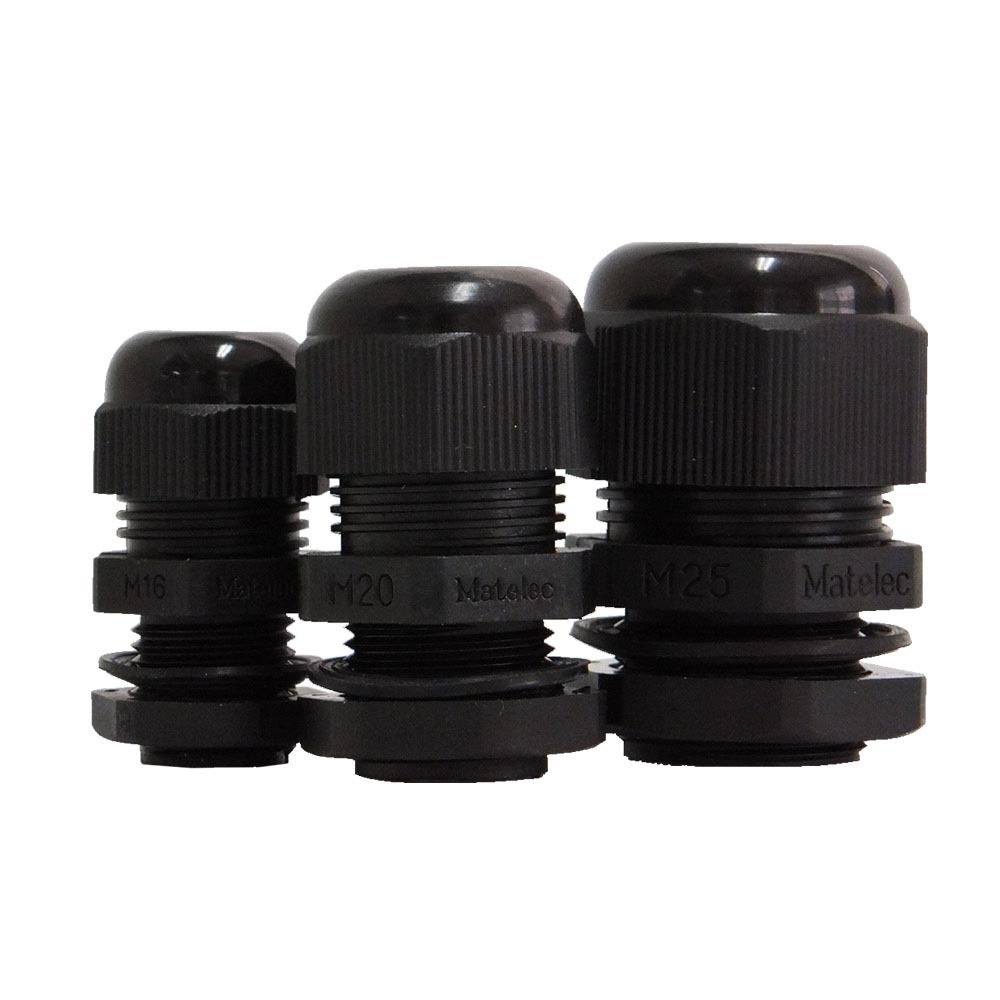

  • Available in 8 different sizes covering 3mm to 44mm diameter cable.

Our Nylon Cable Glands are widely used in the electrical, communications and data industries. These high-quality glands have a IP68 (ingress protection) rating and are available in a selection of sizes. We are also pleased to offer these individually, or in bulk packs.

Each one of our Nylon Cable Glands is manufactured from high quality, 6/6 Nylon and is supplied complete with a silicone rubber seal. These glands have very good UV resistance and have a vibration resistant ratchet fastener.

These cable glands are certified to UL 94 V2 and have a standard metric mounting thread with a 1.5mm pitch. They have an operating temperature range of -40°C to +100°C and are black in colour. These cable glands are suitable for indoor or outdoor use.

Our Nylon Cable Glands are available in 8 different sizes. Collectively, this covers cable between 3mm and 44mm diameter. The table below provides more information on each size.

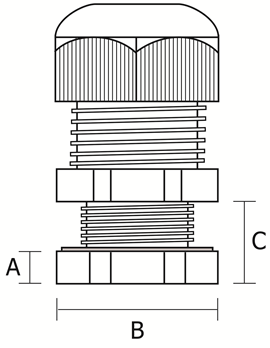

Nylon Cable Gland Size Guide.

Cable Size Range A B C
3mm Ø to 6.5mm Ø OD 5mm 20mm 8mm IP68 Nylon Cable Gland Schematic
5mm Ø to 10mm Ø OD 5mm 24mm 15mm
10mm Ø to 14mm Ø OD 6mm 29mm 15mm
14mm Ø to 18mm Ø OD 6mm 36mm 15mm
18mm Ø to 25mm Ø OD 7mm 45mm 15mm
22mm Ø to 32mm Ø OD 7mm 56mm 14mm
30mm Ø to 38mm Ø OD 7mm 68mm 15mm
34mm Ø to 44mm Ø OD 8mm 84mm 20mm

Typical Applications for Nylon Cable Glands.

  • Cost effective way of terminating cables to cabinets or enclosures.
  • Sealing out dust or water.
  • Protecting cable as it passes through walls, switchboards or cabinets.
Property Typical Value Standard
Colour Black -
Water Proof Yes IP68
UV Resistant Yes -
Operating Temperature -40°C to +100°C -
UL Certified Yes UL 94 V2
Metric Mounting Yes, 1.5mm Pitch -
