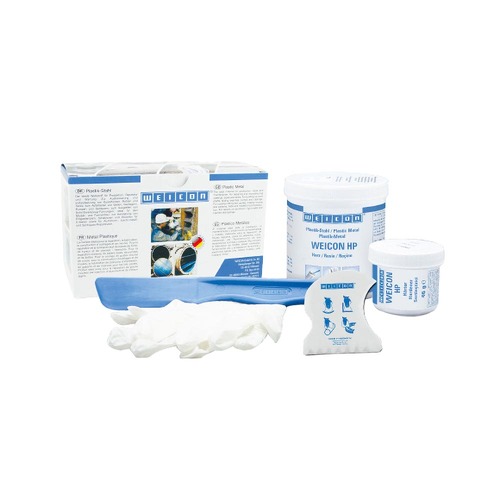

Plastic Metal HP - 500gm Kit

SKU: SWM000531B01V0002
MPN: 10390005
Availability: Available for Fast Dispatch
$157.90
INC. GST
$142.11
EX. GST
Container Size

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 2 - 4 and pay only $153.57 each
  • Pasty epoxy resin compound for repair and lining work.
  • Adheres well to wet and moist surfaces.
  • Sets underwater.
  • Mineral filled, shock-resistant compound with high residual elasticity and abrasion resistance.

Our Plastic Metal HP is a special type of 2 component epoxy compound with a paste like texture. It can be applied to dry, moist or wet surfaces and bonds well to most material types with high adhesive strength.

Once cured, Plastic Metal HP will have excellent impact strength, high residual elasticity and very good abrasion resistance. This combination of characteristics has led to it being used for everything from bonding parts and surfaces together and repairing damaged components through to lining heavily used equipment.

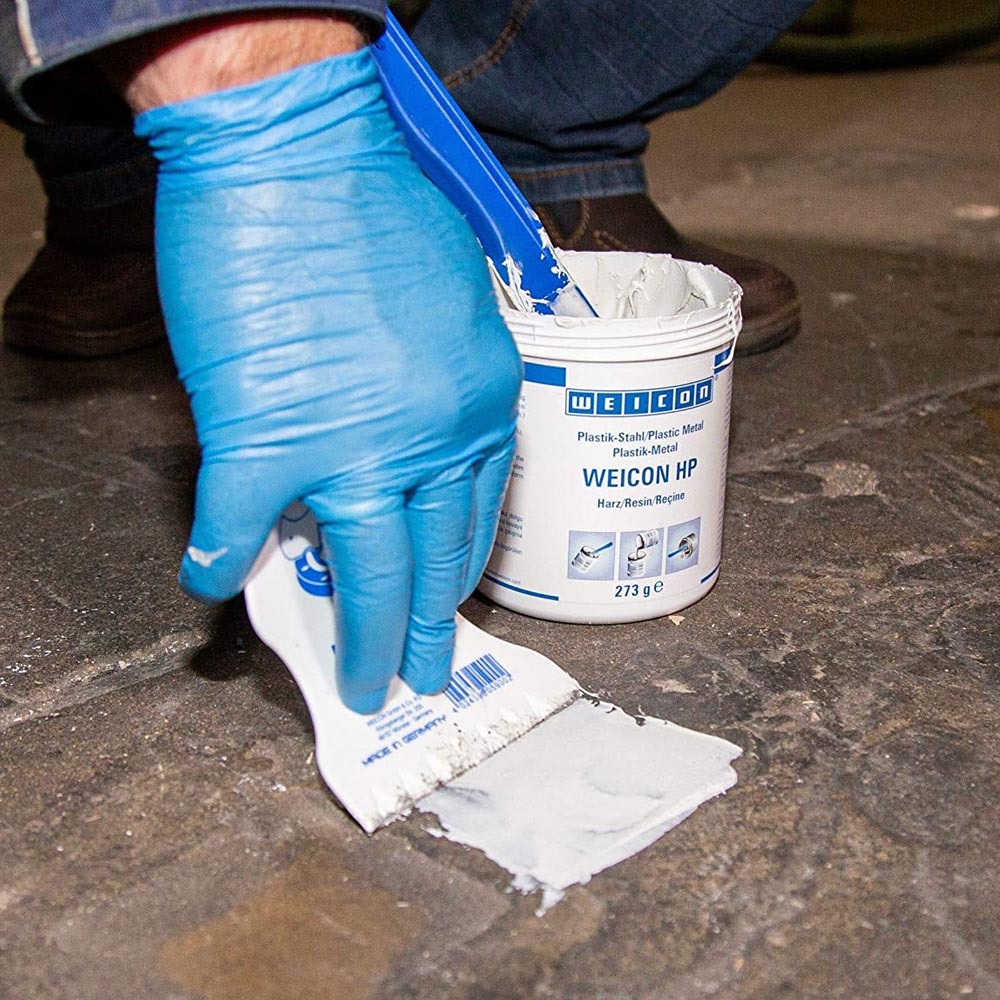

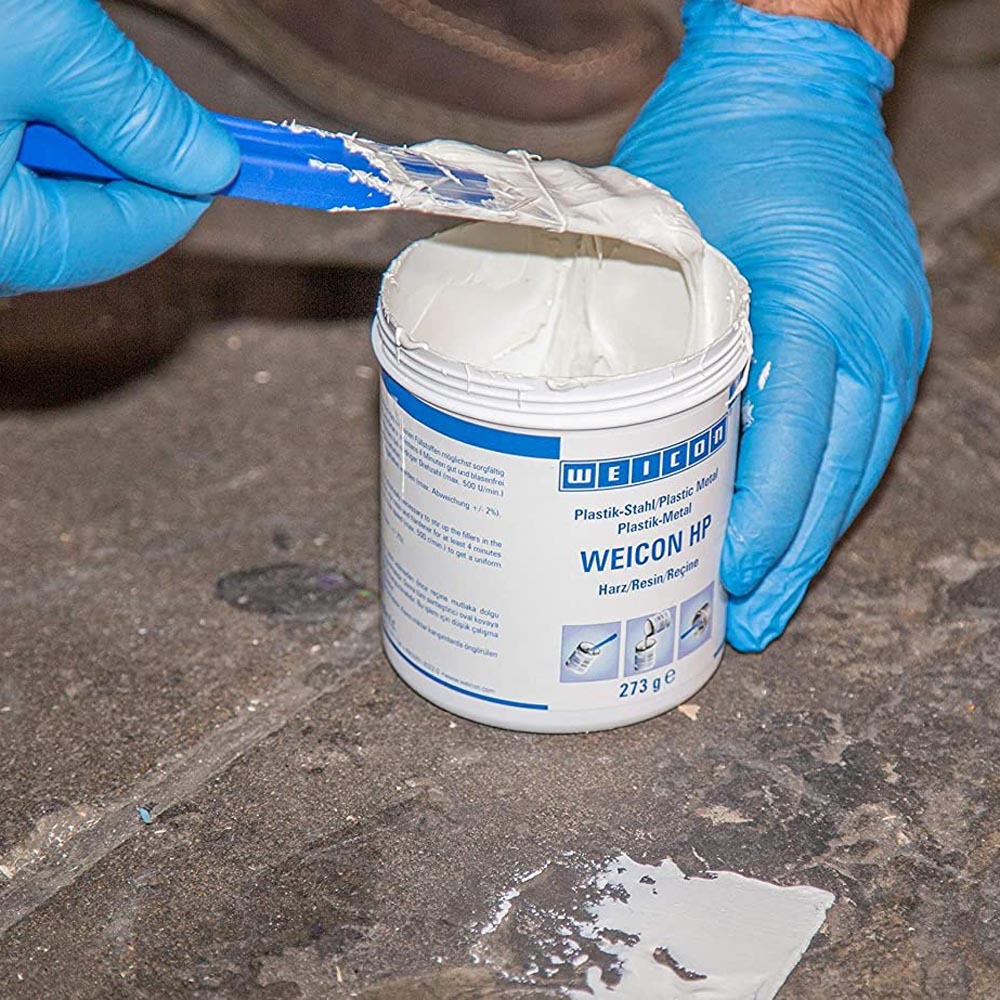

The pasty nature of the mixed components makes application easy. Weicon HP can be applied with a spatula or other similar equipment. Weicon HP Plastic Metal is manufactured in Germany and is a reliable, high quality epoxy repair compound. It is white in colour and will withstand temperatures between -35°C and +160°C once it is fully cured.

This putty is dielectric, non-magnetic and sets hard with a shore hardness rating of 75 Shore D.

More technical specifications are available on both the Specifications Tab of this page. For even more data, including chemical resistance, use instructions and more, please refer to the Plastic Metal HP TDS.

Basis Mineral Filled Epoxy Resin
Mix Ratio by Weight 100 : 83 (Resin / Hardener)
Density of the Mixture 1.5 g/cm³
Viscosity of the Mixture 550,000 mPa·s
Colour White
Maximum Layer Thickness 10mm
Additional Layers After (35% Cure) 7 Hours (when Curing at 20°C)
Final Strength 36 Hours (when curing at 20°C)
Tensile Strength 31 MPa (DIN EN ISO 527-2)
Bending Strength 50 MPa (DIN EN ISO 527-2)
e-Modulus 1,800 - 2,000 MPa (DIN EN ISO 527-2)
Shore Hardness 75 Shore D (+/- 3, DIN ISO 7619)
Shrinkage During Cure 0.12%
Continuous Temperature Rating -35°C to +160°C
SKU SWM000531B01
Brand Weicon
