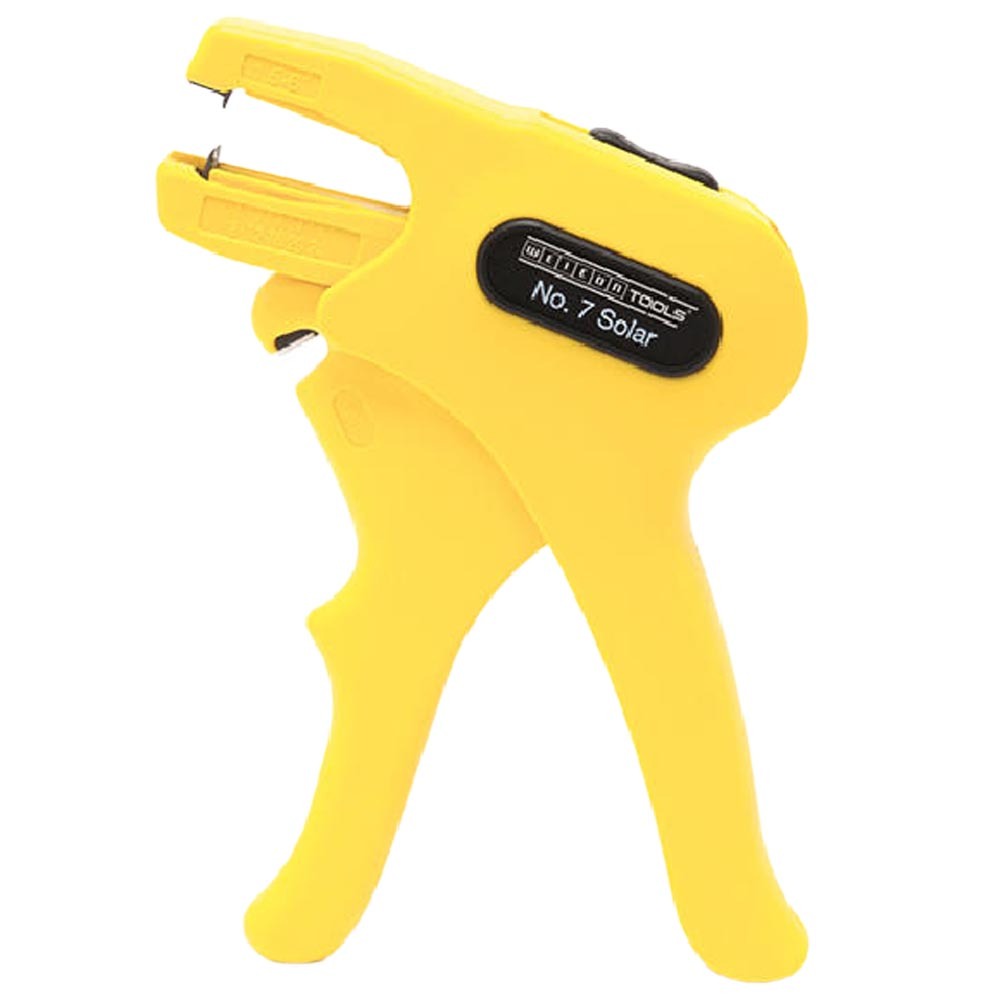

Solar Cable Stripper No. 7

Automatic Cable & Wire Stripper for Solar Cables

All Prices Include GST.

$134.65
In Stock
Available for Fast Dispatch.
Watch video
Buy In Bulk & Save!
Buy 3 to 5: Pay $127.95
Buy 6 to 11: Pay $122.75
Buy 12 or more: Pay $118.40

An automatic stripper that can be used with all types of common solar cables, our Solar Cable Stripper No. 7 automatically strips back the insulation and bares the conductor. Also features an integrated, handy, side-cutter.

Link to range of Cable & Wire Stripping Solutions.
Browse our full range of Cable & Wire Stripping Tools.
  • Automatic Stripping of all round solar cables between 1.5mm² & 6mm² (16 – 8 AWG)
  • 5-step precision adjustment lets you set the exact amount of conductor to be bared (between 8 & 24mm).
  • Integrated side cutter in the handle can be used on cables up to 3mm Ø.
  • Made in Germany from premium grade materials. Fast, simple and incredibly effective.

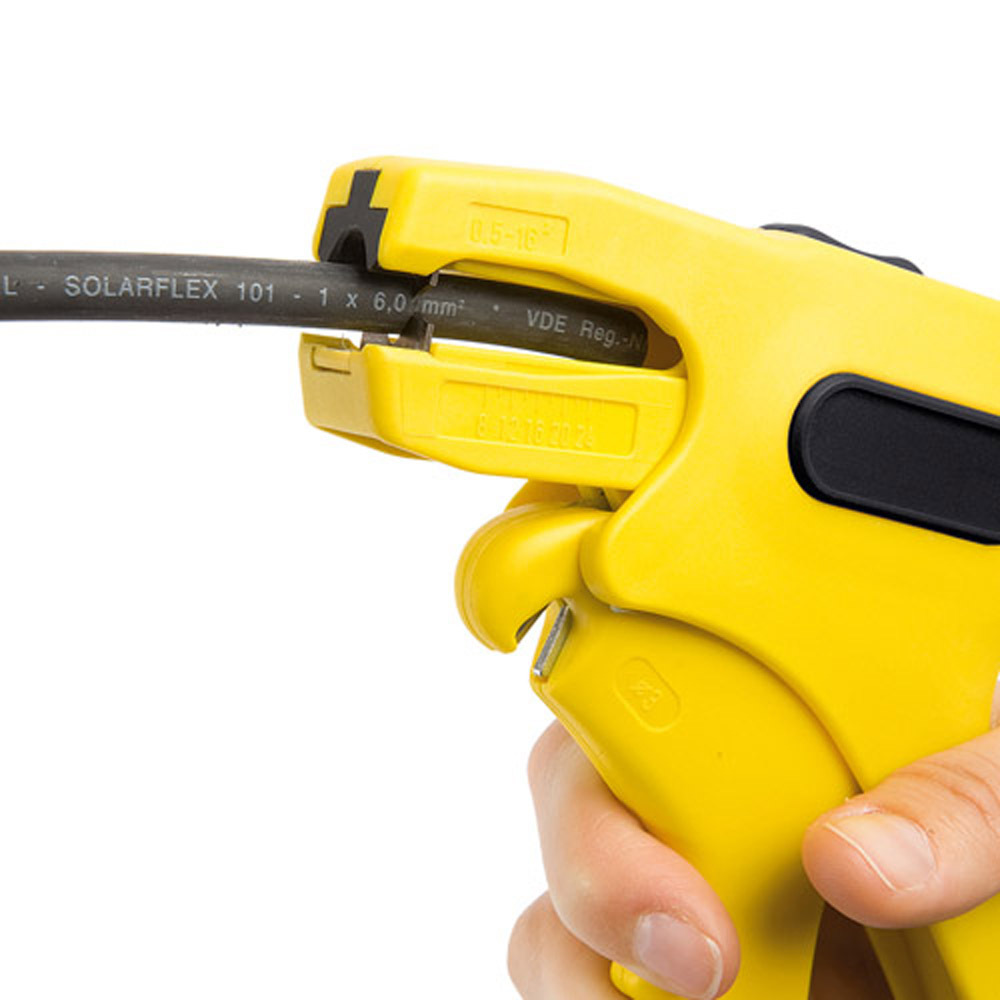

Our Solar Cable Stripper No. 7 is a very easy to use automatic wire stripper. This premium grade tool has been designed specifically for solar cables and easily cuts through their heavy insulation sheathing leaving only the exposed conductor. It’s an automatic wire stripper that requires no adjustment for different size cables; simply set the length you want to strip back and pull the trigger.

Part of our family of automatic wire strippers, the simple appearance of these tools hides their outstanding capabilities. All are ergonomically shaped and fit well into your hand. They also have an automatic scanner system built in which determines the cable diameter and ensures only the insulation is stripped.

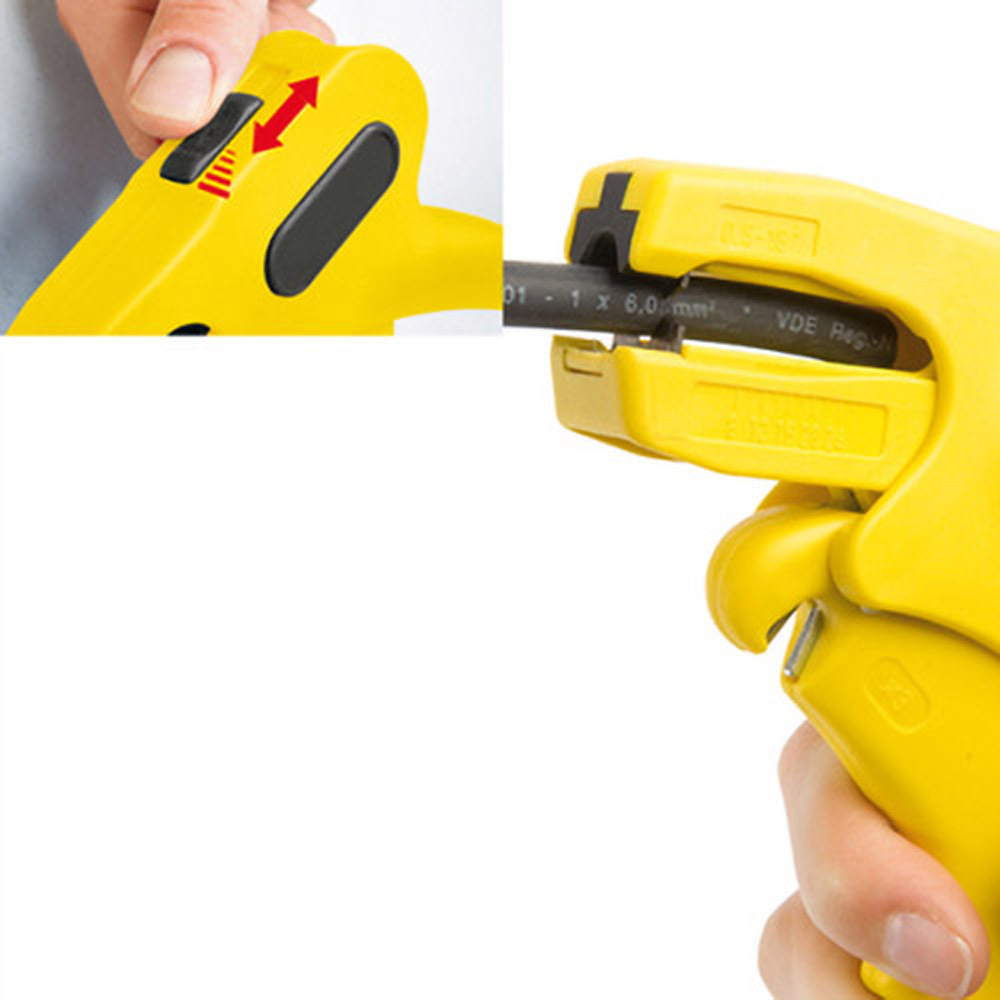

Manufactured by Weicon in Germany, our Solar Cable Stripper No. 7 works with all round solar cables between 1.5mm² and 6mm² (16- 8 AWG). It has a 5-step length adjustment switch that lets you set the amount of insulation you want to strip back. This can be between 8mm and 24mm (5/16” – 1”).

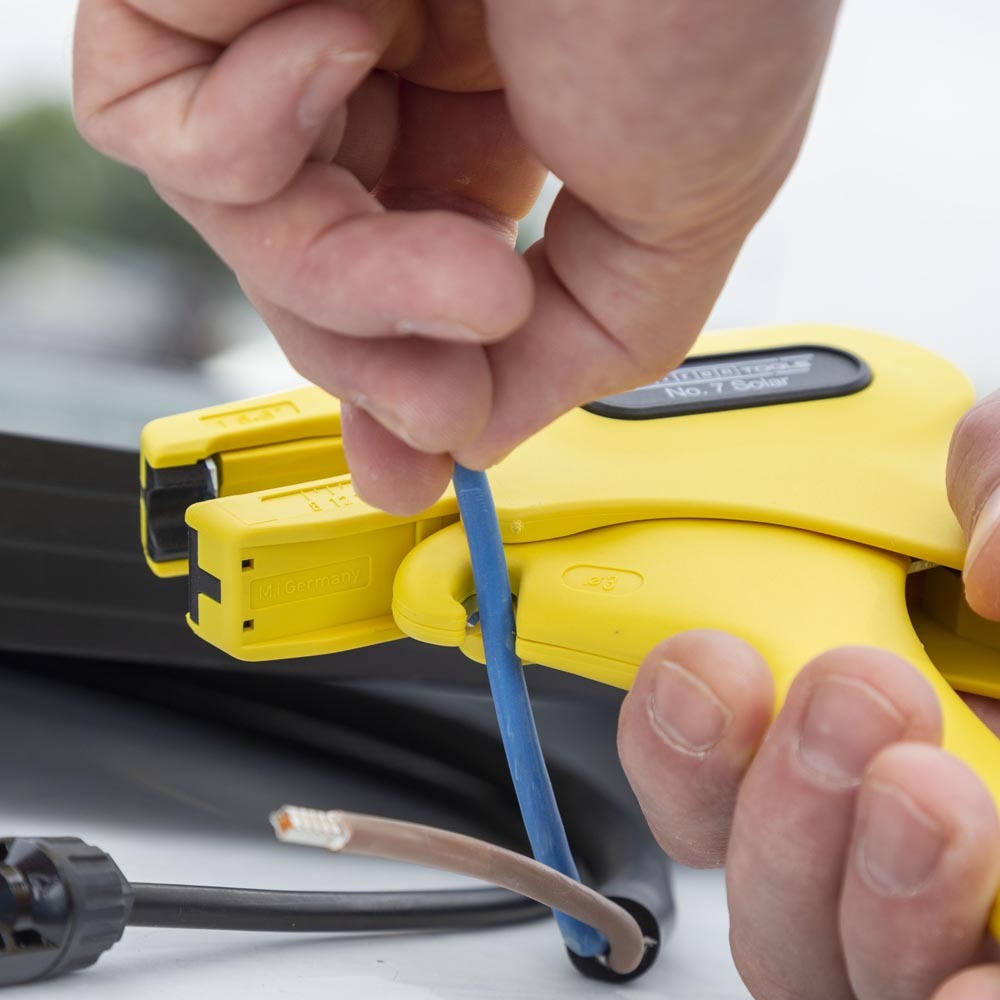

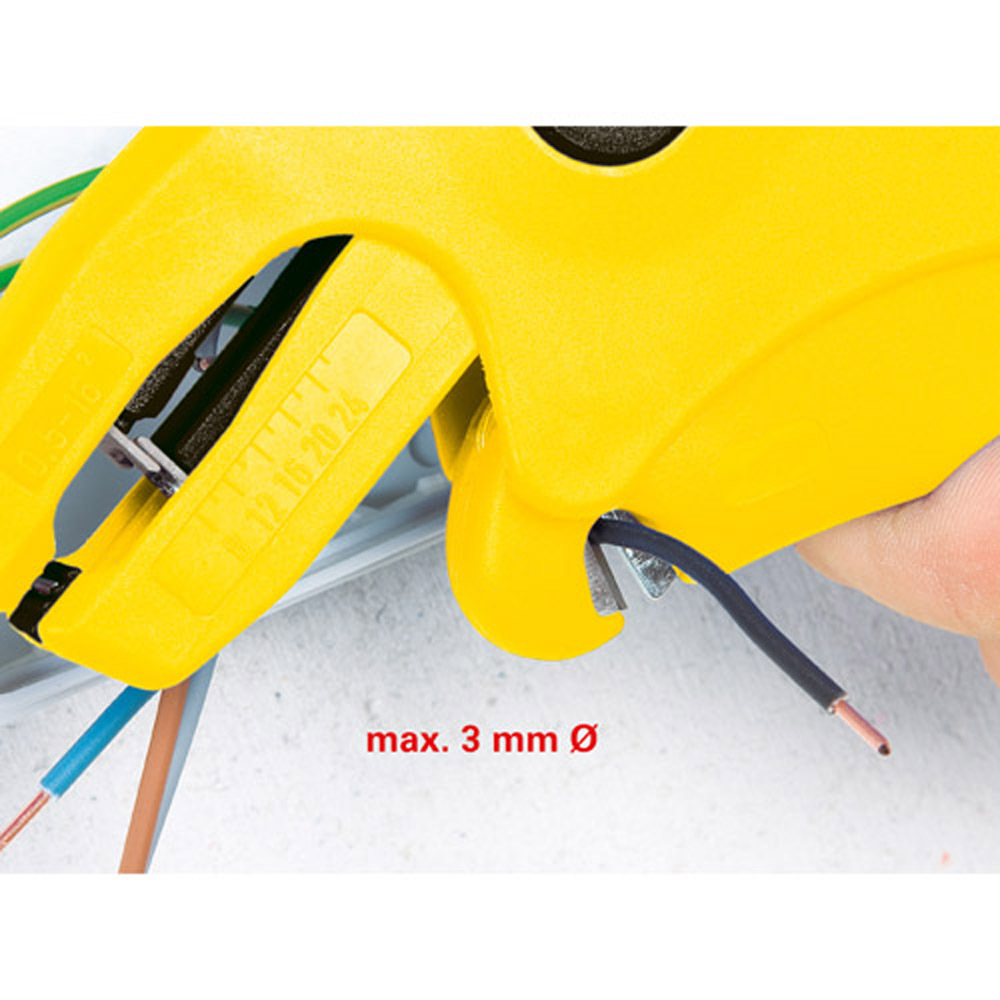

In the handle is an integrated side cutter. Ideal for quickly cutting off parts of cable without having to grab another tool, this side cutter can be used on cables up to 3mm in diameter (1/8” Ø).

Like all Weicon tools, this Solar Cable Stripper is built to last. It has been made from fibreglass reinforced polyamide and features premium grade steel blades from Solingen, a leading source of German steel knife blades. These blades are then specially hardened to ensure they easily cut and remove the multi-level rubberised insulation used on solar cables.

The video below shows how this incredibly effective solar cable stripper works. For more information, please do refer to the attached TDS or, as always, don’t hesitate to contact us. We’ll be happy to help.



(SWM000173B01V0001)

Cable Type All Common Cables in the Solar Sector
Field of Use Solar Cables between 1.5mm² and 6mm² (16 - 8 AWG) Cross Section
Inner Blade Replaceable
Additional Features / Benefits Side Cutter, Cuts up to 3mm Ø Cable
Specially hardened blades for solar cable sheathing.
Approvals / Certifications Safety Tested by TUV NORD
Material Fibreglass Reinforced Polyamide
Length 175mm
Weight 216gm
Accessories Replacement Blade Set. Item No. 51100006



SKU SWM000173B01V0001
Model # 51002007
Brand Weicon
Shipping Weight 0.2150kg
Shipping Width 0.120m
Shipping Height 0.045m
Shipping Length 0.280m
Shipping Cubic 0.001512000m3
Unit Of Measure ea

Technical Data Sheet.

TDS Link
Solar Cable Stripper No. 7 TDS
