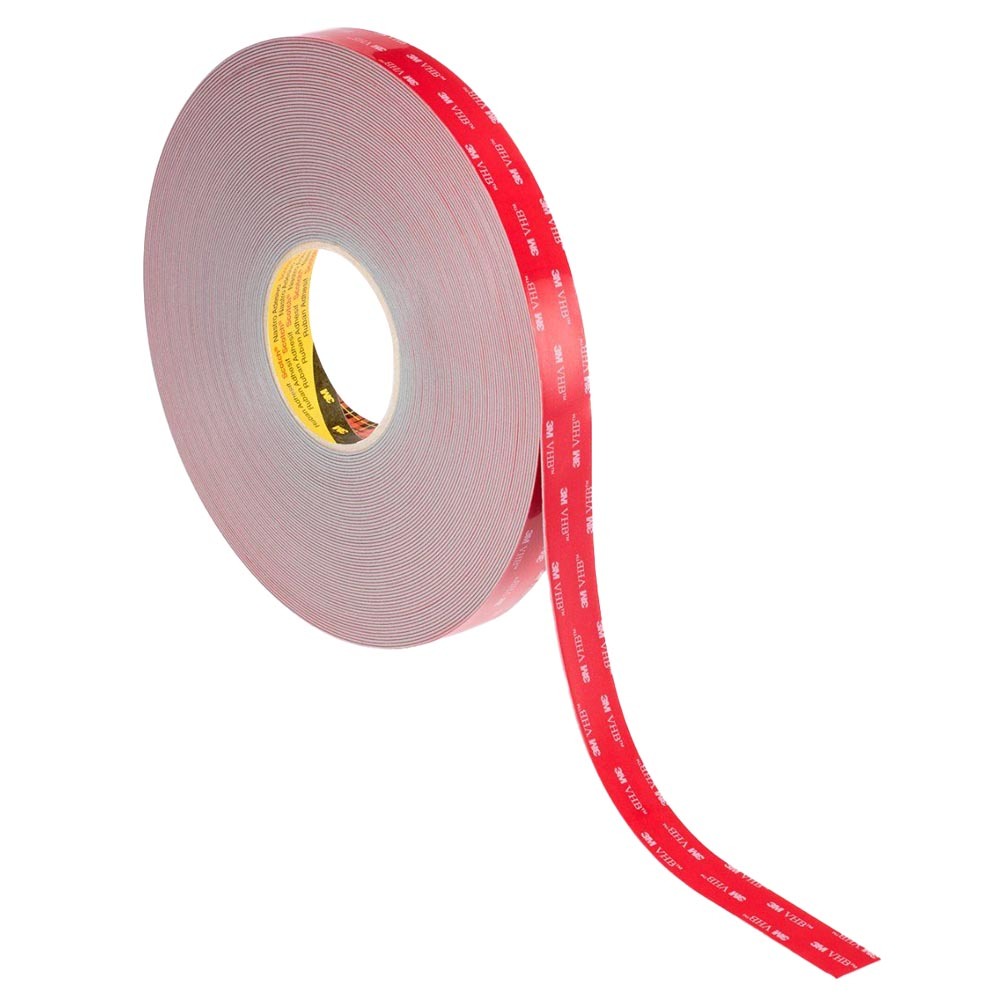

3M GPH High Temperature VHB Tape - 1.1mm x 24mm Wide x 33 Metres Long (GPH-110GF)

SKU: SWM000519B01V0003
Availability: Ships in 1-3 W/Days
$157.34
INC. GST
$141.61
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 3 - 4 and pay only $148.19 each
Buy 5 or above and pay only $142.68 each
  • Excellent temperature resistance (230°C short-term, 150°C long-term).
  • Suitable for joining parts that will be powder coated.
  • Sticks well to painted or coated surfaces as well as most plastics.
  • Conformable foam backing ensures easy application and good surface contact.

3M GPH High Temperature VHB Tape is a high quality, industrial-grade double sided tape designed for permanent bonding and joining. It consists of a conformable foam core coated on both sides with a high strength acrylic adhesive.

The sections below provide more information on the various capabilities of 3M GPH Series double sided tape and describe some of the more popular applications.

Temperature Resistant Double-Sided Tape.

This tape has been designed for high temperature resistance and is able to withstand short-term exposure to temperatures as high as 230°C. This allows 3M GPH Tape to be used for joining and bonding parts that will be powder coated or undergo a liquid painting process.

Continuous operating temperature for 3M GPH VHB is 150°C.

Soft Foam Backing.

The grey foam used on 3M GPH Series Double Sided Tapes is soft and conformable. This ensures good stress relaxation and easy application. It also helps with establishing good surface contact between slightly misaligned or uneven surfaces; a prerequisite for high strength bonding.

GPH VHB Tapes foam backing has a density of 710kg/³.

Good Sealing Properties.

This quality mounting tape is often used for applications where it needs to both bond and seal. It excels in these situations thanks to the combination of high strength adhesion and good stress relaxation properties which enables it to withstand small amounts of joint movement whilst maintaining bond integrity.

The foam used on GPH VHB Tape is a closed cell type.

High Strength Adhesive.

This strong, permanent adhesive tape features a high strength acrylic adhesive. It has been tested with a variety of different material types and recorded high peel adhesion results with each. These are summarised in the table below:

90° Peel Adhesion
to Stainless Steel
37 N/cm
90° Peel Adhesion
to PA6
48 N/cm
90° Peel Adhesion
to ABS
33 N/cm
90° Peel Adhesion
to PMMA
34 N/cm
Dynamic Shear 476 N/6.54cm²
Static Shear Strength 23°C - 1000g
150°C - 500g

High Initial Tack.

The adhesive used on 3M GPH Tape is fast acting with high initial tack. This pressure-sensitive adhesive bonds on contact to provide immediate handling strength.

Compatible with a Variety of Materials.

3M VHB GPH Tape is used for bonding a wide range of different material types and surfaces. These include all kinds of metal, painted or coated metal, high and medium surfaces energy plastics (e.g. Polycarbonate, ABS, Acrylic) and many types of fibre reinforced materials.

One of the benefits of using a double-sided tape like this is its potential to replace mechanical fasteners (rivets, welding, screws) or liquid adhesives. This eliminates drilling, grinding, refinishing, screwing, welding, and clean-up and enables the joining of dissimilar materials.

Environmental Resistance.

This high-quality tape is designed for permanent bonding and sealing in a variety of environments. It will withstand ongoing exposure to elevated temperatures up to 150°C (230°C short-term) and can be used indoors or outdoors.

The quality 3M acrylic adhesive used on the tape is extremely durable and resistant to changing temperatures and conditions.

Applications for 3M GPH Series VHB Tapes.

  • For bonding materials and objects that will be powder coated.
  • Joining dissimilar materials such as stainless steel to Polycarbonate.
  • Sealing metal tanks and containers.
  • In the automotive and transport sectors for bonding in applications that will be exposed to heat.
  • Sign making.
  • General metal working and fabrication.
  • Appliance manufacturing and repairs.

Specifications for 3M GPH High Temperature VHB Tape, 1.1mm Thick GPH-110GF

Colour Grey
Adhesive Type Acrylic VHB Multi-Purpose Foam Adhesive
Backing Material Conformable Foam
Liner Red (Printed) PE Film Liner
Total Thickness 1.1mm
Continuous Temperature Rating 150°C
Maximum Short-Term Temperature 230°C
Density 710 kg/m³
90° Peel Adhesion
to Stainless Steel
37 N/cm
90° Peel Adhesion
to PA6
48 N/cm
90° Peel Adhesion
to ABS
33 N/cm
90° Peel Adhesion
to PMMA
34 N/cm
Dynamic Shear 476 N/6.54cm²
Static Shear Strength 23°C - 1000g
150°C - 500g
Normal Tensile (T-Block) 439 N/6.54cm²
SKU SWM000519B01
Brand 3M

Is there any limit to the temperatures this should be used in?

Room temperature is fine but try and make sure the room isn’t too cold. Anything above about 15°C is ideal.

Are other colours available?

Not of this particular grade. We do have quite a selection of double sided tapes though and all are classified by colour. You can check them out here.
