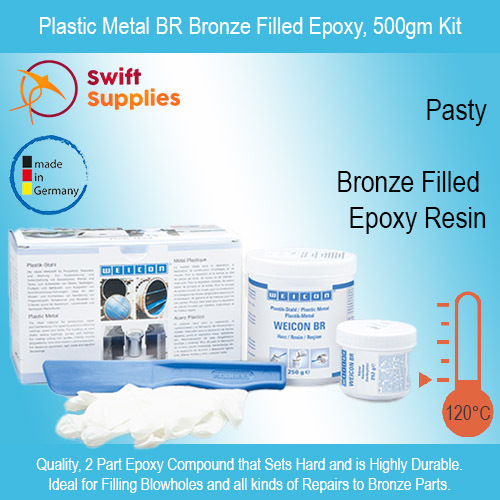

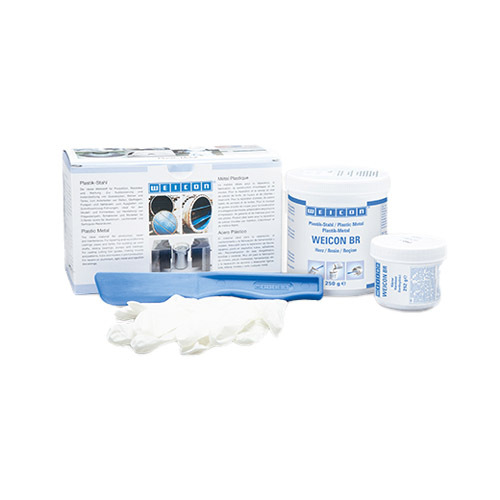

Plastic Metal BR - Bronze Filled Epoxy Repair Putty - 500gm Kit

SKU: SWM000394B01V0001
MPN: 10420005
Availability: Available for Fast Dispatch.
$100.62
INC. GST
$90.56
EX. GST
Container Size

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 2 or above and pay only $98.44 each
  • Specialised grade of epoxy repair putty filled with bronze.
  • Widely used for repairing blowholes and rebuilding bronze parts, equipment and castings.
  • Pasty when mixed and sets hard with good physical strength.

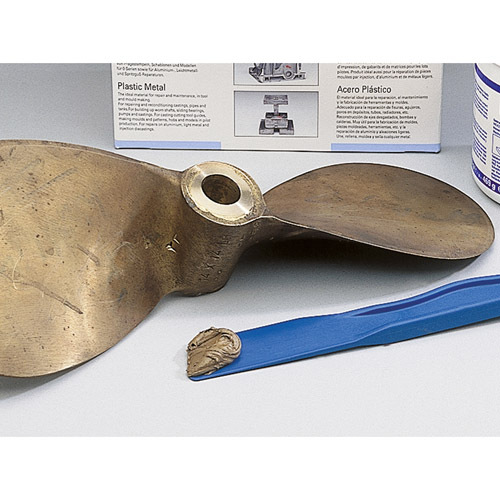

Our Plastic Metal BR is a two-part epoxy resin filled with bronze. This specialised repair compound has a pasty viscosity when it’s mixed and sets hard with physical properties. The cured putty has a bronze colour and it is widely used for repairs and resurfacing of bronze parts and surfaces.

This high-quality type of plastic steel is manufactured by Weicon in Germany and widely used in various industries around the world. It is especially popular in the marine sector and is registered with both the IMPA and ISSA (reference numbers available on the specifications tab).

More details on the various attributes and capabilities of Plastic Metal BR are included below:

Bronze Filled Epoxy Putty.

Based on epoxy resin with bronze filler, Weicon BR Epoxy Plastic Metal offers something of a combination of the properties of bronze and epoxy. The most obvious of these is its colour (bronze, though it can be painted) while others are more subtle.

This grade of Plastic Metal is slightly softer when cured than many of our steel filled grades (such as our Plastic Metal A). It is also non-magnetic.

Good Physical Strength.

Once cured, this epoxy repair compound is quite hard. It has a shore D hardness rating of 75 and a pressure rating of 95 MPa.

Bending resistance is measured at 35 MPa.

Good Chemical and Environmental Resistance.

The entire range of Weicon Plastic Metal products has good chemical resistance. They are all resistant to most oils, greases, many types of fuel and water.

They also withstand attack from most diluted acids and many other common industrial fluids. More information on resistance to specific chemicals is provided on our Plastic Metal BR TDS.

Once cured, this quality epoxy compound can be used in applications where temperatures are between -35°C and +120°C.

Easy to Use and Apply.

Weicon Plastic Metal BR is a two-part compound with a 1:1 mix ratio. Room has been left inside the larger of the two containers to let you add the entirety of the activator liquid and mix the two parts thoroughly. This removes the need for measuring and ensures a correct mix ratio is achieved each time.

Once mixed, Plastic Metal BR has a pasty nature that allows it to be accurately applied to fill holes, gaps or other deep crevices.

Pot life for the mixture is 60 minutes (200gm at 20°C). After 16 hours, the compound will be able to bear mechanical loads. After 24 hours full cure will have been achieved.

Basis Bronze Filled Epoxy Resin
Mix Ratio (By Weight) 100 : 100 (Resin / Hardener)
Density of the Mixture 1.8 g/cm³
Viscosity of the Mixture 650,000 MPaS
Colour Bronze
Maximum Layer Thickness 12mm
Average Consumption
(For a 1mm Thick Coating)
1.8kg/m²
Pot Life (200gm at 20°C) 60 Minutes
Mechanical Strength (50% of Final) 16 Hours (when curing at 20°C)
Final Strength 24 Hours (when curing at 20°C)
Pressure 95 MPa (at 25°C, DIN 53281-83)
Bending Strength 35 MPa (at 25°C, DIN 53281-83)
Mean e-Modul 2,500 - 3,000 MPa (at 25°C, DIN 53281-83)
Shore Hardness 75 Shore D (ASTM D 1706)
Shrinkage During Cure 0.02%
Thermoforming Resistance +50°C
Continuous Temperature Rating -35°C to +120°C
Thermal Conductivity 0.7 W/m·K (ISO 8894-2)
Dielectric Strength  15 kV/mm
IMPA Reference Number 75.509.05 (500gm) / 75.509.06 (2kg)
ISSA Reference Number 81 29 10 (500gm) / 81 29 11 (2kg)
SKU SWM000394B01
Brand Weicon
