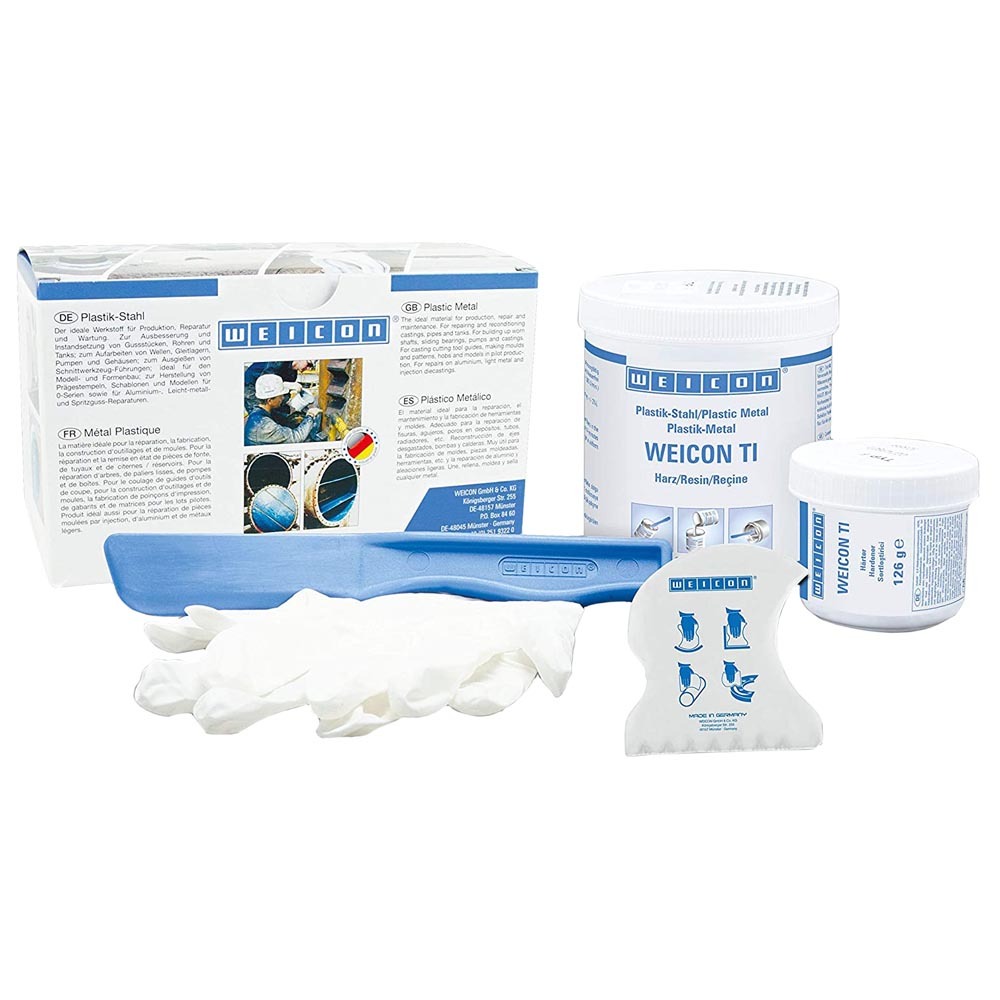

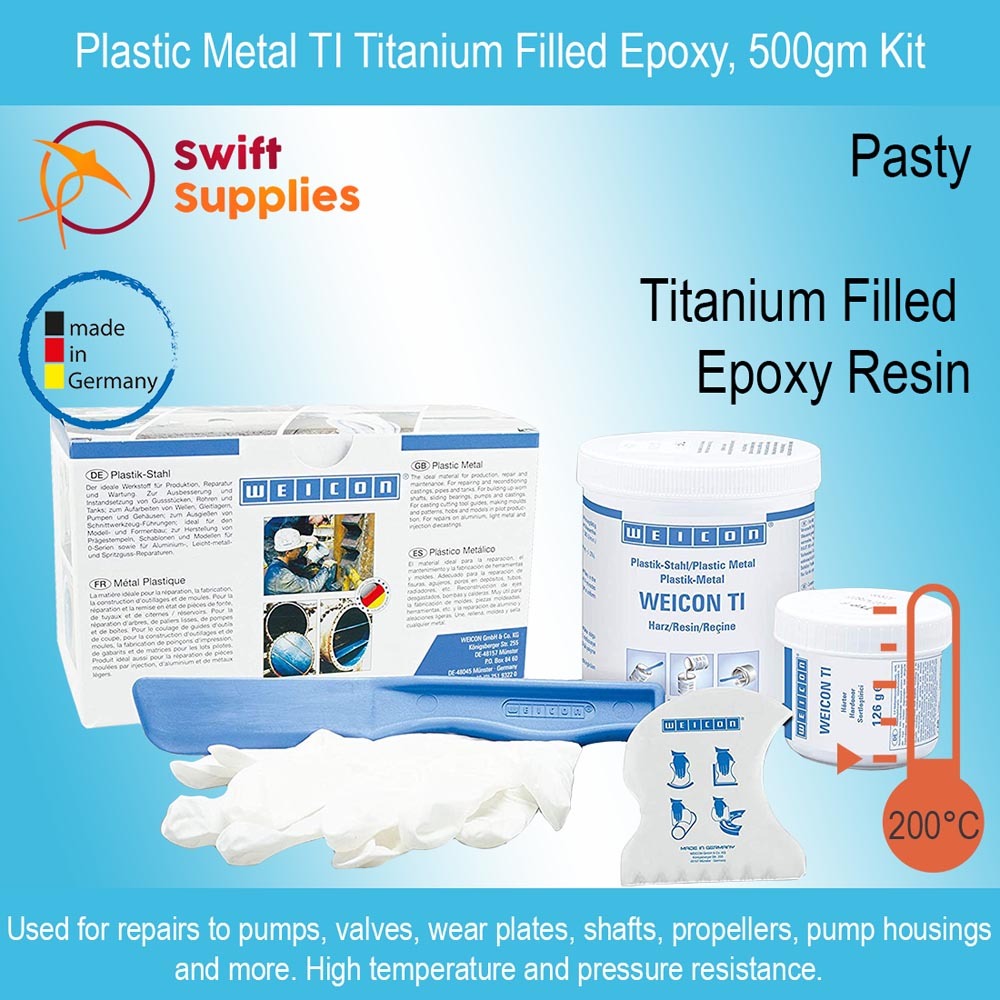

Plastic Metal TI - 500gm Kit

SKU: SWM000535B01V0001
MPN: 10430005
Availability: Available for Fast Dispatch
$108.25
INC. GST
$97.42
EX. GST
Container Size

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 2 or above and pay only $105.88 each
  • High pressure resistance and mechanical strength.
  • Pasty epoxy putty filled with Titanium.
  • Withstands continuous exposure to 200°C or 260°C for short periods.

Our Plastic Metal TI is a industrial grade epoxy repair compound designed for demanding applications. This pasty compound is made with titanium fillers and cures to form a solid mass with very good pressure resistance and high mechanical strength.

Cured Plastic Metal TI will have a tensile strength of 53 MPa and compressive strength of 66 MPa.

Shore Hardness will be about 83 Shore D. This epoxy is one of our higher temperature grades and can withstand continuous temperatures between -35°C and 200°C after curing. It will also tolerate short-term exposure to 260°C.

This easy-to-use epoxy has a thick, pasty texture before curing. It can be applied in layers up to 10mm deep per cure cycle and it has an extended pot life of 120 minutes for a mixed batch.

After about 7 hours, Plastic Metal TI will achieve around 35% of its final strength and additional layers can be applied if desired. Full cure will take around 18 hours depending on the conditions.

Grey in colour, Plastic Metal TI has excellent chemical resistance. For more information on this, and other attributes, please refer to the Specifications tab or the documentation on the Resources tab.

This professional epoxy repair putty is manufactured in Germany and used in industry around the world.

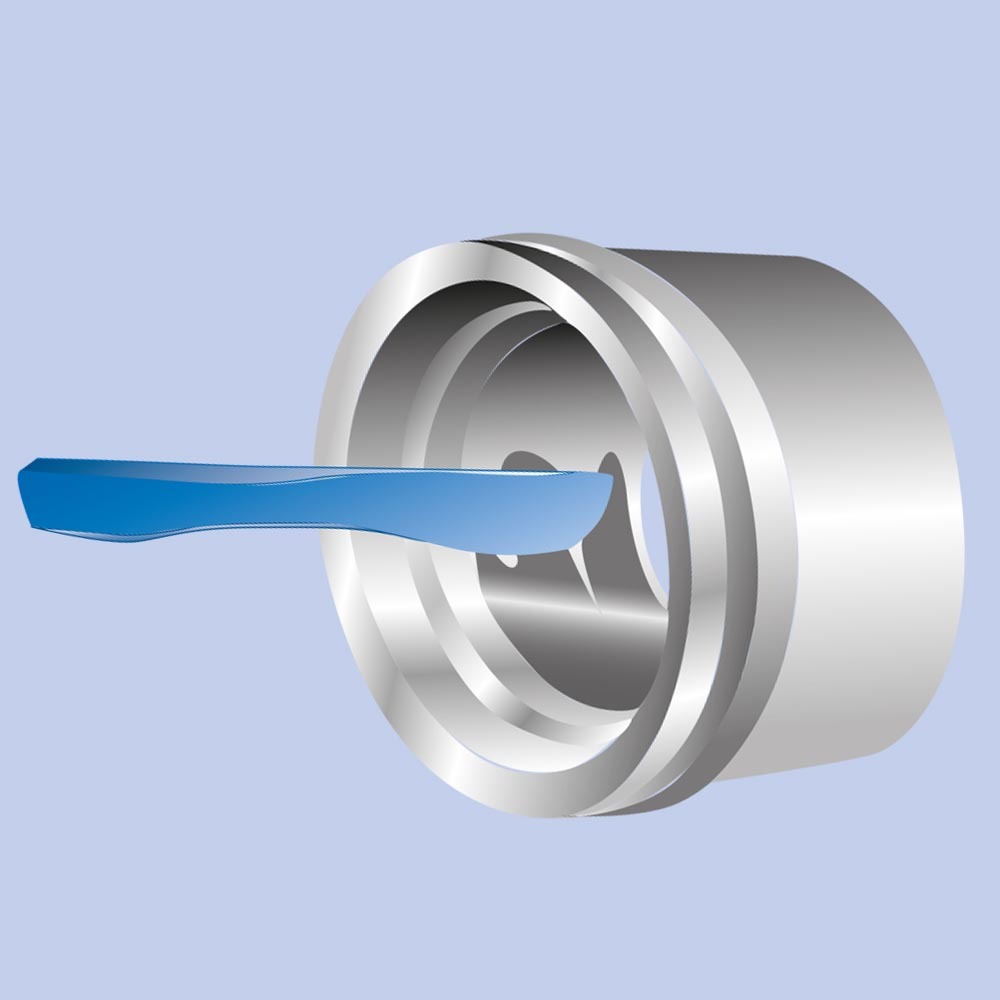

Some of the more common applications for this grade include repairs to pumps, valves, wear plates, ball bearing seats, shafts and propellers. It is also often used for (re)lining pump housings and slide bearings.

This epoxy resin system is used in the engineering and repair industry, for heavy equipment maintenance and in the marine sector. It is registered with both the ISSA (75.509.22/23) and IMPA (812945, 812946).

Basis Titanium Filled Epoxy Resin
Mix Ratio by Weight 100 : 33 (Resin / Hardener)
Density of the Mixture 1.6 g/cm³
Viscosity of the Mixture 550,000 mPa·s
Colour Grey
Maximum Layer Thickness 10mm
Additional Layers After (35% Cure) 7 Hours (when Curing at 20°C)
Final Strength 16 Hours (when curing at 20°C)
Tensile Strength 53 MPa (DIN EN ISO 527-2)
Bending Strength 10 MPa (DIN EN ISO 527-2)
e-Modulus 6,200 - 6,800 MPa (DIN EN ISO 527-2)
Shore Hardness 83 Shore D (+/- 3, DIN ISO 7619)
Shrinkage During Cure 0.09%
Continuous Temperature Rating -35°C to +200°C
SKU SWM000535B01
Brand Weicon
