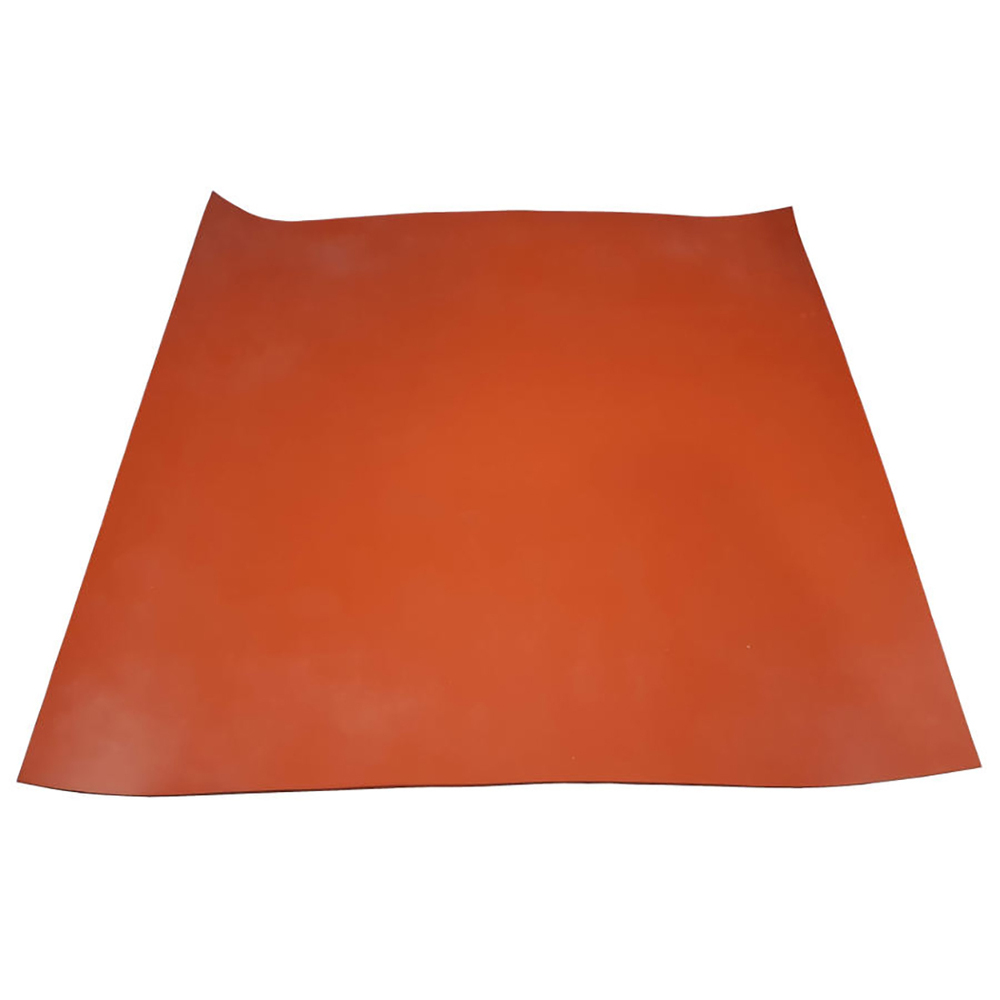

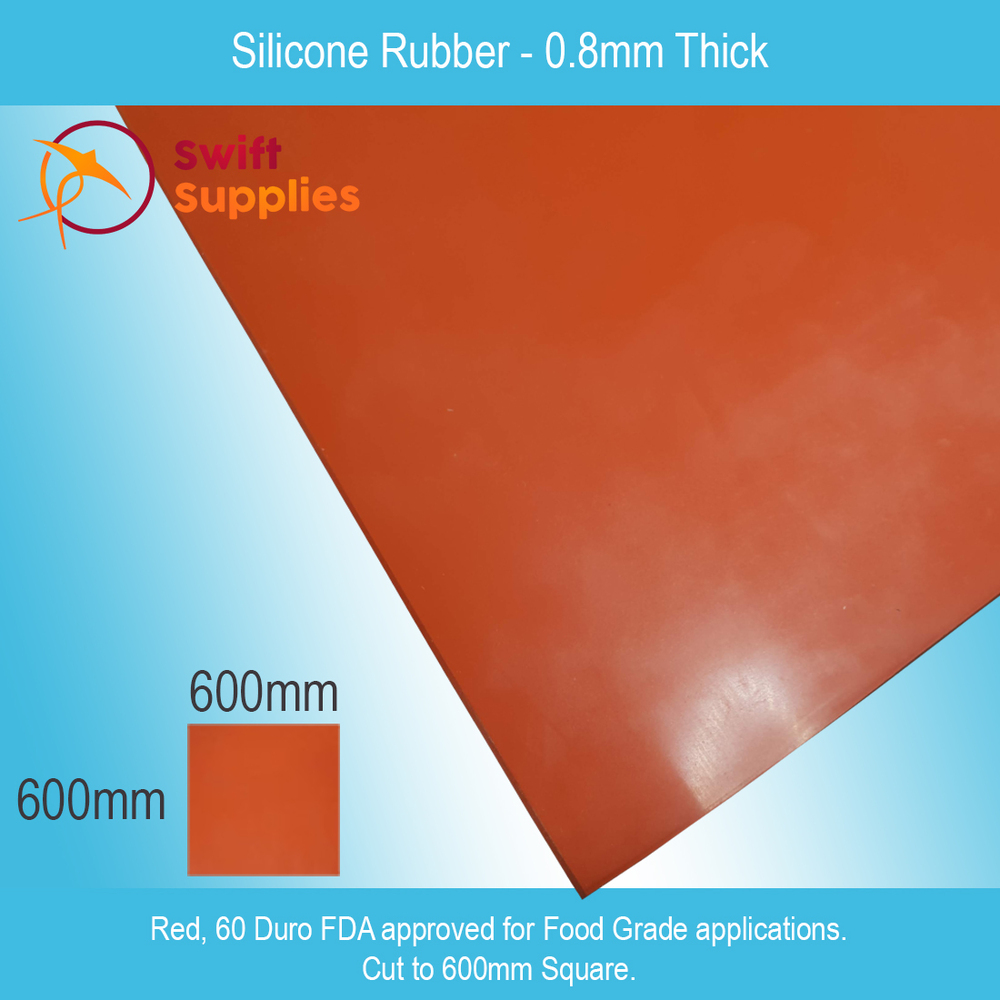

Silicone Rubber Pre-Cut Mat (Red, FDA) 0.8mm x 600mm Square (60 Duro)

SKU: SWM000132P01V0001
Availability: Cut to Order, Ships in 2-4 W/Days


All Bulk Prices Below Are Quoted Including GST.
Buy 3 - 4 and pay only $52.50 each
Buy 5 or above and pay only $49.02 each
  • Industrial quality silicone rubber cut into convenient and economical 600mm Square Mats.
  • Excellent temperature resistance (+200°C), good chemical resistance and very flexible.
  • FDA Approved Silicone Rubber for use in food grade areas.

Our Red Silicone Rubber Mats are ideal for those who need a high-quality silicone rubber, but don’t go through enough to warrant buying it by the metre. Made from our professional quality silicone rubber sheet, each mat is 600mm Square.

Since they’re made from our Silicone Sheet, these mats offer the exact same properties. This means they have excellent resistance to cold and hot temperatures (-60°C to +230°C) and good chemical resistance.

They also meet US FDA and EU requirements for use in areas where direct food contact is possible and meet WRAS potable (drinking) water standards. This makes them ideal for cutting silicone gaskets, sealing strips or washers that will be used in food applications.

Our red silicone rubber has very low thermal conductivity which makes it a good choice for use in thermal insulation applications. These silicone mats have a smooth surface finish and are very flexible.

Applications for Silicone Rubber Mats

  • Silicone rubber gaskets and seals for heating or cooling equipment.
  • Making gaskets for electrical devices.
  • Insulating gaskets and seals for lights.
  • Silicone Washers, Seals and Gaskets for water tanks, pipes and beverage dispensers.
  • Making sealing and wear protection strips for catering and food preparation areas.
  • High temperature rubber gaskets and seals.
  • As a flexible insulation material for up to 230°C.
Colour Red
Insertion None
Hardness (ASTM D2240) 60 Shore A (+/- 5) Durometer
Continuous Operating Temperature -60°C to +230°C
Short-Term Operating Temperature 250°C
Brittle Point -80°C
Elongation at Break (ASTM D412) 340%
Tear Strength (ASTM D624) 14.2 N / mm
Tensile Strength (ASTM D412) 1146 PSI
Potable Water WRAS Approved for Potable Water
at Temperatures up to 85°C
FDA Compliant As Per 21 CFR 177.2600
(Suitable for Direct Food Contact)
EC Food Safe Compliant with EC 1935/2004
(Suitable for Direct Food Contact)
RoHS and REACh Both Fully Compliant
FMVSS 302 Meets Part 571 Flammability Test

More technical specifications and details on our Silicone Rubber Sheet is available on the Technical Data Sheet located on the media tab.

SKU SWM000132P01
Brand Gaskaseal
