Duo Crimp Stripper No. 300

Versatile cable & wire stripper, crimper & cutter in one

All Prices Include GST.

$91.33
In Stock
Available for Fast Dispatch.
Buy In Bulk & Save!
Buy 3 to 5: Pay $89.45
Buy 6 or more: Pay $87.92

A very versatile tool that combines stripping, crimping and cutting into one. Our Duo Crimp Stripper No. 300 has an automatic scanner for removing insulation and can be used with cables between 0.5mm² and 6mm² cross-section.

  • Automatic cable stripper that removes the insulation from cables between 0.5mm² and 6mm².
  • Easily crimp the stripper cables with the integrated crimpers.
  • Side cutter for cutting wires and cables to length. Can be used with cable up to 6mm² cross-section.
  • Automatic cable stripping, crimping and cutting all in one.

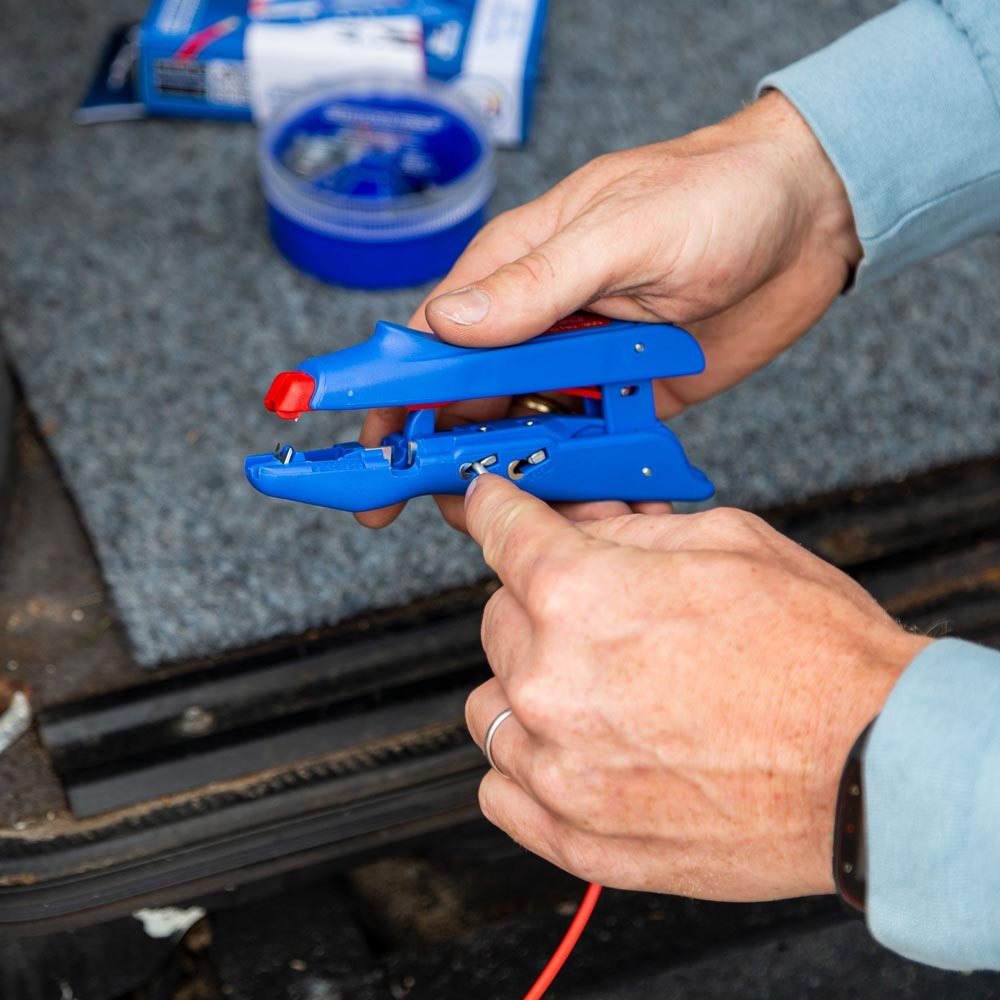

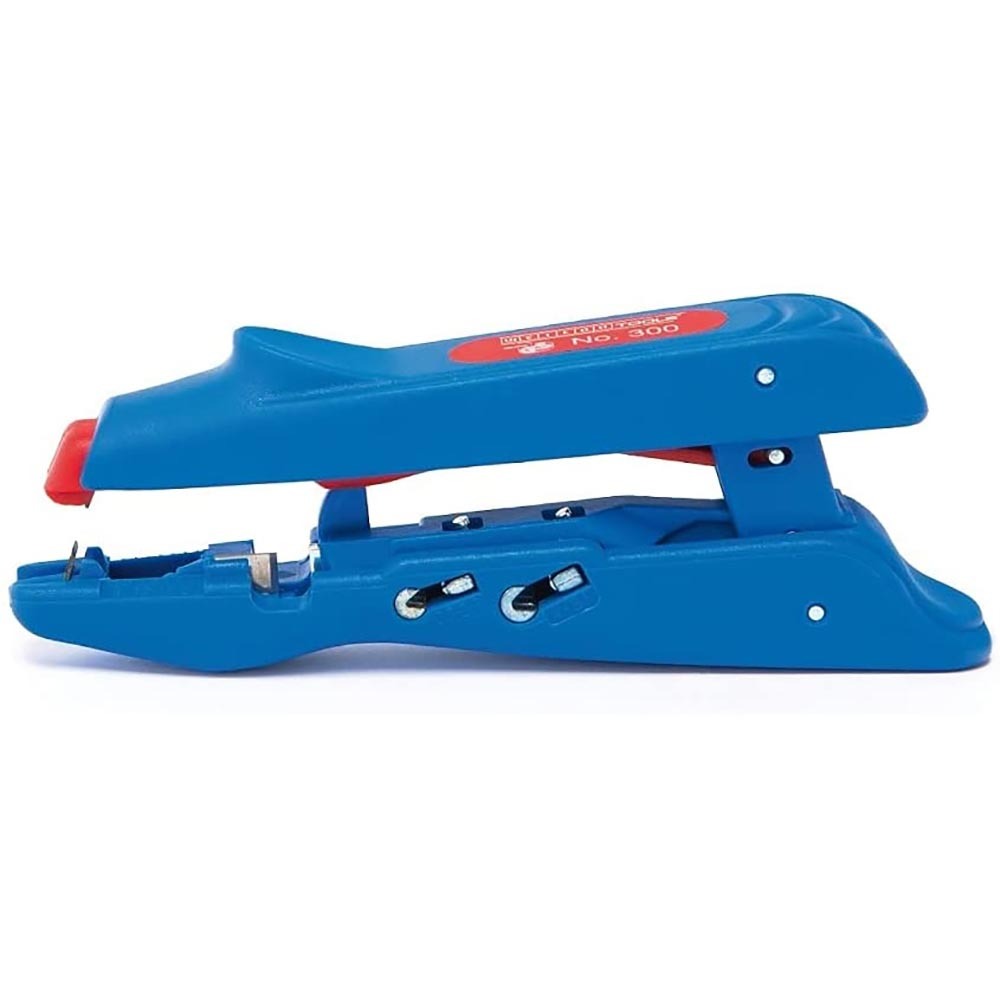

Our Weicon Duo Crimp Stripper No. 300 is an incredibly versatile tool that combines cable stripping, crimping and cutting functions into one. It’s simple, fast and very easy to use and is made from quality materials in Germany to ensure it is very long lasting.

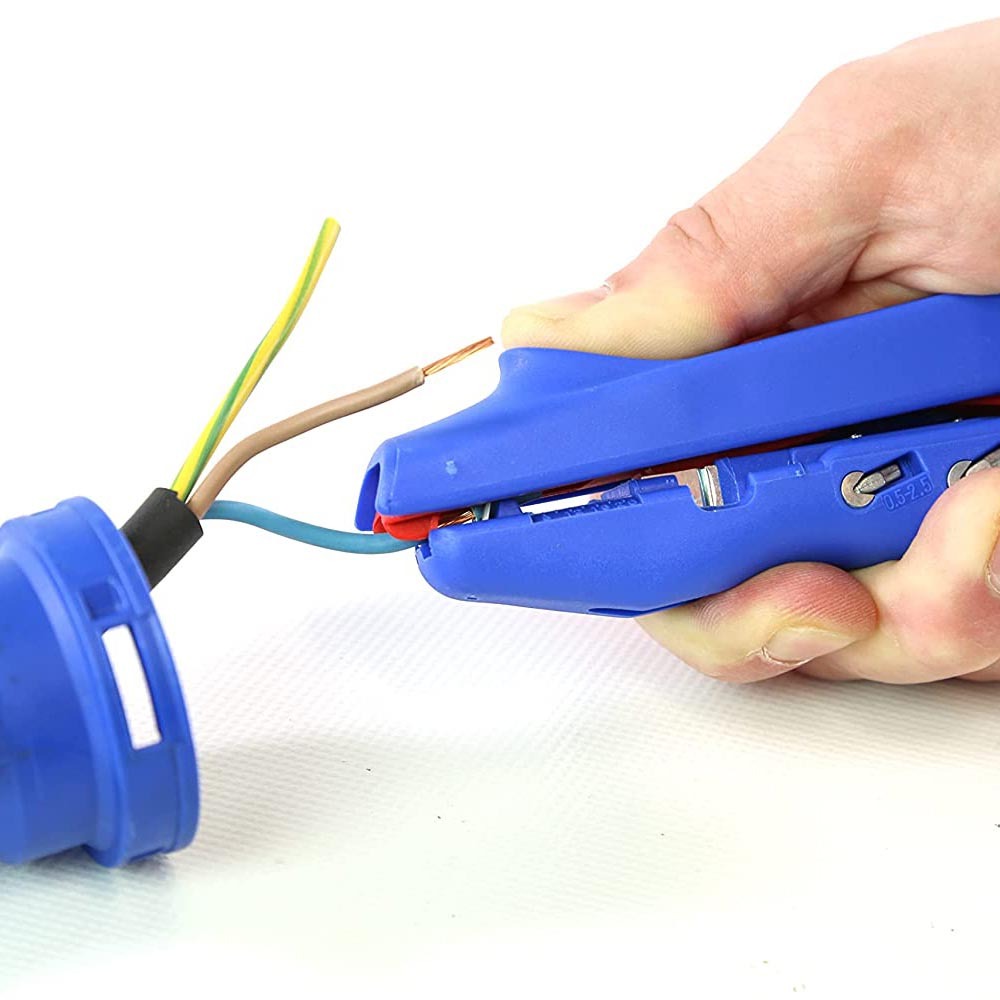

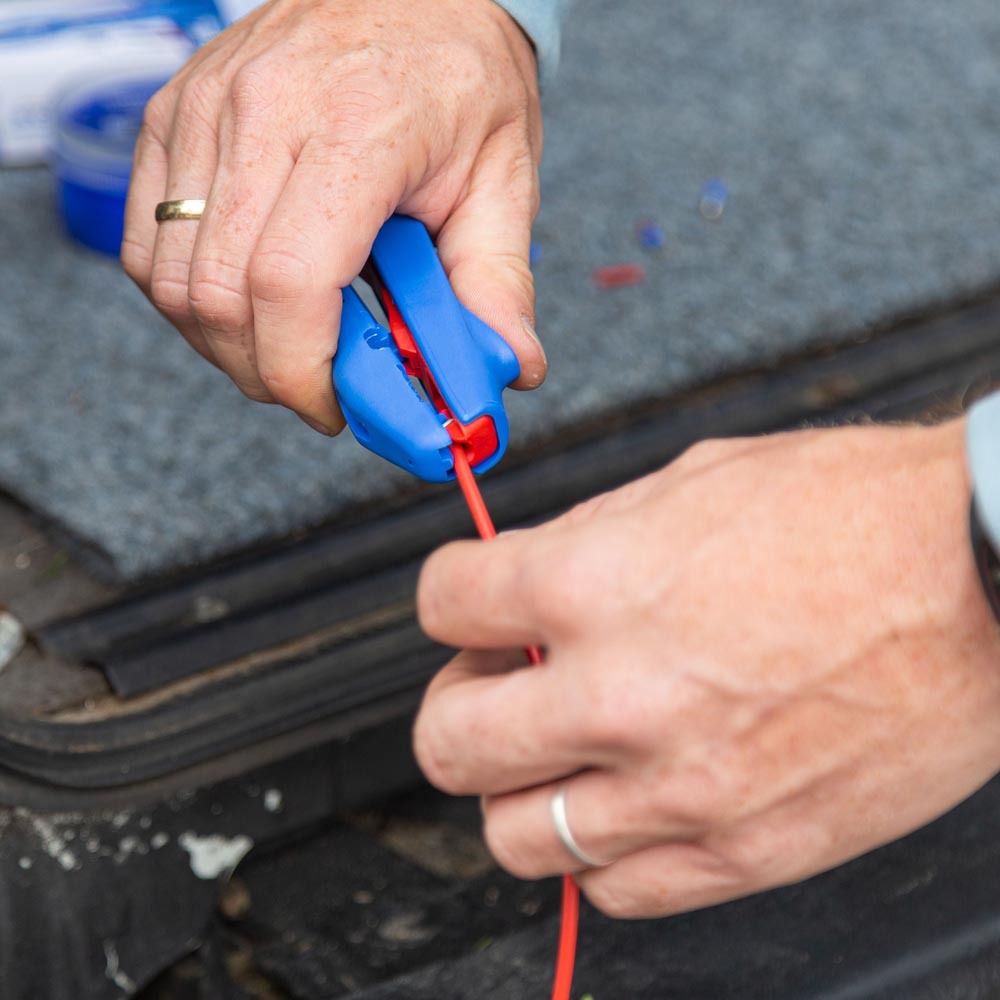

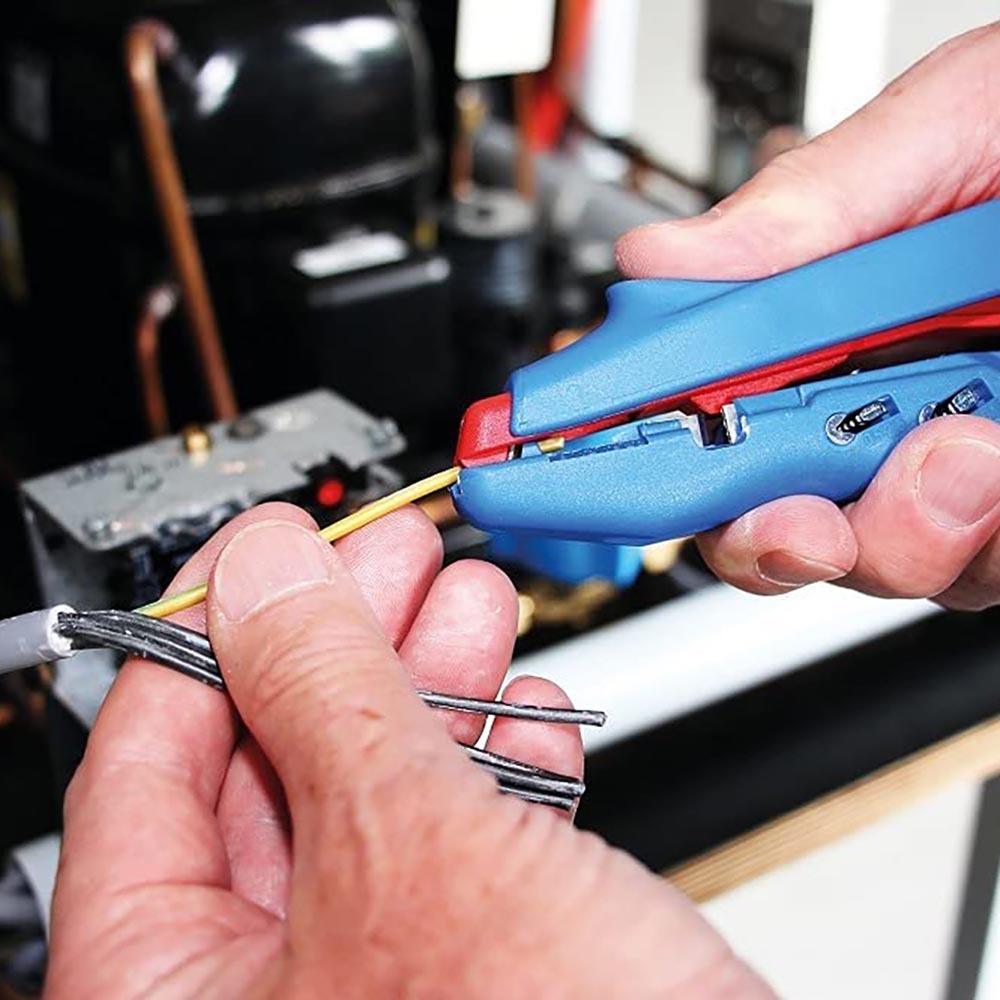

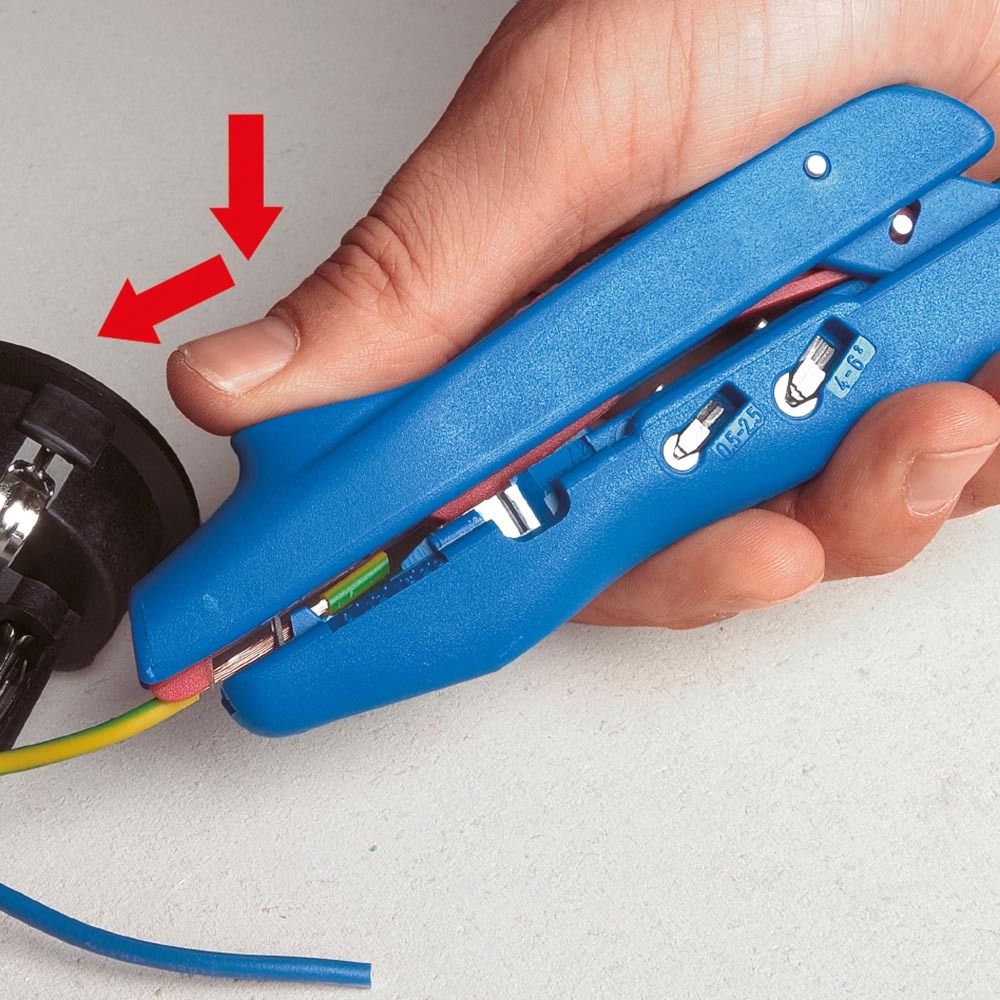

When you place a cable into the opening of our Duo Crimp Stripper No. 300, the automatic scanning system determines the size without the need for any adjustments by you. After that, stripping back the insulation is as simple as pushing down and forward. The insulation sheath will be removed while the conductor will be left untouched.

This stripper has an optical length scale of 8-20mm and is suitable for stripping all flexible and solid cables with a cross-section between 0.5mm² and 6mm². The Duo-Crimp No. 300 strips back 5mm worth of insulation from the cable to prevent the conductor from splaying.

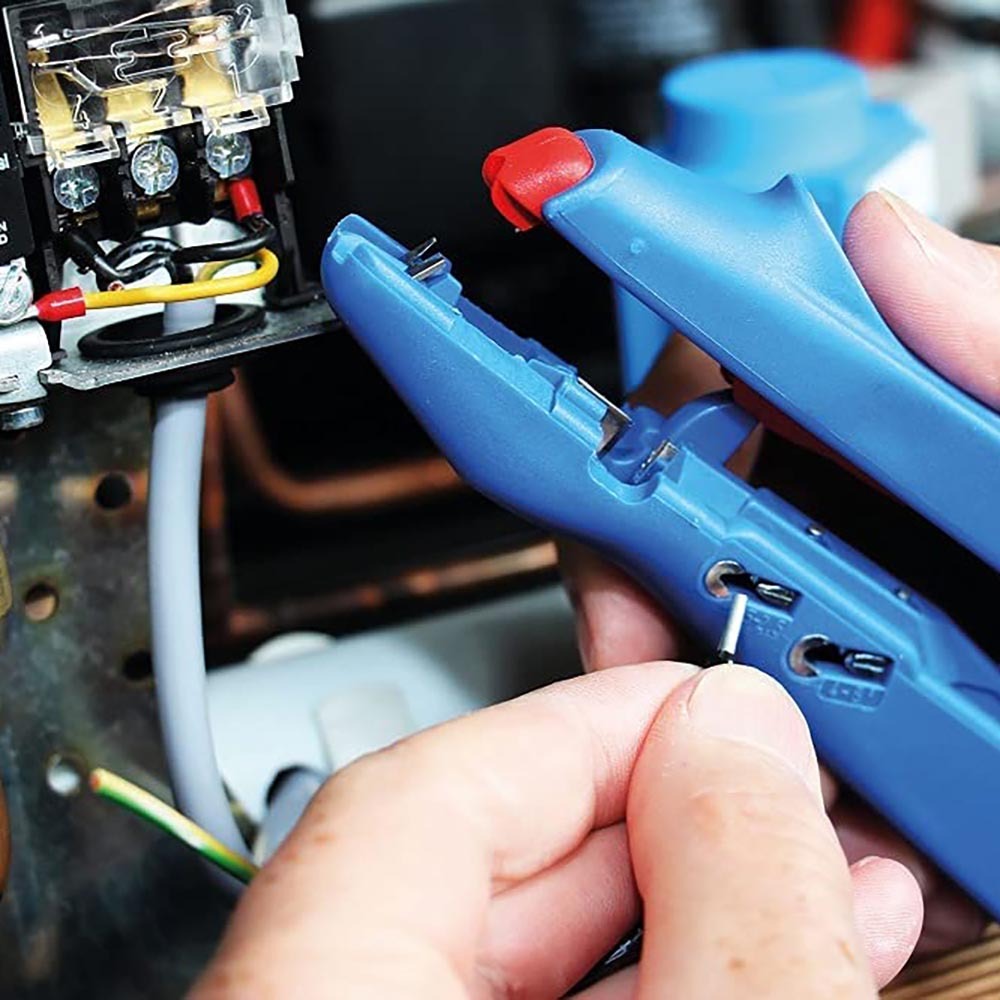

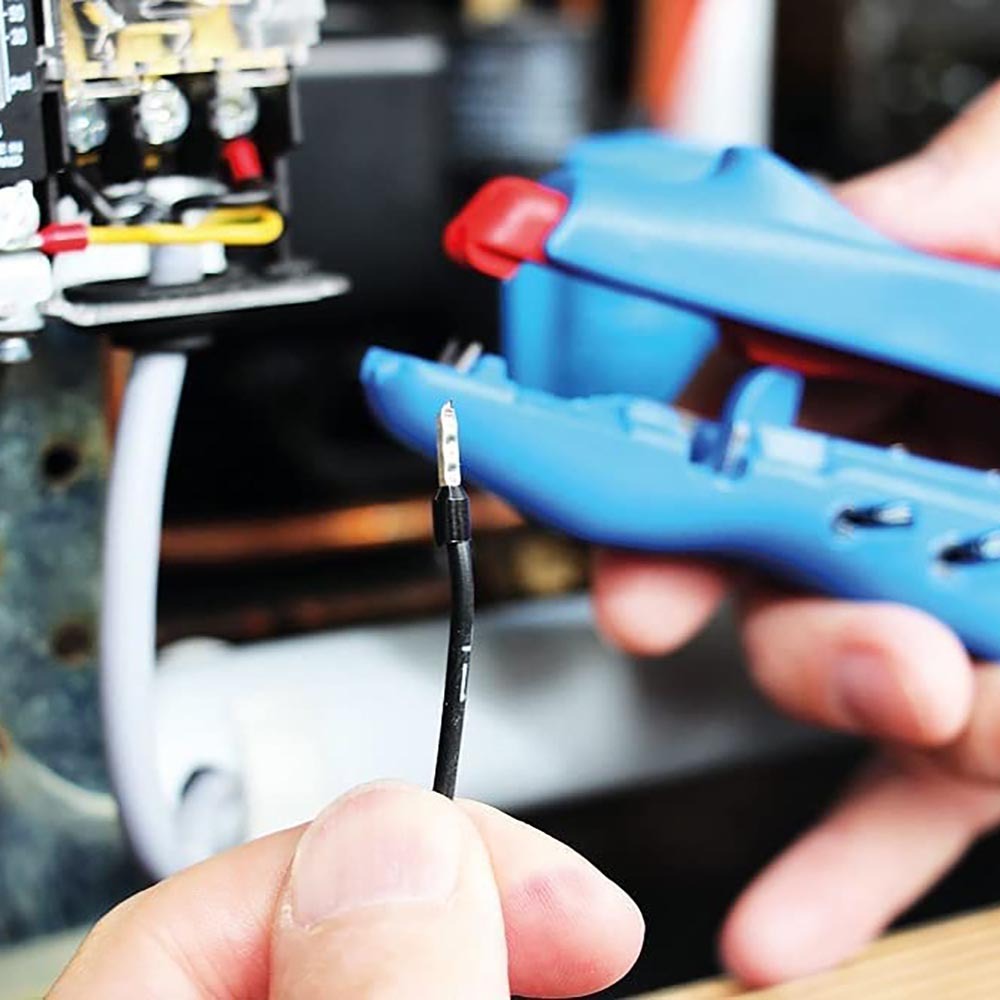

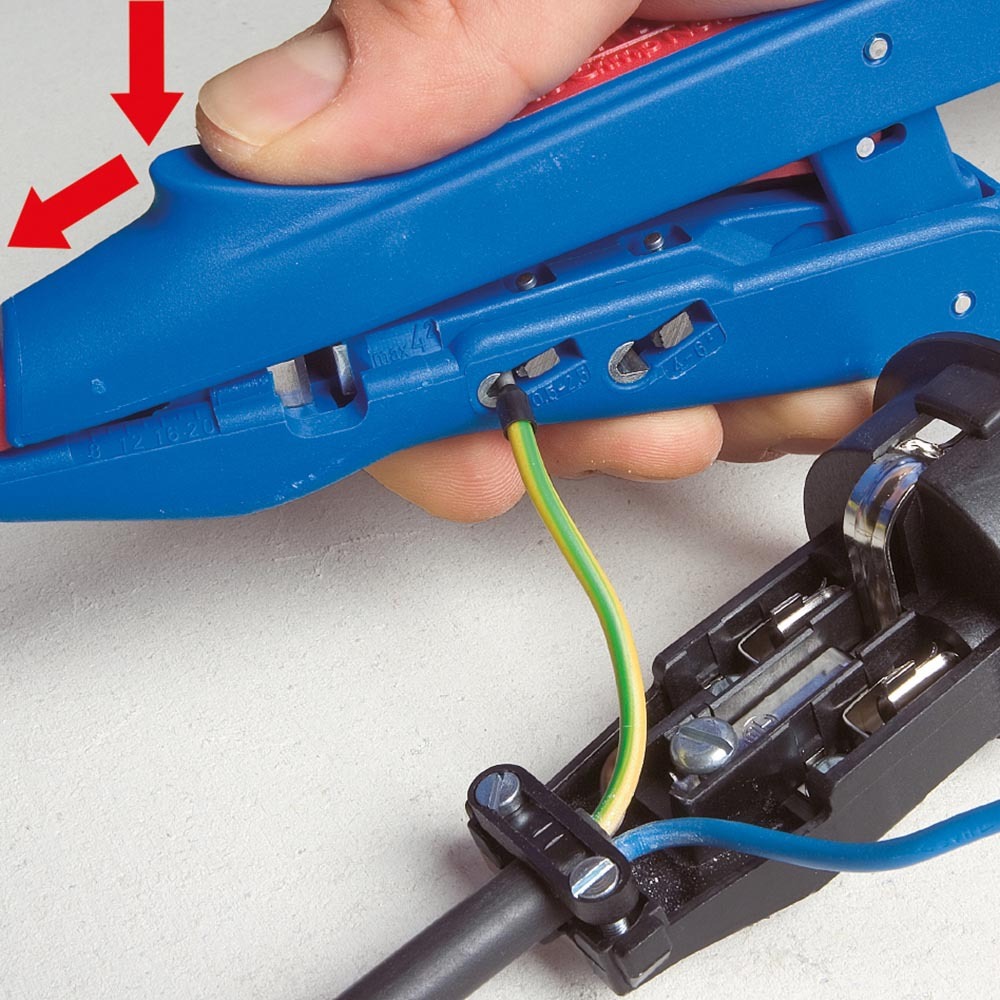

This versatile, multi-functional stripping tool also features two different terminal crimping points. Located in the side of the tool, these can be used to attach terminals to cables in two different cross-section size ranges. Namely; 0.5mm² to 2.5mm² and 4mm² to 6mm².

Also included is an integrated side cutter in the well. This cutter can be used with flexible cable up to 6mm² (4mm if it has a solid conductor).

This high quality, automatic cable stripping tool is made by Weicon in Germany. It is constructed from fibreglass reinforced polyamide plastic and utilises very high-quality steel blades from Solingen in Germany. Because of its multiple functions, ease of use and all-round versatility it is just as well suited for the DIYer, hobbyist and home handyman as it is for professional electricians and electrical workers.

The video below demonstrates just how easy this tool is to use.



(SWM000175B01V0001)

Cable Type Fine wired and solid conductors with PVC insulation
Field of Use 0.5mm² - 6mm² Cross Section Cable
Inner Blade Replaceable
Additional Features / Benefits Side Cutter, Cuts up to 4mm² Solid Cableor 6mm² Flexible
Additional Functions Terminal Crimpimg 0.5mm² - 2.5mm² and 4mm² to 6mm²
Approvals / Certifications Safety Tested by TUV NORD
Material Fibreglass Reinforced Polyamide
Length 160mm
Weight 115gm
Accessories Replacement Blade Set. Item No. 51953020



SKU SWM000175B01V0001
Model # 51000300
Brand Weicon
Shipping Weight 0.1200kg
Shipping Width 0.100m
Shipping Height 0.070m
Shipping Length 0.200m
Shipping Cubic 0.001400000m3
Unit Of Measure ea

Technical Data Sheet.

TDS Link
Duo Crimp Stripping Tool No. 300 TDS
