Professional Cable Stripping and Crimping Kit

SKU: SWM000337B01V0001
MPN: 52880002
Availability: Available for Fast Dispatch.
$193.28
INC. GST
$175.71
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 3 - 5 and pay only $184.76 each
  • Everything you need for cable stripping and crimping.
  • Automatic Cable Stripper No. 7 for fast, accurate stripping of insulation.
  • Duo-Crimp No. 300 for crimping of terminals.
  • 400 Piece pack of bootlace ferrules.

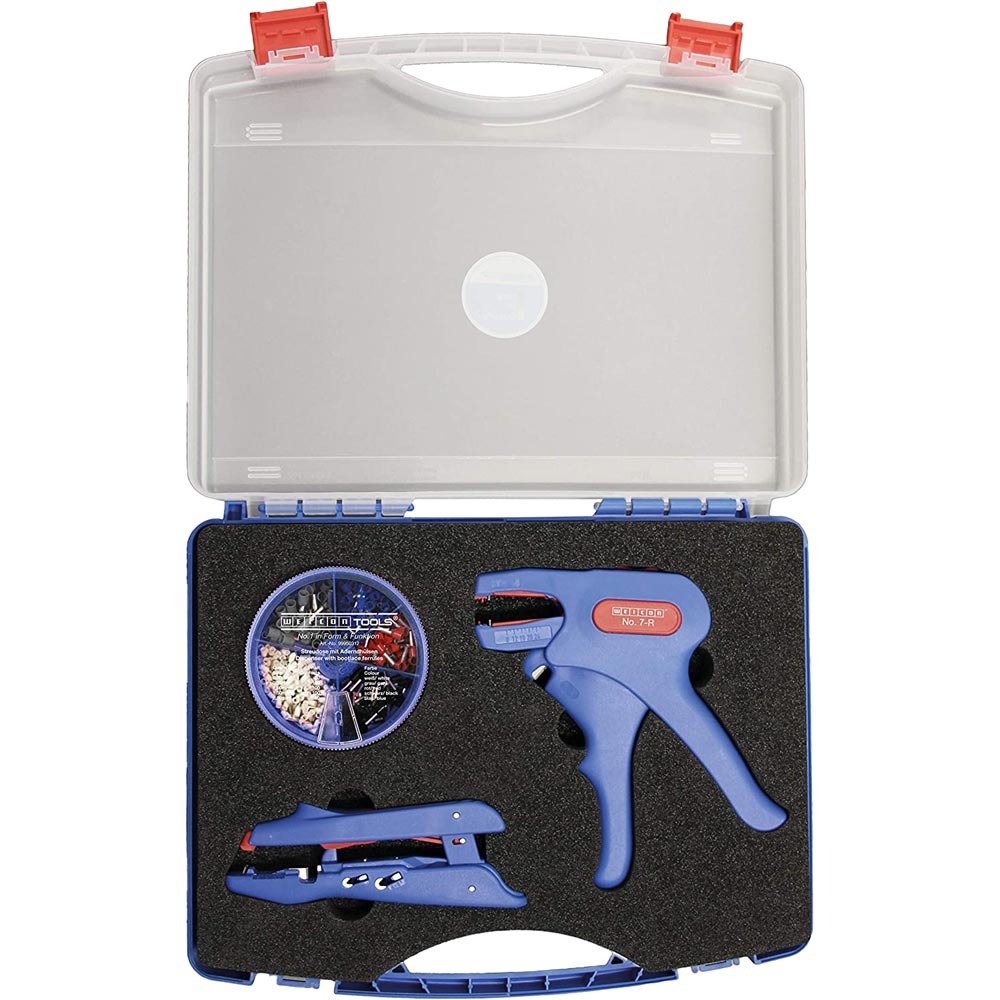

  • Plastic carrying / storage case to keep things organised.

Our Professional Cable Stripping and Crimping Kit is made up of two of our most popular wire stripping tools: our No. 7 Automatic Cable Stripper and our No. 300 Duo Crimp Stripper.

Both of these tools are manufactured in Germany and automatically adjust to various sizes of cable to effectively remove insulation without damaging the conductor.

This kit also contains 400 bootlace ferrules and is supplied in a plastic container.

The sections below provide a little more information on the benefits and functions of each tool along with information on the sizes of terminals included.

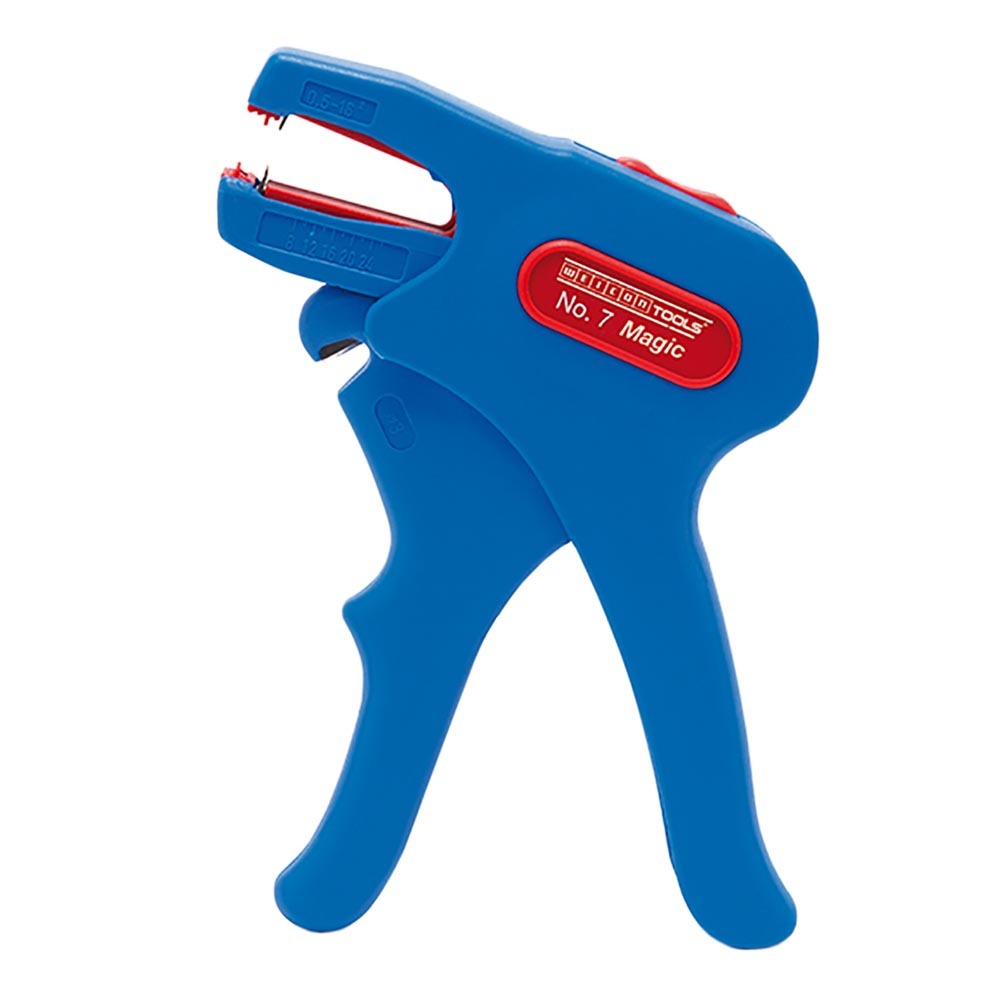

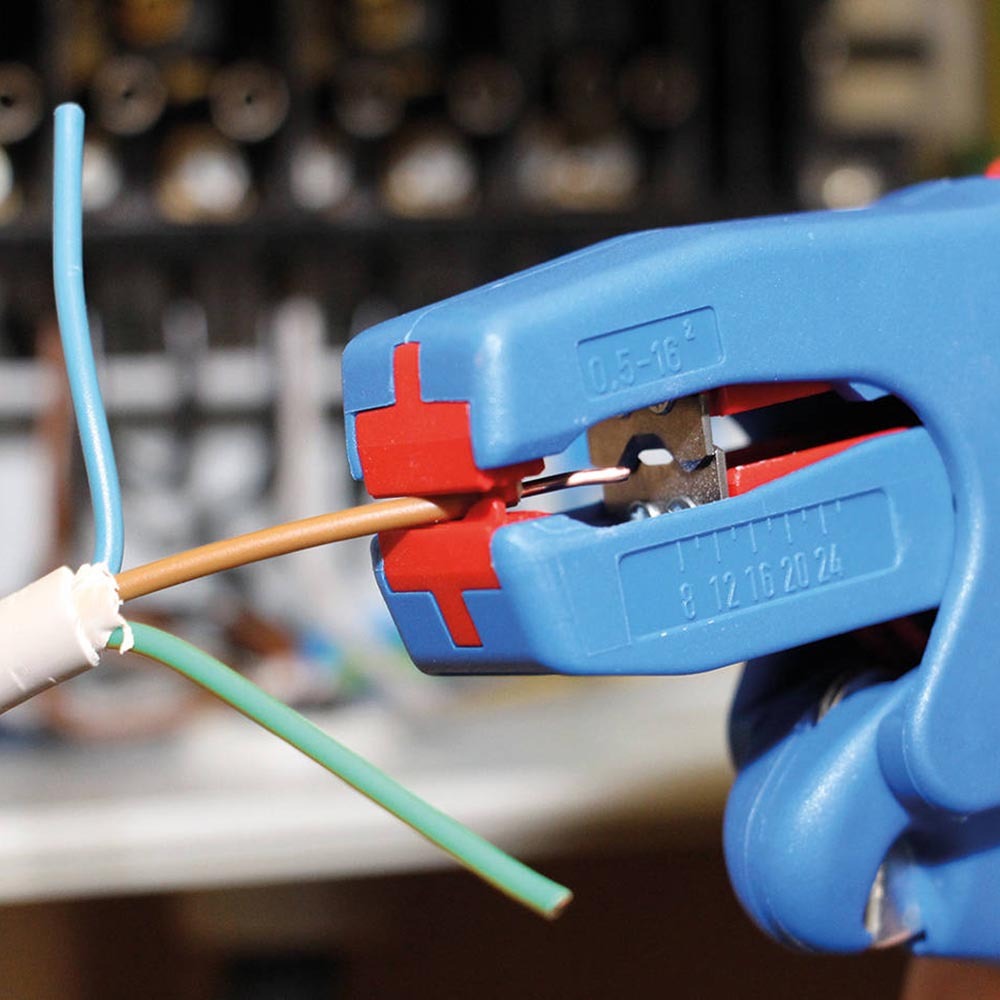

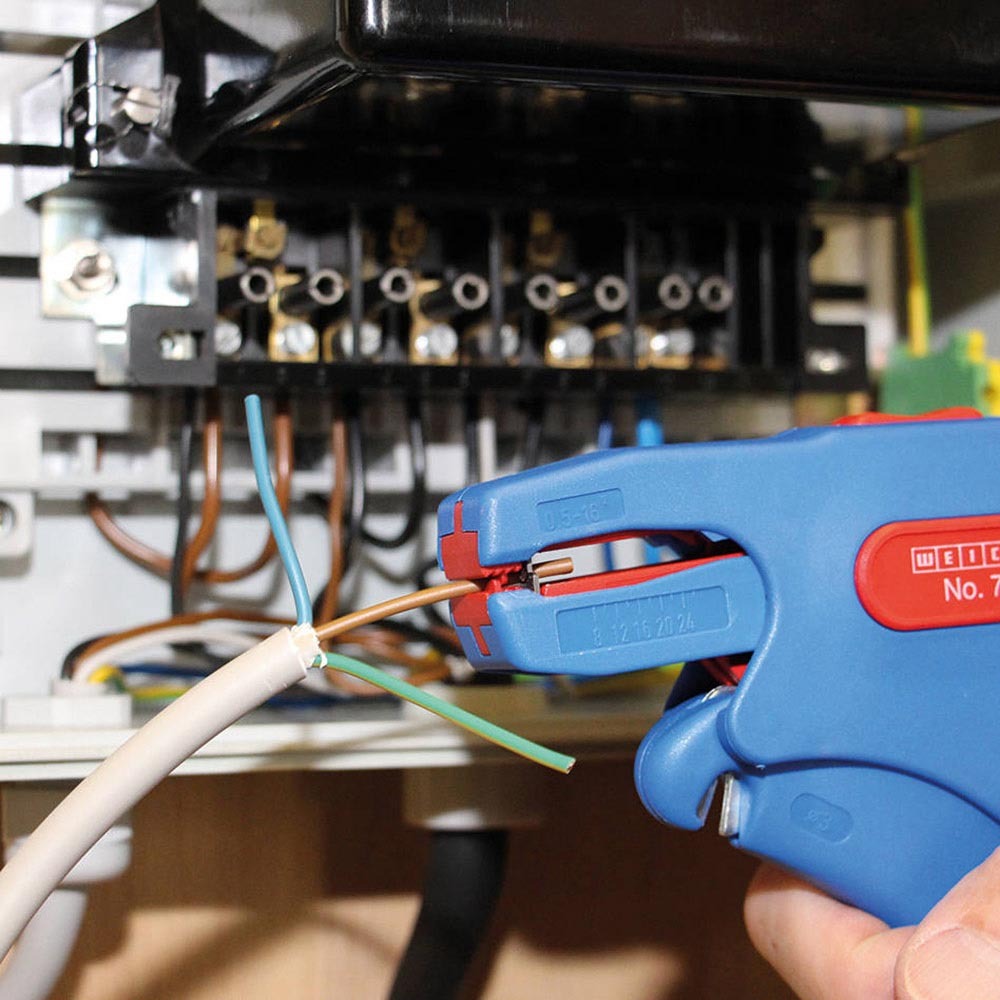

No. 7 Magic Cable & Wire Stripping Tool

A professional grade cable stripper with incredible versatility. Automatically adjusting, our No. 7 Magic can be used with flexible, round cable between 0.5mm² and 16mm² cross section.

It features an open barrel so it can work part of the way along a length of cable, adjustable force and an integrated cutter in the handle.

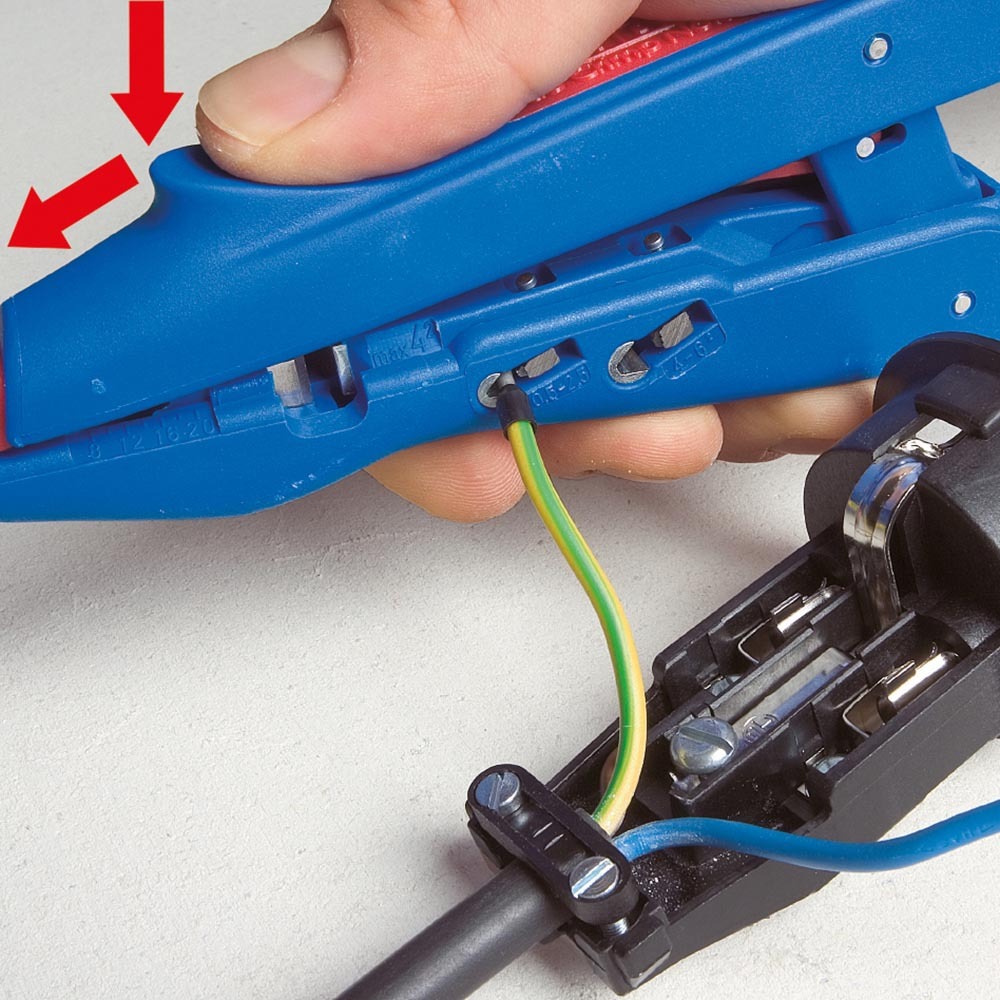

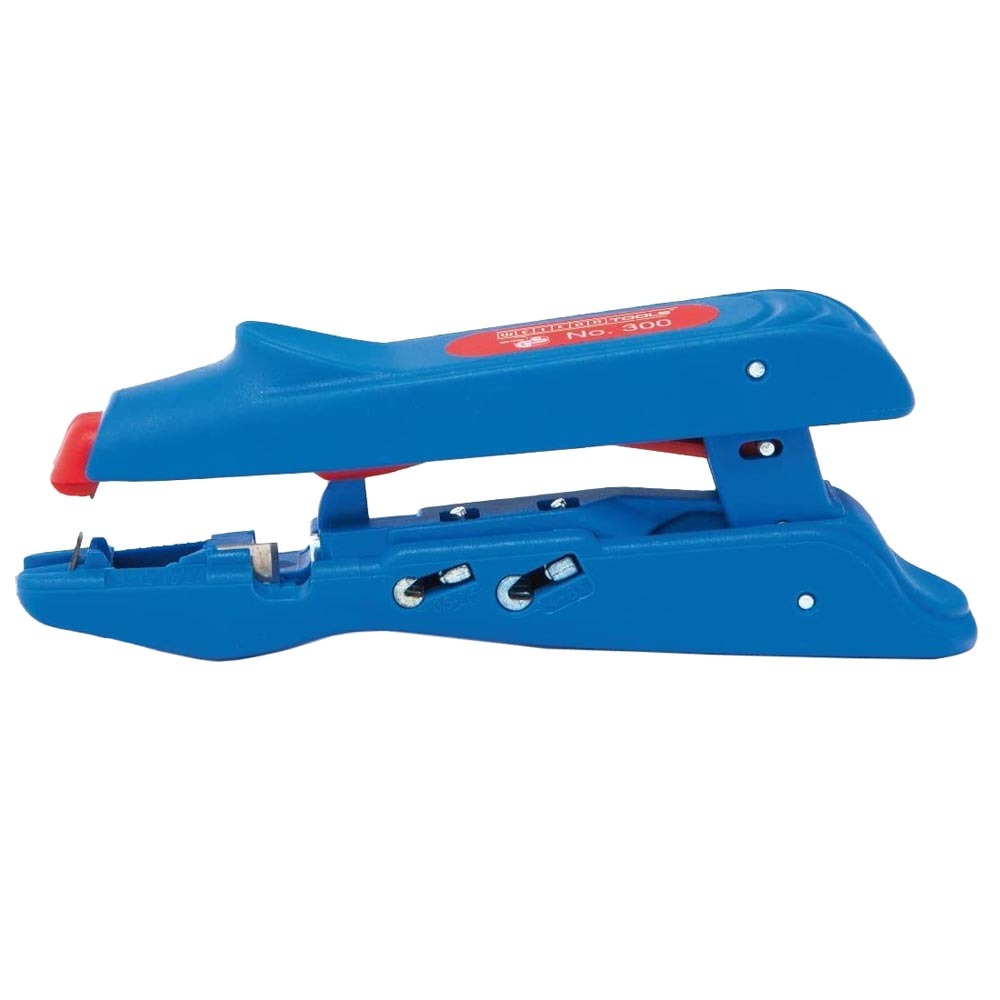

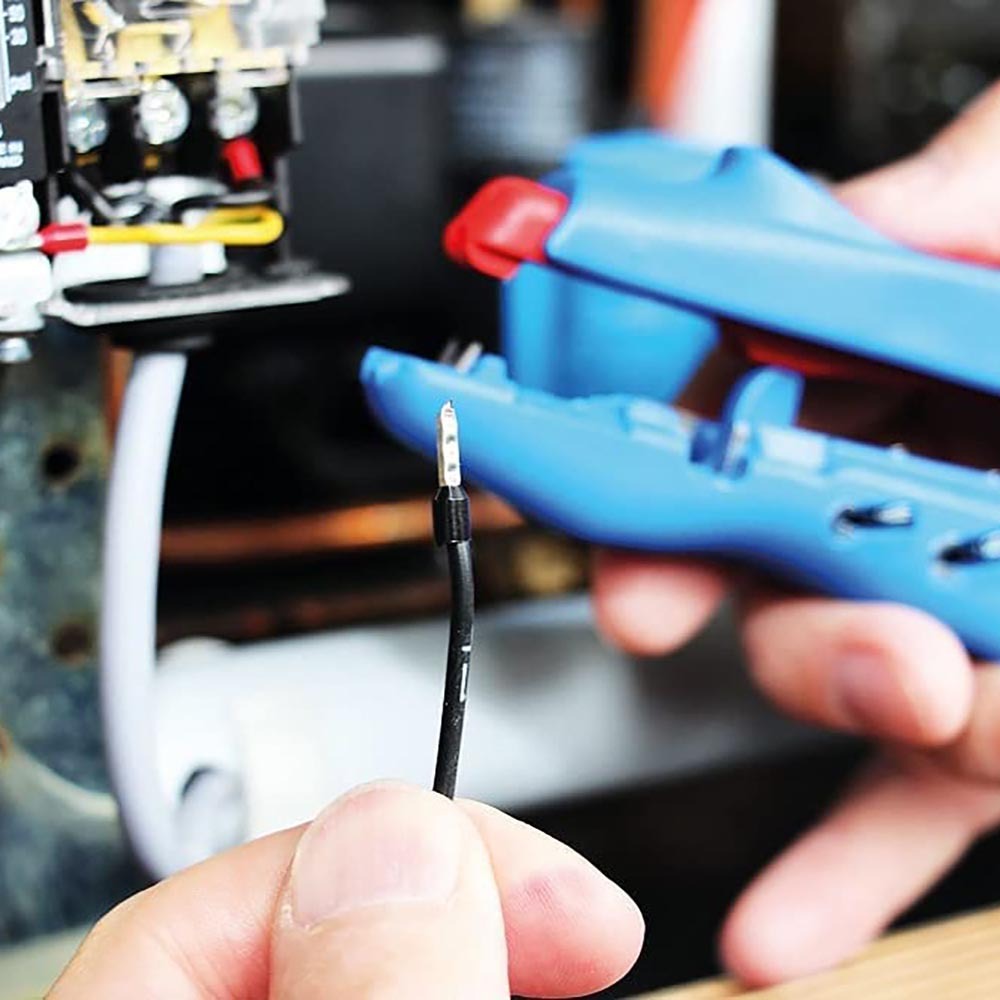

Duo Crimp Stripper No. 300

A very versatile tool that combines stripping, crimping and cutting into one. Our Duo Crimp Stripper No. 300 has an automatic scanner for removing insulation and can be used with cables between 0.5mm² and 6mm² cross-section.

This versatile tool can also be used for cutting small wires and cables and crimping on terminals.

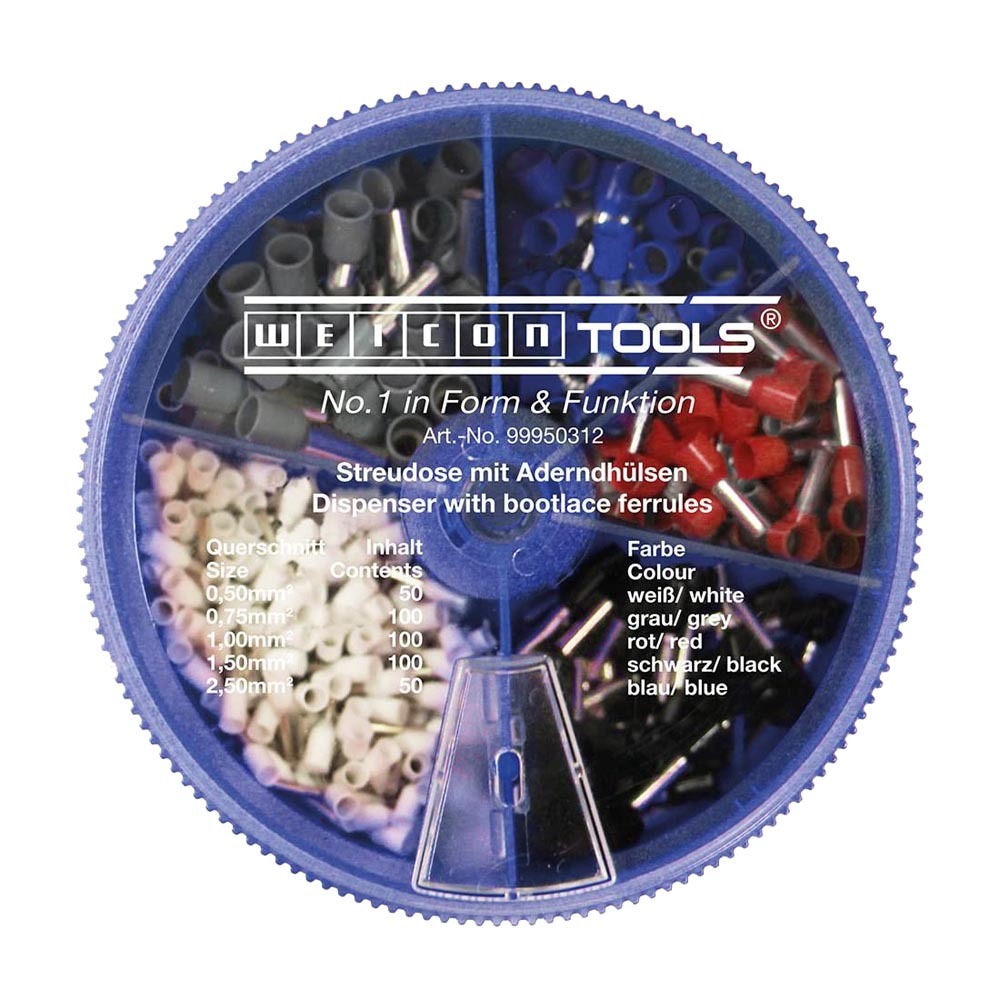

Bootlace Ferrules

A pack of these is included with each of our Professional Cable Stripping and Crimping Kits. The table below outlines exactly what's included...

Quantity Size Colour
50 0.50mm² White
100 0.75mm² Grey
100 1.00mm² Red
100 1.50mm² Black
50 2.50mm² Blue



For more detailed information on either of the included tools, please see the specifications tab and/or the resources tab which has data sheets and product videos.

Specifications for Automatic Cable and Wire Stripper No. 7 Magic

Cable Type Fine Wired and Solid Conductors with PVC Insulation
Field of Use Flexible Cables: 0.5mm² to 16mm²
Solid Cables: 0.5mm² to 10mm²
Inner Blade Replaceable
Additional Features / Benefits Side Cutter, Cuts up to 3mm Ø Cable
Adjustable Length Scale.
Adjustable Force.
Approvals / Certifications Safety Tested by TUV NORD
Material Fibreglass Reinforced Polyamide
Length 175mm
Weight 216gm
Accessories Replacement Blade Set. Item No. 51100006



Specifications on our Duo Crimp Stripper No. 300

Cable Type Fine wired and solid conductors with PVC insulation
Field of Use 0.5mm² - 6mm² Cross Section Cable
Inner Blade Replaceable
Additional Features / Benefits Side Cutter, Cuts up to 4mm² Solid Cableor 6mm² Flexible
Additional Functions Terminal Crimpimg 0.5mm² - 2.5mm² and 4mm² to 6mm²
Approvals / Certifications Safety Tested by TUV NORD
Material Fibreglass Reinforced Polyamide
Length 160mm
Weight 115gm
Accessories Replacement Blade Set. Item No. 51953020



SKU SWM000337B01V0001
Model # 52880002
Brand Weicon
