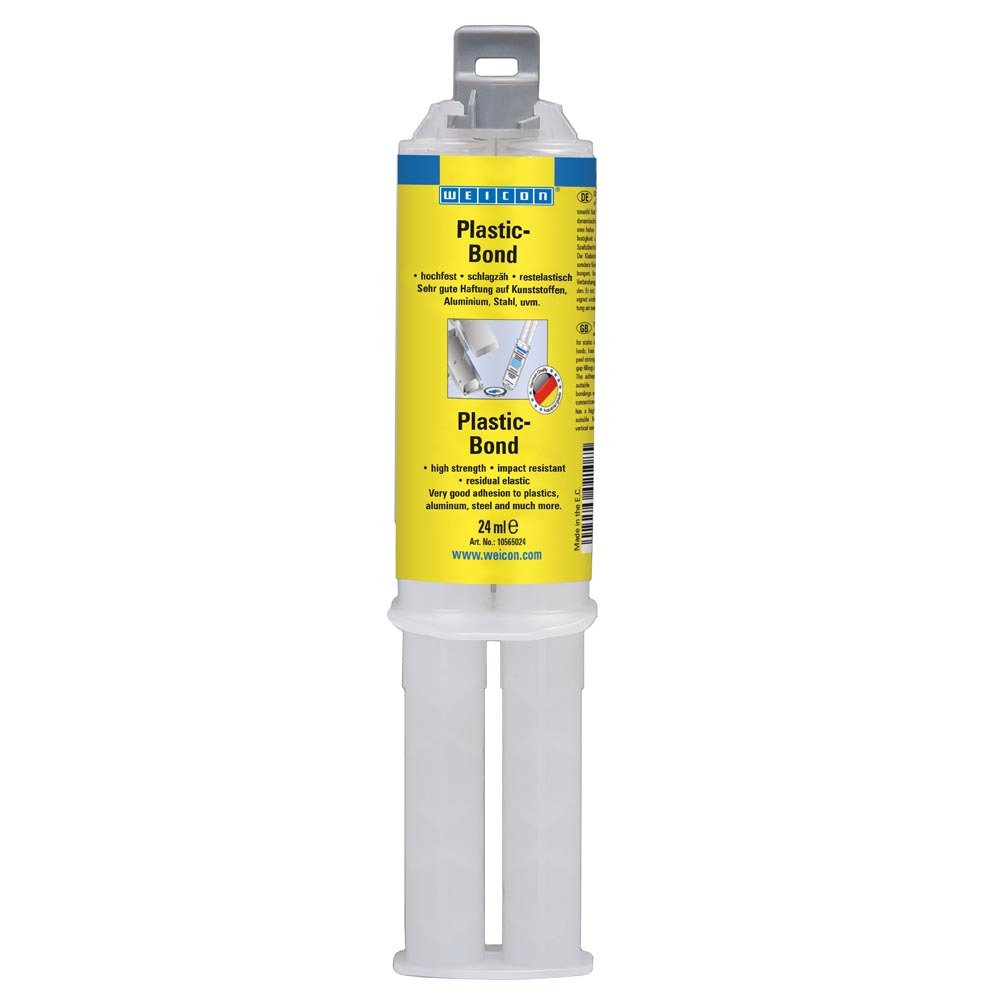

Plastic Bond - 24ml

SKU: SWM000381B01V0001
MPN: 10565024
Availability: Available for Fast Dispatch.
$25.28
INC. GST
$22.75
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 3 - 5 and pay only $24.21 each
Buy 6 or above and pay only $21.78 each
  • Excellent adhesion on plastics, even hard to bond types.
  • High strength, permanent bonding.
  • Shock and impact resistant.

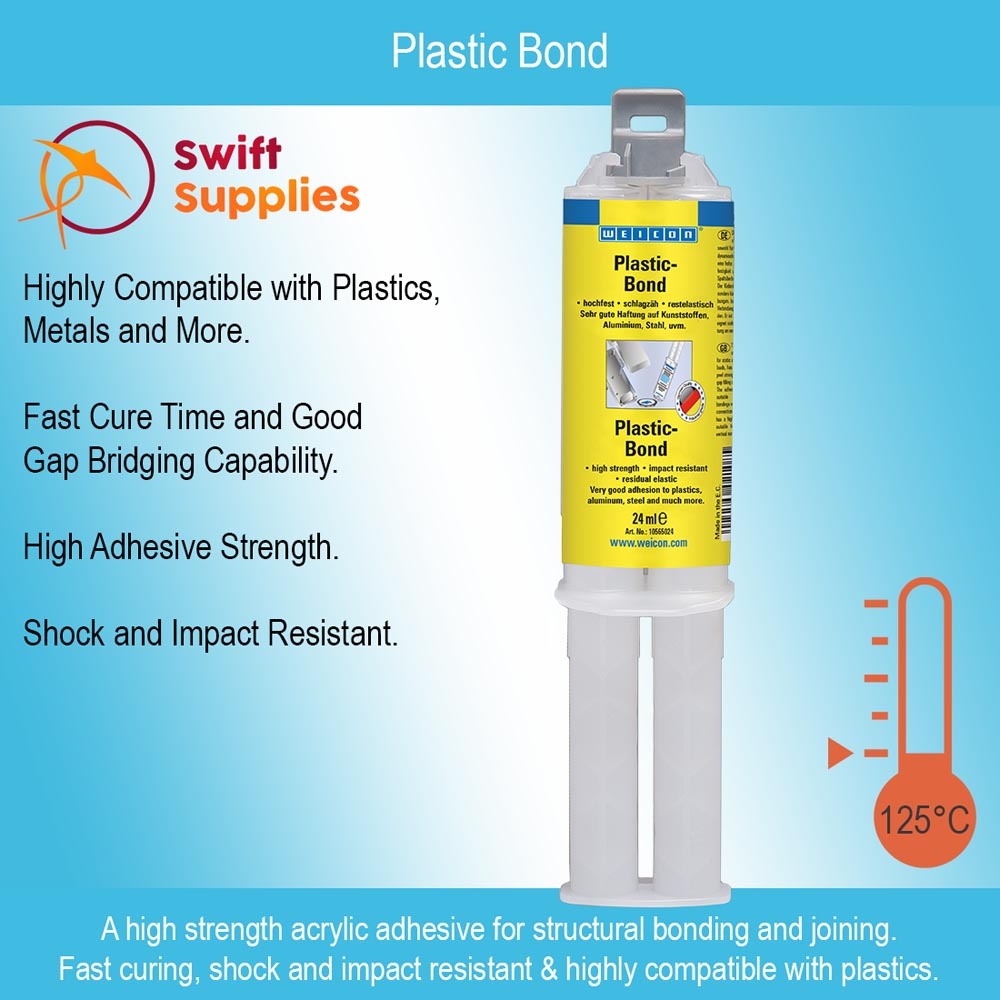

Plastic Bond is a specialised type of Methyl Methacrylate Adhesive (MMA) that has been designed specifically for bonding plastics both to themselves and to other materials. This solvent-free adhesive exhibits excellent adhesion to most plastics, aluminium, steel, and many more materials.

More information on the various characteristics and capabilities of this glue is provided in the following sections.

High Strength Bonding of Plastics and other Materials.

The table below provides an overview of the Shear Strength achieved by Plastic Bond with various material types. All were tested in accordance with Din 53281 standards.

Aluminium 20 N/mm²
Sand Blasted Steel 23 N/mm²
Stainless Steel 22 N/mm²
Polycarbonate 11 N/mm²
PMMA 9 N/mm²
ABS 7 N/mm²
Hard PVC 12 N/mm²
Fibreglass Reinforced Polyester 21 N/mm²
Fibreglass Reinforced Epoxy 22 N/mm²
Polyamide 6.6 1 N/mm²

Fast Curing Acrylic Adhesive.

Plastic Bond has a fast cure time making it suitable for use in many production line environments. It will achieve 35% of final strength after about 40 minutes and 50% after 60 minutes. Curing will be complete after 12 hours.

Easy to Use with No Complex Mixing.

A two-part adhesive, Plastic Bond requires no measuring or complex mixing. Simply reject the first centimetre of the dosed bead. Mix the product thoroughly on a surface. Apply adhesive mixture quickly to only one of the surfaces to be bonded. Join both surfaces immediately afterwards.

Plastic Bond is also compatible with our Quadro Mixing Nozzles if this method is preferred.

Thicker, High Viscosity Glue.

Plastic Bond has a good, thick nature which allows it to be applied accurately to small parts, narrow walls, and vertical surfaces. Viscosity is listed as 40.000 - 60.000 mPa·s.

Applications for Plastic Bond Adhesive.

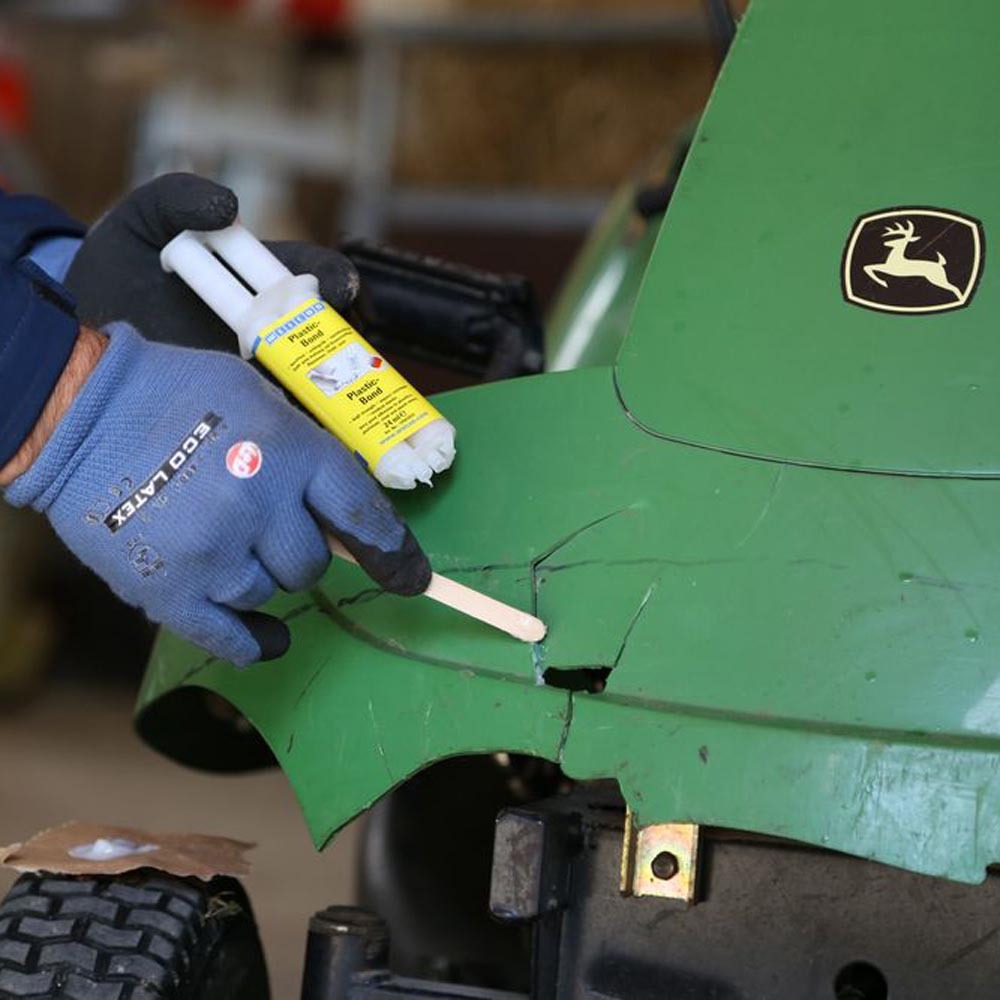

Plastic Bond is used in all kinds of industries and applications where a strong, lasting adhesive is required. These include plastic fabrication, electrical engineering, wood processing, metal construction, vehicle repairs, mechanical engineering and more.

Basis Methyl Methacrylate (MMA)
Colour After Curing Cream, Milky white
Density of the Mixture 0.98 – 1.02 g/cm³
Mixing Ratio 1:1
Viscosity of the Mixture 40,000 – 60,000 MPa
Application Procedure A-B Method
Composition Thixotropic
Pot Life (at 20°C) 15 Minutes
Handing Strength (35% of Final) 40 Minutes
Capable of Bearing Mechanical Loads
(50% of Final)
60 Minutes
Processing Temperature +10°C to +40°C
Curing Temperature +18°C
Fully Cured (100%) 12 Hours
Adhesive Gap Bridging 0.1mm – 5mm
Temperature Resistance (After Curing) -50°C to +125°C
Shear Strength (According to DIN 53281)
Aluminium 20 N/mm²
Sand Blasted Steel 23 N/mm²
Stainless Steel 22 N/mm²
Polycarbonate 11 N/mm²
PMMA 9 N/mm²
ABS 7 N/mm²
Hard PVC 12 N/mm²
Fibreglass Reinforced Polyester 21 N/mm²
Fibreglass Reinforced Epoxy 22 N/mm²
Polyamide 6.6 1 N/mm²



SKU SWM000381B01V0001
Model # 10565024
Brand Weicon
