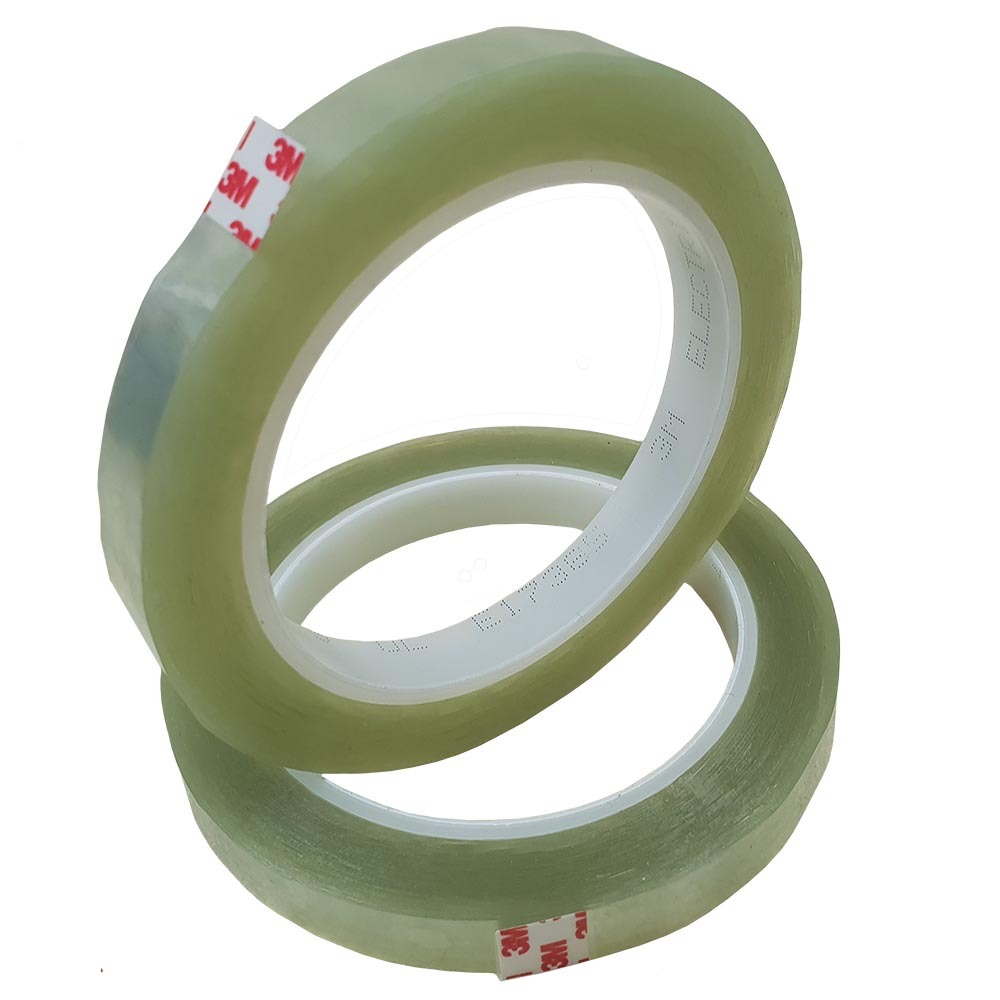

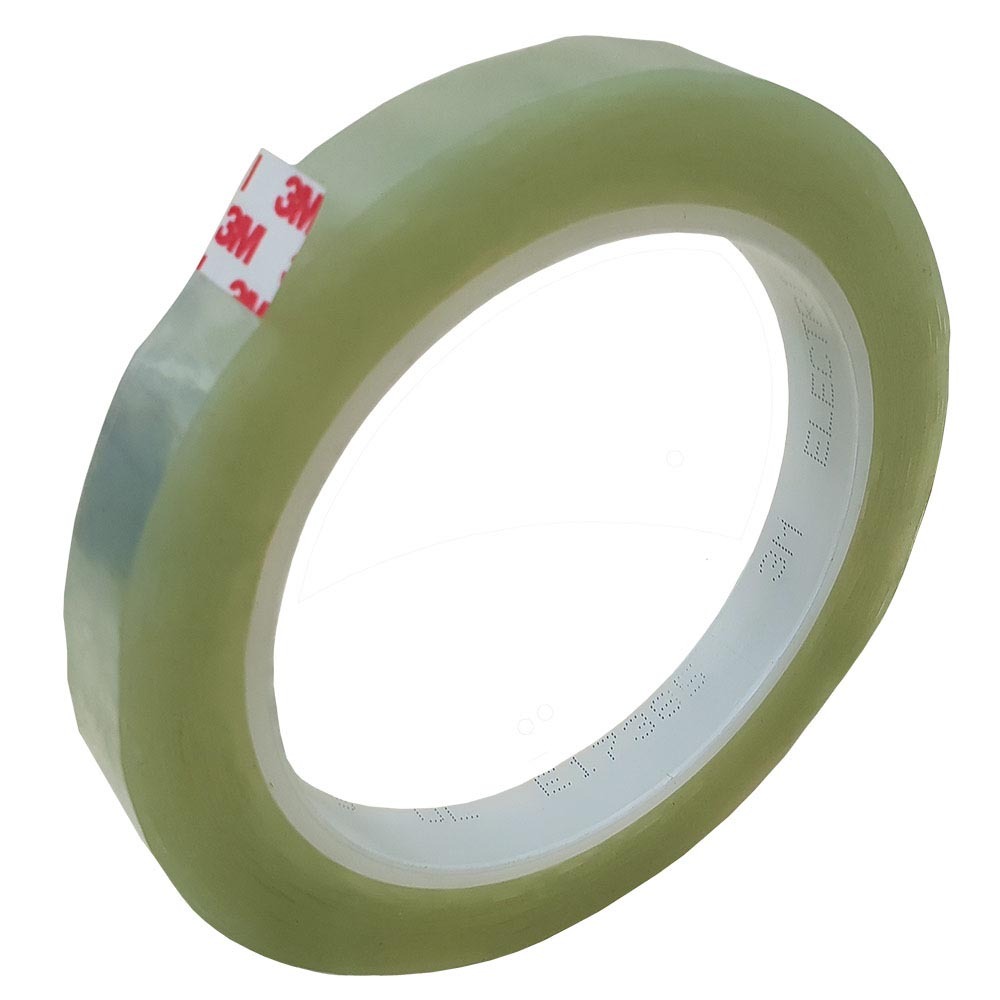

3M Scotch No. 5 Clear Electrical Insulation Tape - 12mm Wide x 66Mtrs Long

SKU: SWM000387P01V0001
Availability: Cut to Order, Ships in 2-5 W/Days.
$14.88
INC. GST
$13.39
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 5 - 19 and pay only $13.23 each
Buy 20 or above and pay only $12.38 each
  • Premium quality, transparent electrical insulation tape.
  • Acrylic adhesive is oil resistant and withstands most common cleaning solvents.
  • UL recognised for use in applications up to 130°C (Class B).
  • Available in a large selection of sizes. Custom widths also available upon request.

3M Scotch No. 5 Clear Electrical Insulation Tape is a high quality, adhesive electrical insulation tape often used for the insulation of motor coils, transformers and wiring. It consists of a thin, transparent layer of polyester film which is coated on one side with a strong acrylic adhesive.

It is resistant to most common cleaning solvents and oils.

Physical Properties.

3M # 5 Electrical Tape is made from a 0.025mm layer of polyester film. Once the adhesive is added, total tape thickness comes in at 0.063mm (2.5 mil).

This tape exhibits very low stretch (100% max. elongation) during application but is highly conformable for easy application around coil knuckles, lead junctions and irregular shaped objects. It has a breaking strength rating of 44 N/10mm.

3M 5 Clear Electrical Tape is UL recognised for us in electrical applications up to 130°C (266°F). The acrylic adhesive is tacky, fast acting and strong. Adhesion to steel is rated at 3.8 N/10mm).

The thin, PET Film used in this tape has good abrasion resistance and resists cut-through and puncturing.

Electrical Insulation Properties.

No. 5 Electrical Tape has a dielectric strength rating of 5,500V and an insulation resistance rating of >1 x 106 megohms. It is typically used as primary insulation for wires and lower voltage cables or as secondary insulation in medium to high voltage electrical apparatus.

Applications for 3M Scotch 5 Clear Electrical Insulation Tape.

  • Capacitor holding.
  • Cable and wire insulation.
  • Secondary insulation in medium to high voltage electric motors and transformers.
  • As a protective overwrap for underlying insulation.
Colour Clear / Transparent
Backing Material Polyester Film
Adhesive Acrylic
Backing Thickness 0.025mm (1 mil)
Thickness (Overall) 0.063mm (2.5 mil)
Temperature Class 130°C (266°F)
Breaking Strength1 44 N / 10mm (25 lbs./in)
Elongation 100%
Adhesion to Steel1 3.8 N / 10mm (35  oz./in)
Dielectric Strength1 5,500V
Insulation Resistance1 >1 x 106 megohms
Electrolytic Corrosion Factor2 1.0

1 Test Method ASTM D-1000.
2 3M Test Method.

3M 5 Electrical Tape is UL Recognised as a electrical insulation tape for applications not exceeding 130°C.

UL and CSA Component Recognition
• Temperature not exceeding 130° C

UL File Number E17385, Guide OANZ2. Underwriters Laboratories (UL) Recognized products have been evaluated for use as components of end-product equipment that is Listed or Classified by UL. CSA Component File Number LR93411, Product Class No. 9052-30.

To achieve UL and CSA Recognition, component construction must meet UL and CSA specifications and conditions of acceptability for proper and safe use of the component or product.

SKU SWM000387P01
Brand 3M
