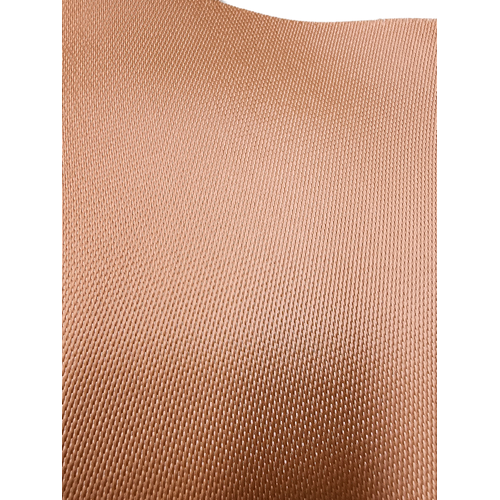

Abrasion Resistant Silica Cloth - 0.75mm x 914mm (Per Metre)

• High-performance woven silica cloth with a durable red abrasion-resistant coating.
• Minimum 96% silica content for continuous high-temperature protection up to 1000°C.
• Coated surface provides improved mechanical protection, handling and service life.
• Available by the metre in 0.75mm and 1.3mm thicknesses.
• Custom fabricated blankets, curtains, jackets, heat shields and other components available.

Our Abrasion Resistant Silica Cloth is a premium high-temperature fabric designed for applications requiring excellent thermal protection combined with greater resistance to mechanical wear.

Manufactured from continuous filament silica fibres containing a minimum of 96% SiO₂, the woven base cloth provides exceptional high-temperature performance while remaining flexible enough to wrap, fold, cut and fabricate into a wide variety of thermal protection components.

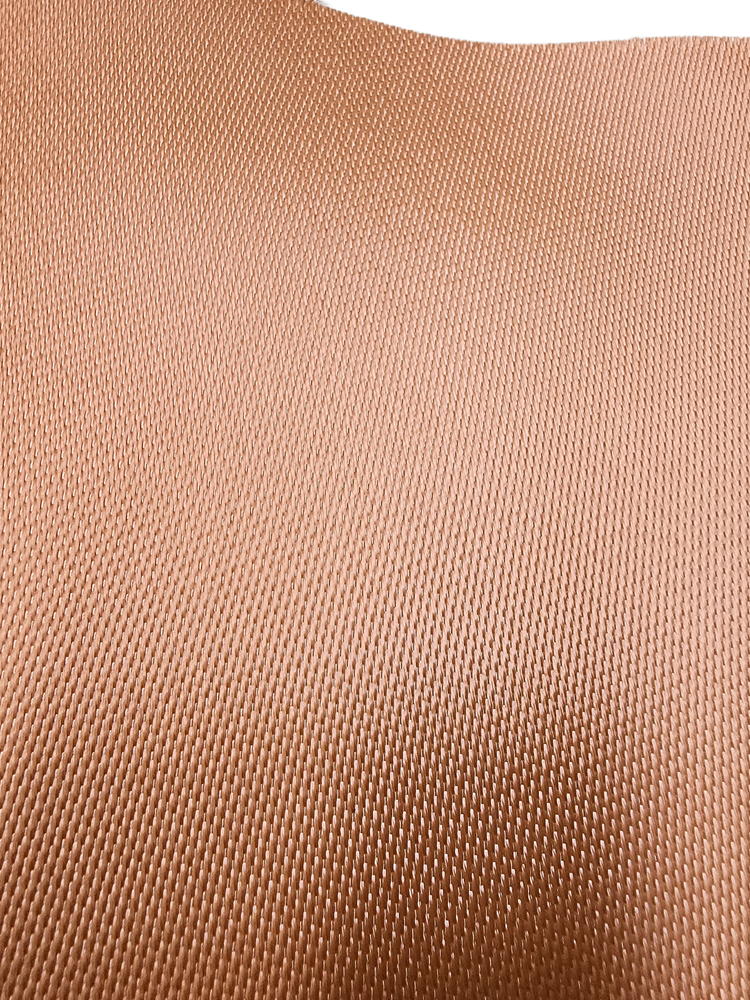

What sets this material apart from standard silica cloth is its durable red abrasion-resistant surface coating. This provides additional mechanical protection to the underlying silica fabric, helping improve its durability and service life in applications where the cloth may be subjected to rubbing, handling or other forms of mechanical wear. The distinctive red finish also improves visibility and handling during fabrication and installation.

High Temperature Protection up to 1000°C

Abrasion Resistant Silica Cloth is designed for some of the most demanding high-temperature environments encountered in industrial maintenance, fabrication and thermal insulation.

The silica fibre base is rated for continuous exposure to temperatures up to 1000°C, with a melting point of approximately 1650°C. Its specified minimum operating temperature is -40°C.

This gives the material considerably greater temperature capability than conventional fibreglass fabrics and many coated industrial textiles, while retaining the flexibility needed for blankets, curtains, wraps and fabricated insulation systems.

Abrasion Resistant Coating for Improved Durability

High-temperature fabrics are frequently exposed to more than heat alone.

Repeated handling, movement against equipment, installation and removal, vibration and contact with surrounding components can gradually damage an uncoated woven fabric.

The specialised red abrasion-resistant coating provides an additional protective surface over the silica cloth, improving resistance to this type of mechanical wear. This makes the cloth particularly attractive for reusable thermal protection components and installations where the material will be regularly handled rather than simply installed and left untouched.

Flexible & Easy to Fabricate

Despite its high-temperature capability, Abrasion Resistant Silica Cloth remains a flexible woven textile.

It can be cut and fabricated into shapes suitable for equipment protection, thermal barriers and insulation systems. High-silica fabrics are also commonly used as the base material for sewn blankets, curtains and other fabricated thermal protection products.

This combination of flexibility and thermal performance allows the material to protect irregularly shaped equipment and areas where rigid insulation products would be impractical.

Typical Applications for Abrasion Resistant Silica Cloth

The combination of extreme temperature resistance, flexibility and improved mechanical durability makes this material suitable for a broad range of thermal protection applications.

Typical uses include:

• Welding blankets and curtains for high-temperature fabrication and maintenance work.
• Welding screens and protective barriers around hot-work areas.
• Heat shields around machinery, exhausts and other hot components.
• Thermal insulation wraps for pipes, ducts and process equipment.
• Removable insulation blankets and jackets for pumps, valves and other equipment.
• Stress-relieving blankets and other temporary thermal insulation systems.
• Furnace and high-temperature equipment curtains.
• Heat-resistant seals and gaskets.
• Automotive and motorsport heat shielding.
• Industrial equipment protection in areas exposed to radiant or conducted heat.
• Custom thermal barriers and protective covers.

Available Sizes

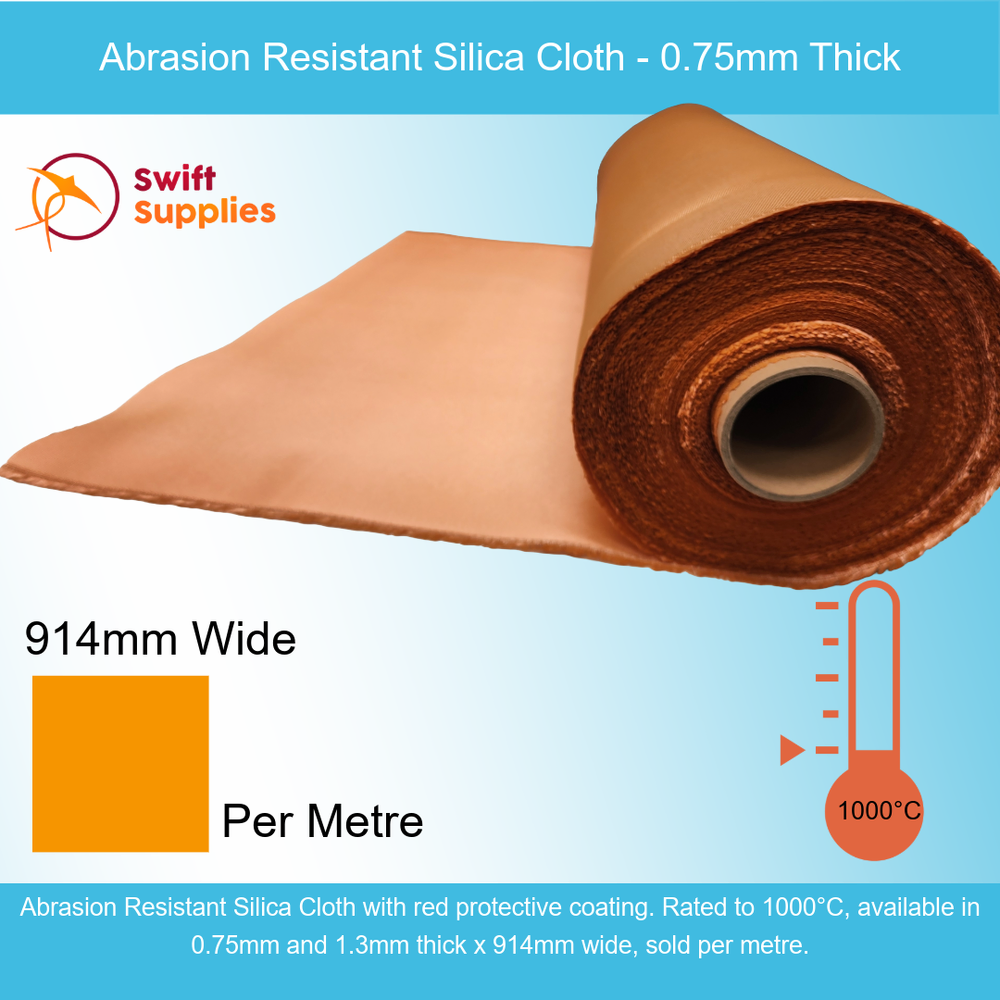

Our Abrasion Resistant Silica Cloth is stocked in two thicknesses: 0.75mm and 1.3mm.

Both are 914mm wide.

Both thicknesses are sold by the lineal metre, allowing you to purchase the quantity required rather than an entire roll.

Multiple metres ordered will be supplied as one continuous length wherever possible, up to the maximum standard roll length of 50 metres.

Custom Fabricated Silica Cloth Parts

In addition to supplying Abrasion Resistant Silica Cloth by the metre, Swift Supplies can fabricate this material into finished thermal protection components.

Our custom fabrication capabilities include:

• Welding and heat protection blankets.
• Thermal curtains and screens.
• Removable insulation jackets.
• Heat shields and barriers.
• Custom-cut panels and shapes.
• Strips and custom-width material.
• High-temperature seals and other fabricated components.

If you have a drawing, dimensions, existing component or simply an application requiring high-temperature protection, contact us to discuss a custom fabricated solution.
