Description
-
Continuous temperature resistance to 1000°C.
-
≥ 96% pure silica composition for excellent thermal insulation.
-
Melting point 1650 °C.
-
VW-1 flame-retardant rating (self-extinguishing).

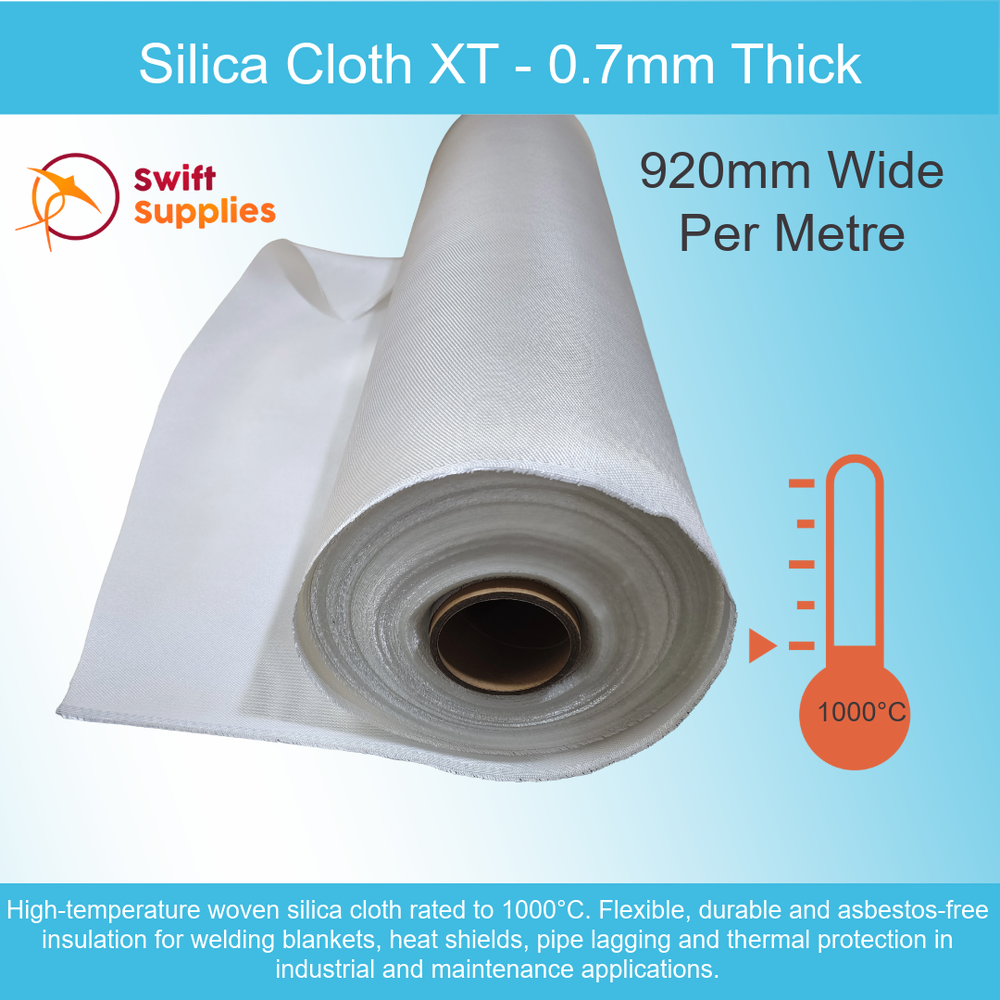

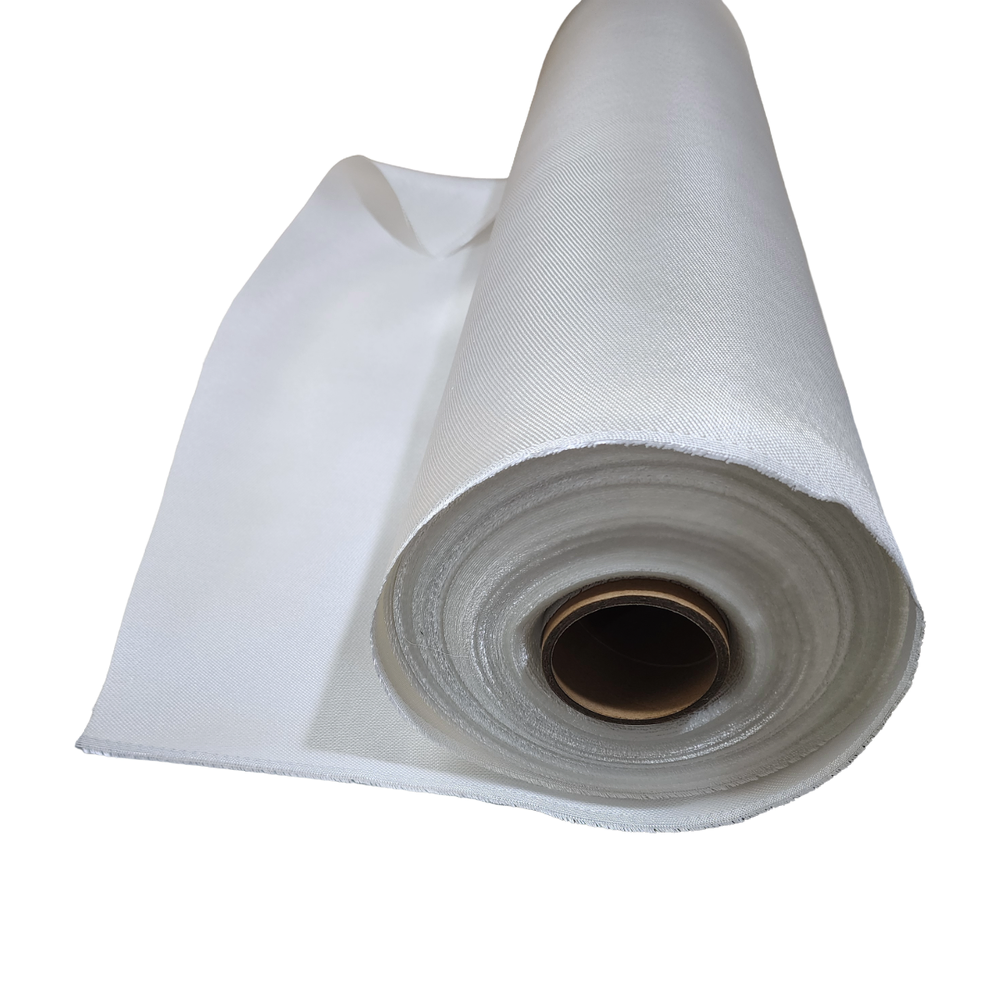

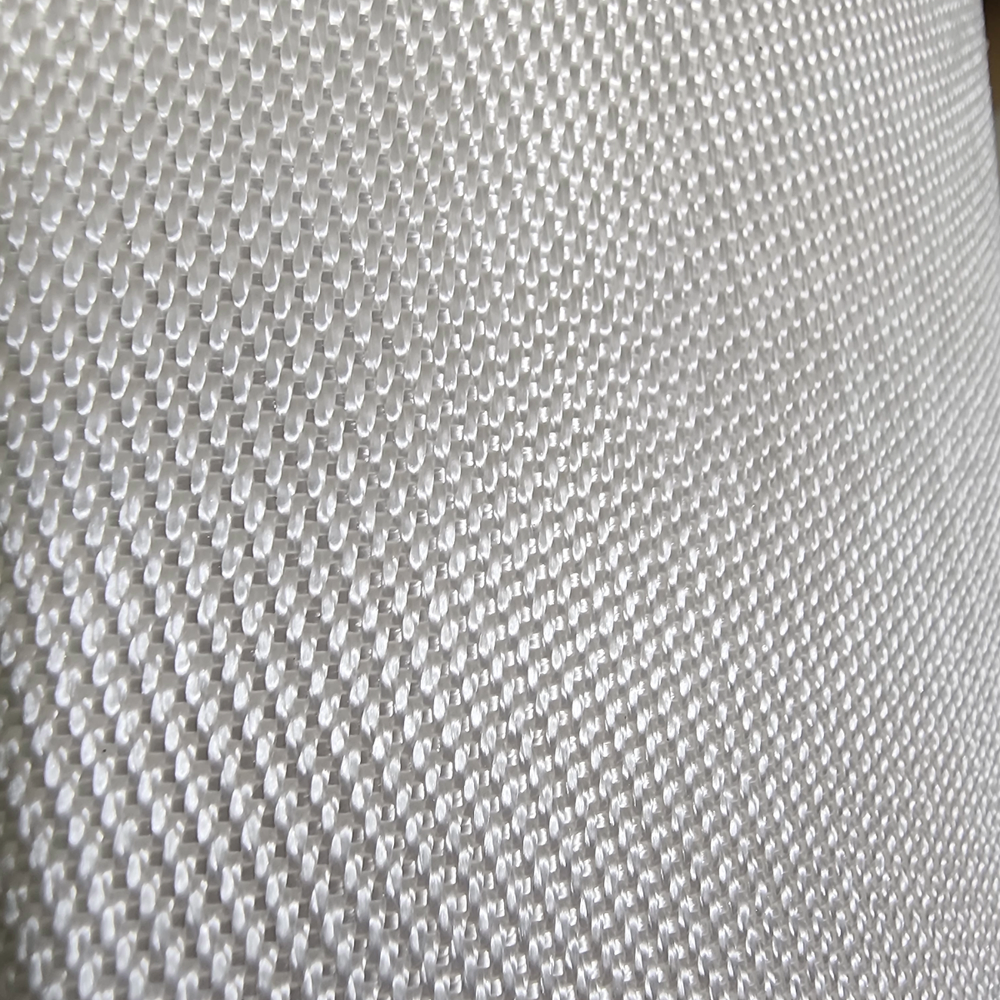

XT Silica Fibre Cloth is a premium, high-temperature insulation fabric woven from continuous filament silica yarns containing over 96% SiO₂. Designed for extreme thermal environments, it withstands continuous exposure up to 1000 °C and has a melting point of 1650 °C.
Lightweight, flexible and durable, this cloth provides reliable protection against heat, sparks, molten metal splash and thermal shock. Common applications include welding blankets, heat shields, equipment covers, pipe lagging and thermal curtains in industries such as power generation, metalworking, shipbuilding and manufacturing.
Easy to cut and fabricate with standard tools, XT Silica Cloth is asbestos-free, non-toxic and non-hazardous.
Typical Applications for Silica Cloth XT.
Like all the silica insulation fabrics in our range, this cloth is used for high temperature insulation work. Some specific, recurring examples we see include:
-
Welding blankets and curtains – Protecting equipment and personnel from sparks, spatter, and radiant heat.
-
Heat shields and thermal barriers – Reducing heat transfer in furnaces, foundries, and engine bays.
-
Pipe and equipment lagging – Providing long-term insulation for hot lines, ducts, and process equipment.
-
Removable insulation covers and pads – Flexible and reusable protection for valves, turbines, and exhausts.
-
Fire-resistant expansion joints and seals – Offering resilience in high-movement, high-heat environments.
-
Molten metal splash protection – Used in aluminium, steel, and glass manufacturing for operator and equipment safety.
-
Aerospace and marine insulation systems – Lightweight, high-strength material for heat containment and safety barriers.
Specifications
| Colour | White |
|---|---|
| Silica Content | 96% amorphous silica (SiO2) +/-1% |
| Temperature Rating | -40°C to +1,000°C |
| Melting Point | +1,650°C |
| Flammability Rating | VW-1 |
| SKU | SWM000629B01 |
|---|---|
| Brand | HeatProtect |
FAQs
How long is a Full Roll?
Full rolls of our Silica Cloth XT are 50 Metres in length. This is the maximum number of metres we can supply in a single continuous length.
If I order 10 Metres, will I get 2 x 5 or 1 x 10mtr roll?
We will always supply in one continuous length whenever possible to maximise utility. The upper limit is 50 metres. Any order for less than this will be supplied in a continuous length.
