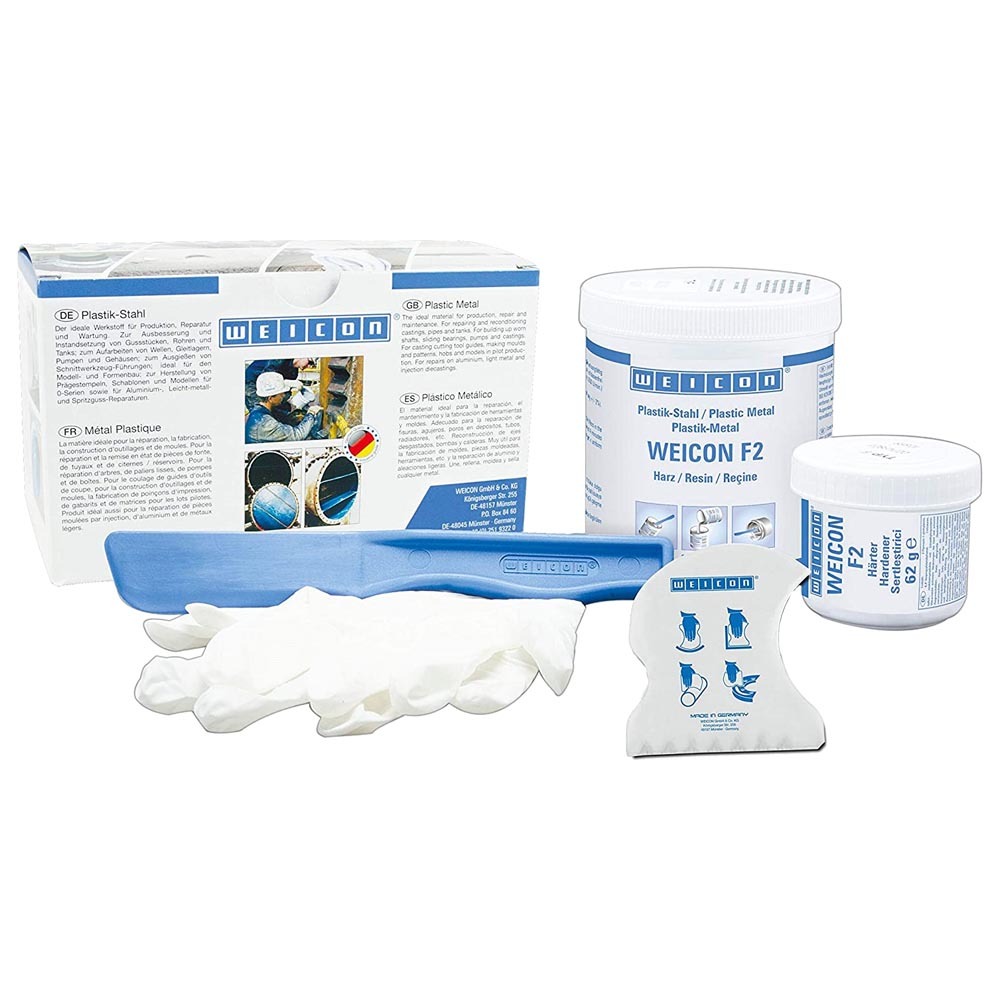

Plastic Metal F2 - 500gm Kit

SKU: SWM000536B01V0002
MPN: 10200005
Availability: Available for Fast Dispatch.
$68.81
INC. GST
$61.93
EX. GST
Container Size

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 2 or above and pay only $67.53 each
  • Flowable, liquid form of epoxy plastic steel.
  • Aluminium filled and especially suitable for application to aluminium, aluminium alloys, magnesium and other light metals.
  • Non-corrosive and anti-magnetic.

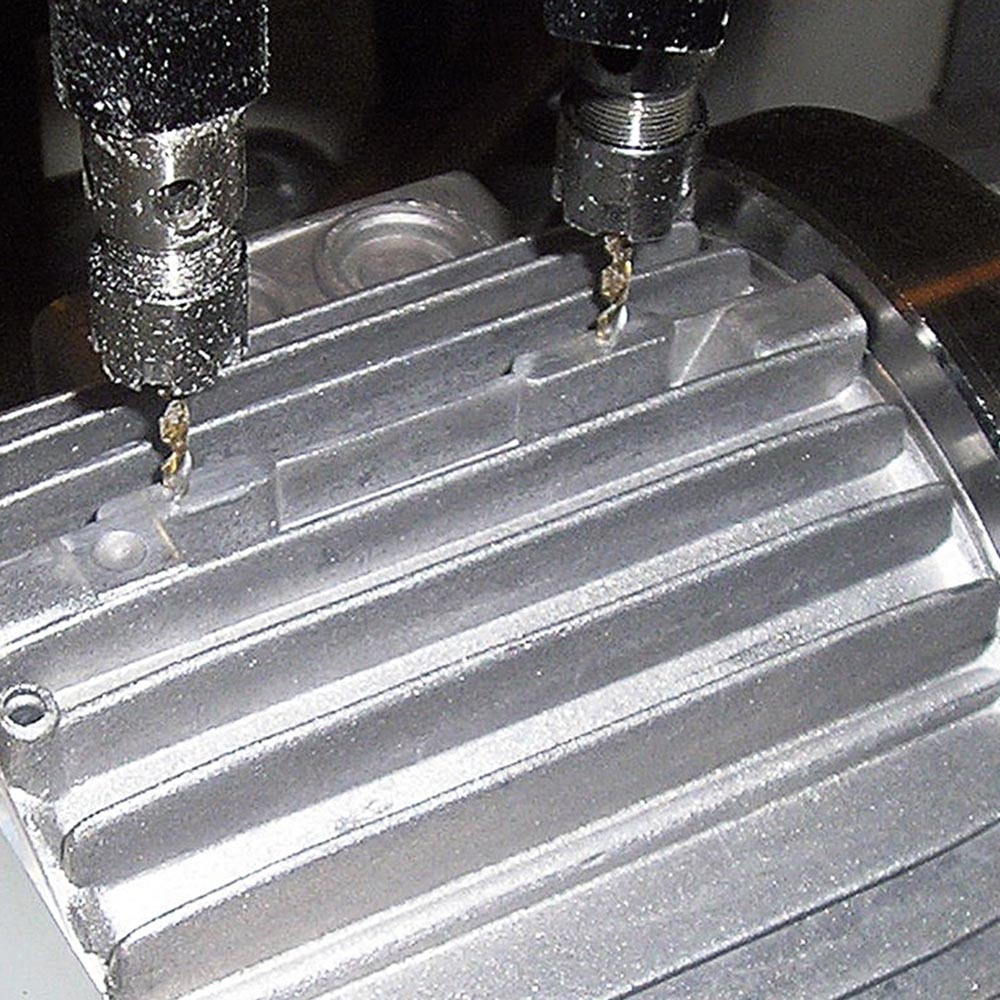

  • Ideal for the casting of models, moulds and templates. Also used for repairing porous and damaged castings and making prototypes.

Our Weicon Plastic Metal F2 is a high-quality grade of epoxy. This two-part compound is made from epoxy resin with aluminium filler and, once mixed, has a liquid, flowable consistency.

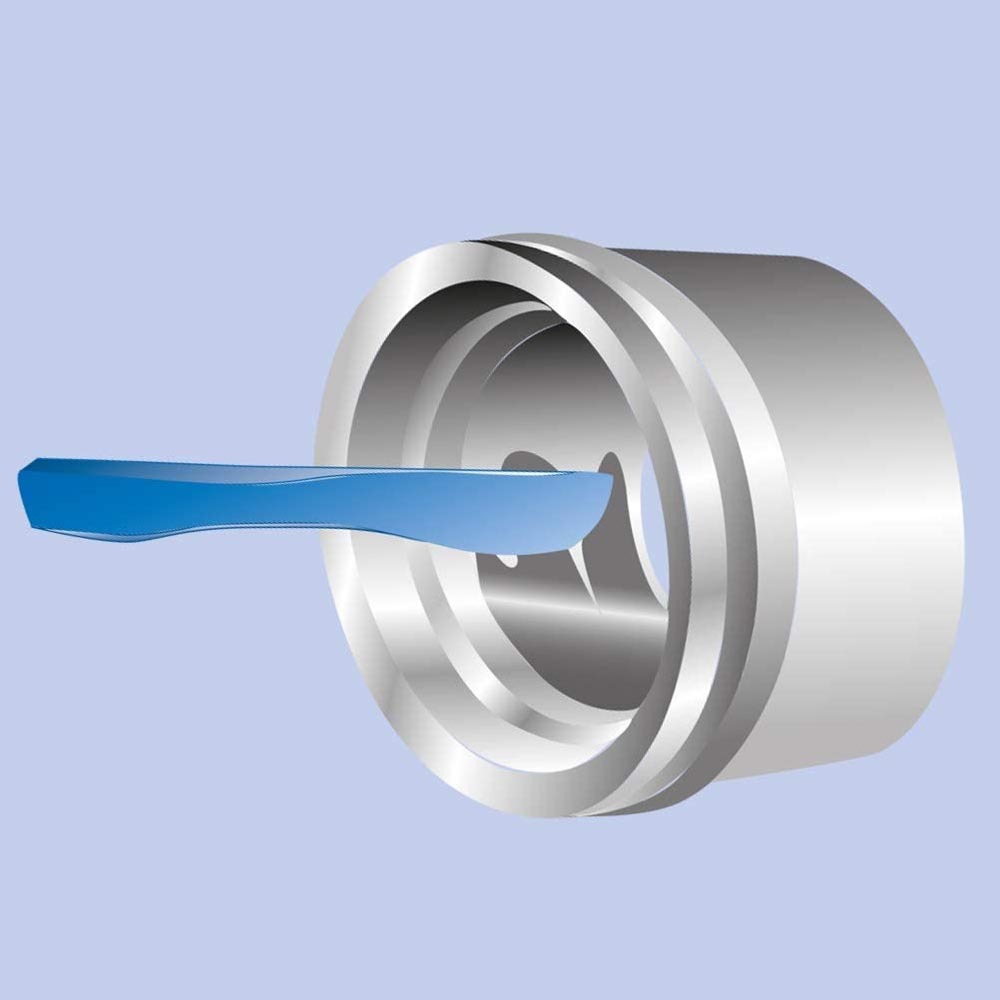

Plastic Metal F2 is typically used for repairs or coating on aluminium or other types of light metal.

Once cured, it will have a glossy, aluminium grey appearance and set hard. Tensile strength is measured at 31 MPa and it will have a shore hardness of 77 Shore D.

Plastic Metal F2 has a fairly long pot life of around 60 minutes for a 500gm batch which will give you a good amount of time to apply. It will cure to 35% of its final strength after about 12 hours and be fully cured after about 72 hours (depending on environmental conditions).

This grade of plastic steel is completely non-corrosive and safe to use with aluminium, stainless and other kinds of metal. This epoxy compound is anti-magnetic and exhibits excellent electrical insulation properties.

Plastic metal F2 can be applied in layers up to 10mm in depth. After 12 hours of curing (per layer), additional layers can be applied if needed.

Easy to Use.

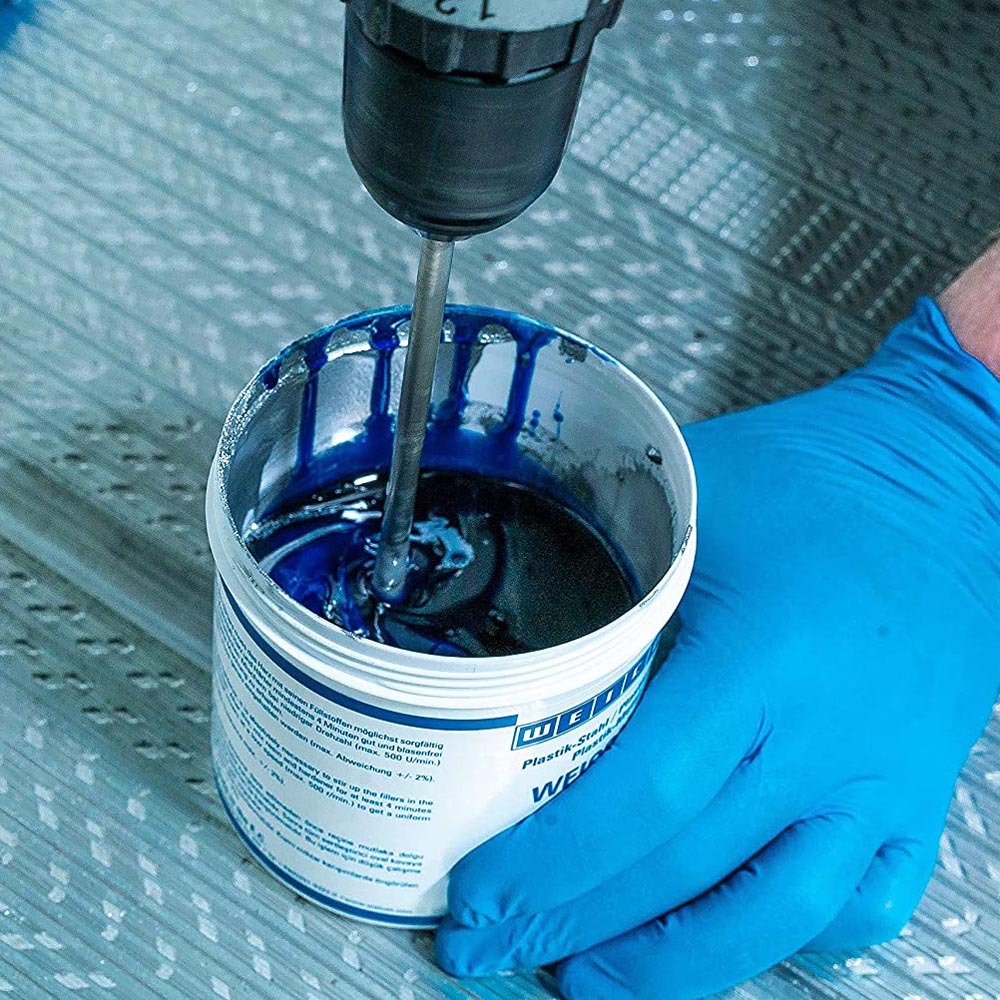

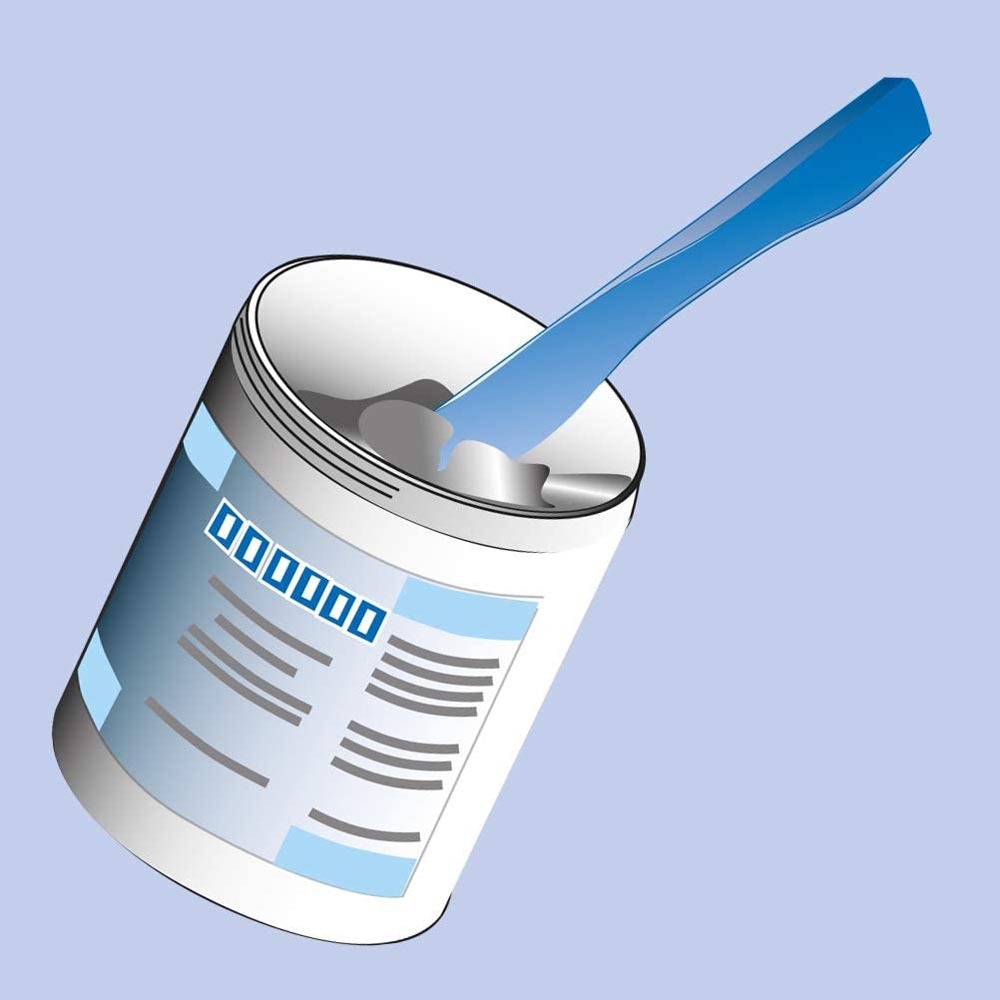

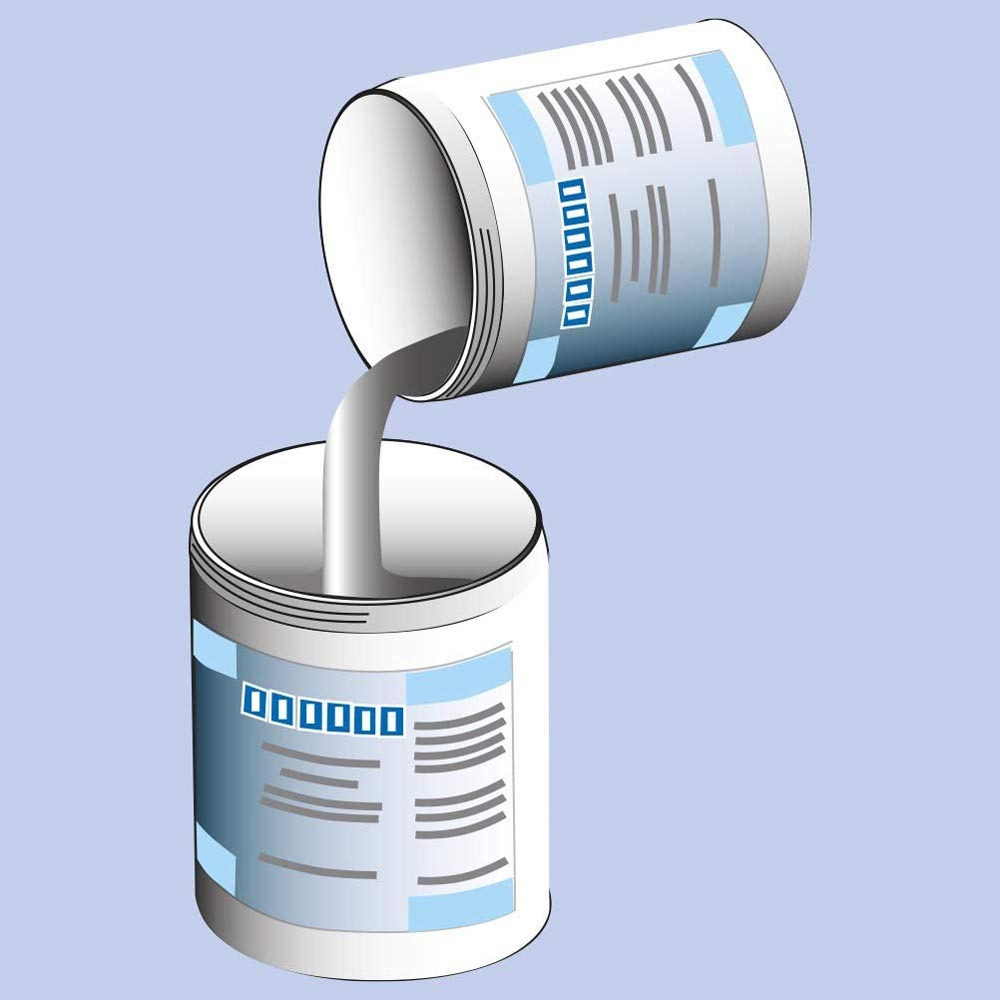

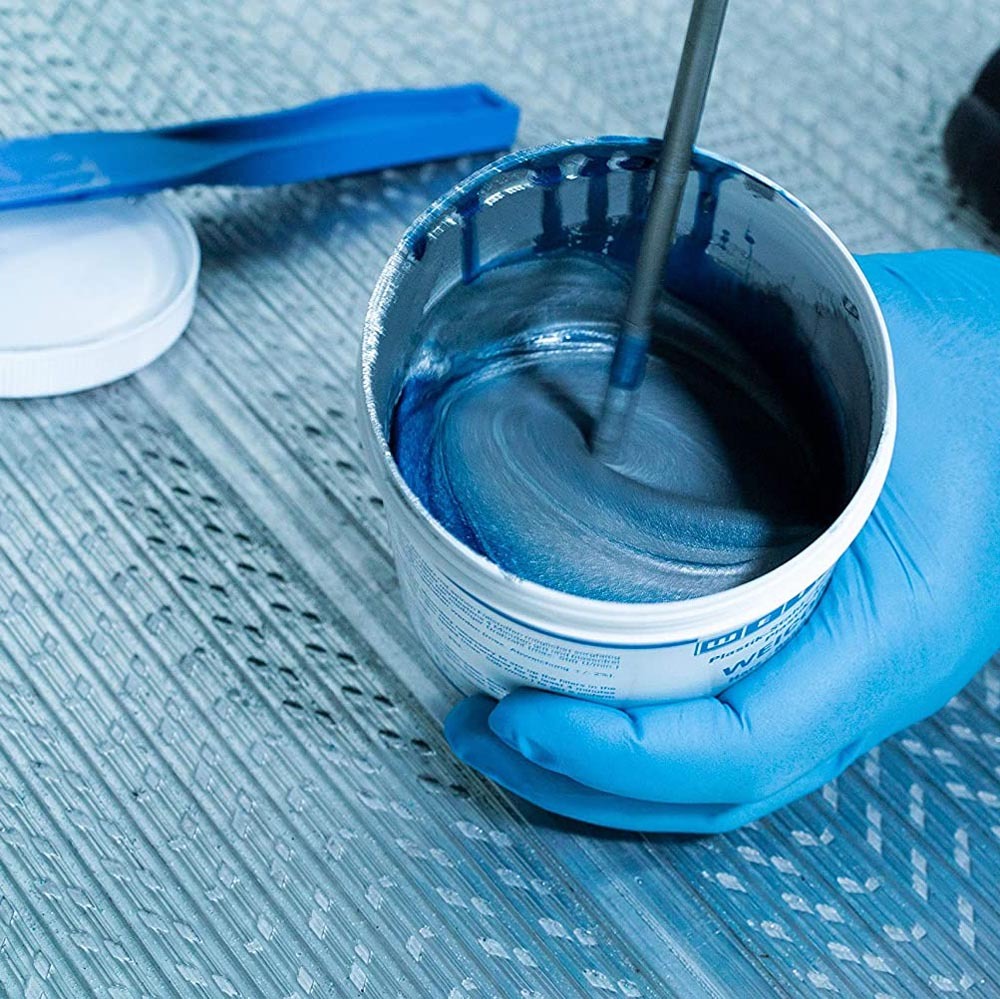

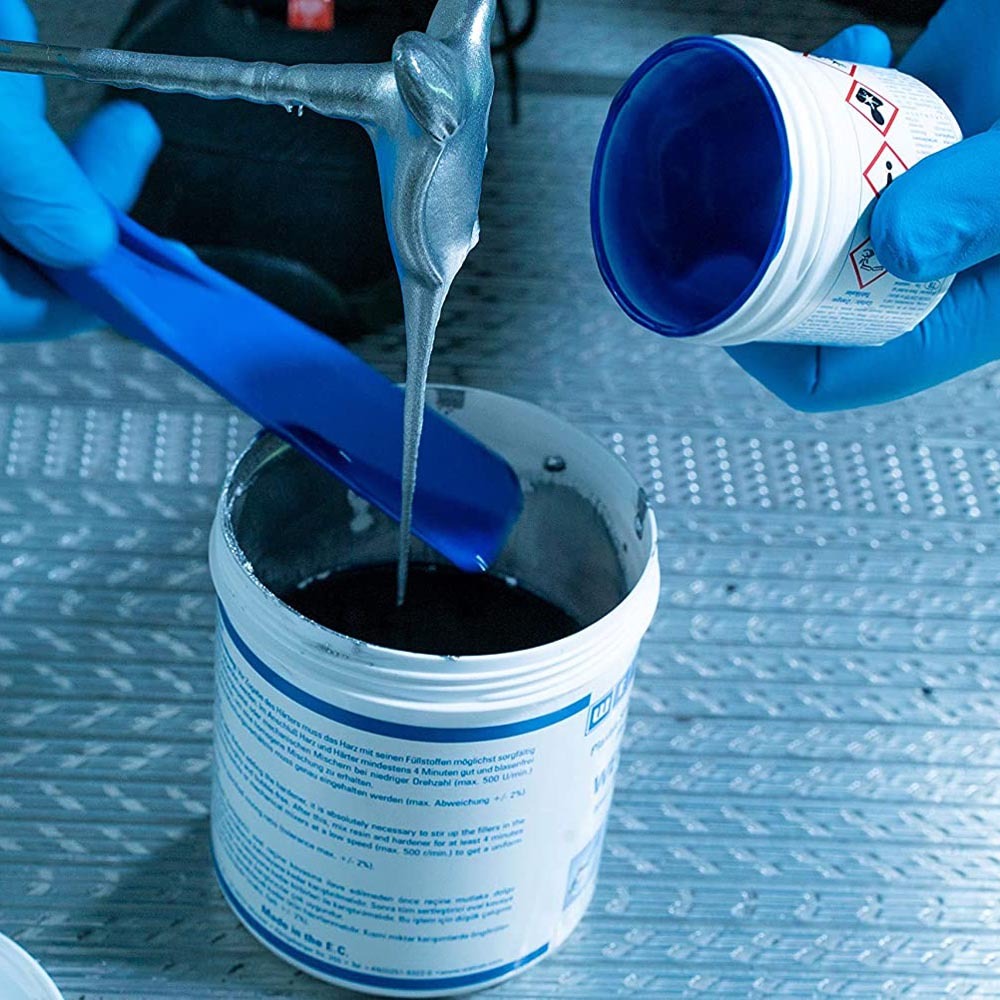

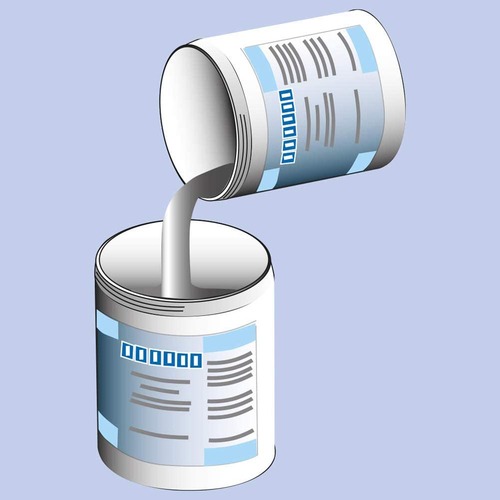

Weicon Plastic Metal F2 is a two-part epoxy. It has a mix ratio of 100:14 (resin / hardener). If using the whole kit at once though, there is no need for complex measuring as extra space has been left in the resin container for you to add the hardener and stir.

Far more information on how to use and apply this epoxy for best results is included on the Plastic Metal F2 TDS.

Basis Aluminium Filled Epoxy Resin
Mix Ratio (by Weight) 100 : 14 (Resin / Hardener)
Density of the Mixture 1.6 g/cm³
Viscosity of the Mixture 200,000 mPa·s
Colour Aluminium, Glossy
Maximum Layer Thickness 10mm
Mechanical Strength (80% of Final) 26 Hours (when curing at 20°C)
Final Strength 72 Hours (when curing at 20°C)
Mean Compressive Strength 39 MPa (DIN EN ISO 604)
Mean Tensile Strength 31 MPa (DIN EN ISO 527-2)
Bending Strength 26 MPa (DIN EN ISO 178)
e-Modulus (Tensile) 3,200 - 3,400 MPa (DIN EN ISO 527-2)
Shore Hardness 77 Shore D (DIN ISO 7619)
Continuous Temperature Rating -35°C to +120°C
Thermal Conductivity 1.0 W/m·K (DIN EN ISO 22007-4)
IMPA Reference Numbers 812933 (500gm) / 812934 (2kg)
ISSA Reference Numbers 75.509.11 (500gm) / 75.509.12 (2kg)
SKU SWM000536B01
Model # 10200000
Brand Weicon
