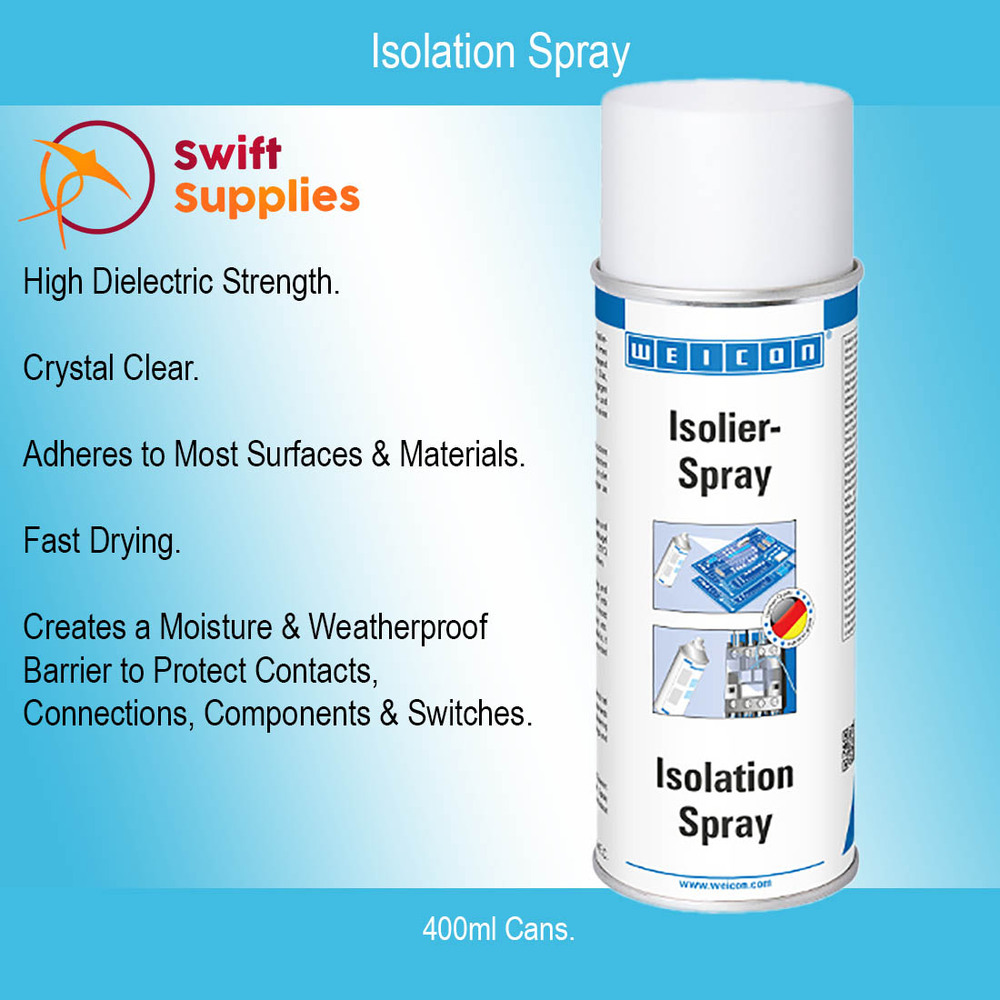

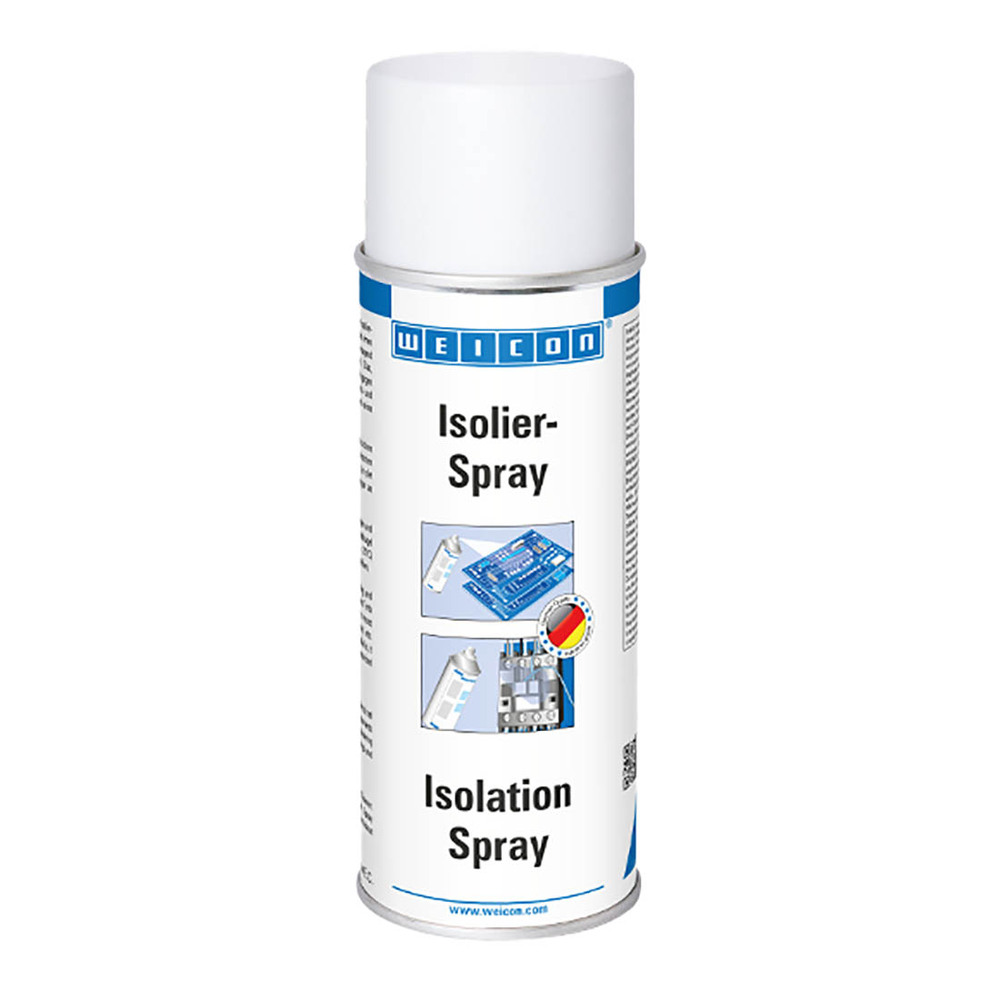

Isolation Spray - 400ml

SKU: SWM000470B01V0001
MPN: 11551400
Availability: Available for Fast Dispatch.
$36.38
INC. GST
$32.74
EX. GST

BULK DISCOUNT RATES

All Bulk Prices Below Are Quoted Including GST.
Buy 3 - 5 and pay only $33.35 each
Buy 6 or above and pay only $32.39 each
  • Spray on electrical insulation coating.
  • High dielectric strength.
  • Crystal clear finish.
  • Compatible with a range of materials, good environmental resistance and fast drying.

Our Isolation Spray is a versatile solution for creating an electrical insulation barrier or protective coating. Based on acrylic resin, this spray-on varnish is clear in colour.

Isolation Spray has a high dielectric strength of 67.8 kV/mm. It exhibits good adhesion to most surfaces including metal, glass, plastic, wood and more. It is also fast drying. It will be dust dry after about 15 minutes. Full cure takes about 2 hours.

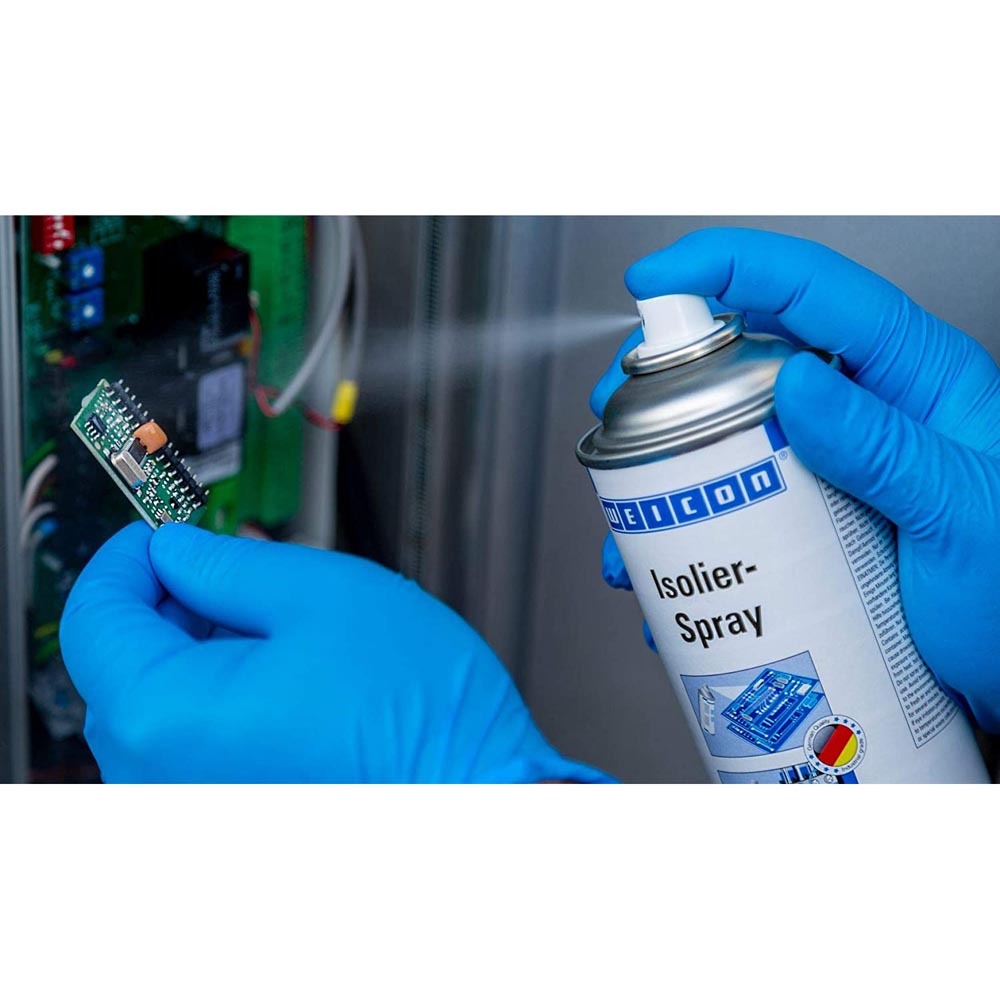

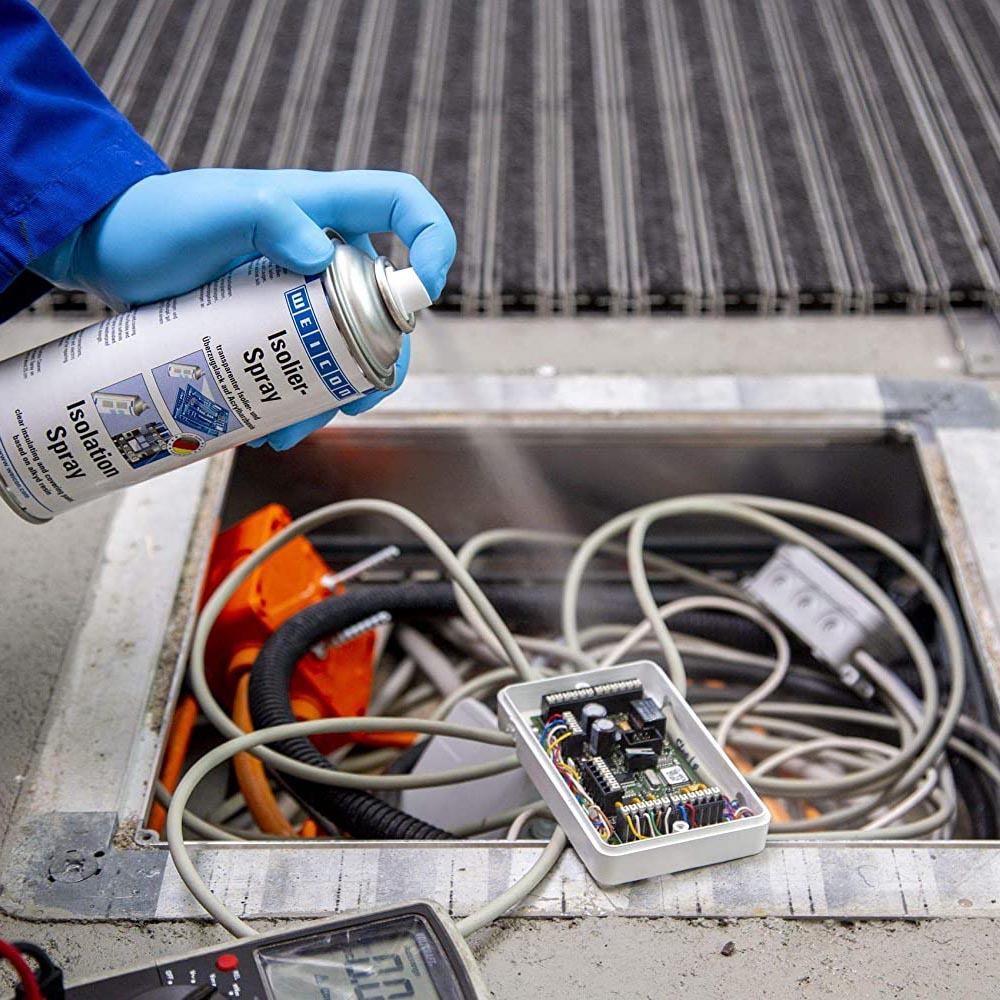

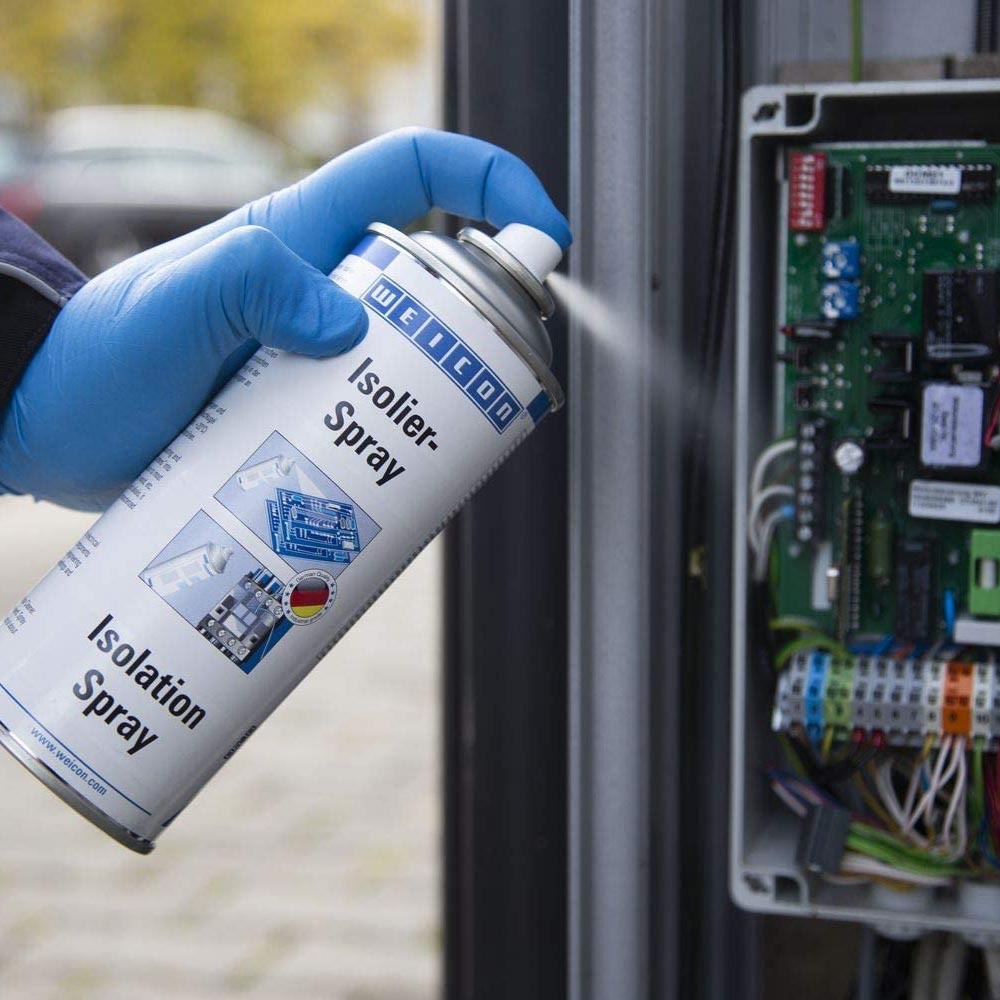

This quality insulating spray isolates and protects connections, switches, switchboards, components and coils. It is also an excellent sealing spray.

Once dry, Isolation Spray has excellent resistance to UV (suitable for outdoor use), acids, oil and alkalis. The barrier it creates is moisture and weatherproof. It will withstand temperatures between -40°C and +120°C.

Colour Colourless / Clear
Scent Solvent
Minimum Shelf-Life  24 Months
Base Modified Acrylic Resin
Density 1.0 g/cm³
Surface Resistance 7,59 · 10^14 Ω
Dielectric Strength 67.8 kV/mm
Silicone Free Yes
Thermal Conductivity 0,215 W/m·K
Dust Dry After 15 Minutes
Full Cure 2 hours
Temperature Resistance -40°C to +120°C
Solids Content 50% (approx.)
Cross Cutting (DIN 53151 / ISO 2409) Gt 0-1 on Steel
SKU SWM000470B01V0001
Model # 11551400
Brand Weicon
